Raspberry Pi Hat Seat 3D print model

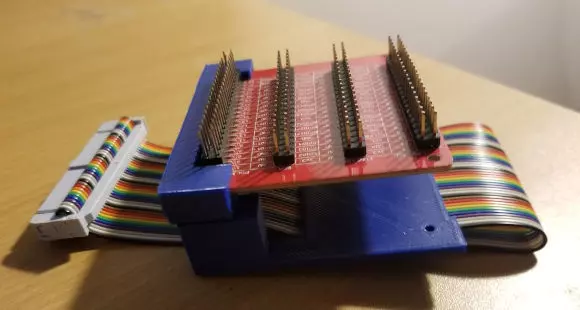

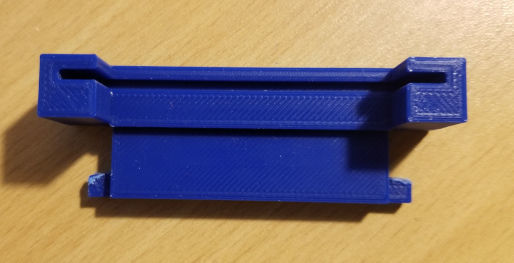

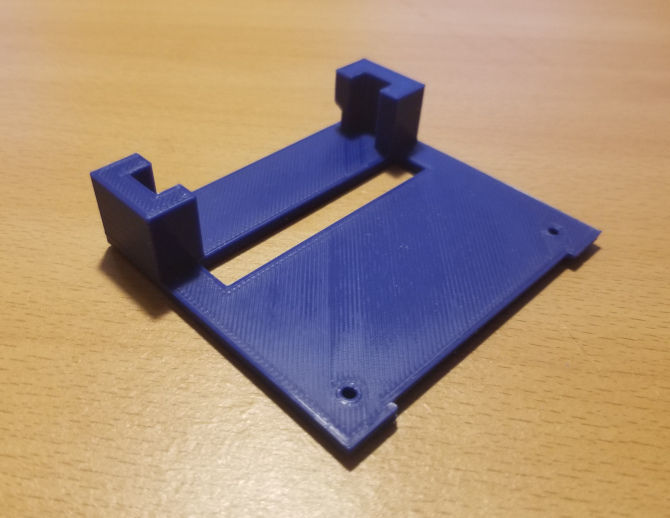

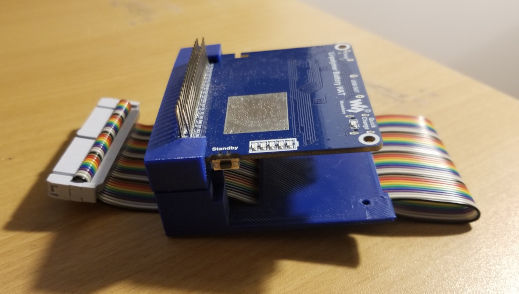

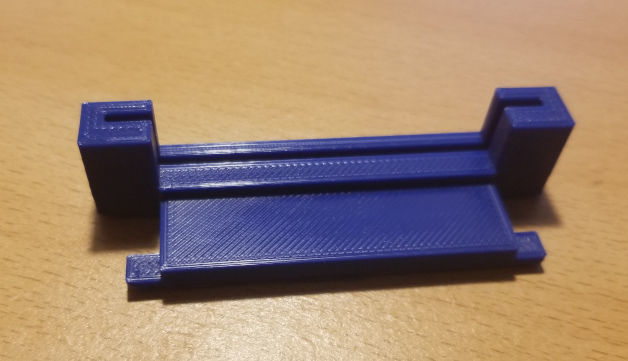

The Raspberry Pi HAT Seat comes with a locking device, a female GPIO Ribbon Cable portal, a male 40 pin GPIO header retaining seat, a ribbon cable runner and two screw holes for securing the device. The locking device is designed with two paddles that lock into the HAT or rest on top of the HAT securing the HAT in place. This HAT Seat is designed for use with a GPIO Ribbon Cable.

There is a patent pending on the HAT Seat.

Creative Commons License. This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0). You can find out more about the Creative Common License at https://creativecommons.org/licenses/
