Description

3D200 - Racing quadcopter 3D print model

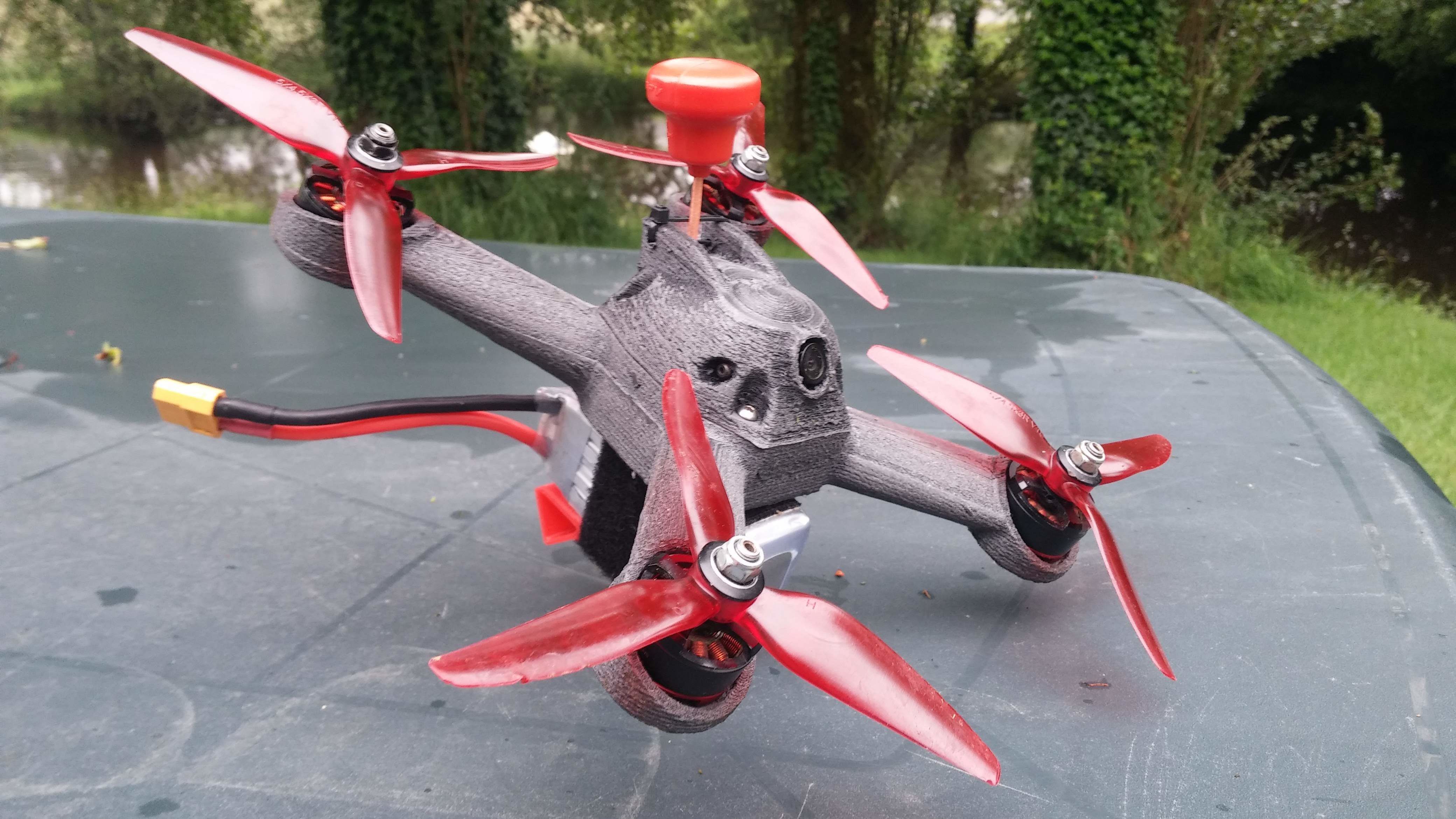

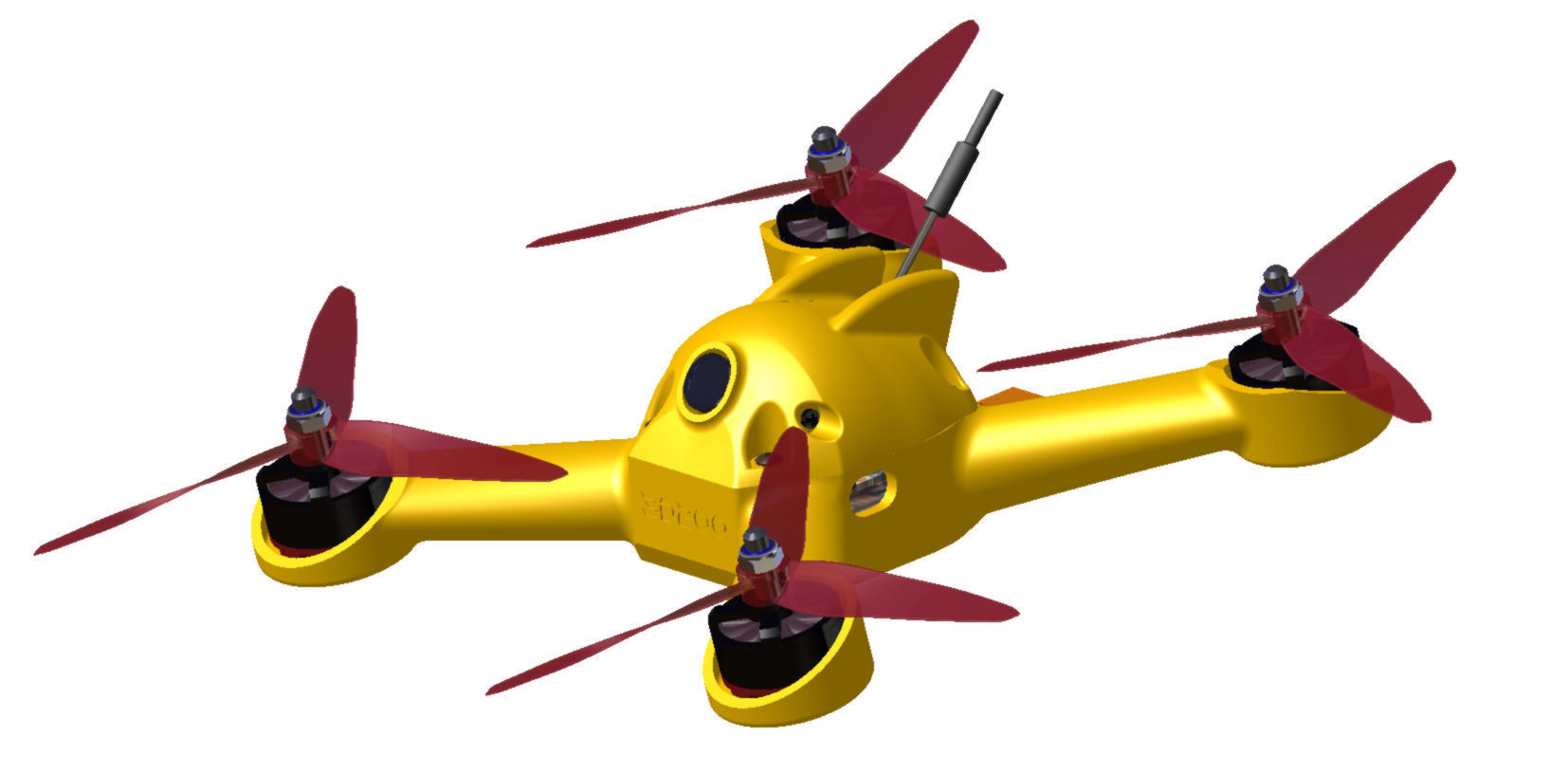

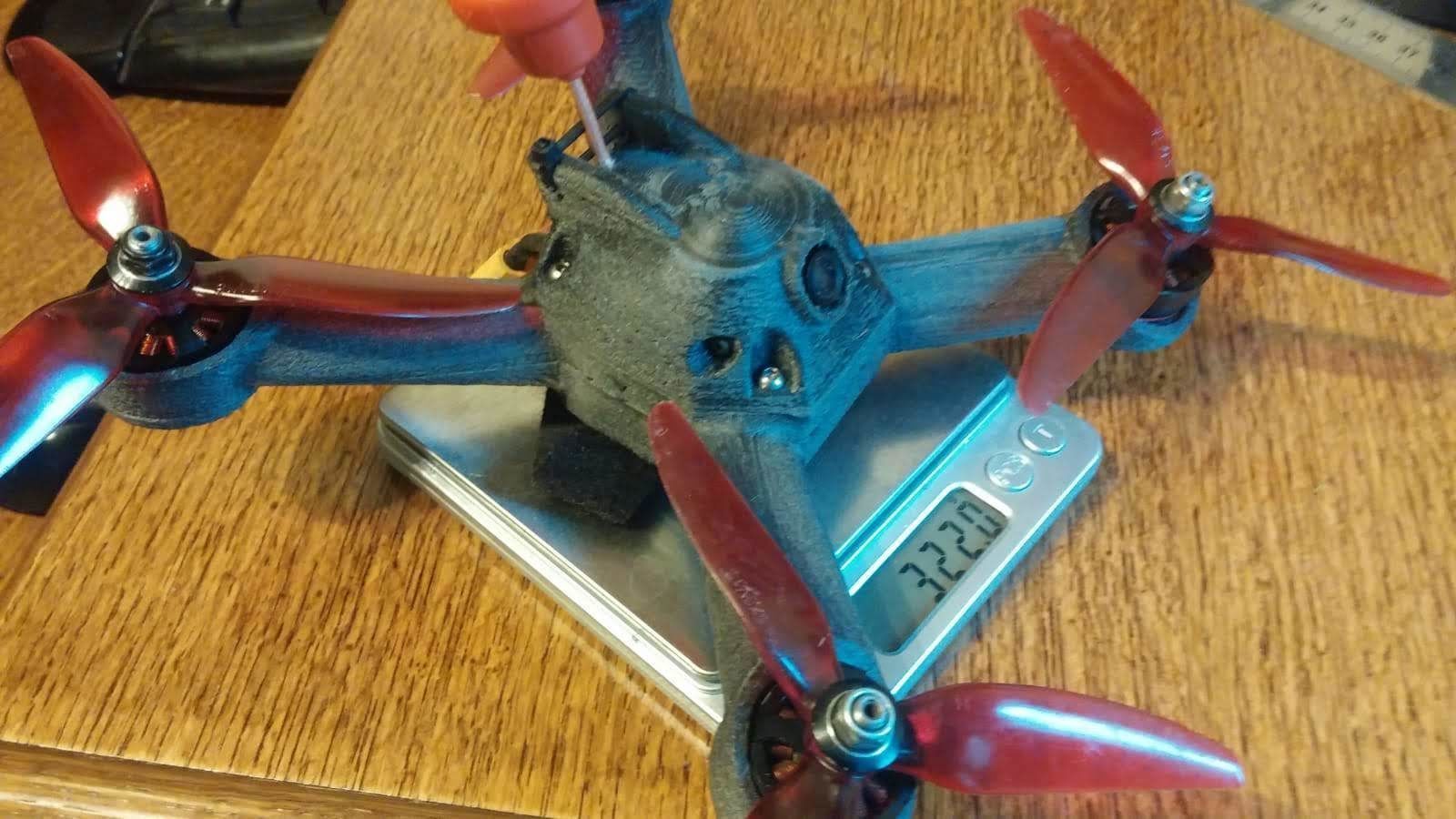

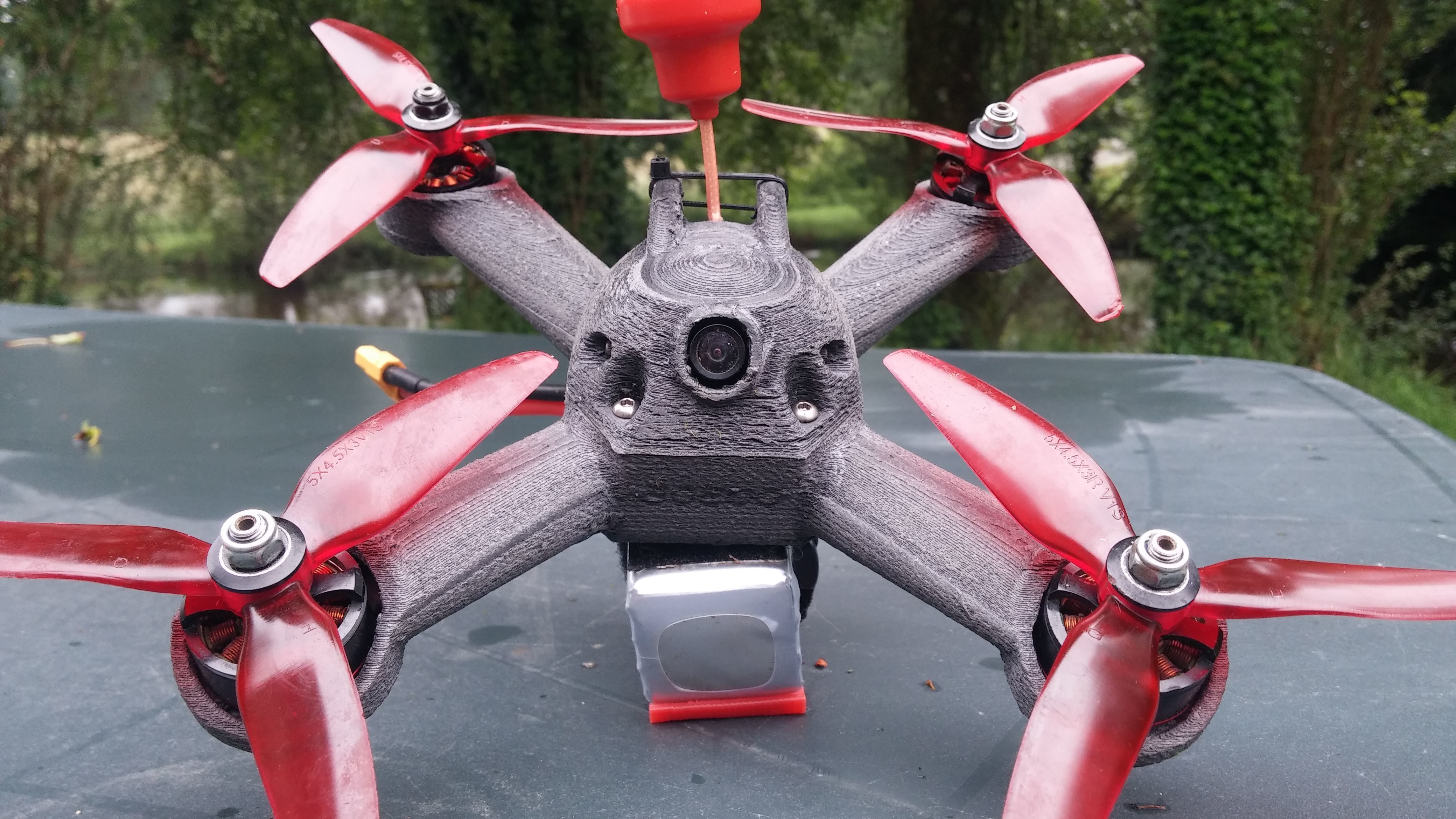

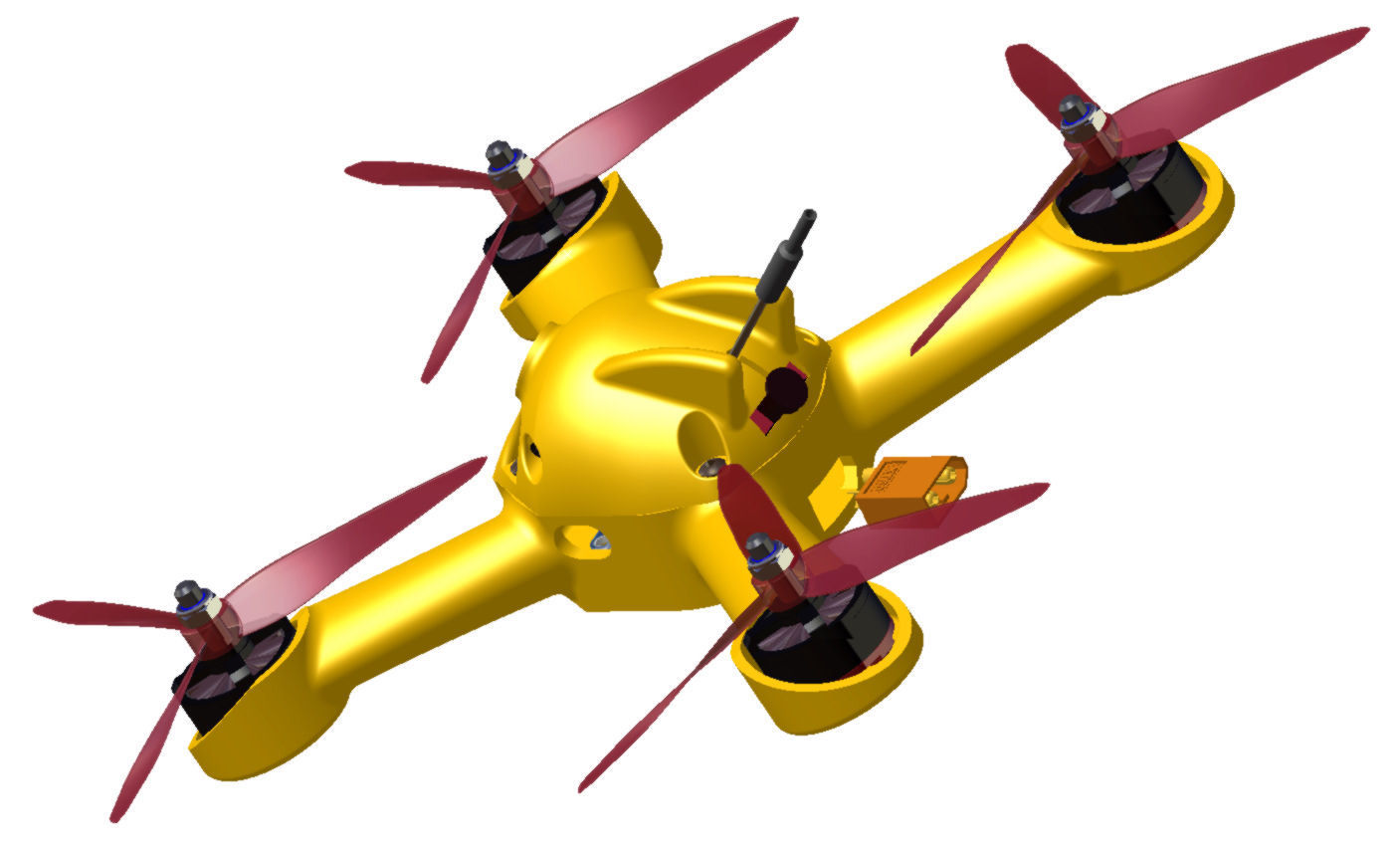

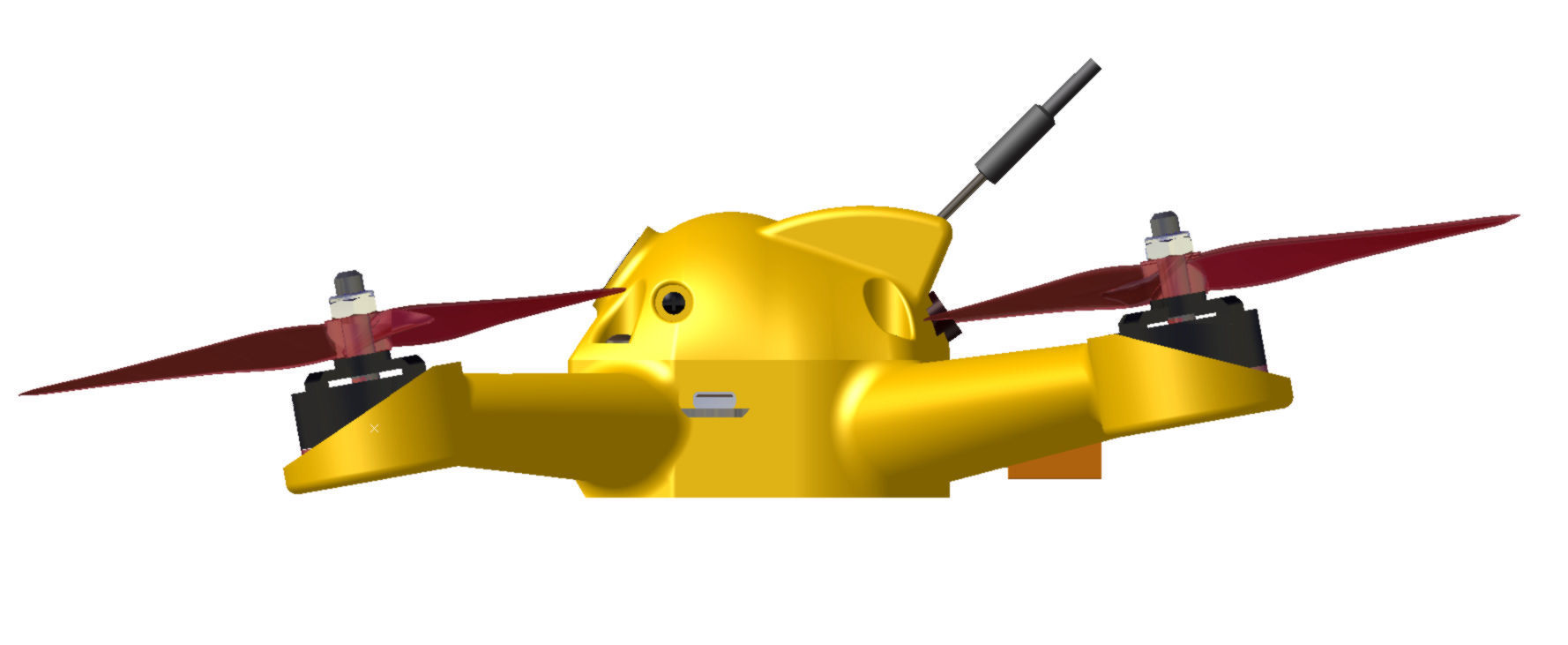

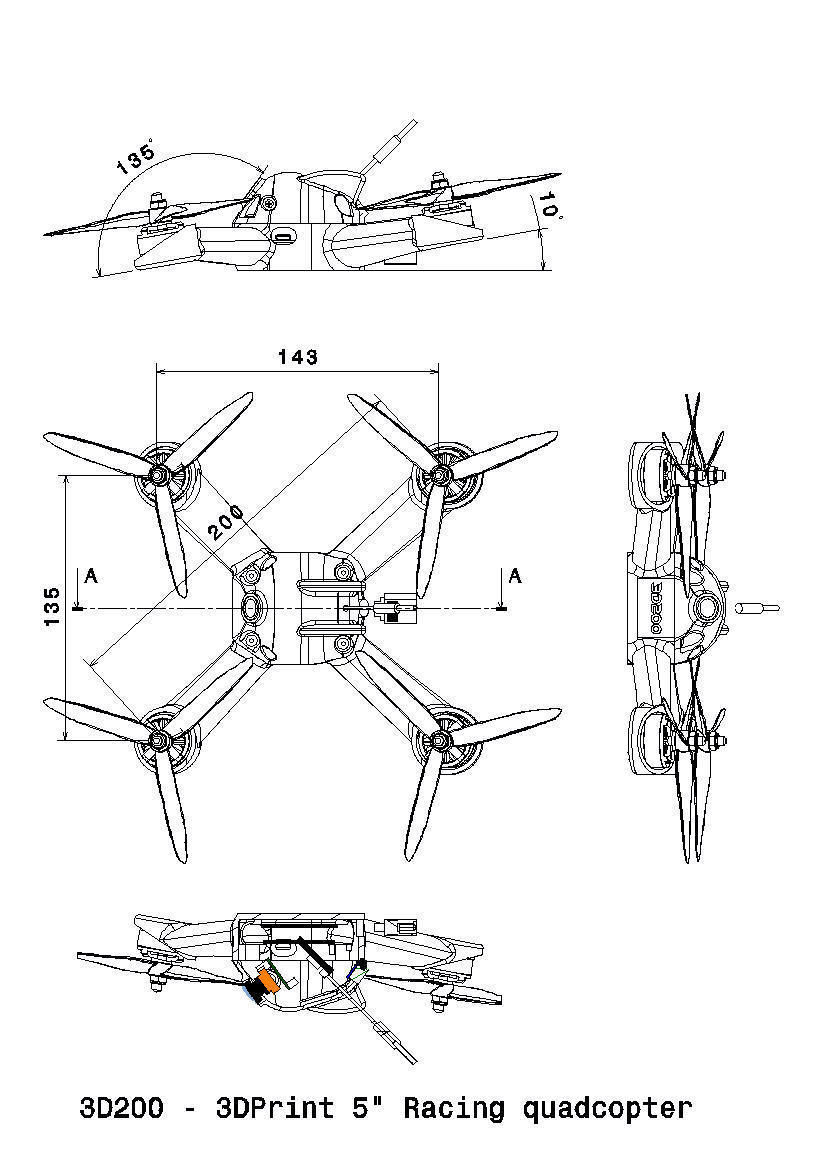

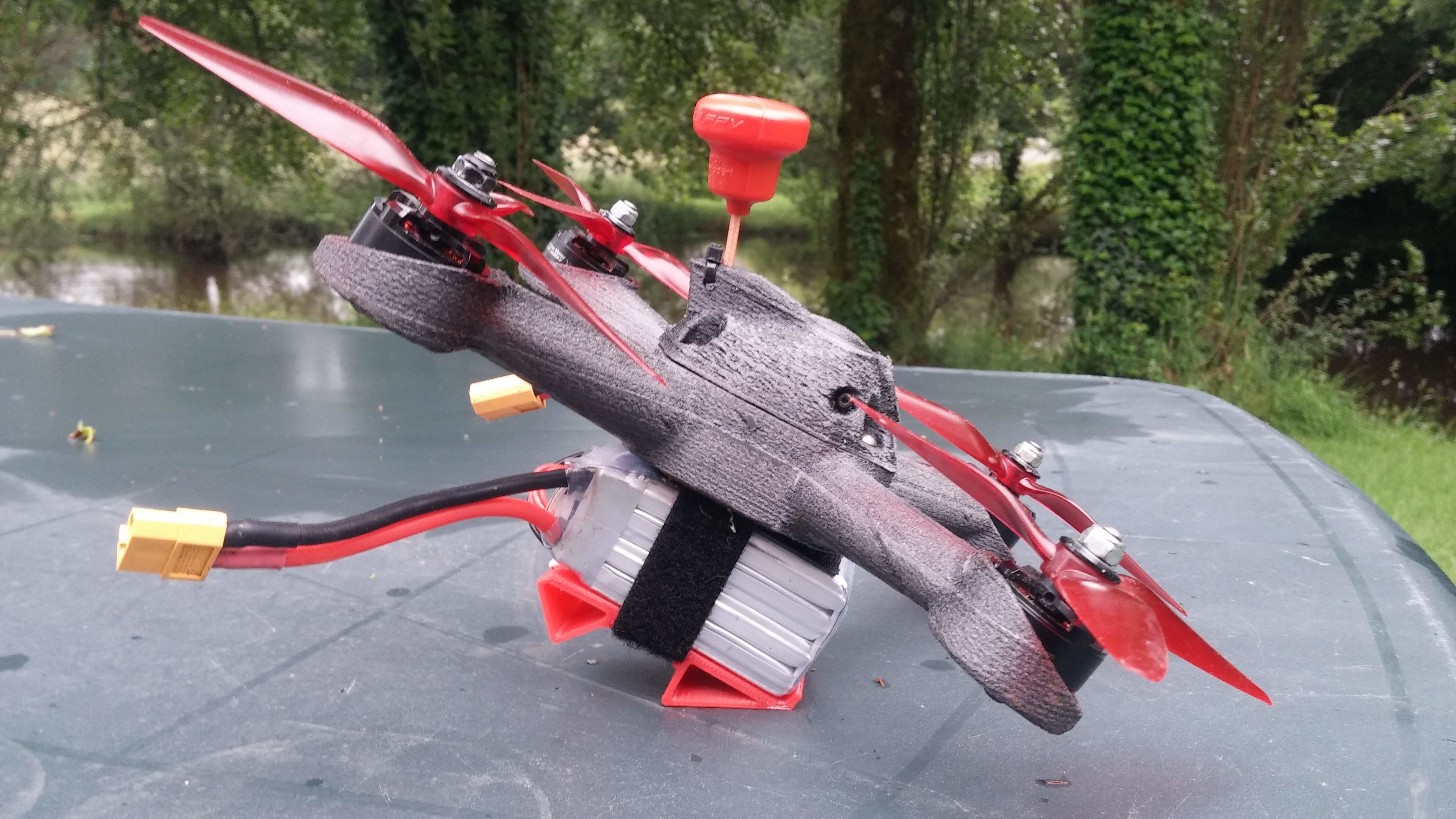

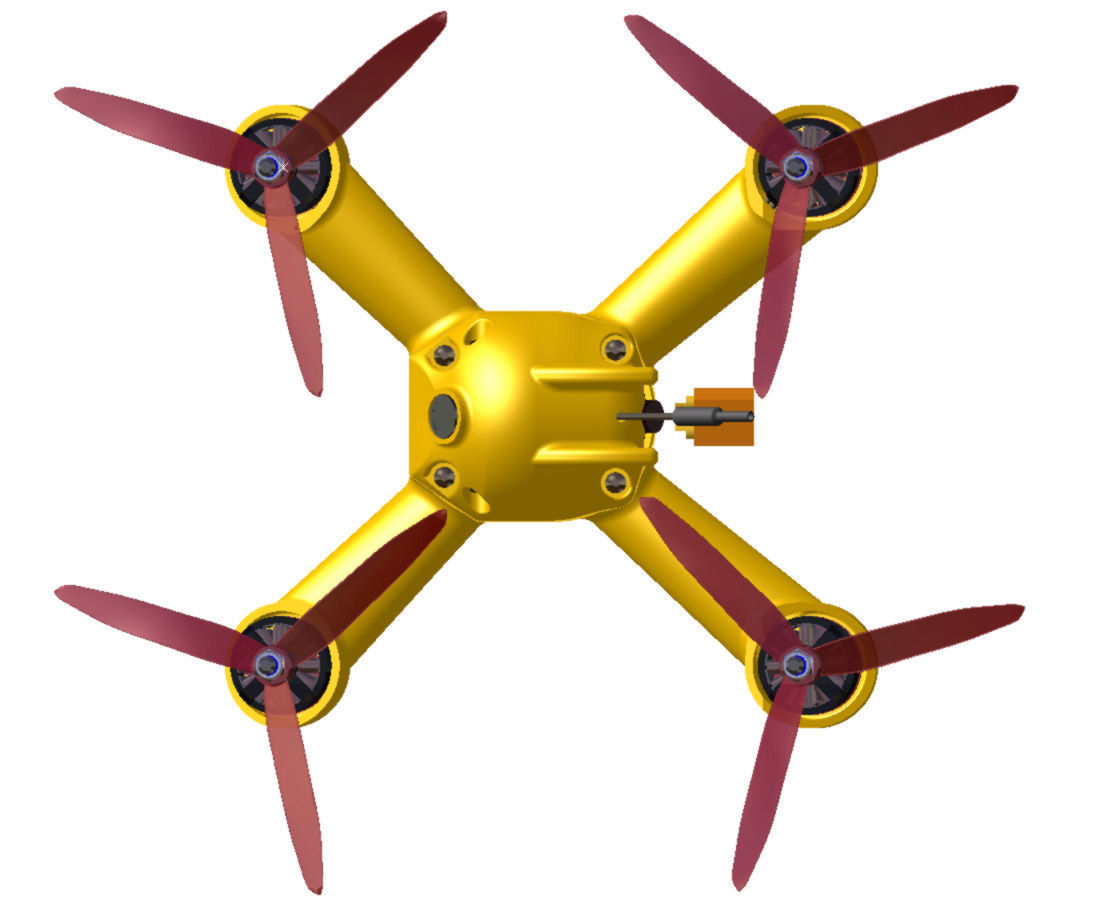

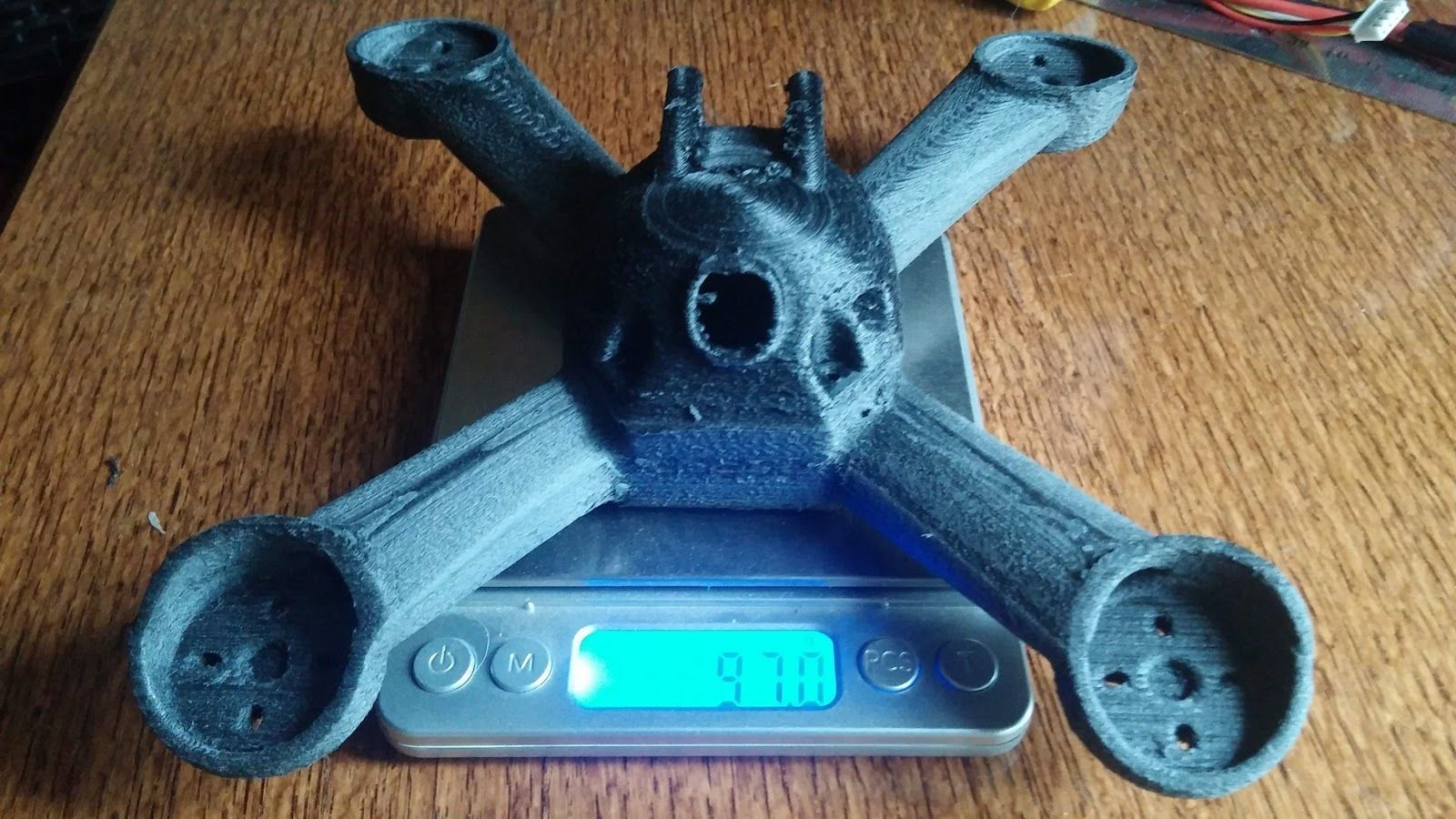

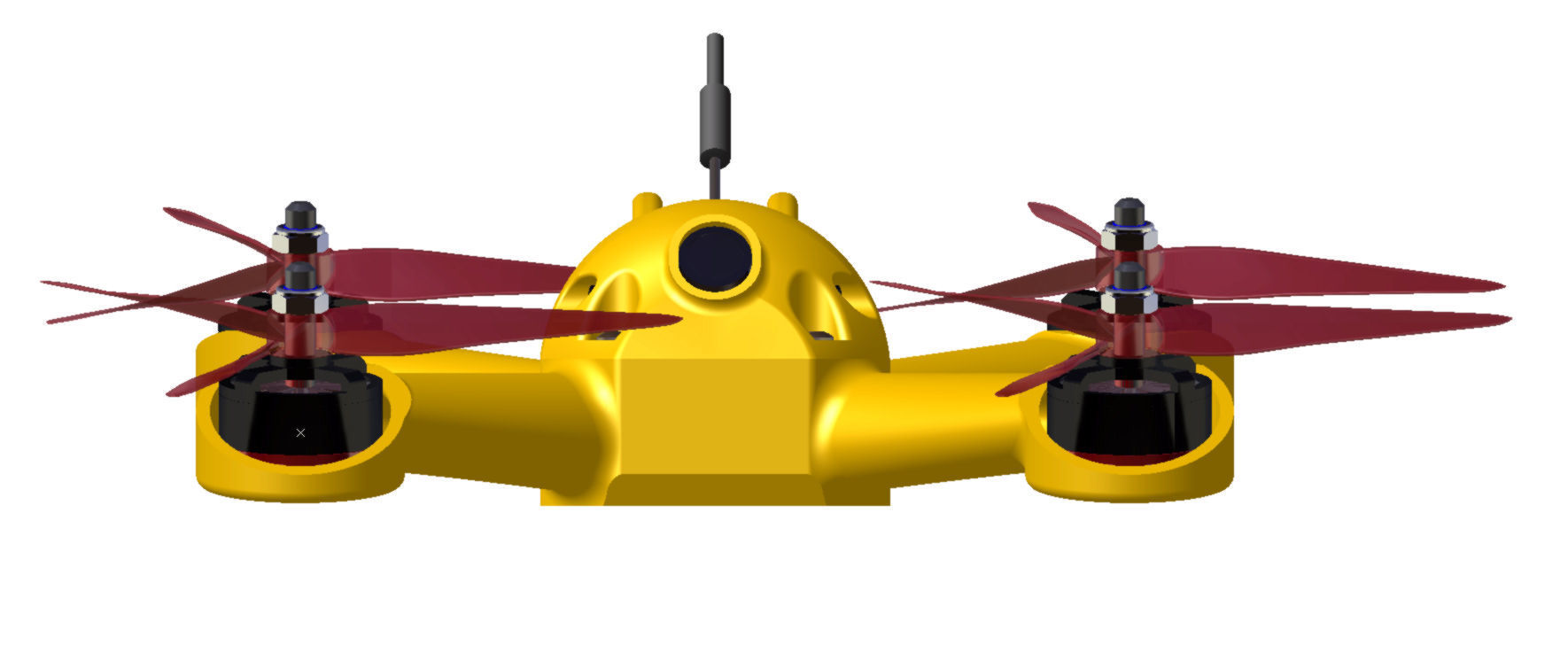

Racing Quadcopter printable in carbon-PET (ICE Filament) Features 3D files to print with Carbon-PET wire (35% cubic quarter filling) Diagonal 200mm with 8mm stretch 22xx motor with 16 to 19mm centers Angle of 10 ° on the motorss for a better aero drag and starts ! Antenna protection with 2 shark fins Possibility of mounting with ESC in the arms Camera micro type adjustable from 40 to 50 ° (relative to the engines) Weight of 97g.

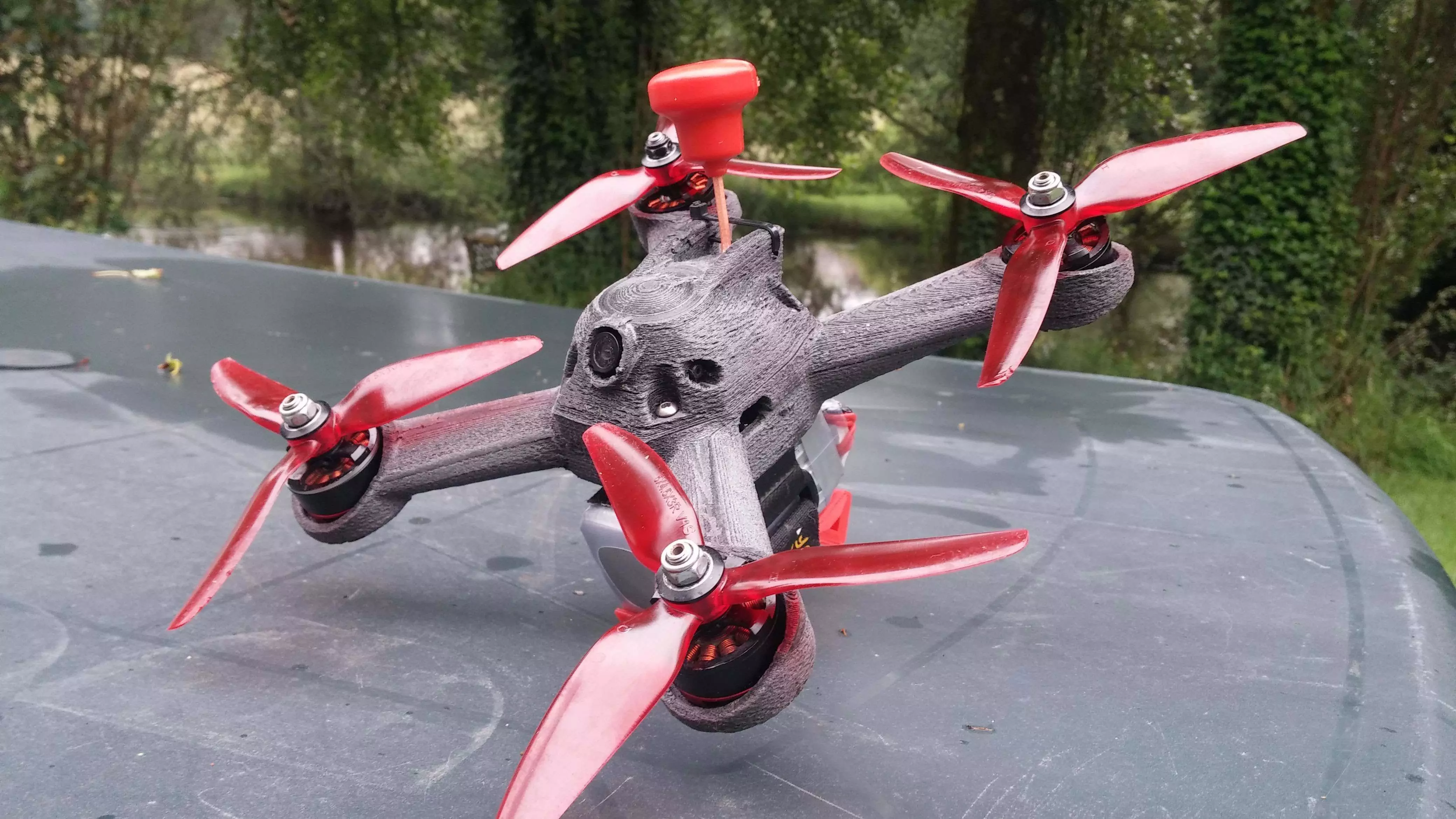

My configuration :

  • FC Matek F405
  • ESC 4in1 Racerstar 35A Tattoo
  • Camera Foxeer Predator micro
  • VTX TBS Unify Pro HV race
  • RCX 2206-2400kk (any 22xx motors)
  • mini buzzer-led
  • Frsky XSR (antenns in the arms)

I will adjust parameters for your configuration (USB hole for FC, strech, angle of motors, etc...) see more at https://locjolyracingfpv.blogspot.fr/search/label/3D200
