This package contains 3 different ergonomic thumb knob designs optimized for standard M5 hardware.
Designed to convert standard M5 nuts into hand-adjustable knobs for 3D printers (bed leveling), camera mounts, jigs, and fixtures.

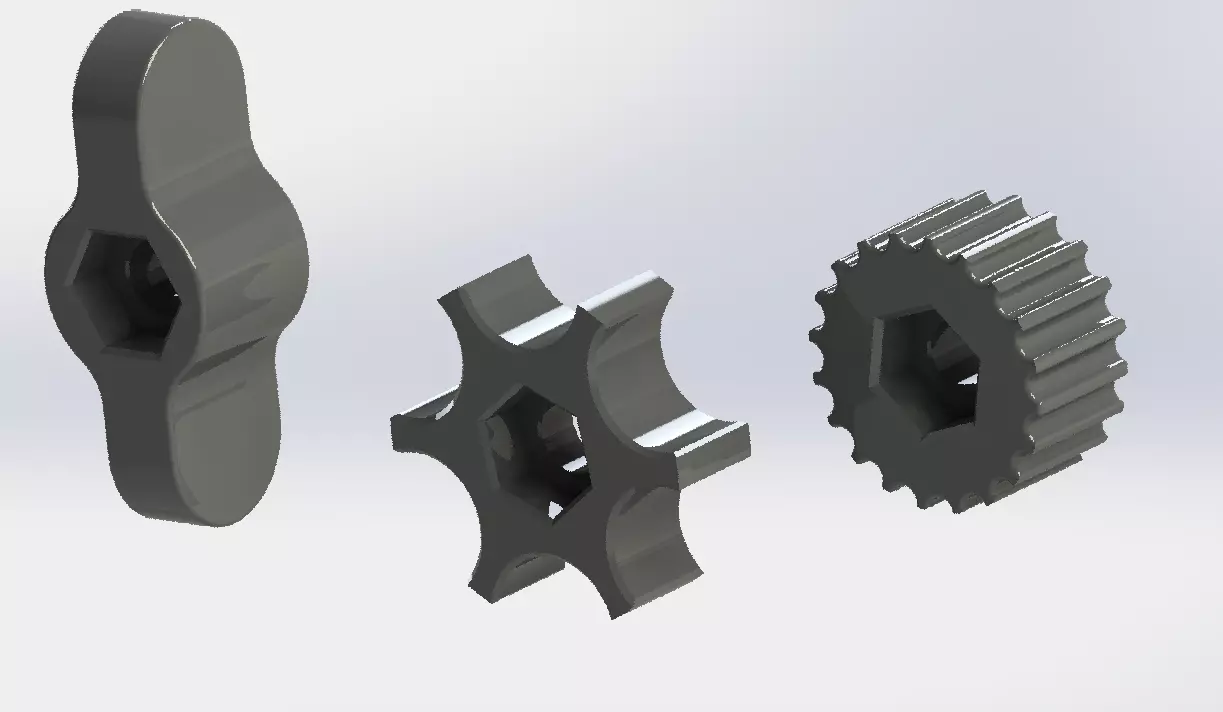

INCLUDED FILES (STL):
- Classic Knurled Knob: Standard cylindrical grip for precision.
- Star Grip (6-Lobe): Ergonomic design for general usage.
- Wing Style: High-leverage design for tighter locking.
HARDWARE COMPATIBILITY:
- Nut Type: Standard M5 Hex Nut (8mm width across flats).
- Bolt Type: Standard M5 Bolt or Threaded Rod.
- Fit: Press-fit tolerance. The nut is designed to fit tightly without glue. Use a vice or screw to pull the nut into place.
PRINT SETTINGS:
- Orientation: Print flat on the build plate.
- Supports: No supports required.
- Material: PLA, PETG, ABS, or ASA.
- Wall Count: Minimum 3 walls recommended for strength.
- Infill: 25% - 100%.
License: Royalty Free.
