Cylinder Tube Handle Support Bracket Set 3D print model

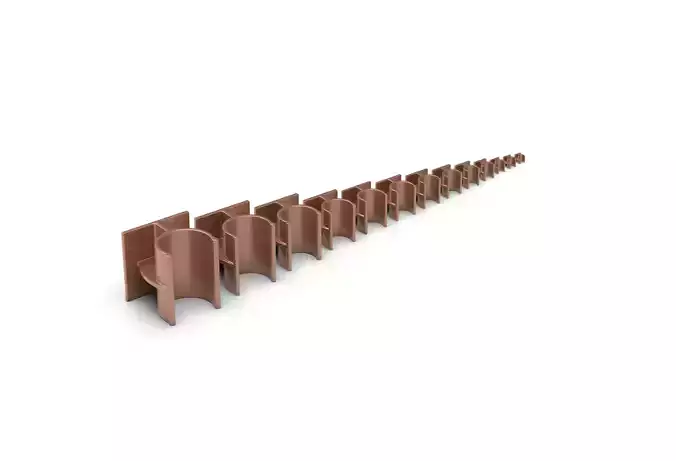

This is a set of cylinder tube handle support bases. It is designed parametrically for providing support to tubes with diameter of 4mm up to 35mm. The configuration consists of separate files for tube diameters of 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35mm. The part is designed to be used with a double side tape on the back side so that it provides fixation to the tube in respect to a fixed surface. The back side features a diamond cut surface with a maximized bonding efficiency between the double sided tape and the plastic surface. Please feel free to contact me if you need an further support on 3D models or if you need any customization on this model. Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached.
