OakFlame Portable LaserCut Firebox SldWrks DWG Build Guide 3D print model

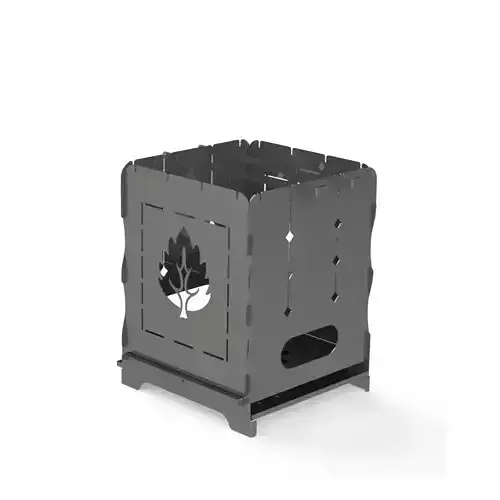

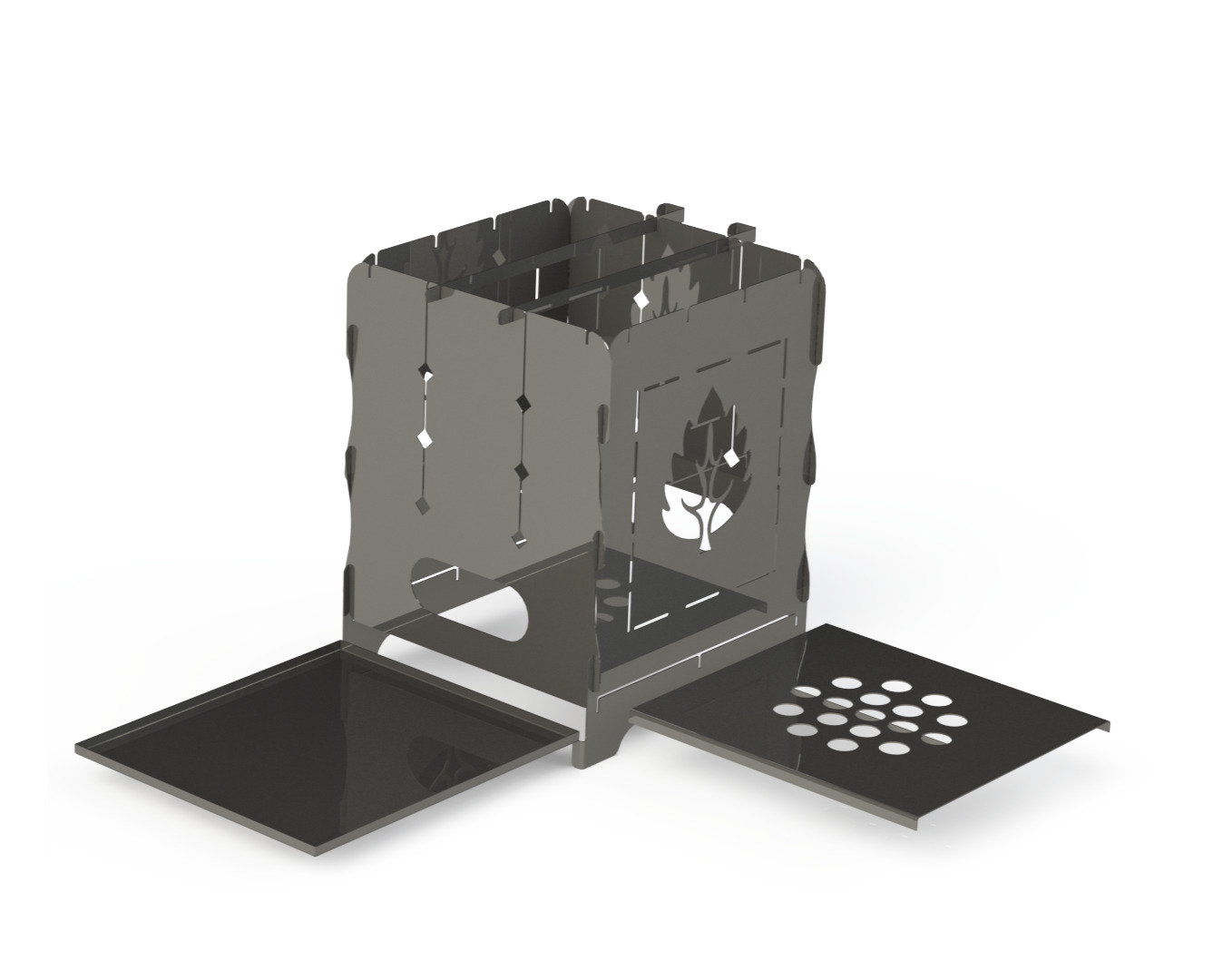

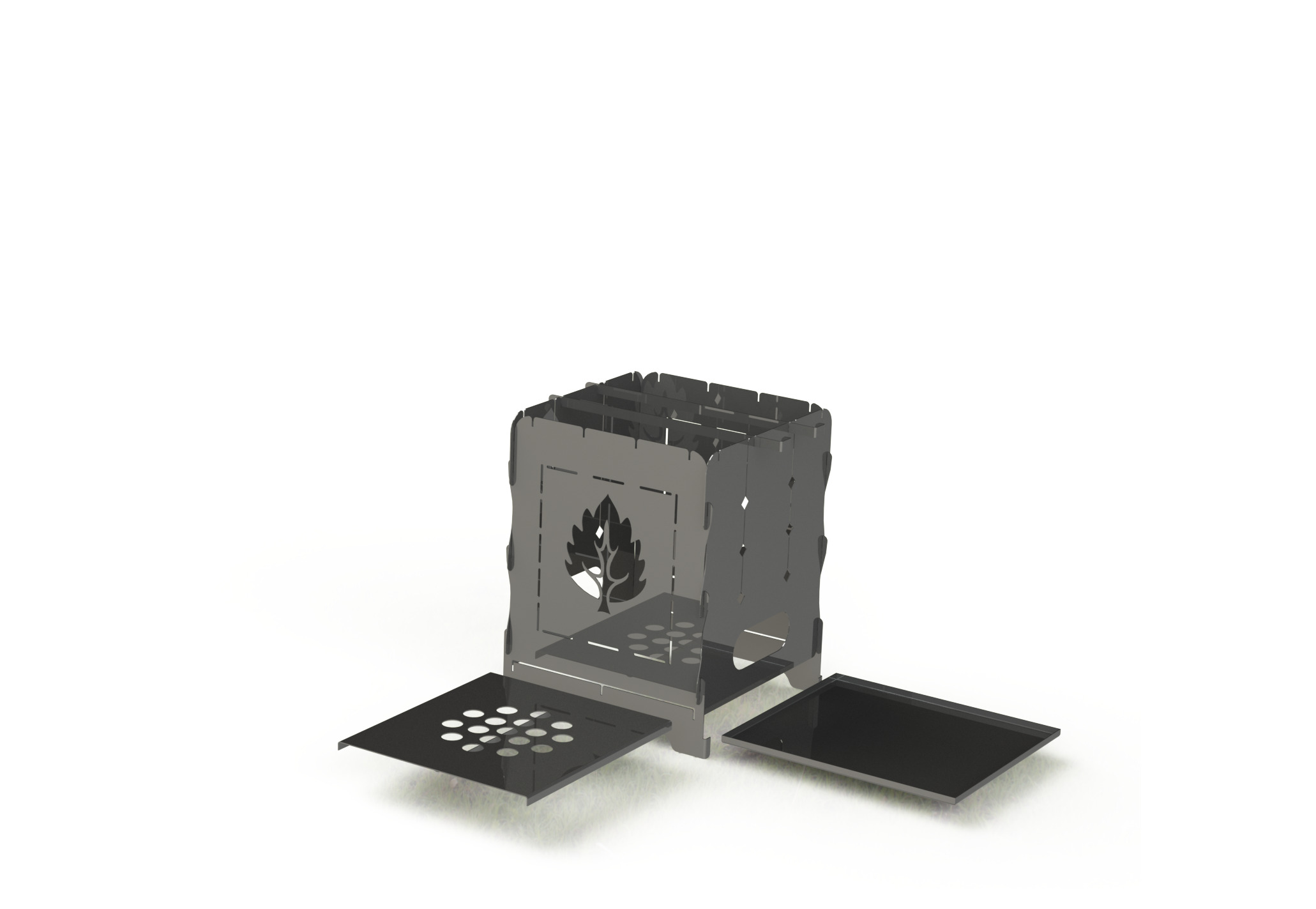

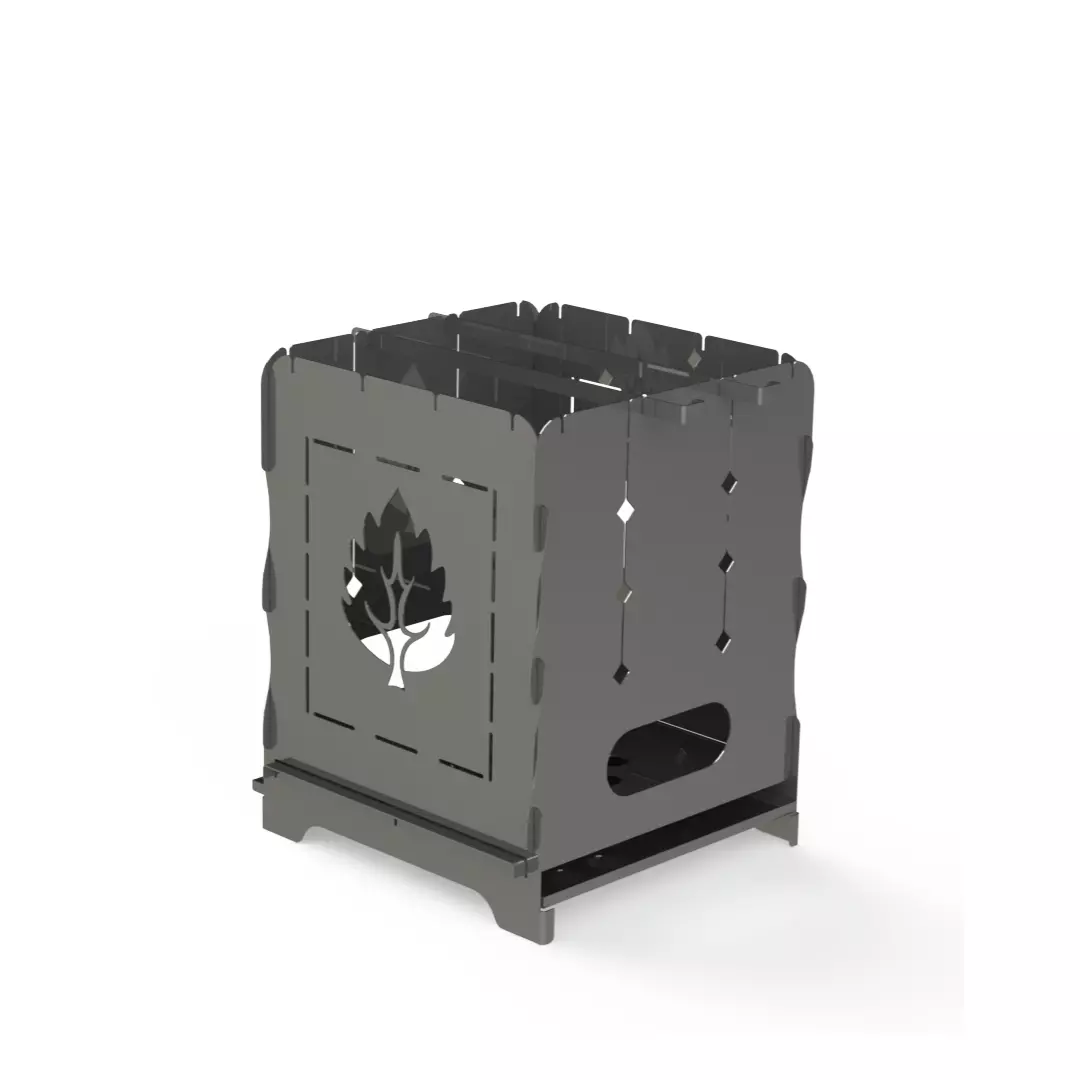

OakFlame is a beautifully engineered portable firebox and grill, inspired by the elegance of oak leaves and designed for serious travelers, campers, villa owners, and weekend adventurers.

This fully editable design package includes everything needed to fabricate, assemble, and enjoy a multi-functional fire system that packs down into a 15mm flat case — perfect for mobility without sacrificing performance.

Key Features: Designed for Fire: Engineered to resist deformation under high heat.

3 Grill Heights: Skewer support at three levels, rotatable in 4 directions.

Integrated Stands: Adjustable holders for teapots or coffee makers.

Ultra-Portable: Fully collapses into a 15mm flat pack, ideal for backpacking, villas, or road trips.

Clean Burn: Ash collects in a designated area — no mess on the ground.

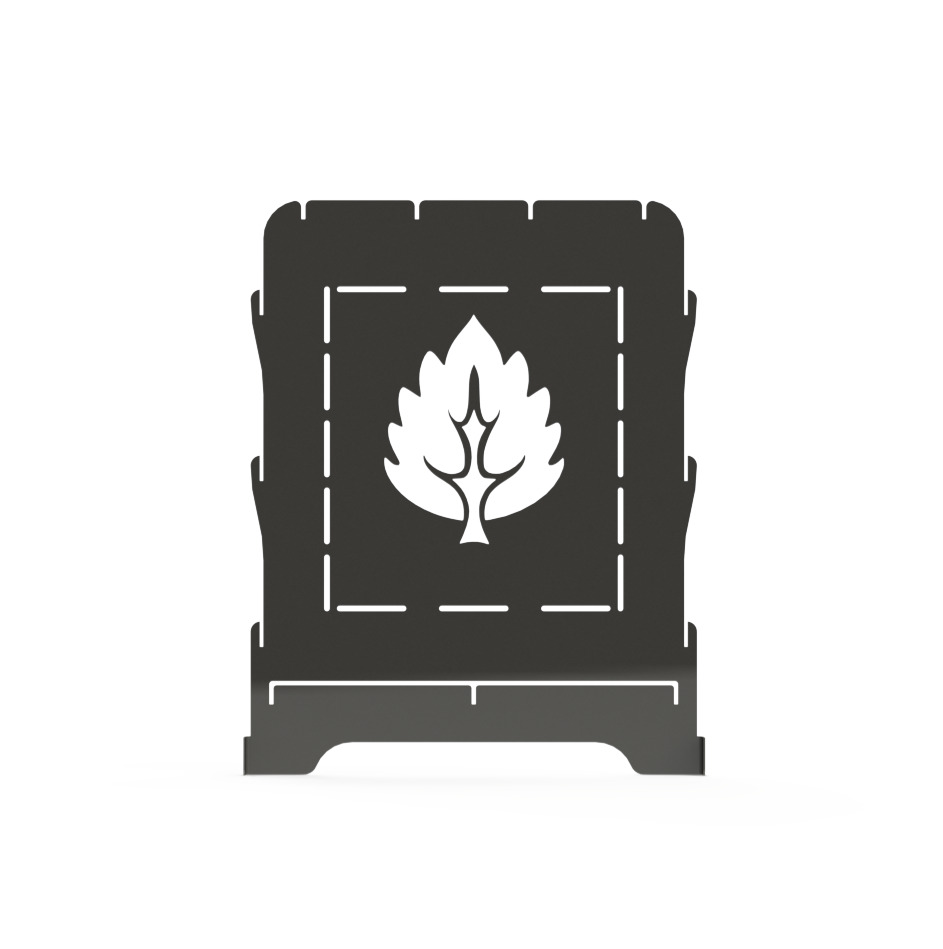

Nature-Inspired: Aesthetic lines based on oak leaf geometry.

What’s Included: Editable SolidWorks files (SLDPRT + SLDASM)

2D Laser Cut Drawings (DWG) – ready for CNC/laser machines

Bending guides and assembly DWGs

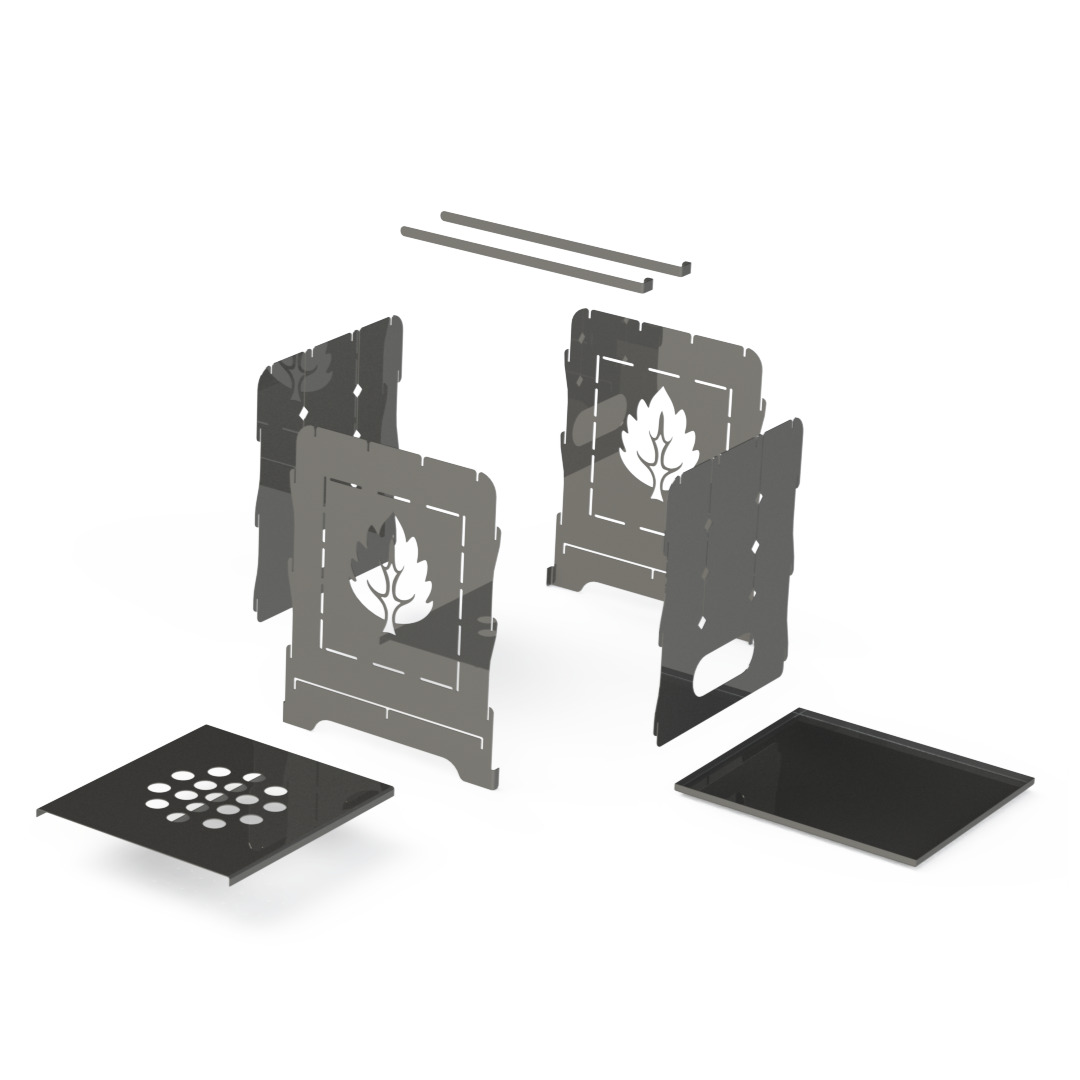

Exploded assembly views

Text-based Build & Assembly Manual

Free support for fabrication or customization

Fabrication Notes:Designed for laser cutting + bending process

Suitable for 1mm, 1.5mm, or 2mm sheet metal

Works with steel, stainless — based on user preference
