Lightweight case for a RunCam ThumbPro used on tiny whoop drones. Different designs are available. In each file different bottom plates are included for the best fit on your drone.

Production: Can be printed on FDM, SLA and DLP printers with durable materials.

Needed parts for assembly: 3xM1.2 Screws at least 5mm long for the case and 2xM2x3mm Screws if the camera version for standard 14x14mm cams is printed. For the bottom plate you can use existing small M1.2 Screws. For the assembly of the mounting plate to the case 2xM2 Hex Nuts and 2xM2 Screws with at least 7mm are needed. If you choose the universal antenne holder you need to adapt to your preferred antenna by drilling out material. If you are interested in a customized antenna holder you can ask me for a indiviudal design.

Pictures of the parts for assembly and the assembled case are shown here.

Two different main versions are availabe and different antenna versions:

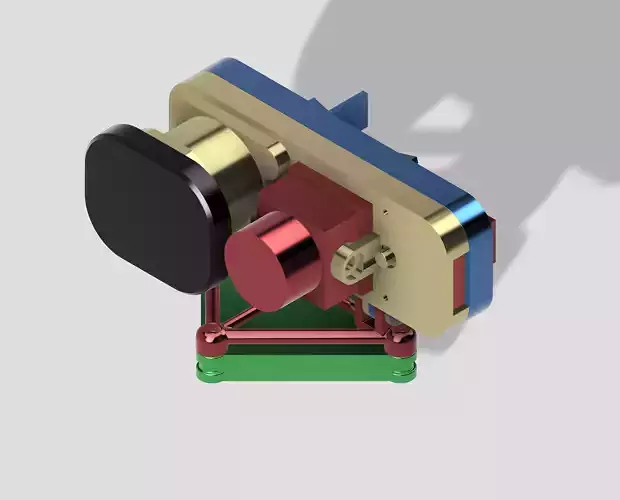

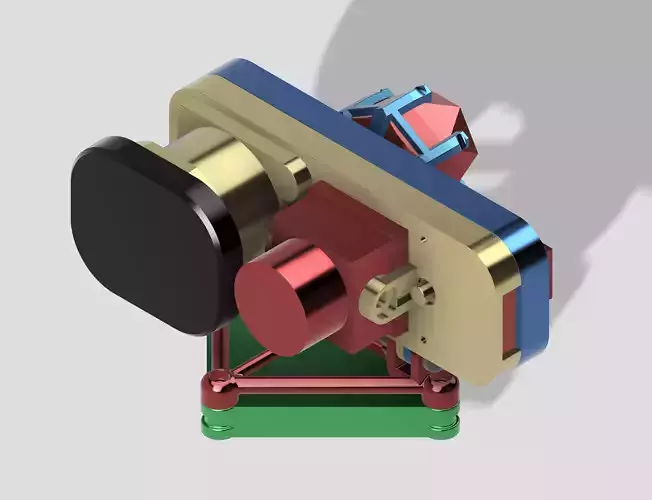

Normal: Universal Antenna Holder, Antenna Hole , Lumenier Micro AXII 2 Antenna

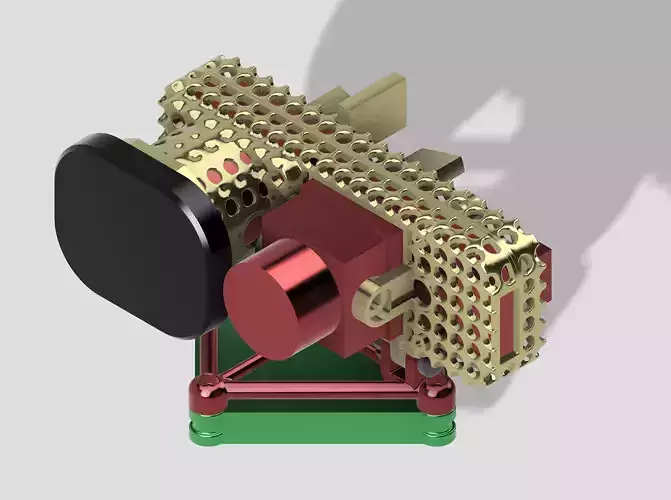

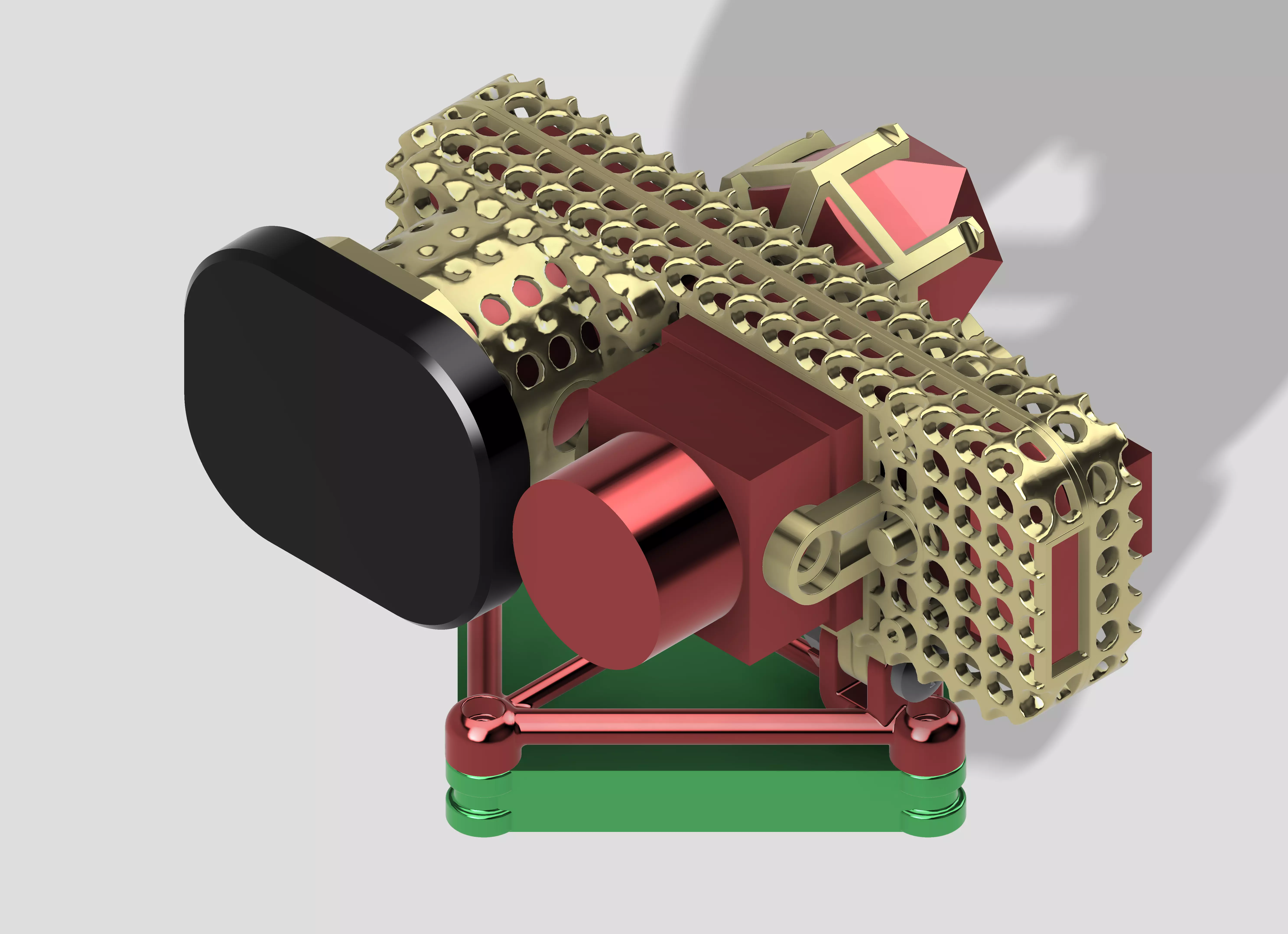

Skeletonized: , Antenna Hole, Lumenier Micro AXII 2 Antenna (this Version)
