//HYDROFOIL WING\

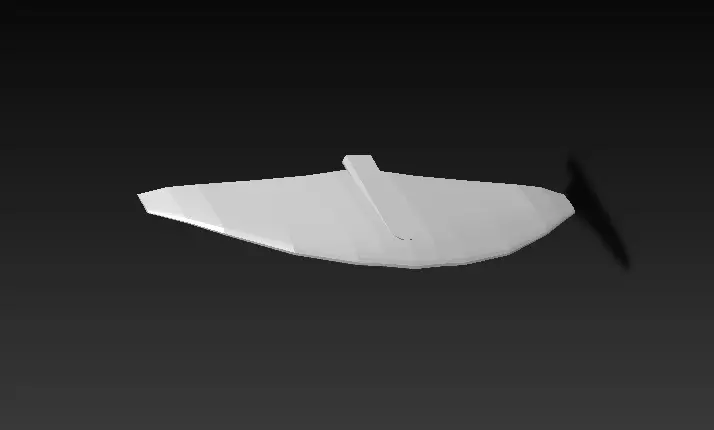

_3D concept of a front Wing _

Good performances for surf-foil, wingfoil or kite-foil :Fun for carving in the waves. Recommended for 60-75kg riders or heavy wind conditions.This model was printed and laminated with 2*UD carbon fiber, 2*twill carbon fiber and 1*fiberglass each sides + reinforcements on the leading edge.The result is very strong, stiff and lightweight !

Description : -Chord = 18cm-Wingspan = 70cm-Thickness = 2cm-Projected area = 900cm²-Aspect Ratio = 5.424-Taper Ratio = 5.429

Printing : -Material = PLA-Nozzle = 1mm-Nozzle Temperature = 200-210°C-Bed Temperature = 60°C-Infill = 5%

Files include the front wing with or without the connection to a fuselage (if u already have one), in different formats (STL, AMF, 3MF)
