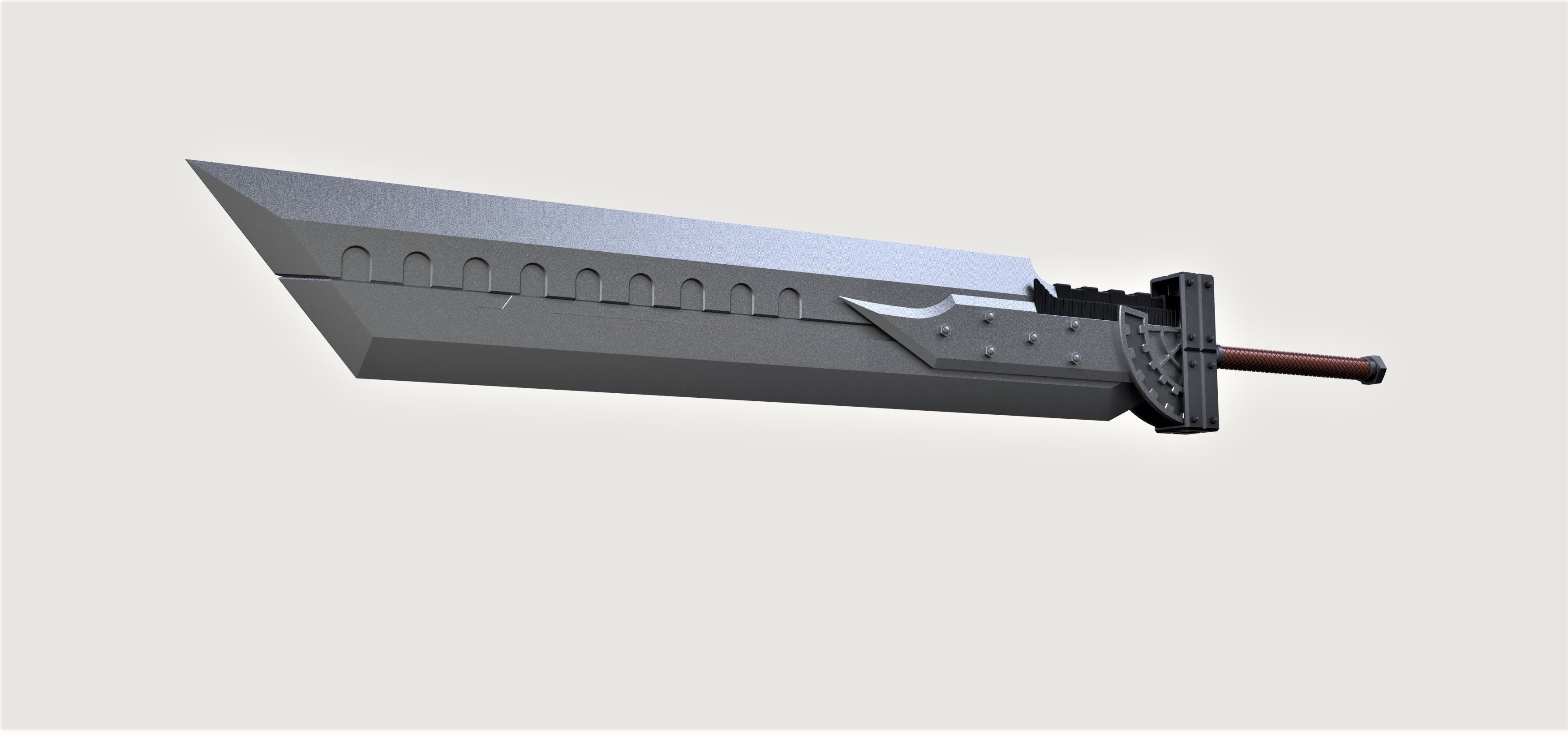

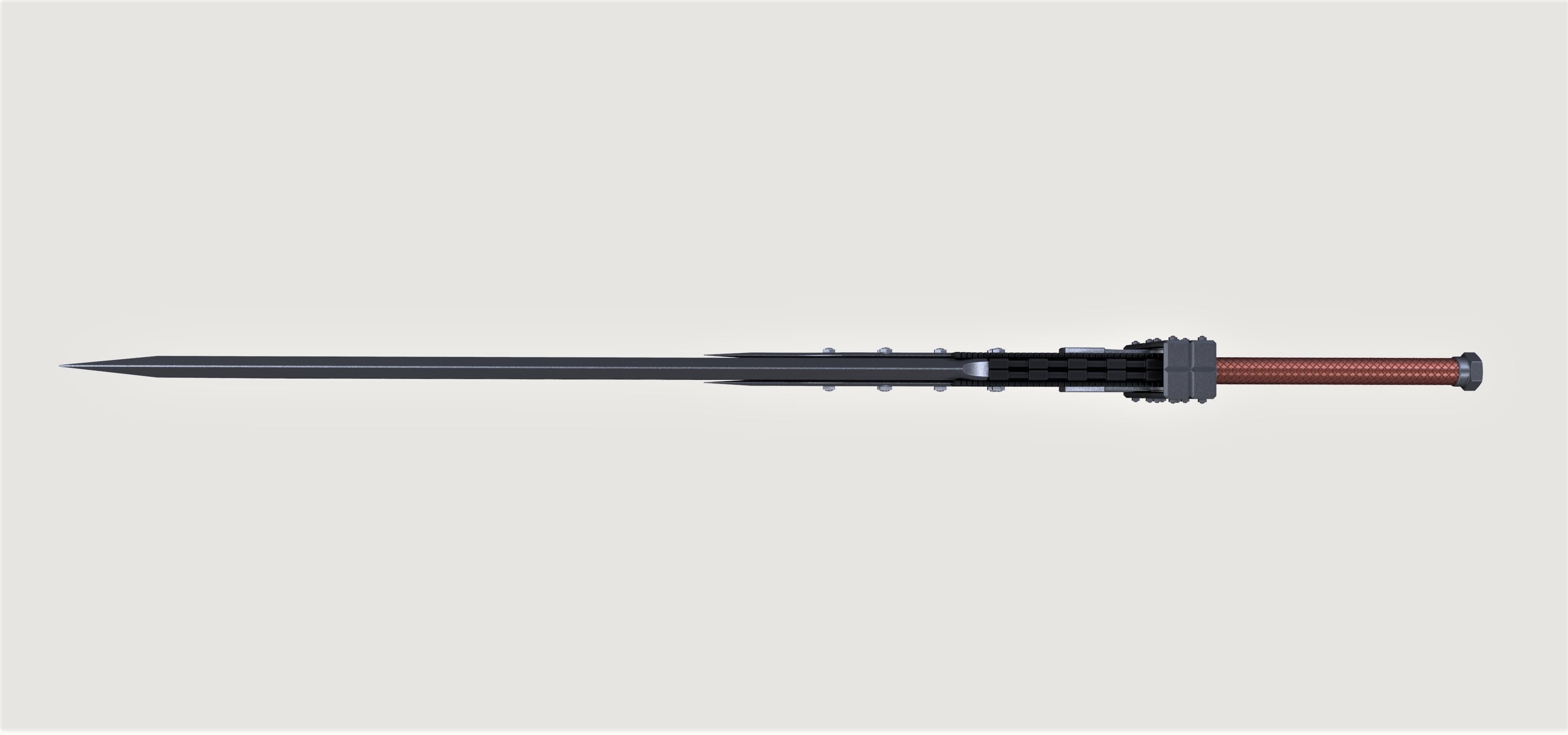

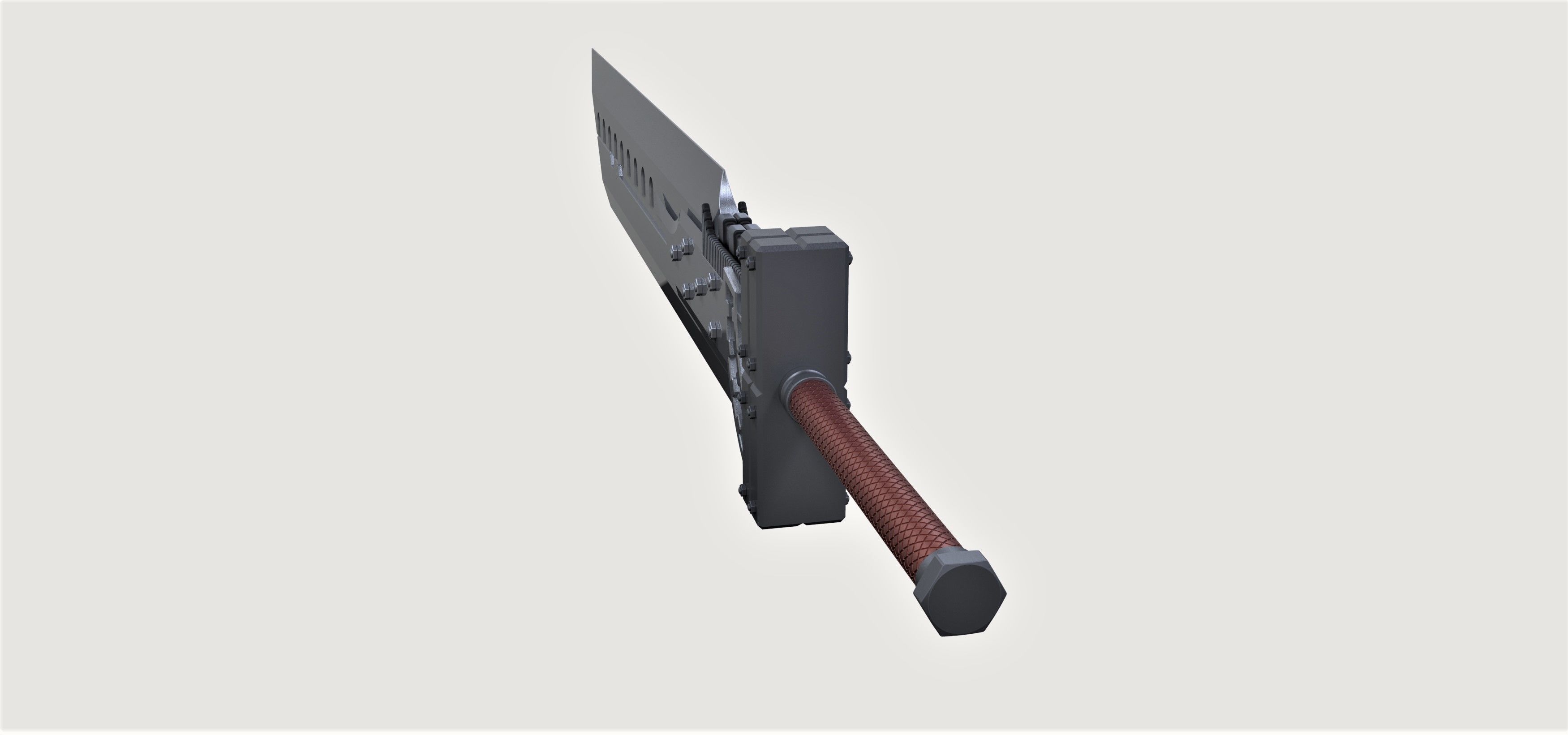

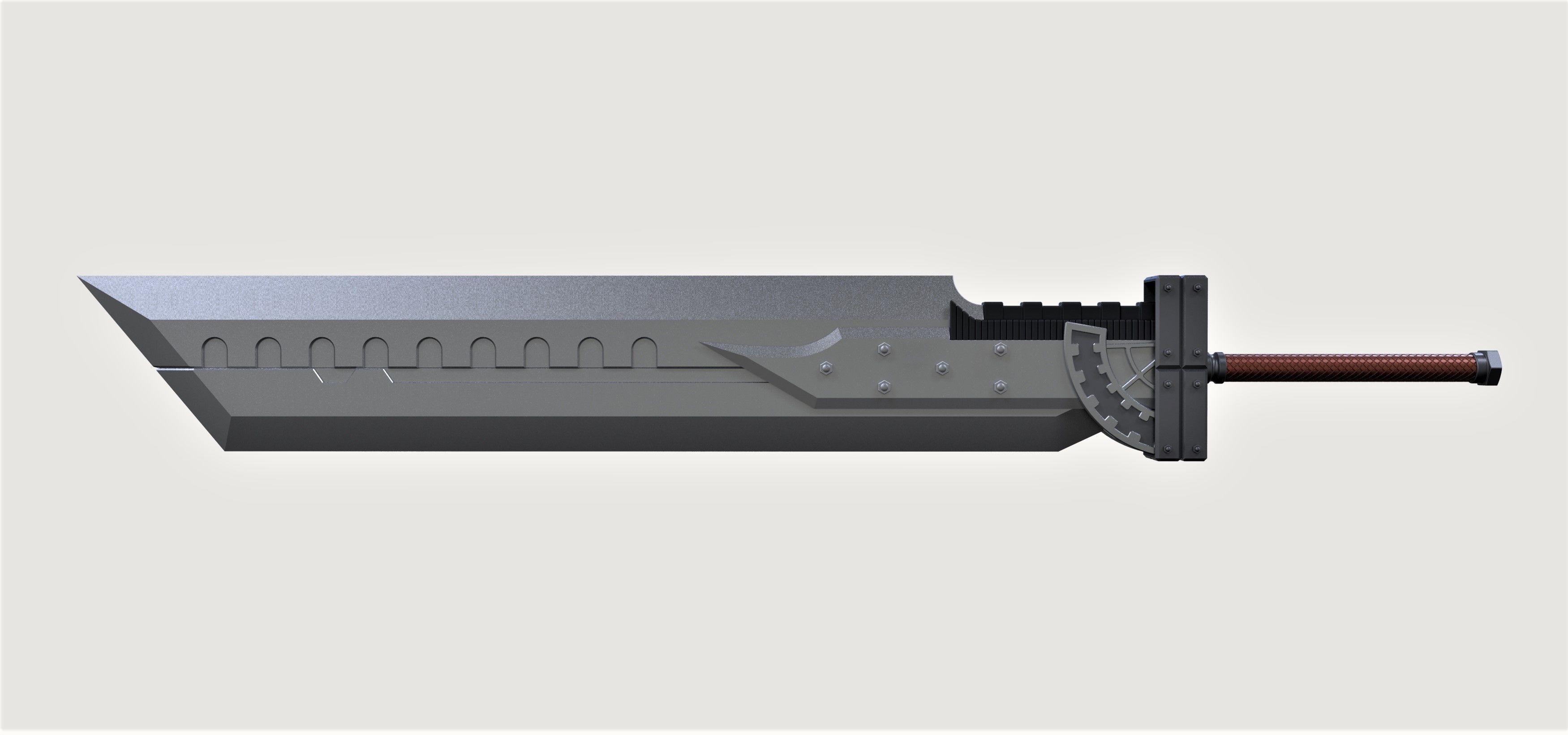

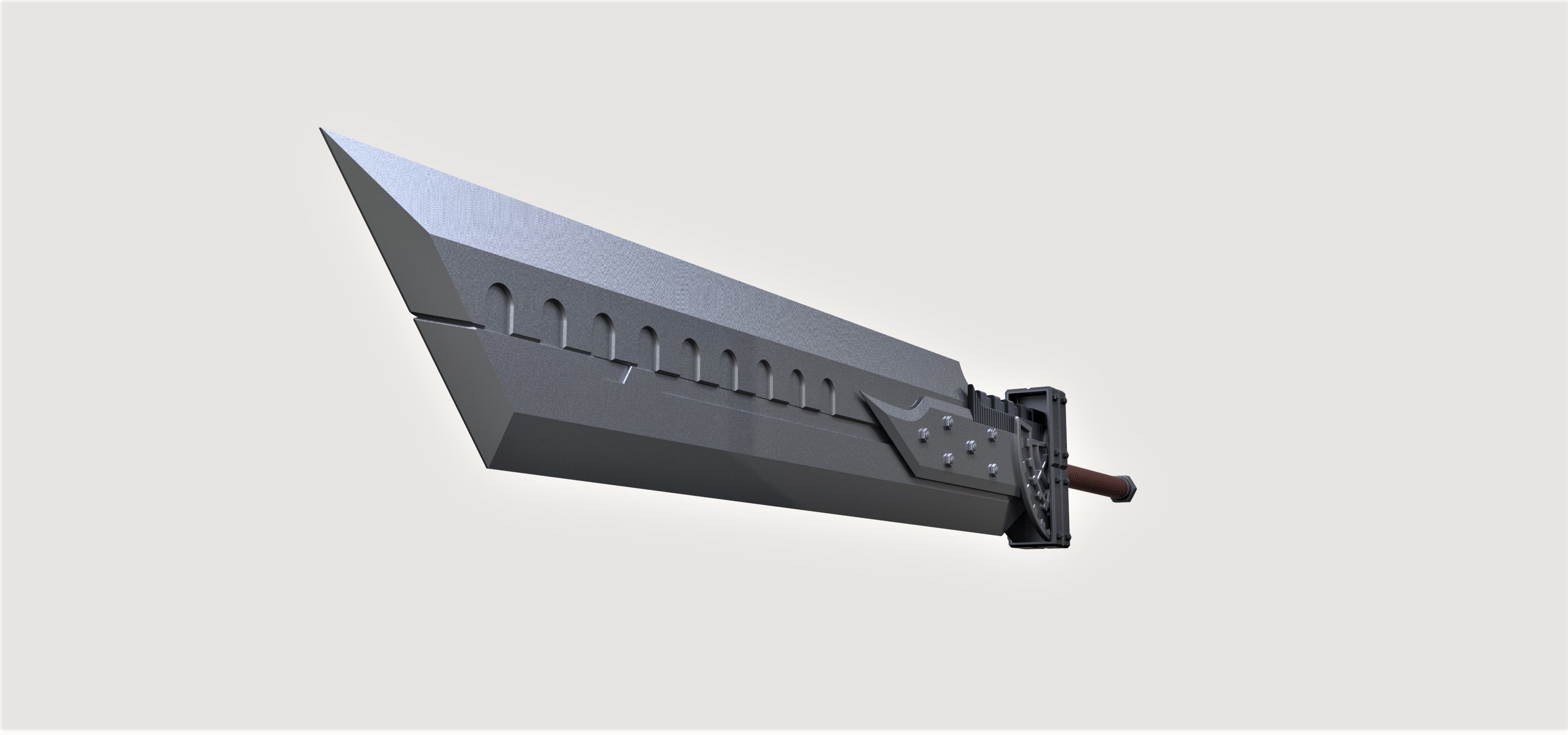

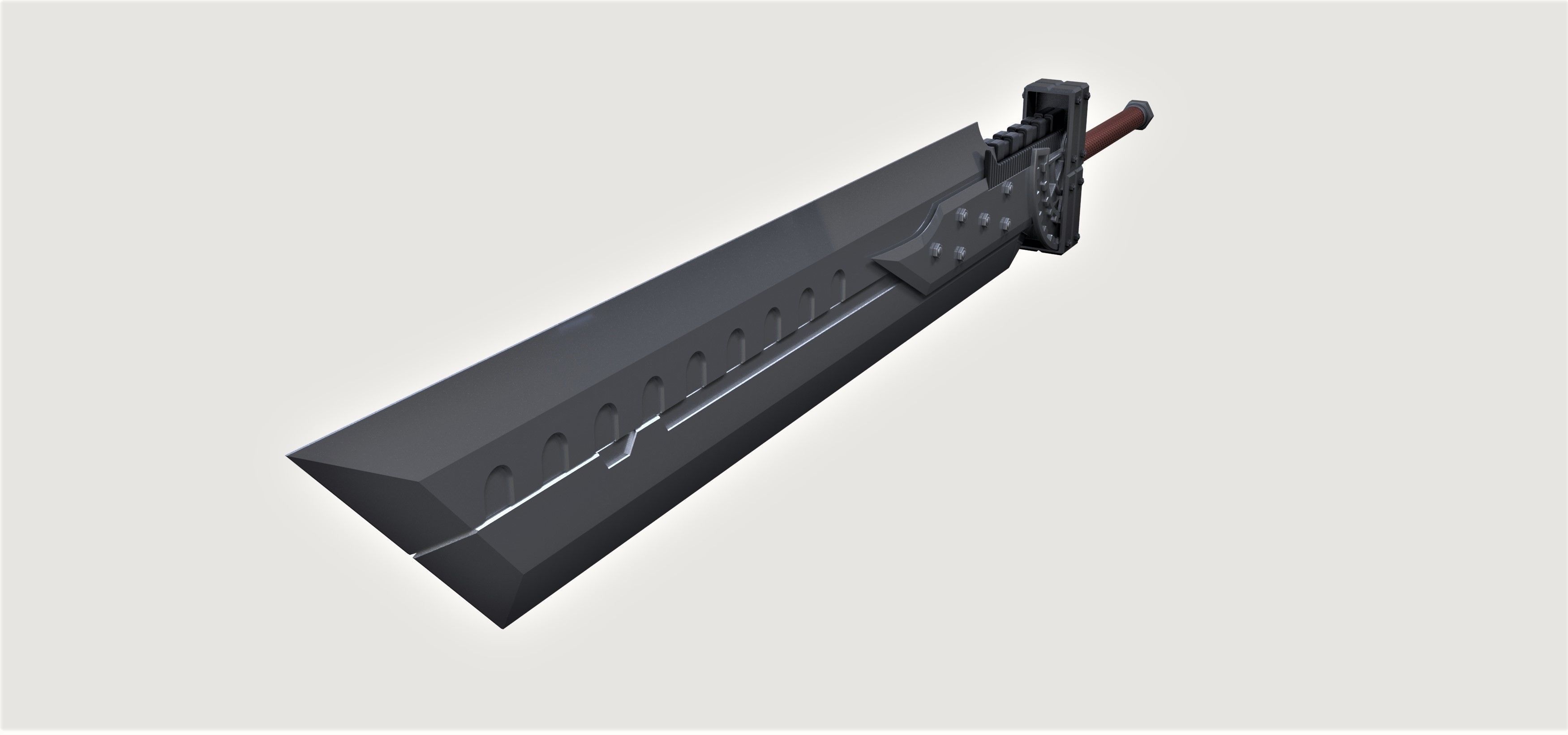

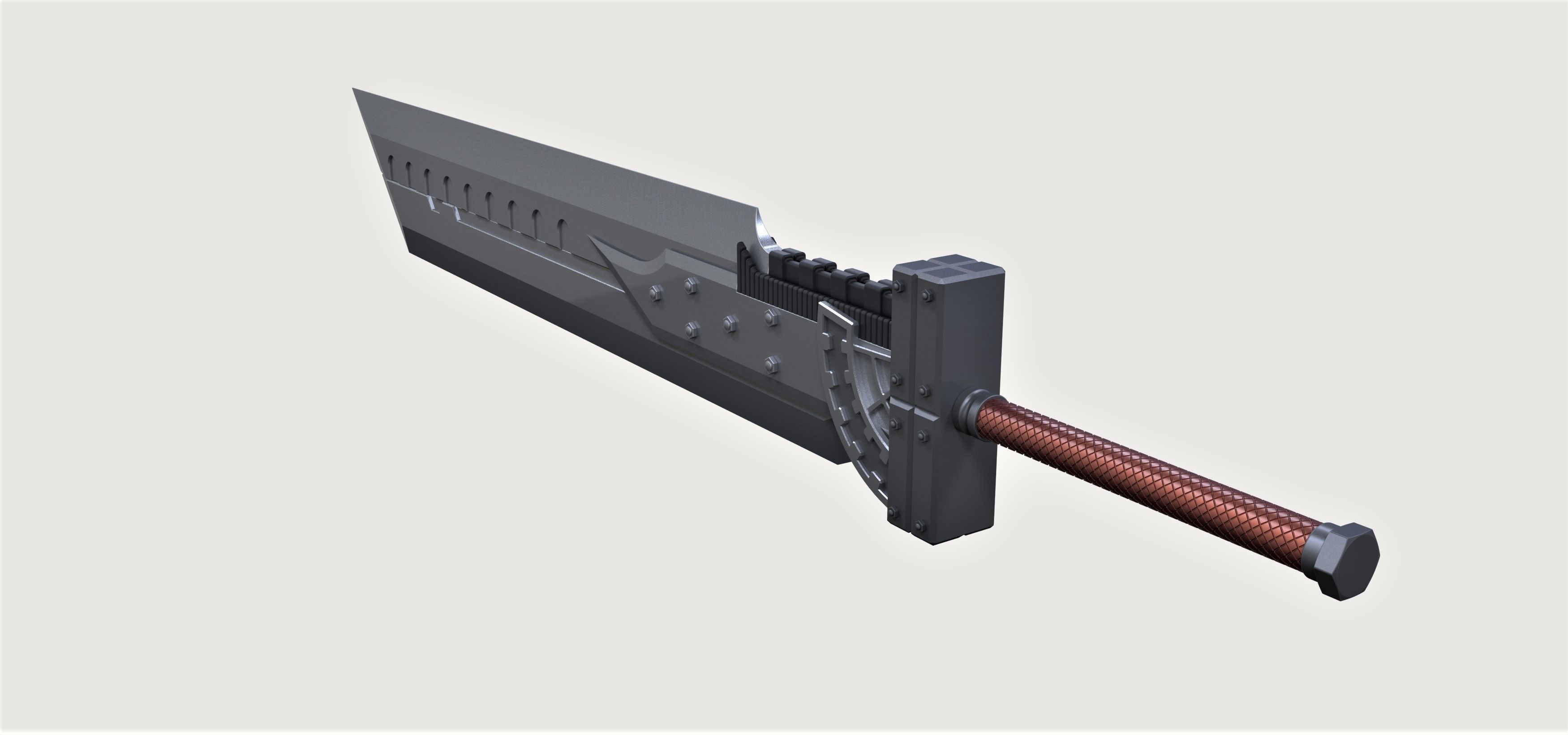

Model dimensions:

• length – 1828 mm
• height – 237 mm
• width – 86 mm

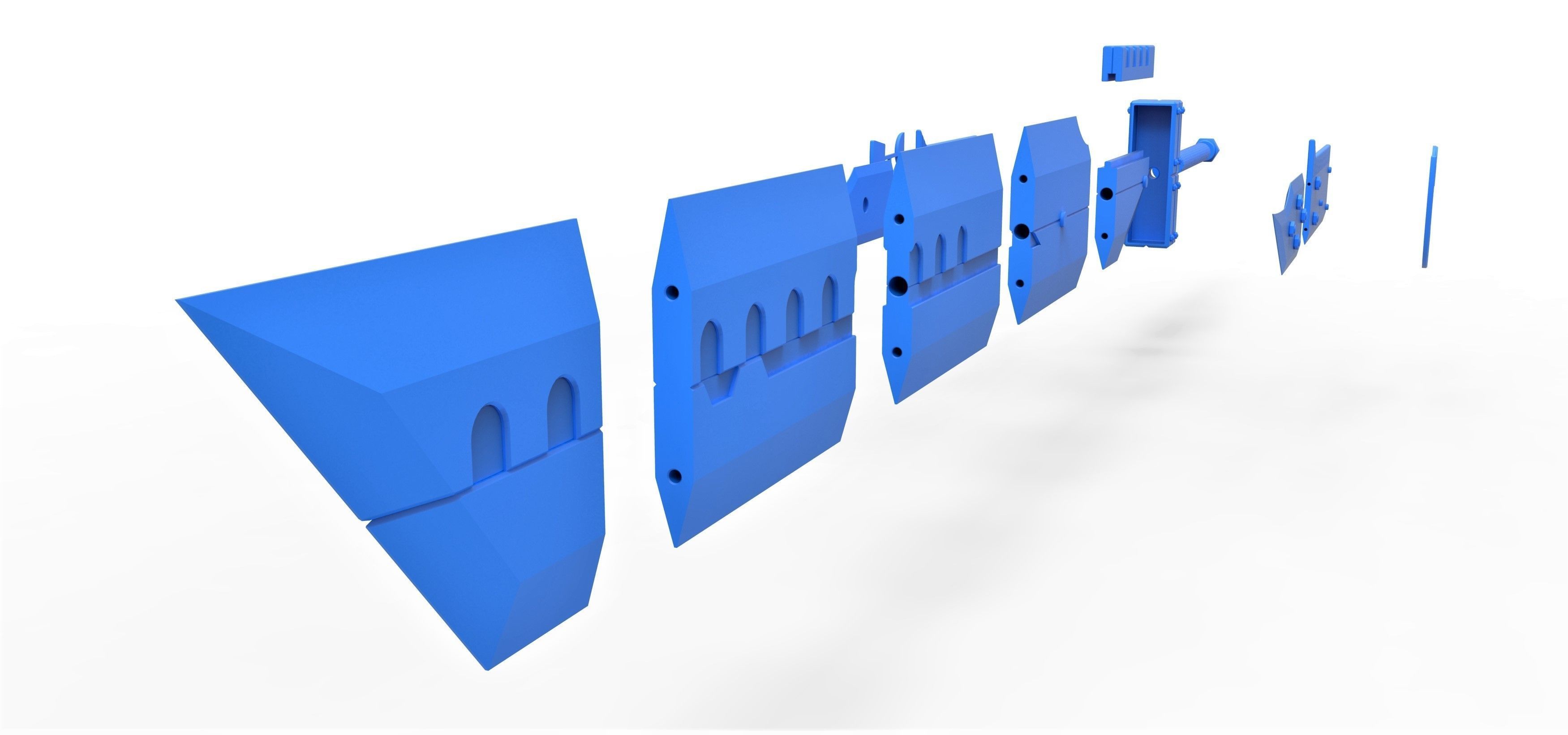

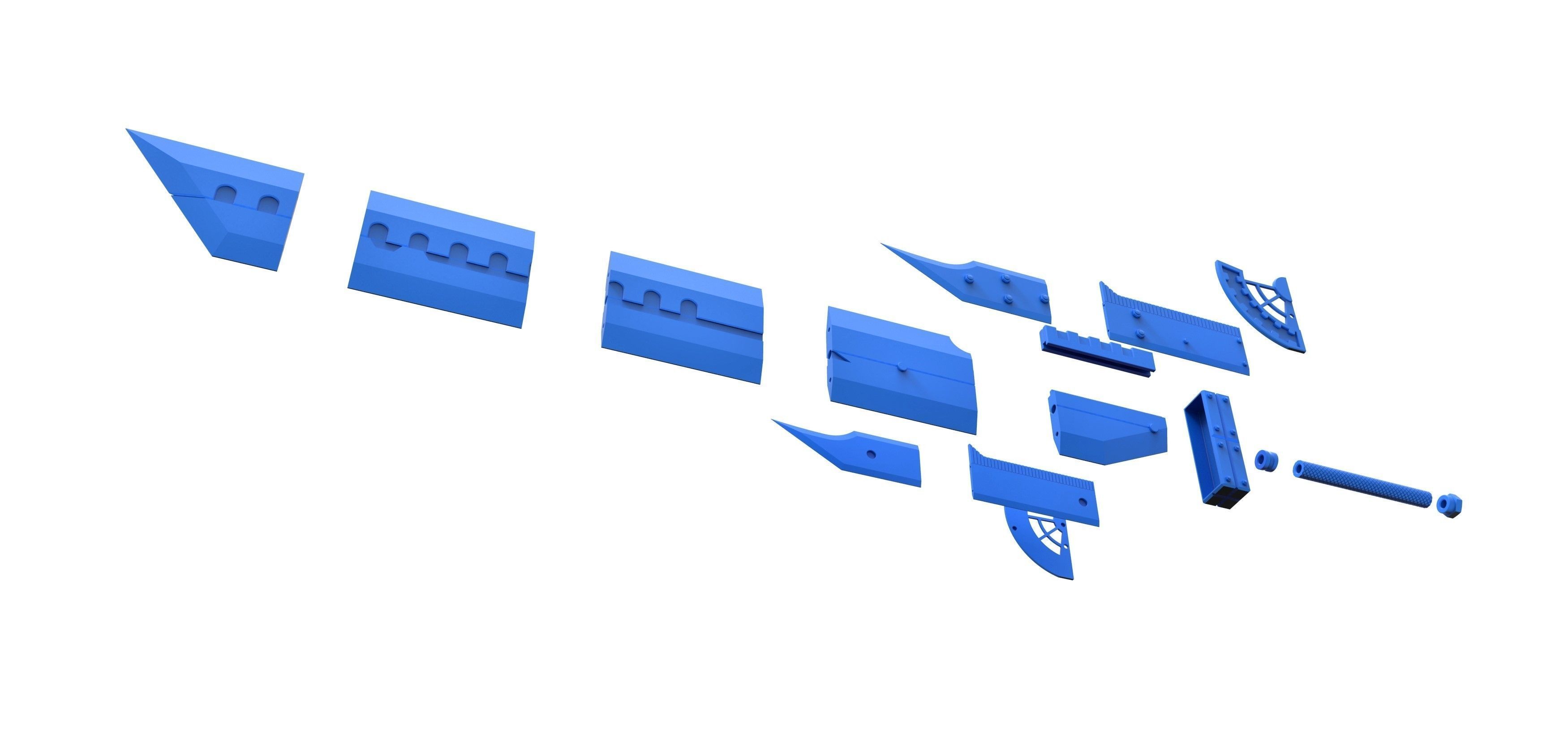

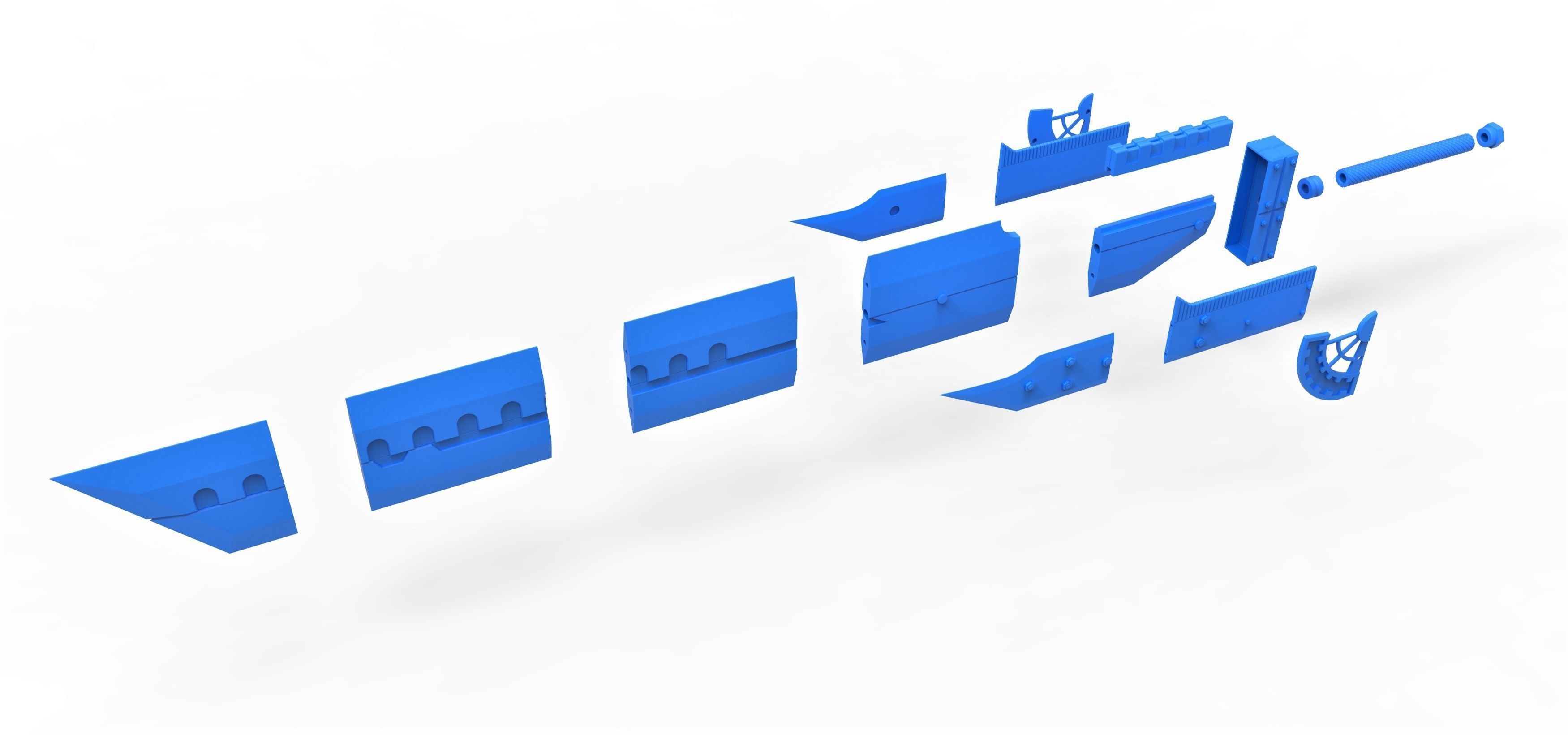

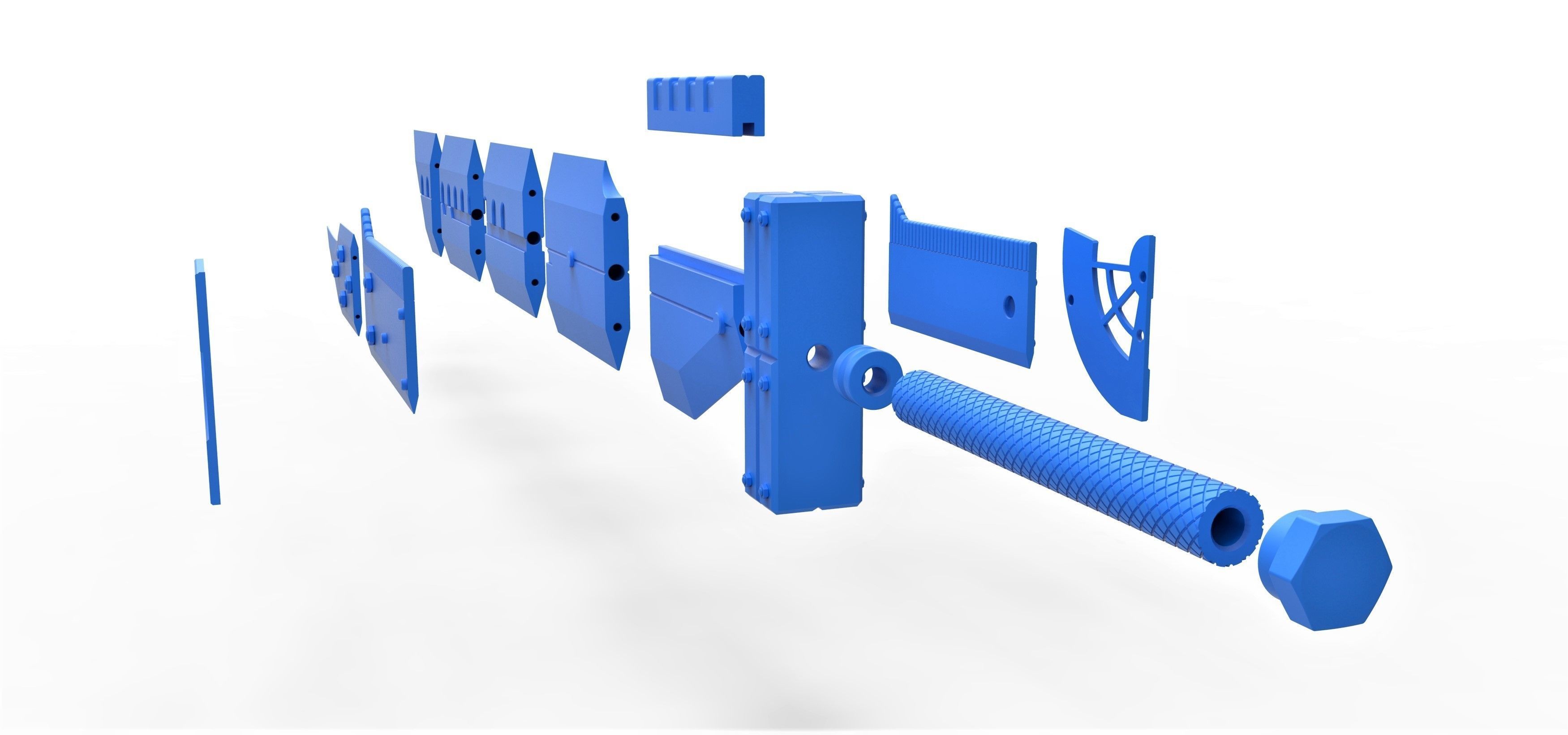

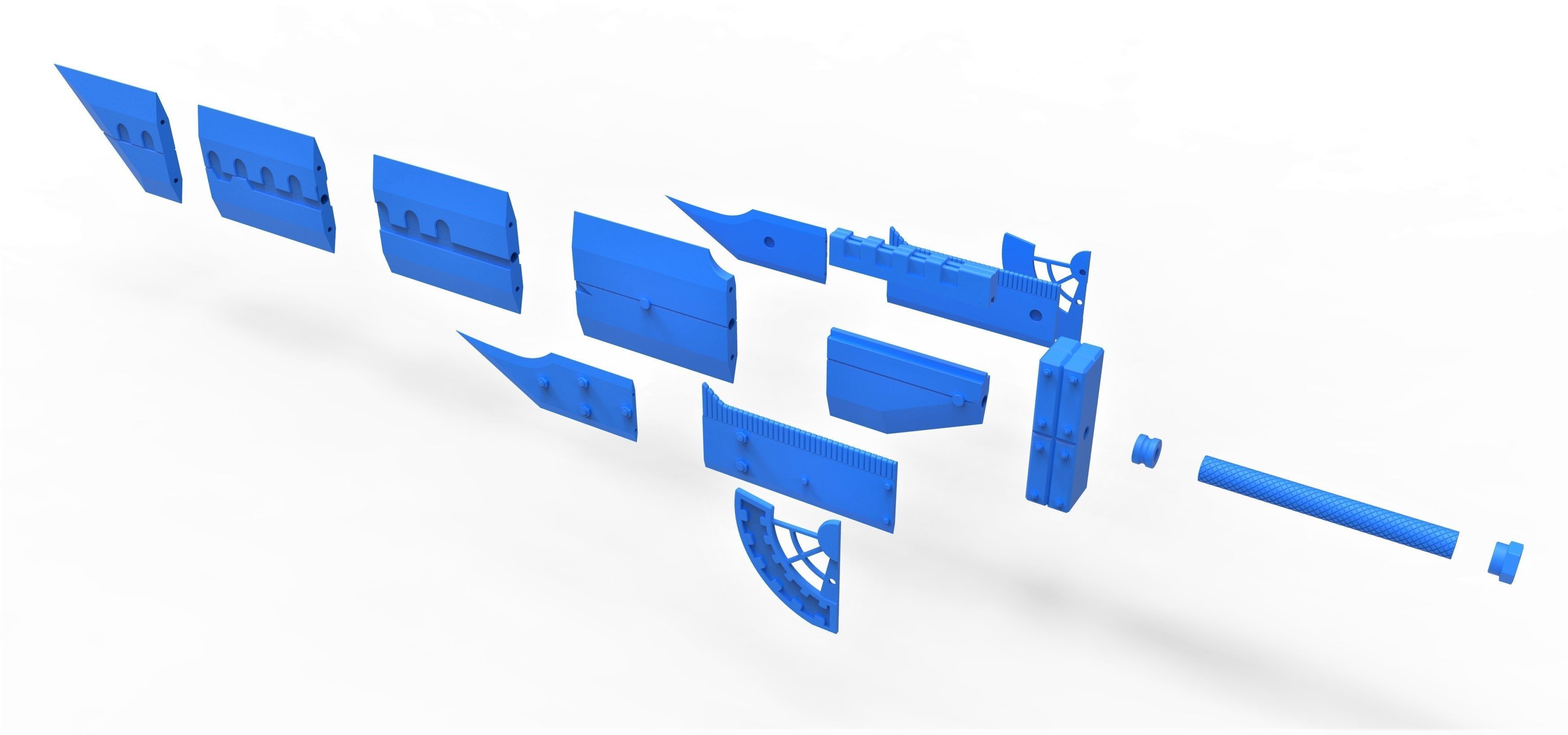

Model consists of parts: blade part 1, blade part 2, blade part 3, blade part 4, blade part 5, box, handle, hub, insert, right blade part 1, right blade part 2, left blade part 1, left blade part 2, right sector, left sector, rear cap.

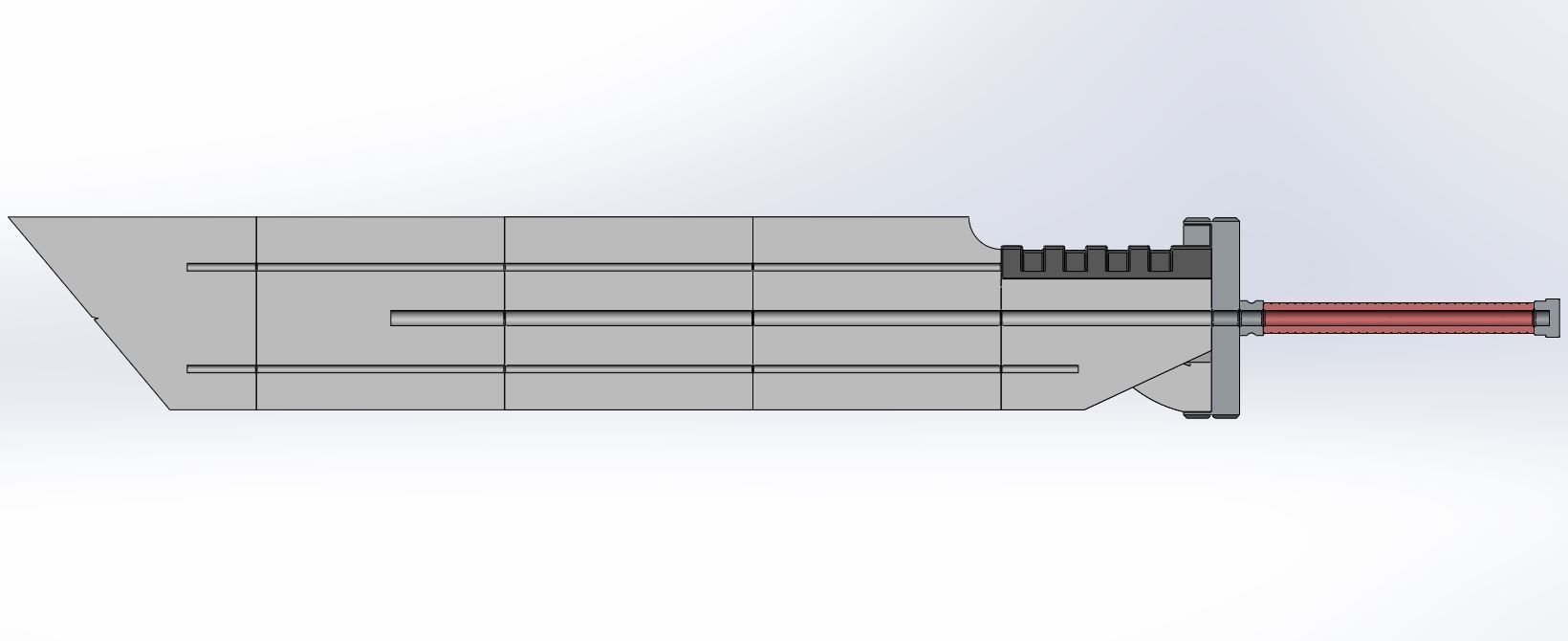

During assembly, use guiding metal rods or tubes.

Rod sizes:

• upper – d=8 mm, length – 955 mm,
• central - d= 16 mm, length – 1360 mm,
• lower - d=8 mm, length – 1045 mm
