Window Shade Control Assembly

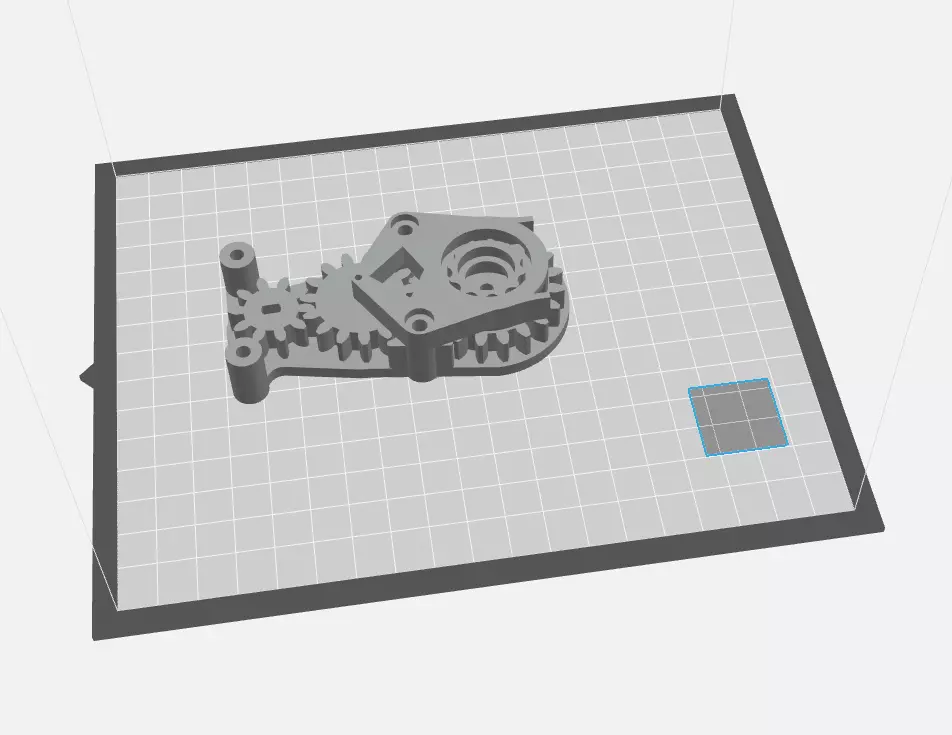

Window Shade Control Assembly 3D print model


This assembly was designed for raising and lowering window shades using a single stepper motor and a microcontroller. It was designed for pull cords made up of 3-5 mm beads and a 28BYJ-48 5V stepper motor.

The assembly consists of 5 parts:

  1. 1 mount that is secured to the window frame with three screws
  2. 3 gears (N10, N15, N20)
  3. 1 cover that holds the pull cord in place

To complete the build:

  1. Two bearings are needed:

  2. 28BYJ-48 5V motor, control board, and programming instructions can be found here:

  3. Window shades used for testing can be found here:

Item rating
0 0
Window Shade Control Assembly
Editorial No Ai License
Window Shade Control Assembly
Editorial No Ai License
Response - % in - h

3D Model formats

Format limitations
  • Stereolithography (.stl) (6 files)2.01 MB

3D Model details

  • Publish date2022-04-16
  • Model ID#3702872
  • Ready for 3D Printing
