Coolmana for Eleksmaker and Benbox 3D print model

Hi guys,

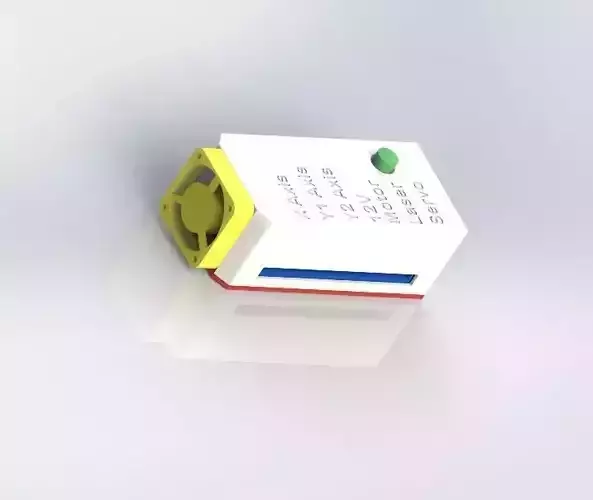

this is my cooling chassis für the ManaSE v3.2 board. I like my electronics cooled so they work for a longer time. The original acrylic cover doesn´t make sense because neither the stepper driver nor the Aduino Nano is cooled properly and it is not easy to start the machine. My design changes this issues. There is a unused 12V connection which can be used the 40mm fan. I recommend to use a silent fan with low power consumption. To mount the chassis you can use the spareparts which came with the eleksmaker. Extras needed: 4 M3x4mm to mount the board 4 M3x16mm to mount the fan (40x40x10mm) 2 M4/M5x10mm to mount the whole chassis 3 9x9x12 heatsinks for the stepper drivers and the Arduino (optional)

This chassis is designed for the ManaSE v3.2 but could work for other Versions, to check that please use the picture with the dimensions.

If you have questions or need a modification feel free to write a message, I will answer as soon as possible.
