Cheap and simple aktuator 3D print model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

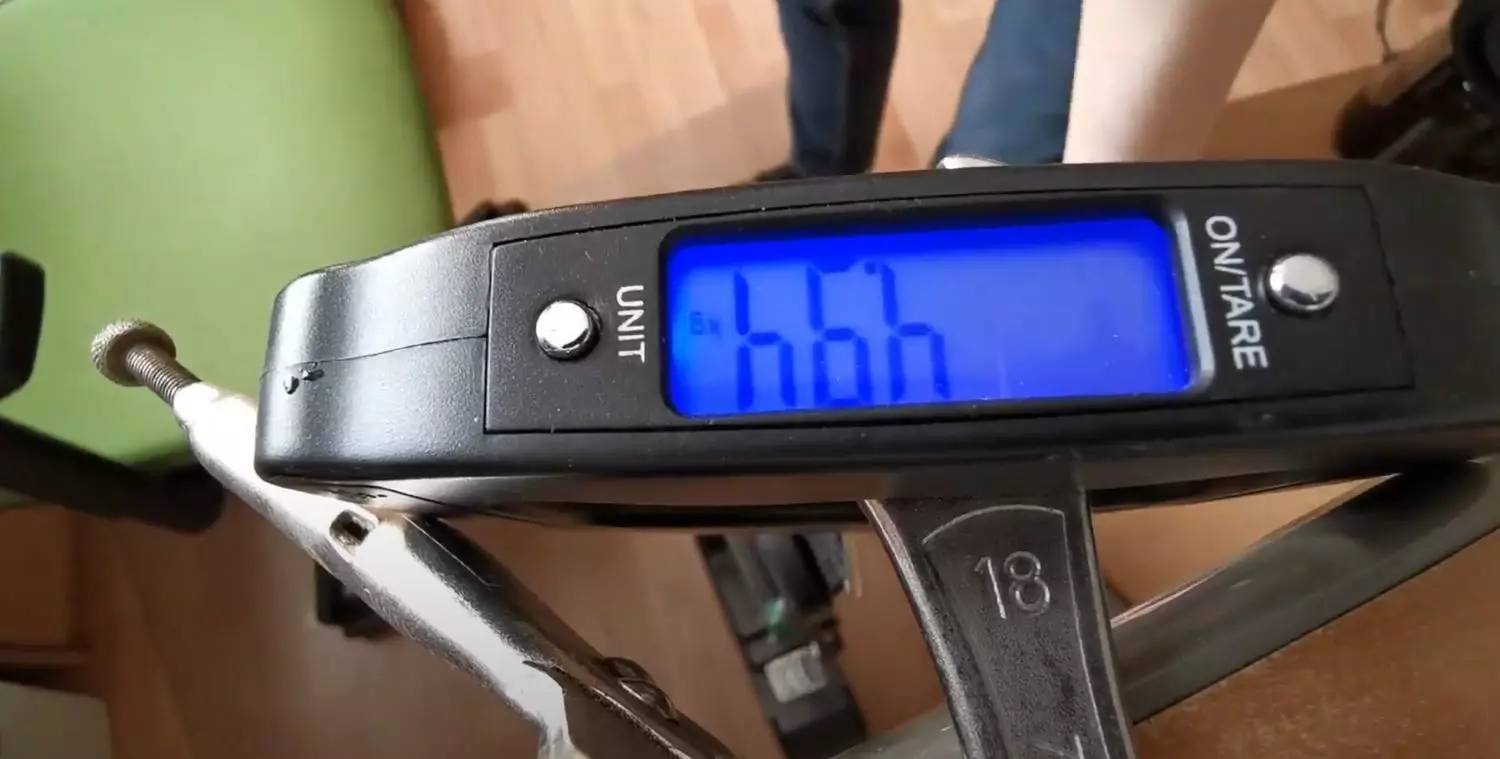

Simple actuator for diy. I made for window opener in foil tent but it can use lot of things. The modell include motor, end positions switch.Max stroke: 130mmSpeed: 80mm/minMax force: 49.5 N ~5kg

Part list:GA12-N20 MotorBearing:DIN_625_1_1989_634_RSScrew: M4
