Sailboat 3D print model

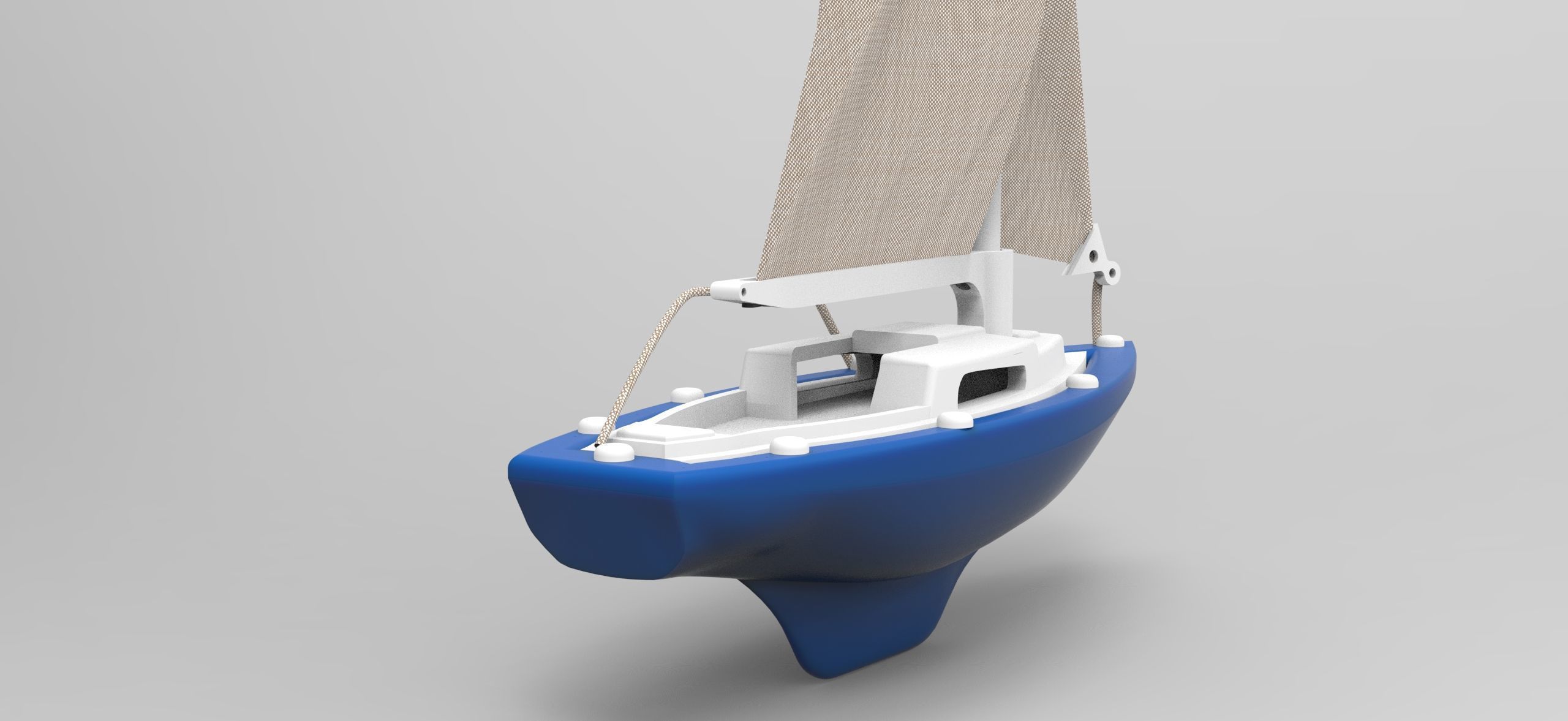

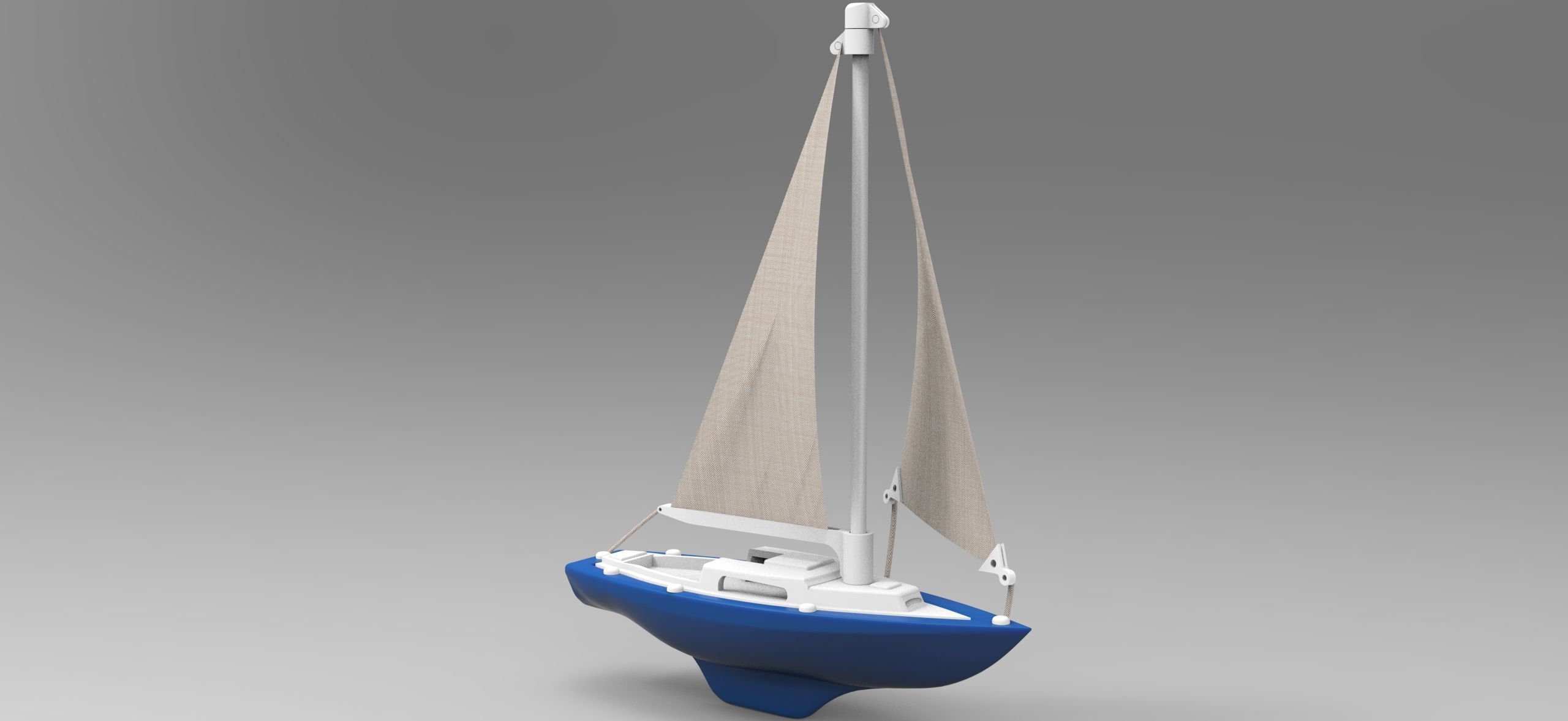

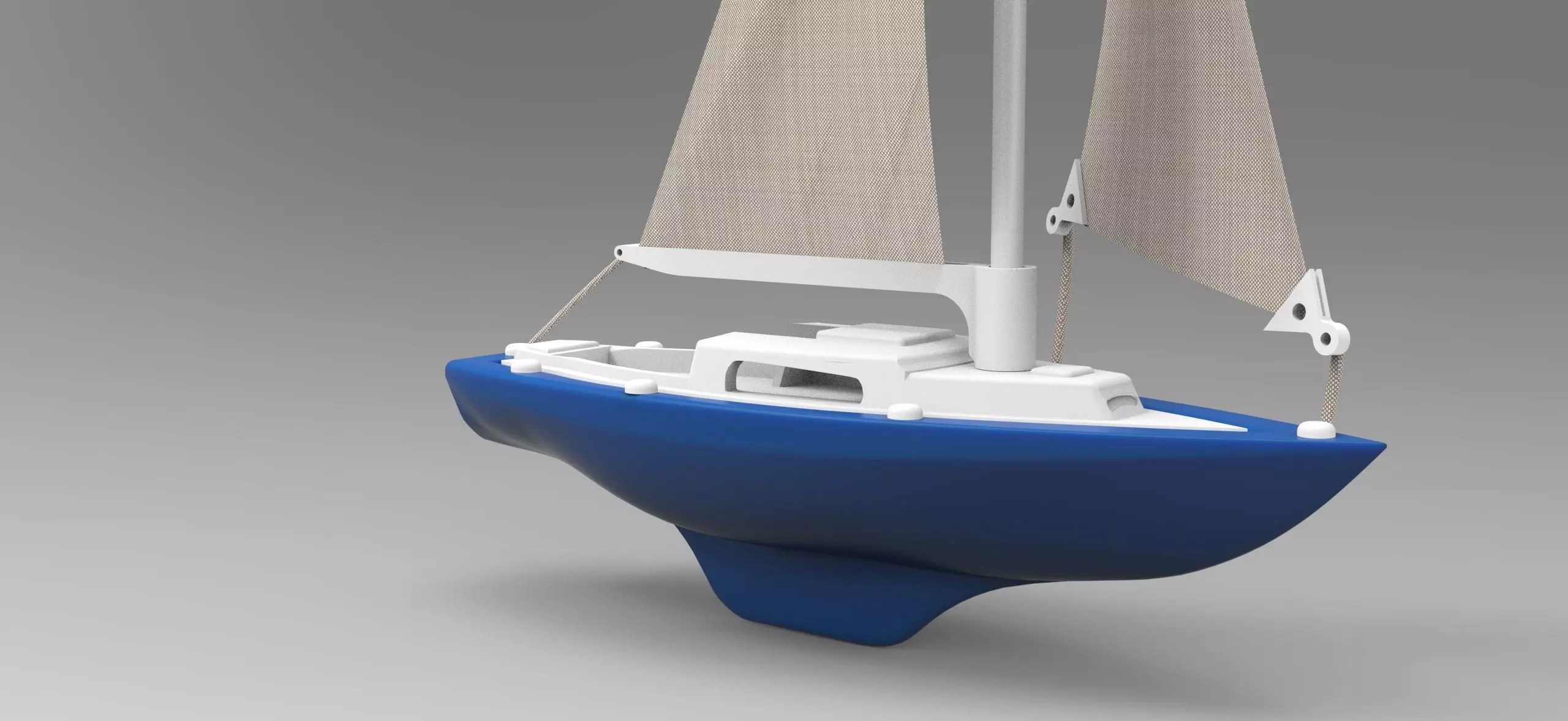

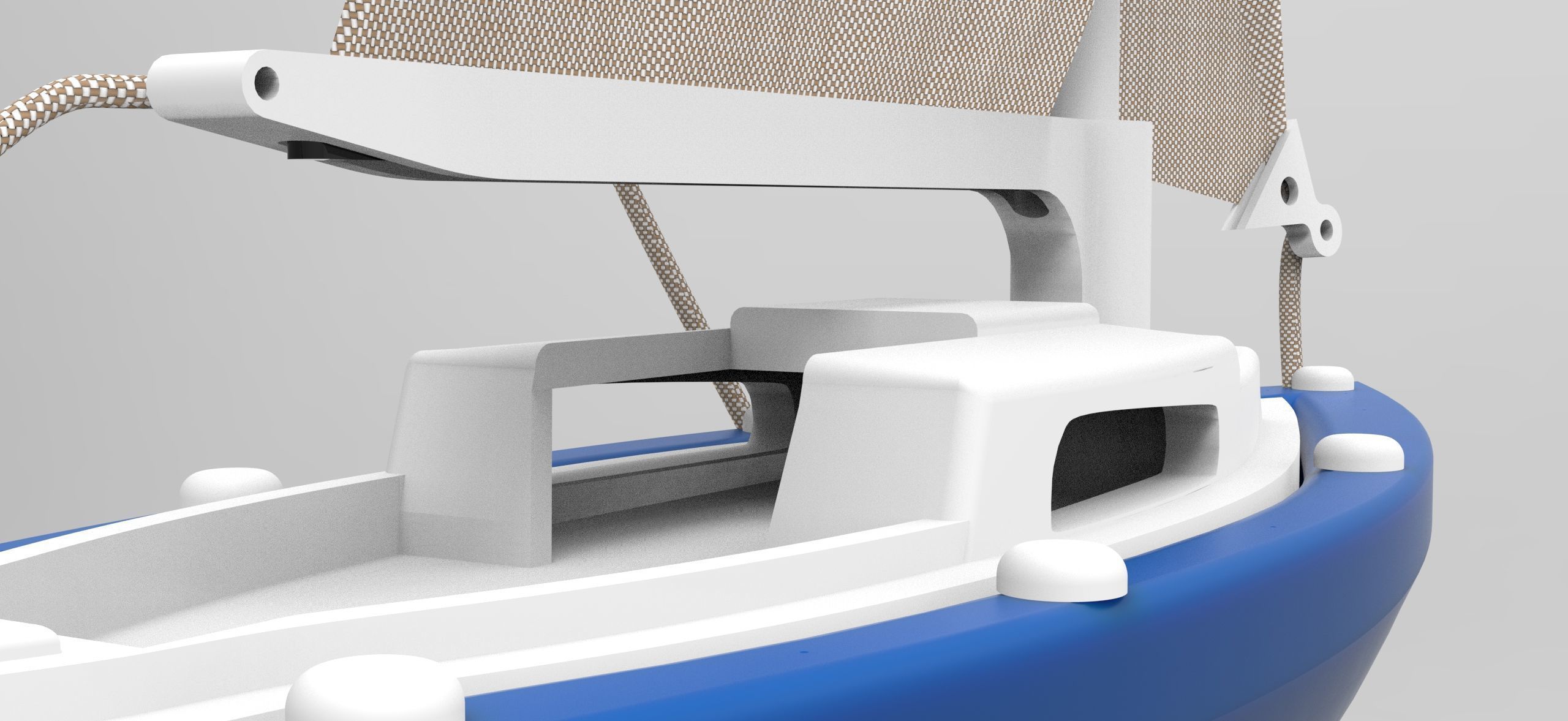

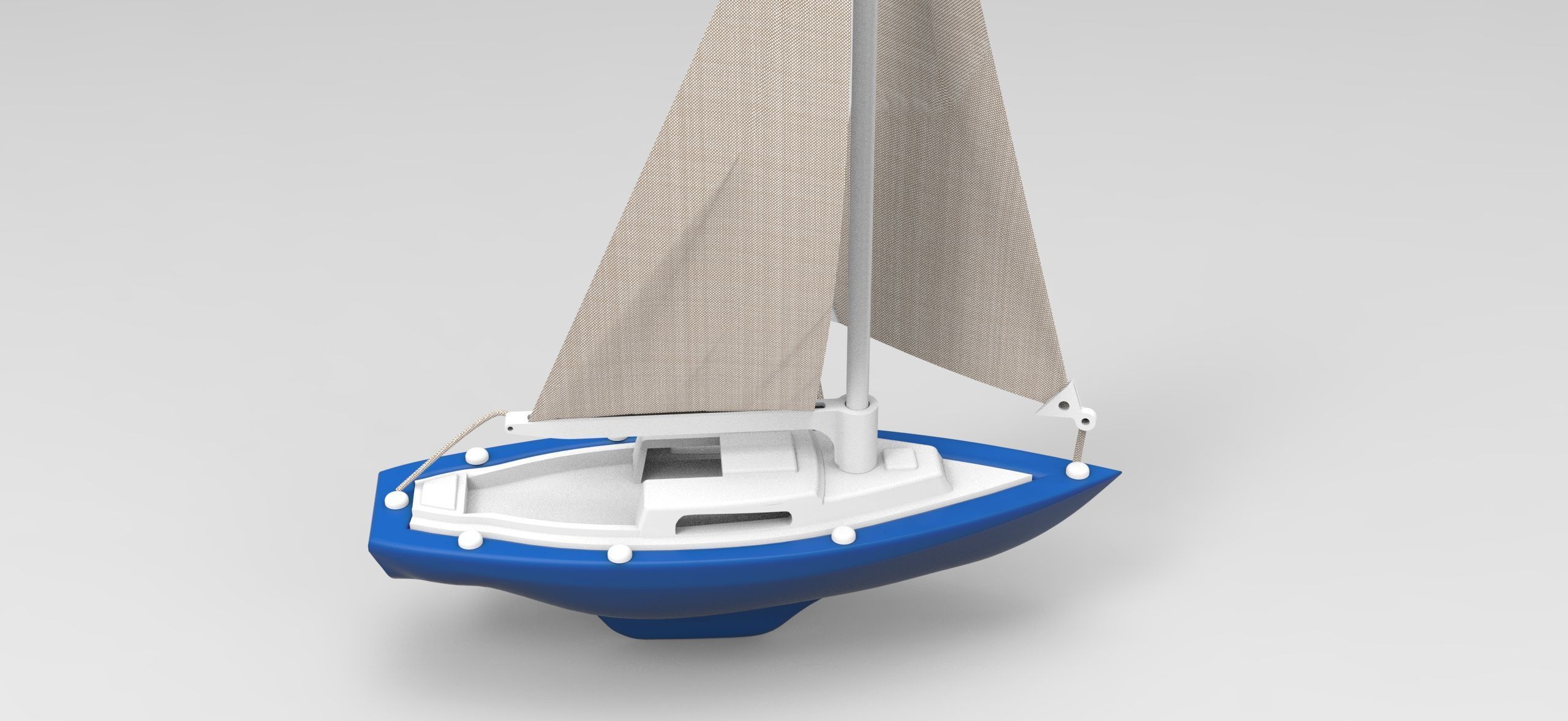

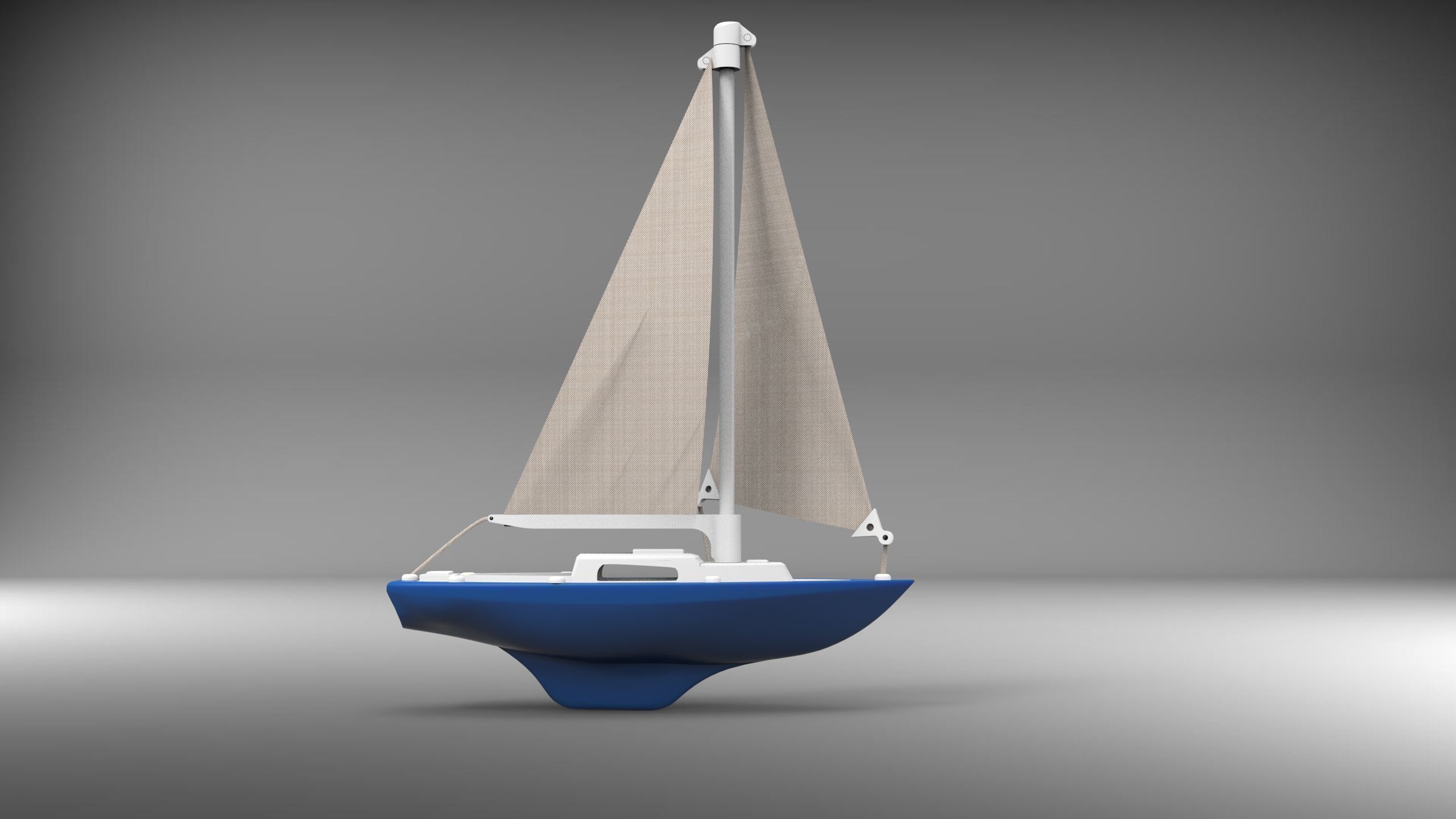

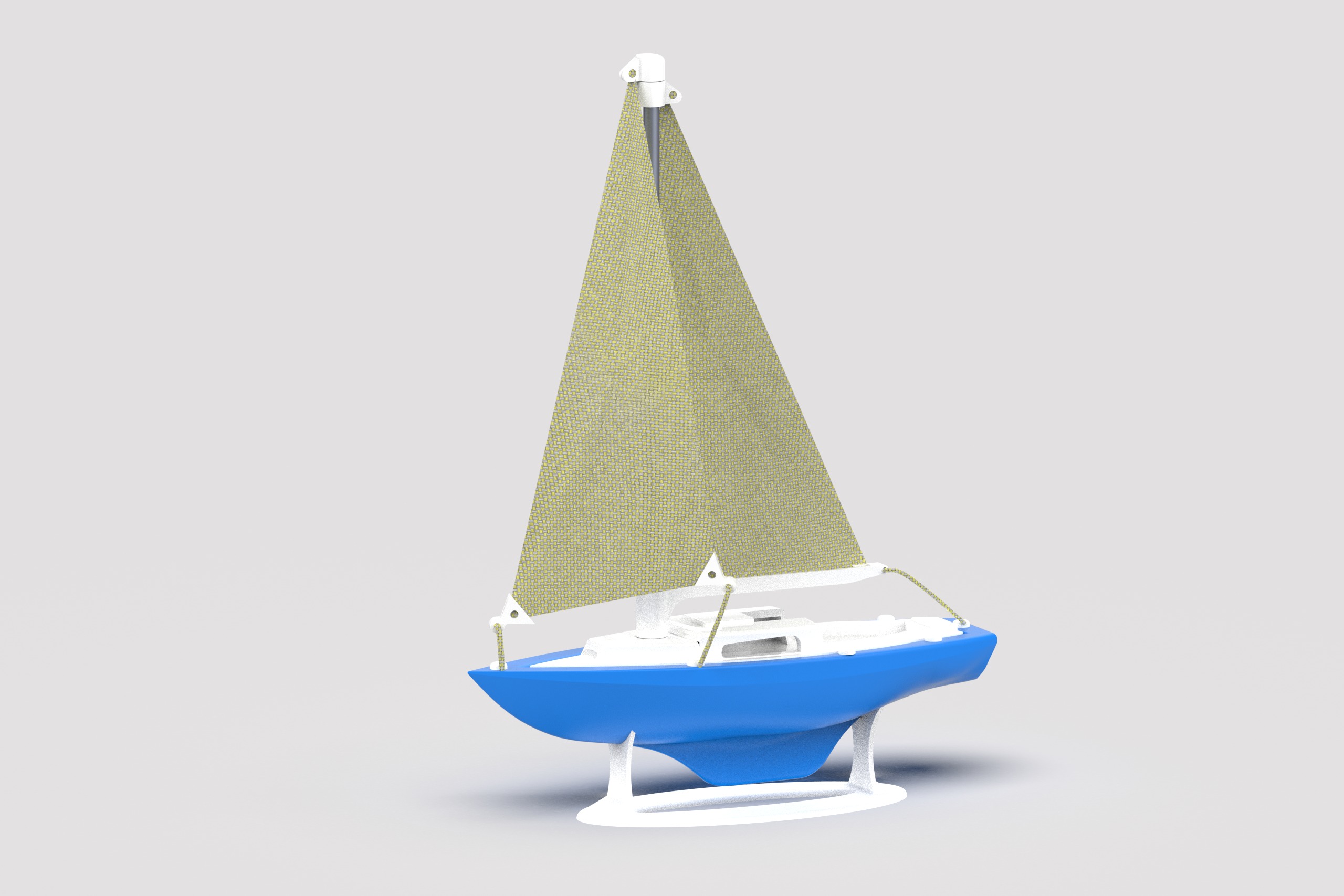

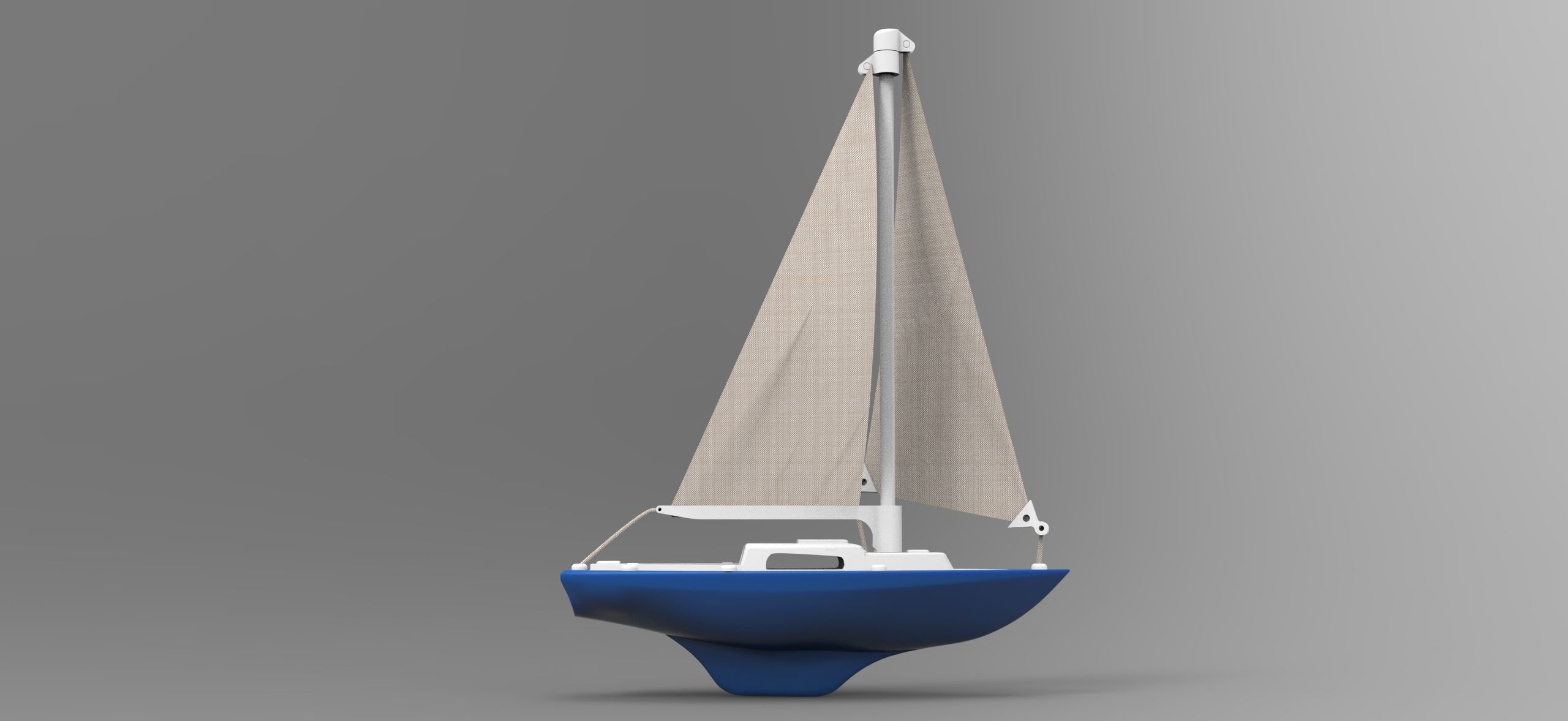

3D model of the Corribee 21 sailboat

The model is optimized for 3D printing to be printed in a very simple way and almost without supports.

It is a 100% functional model that can float on water, it simply requires the loading of some element such as sand or stones to give weight to the hull.

The model contemplates to make the sails of some fabric that you prefer, to cut them to size and then to be placed with some sockets that the model has to be fastened, then by means of threads it is positioned as you wish it. To position the sail has some small locks in the hull that allow to hold the sail firmly.

It is recommended to use hot silicone so that some elements are firmer at the time of assembling the whole sailboat.

In total there are 10 STLs, some must be printed several times as the same part is repeated.

The last image shows how the filling should be, in my case I used sand.

It does not require supports in most parts, only inside the cabin.

3D printing settingsPeak 0.4

2 perimeters

Resolution 0.3

Material: PLA
