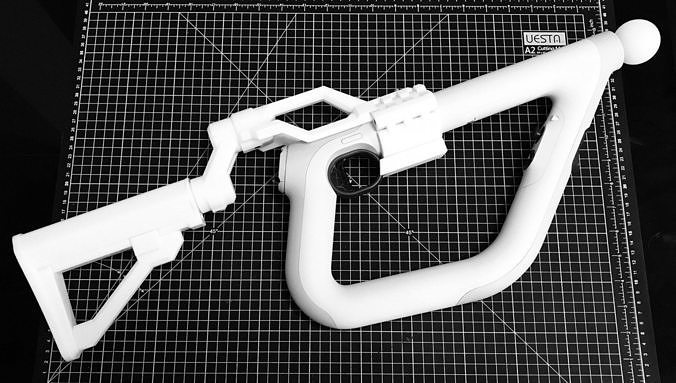

PSVR Aim Controller Stock V2 3D print model

Buttstock for Playstation VR Aim Controller. Version 2.0

  • Length adjustment (6 positions)
  • Height adjustment (3 positions)
  • Easy mounting with self-centering
  • Simple printing with minimum of supports

For assembly required:

  • 4 - M4x30 DIN 912 screws
  • 4 - M4x10 DIN 912 screws
  • 1 - M4 nut
  • glue (optional)
  • vventas-22
    Buyer
    2019-06-03 23:06
    hola, recien compre el archivo .stl, cual seria el mejor filamento petg o abs ? tambien necesito los archivos .stl por separados por que mi impresora no imprime tan alto !! al archivo buttstock es muy alto para poder imprimir me pudes enviar por separado ? hello, just buy the .stl file, what would be the best filament petg or abs? I also need the .stl files separately because my printer does not print so high !! to the file buttstock is too high to print can you send me separately piece by piece? Sorry, my english is bad, I speak spanish
    • rexdevrurexdevru
      Author
      2019-06-03 23:37
      Hello, the best choice would be ABS. It is a pity that your printer does not allow to print 175mm by vertically. I'll send you separate STL for the buttstock, but you'll need to use glue to assemble this part.
    • yyuyo57
      Buyer
      2019-06-08 06:06
      What made you think it was a good idea to group design pieces in packs and not signal pieces? I want the pieces broke down into single pieces not in groups. Please Send me single piece files. If 1 piece in group fails you have to print them all over again.
      • rexdevrurexdevru
        Author
        2019-06-08 07:35
        I sent you a link to the separated parts. The main reason I don't want to add them to the main archive is the ability to print parts in the wrong orientation on layers. And as a result, there are problems with stiffness and fragility.
        • yyuyo57
          Buyer
          2019-06-08 11:30
          Ok thanks a lot for the explanation. Cheers
          • aacidzero
            Buyer
            2019-09-28 20:28
            Hi, would you be able also to send me the parts each as a separate STL file please? I'd like to slice them in smaller groups so each print job is shorter (I don't like leaving prints unattended atm). Thanks.
      • ggillieskyler1
        Buyer
        2019-09-29 16:24
        can you send me the stl file for just the tall peace on the 2 part?
      • ttwinblazer99
        Buyer
        2019-11-19 08:52
        Hi, i would like to have the seperate stls too for individual parts if you dont mind. Thank you!
      • mmfleming0402
        Buyer
        2020-03-08 02:24
        Hi. Can you post some images of the M4 screws you used or a link to them online for reference? I want to make sure I use the correct ones. Also if you have any images of where the screws go into size wize/bolt position etc? Thank you
        • rexdevrurexdevru
          Author
          2020-03-08 07:03
          Hi! https://puu.sh/FiiTn/0faaf4277f.png https://puu.sh/FiiSQ/02cdbb1dcb.png https://puu.sh/FiiOC/ff22fe059c.png
          • rexdevrurexdevru
            Author
            2020-03-08 07:30
            https://aliexpress.com/wholesale?SearchText=%25D0%259C4%2BDIN%2B912
            • mmfleming0402
              Buyer
              2020-03-10 20:42
              Ok I purchased some of the screws, but have still have a few questions. 1. What screws did you use for the 2 really long ones (60mm+/-) at the front of the attachment? M4x60 with nuts? 2. For the stock, I'm guessing you can glue the top and bottom angle piece to the end butt stock flat piece? How does the M4 bolt work for connection this piece. Is it extended to be screwed from below up through the slider and into the barrel with no nuts? How do you adjust, do you need to take bolt out again? Also for these 2 barrels their isn't a hole in the top barrel so it can slide independently of the bottom half, do you glue this piece or something else? By the way this is pretty cool design and the kids love it, can't wait to try it out!
              • rexdevrurexdevru
                Author
                2020-03-10 20:58
                I don't use glue, but you can if you want. = ) The length of the screws is specified in the description: 4pcs-M4x30mm DIN 912 and 4pcs-M4x10mm DIN 912. When screwing, they cut the thread in the plastic themselves. This is more than enough. Only one nut is needed. The entire build process is on video https://www.youtube.com/watch?v=emqI30qVeJo
          Item Rating40
          • mmfleming0402
            2020-03-10 21:39
            Recommended
            Great model and good youtube video for assembly instructions!
          • sscreamtk88
            2020-02-26 15:43
            Recommended
            The best design! Very good support!
          • ggeorge-emiller
            2019-10-10 15:12
            Recommended
            brilliant print setup well thanks
          • pph-6
            2019-07-05 16:14
            Recommended
