AUTOMATIC BOX FOR TOOTHPICKS 3D print model

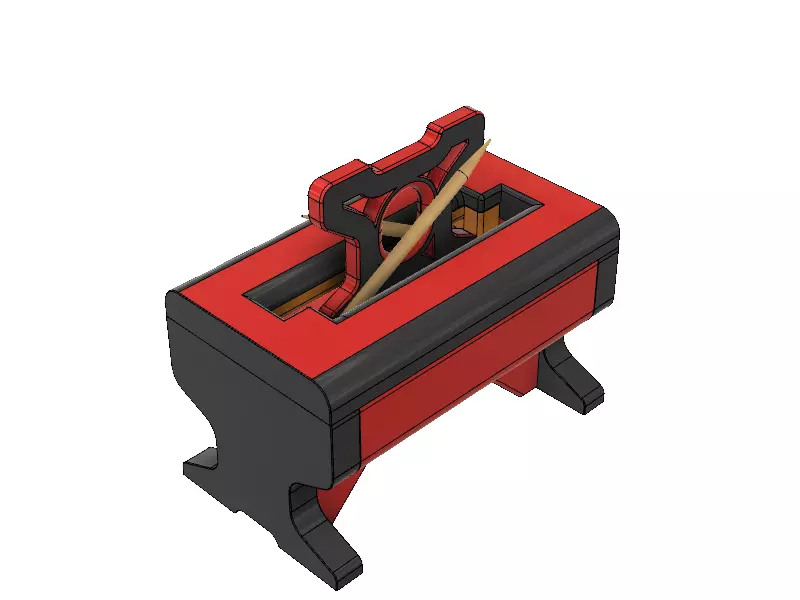

3D MODEL DESCRIPTIONToothpick box, pulls out two toothpicks with each click, easy printing with very few supports, easy and quick cleaning. Need two small rubber bands for children's games (picture attached). Divided into 10 separate parts that connect to each other. You can print with very few supports and get a better result. The two parts called - stopper - should be glued to the cover, dimensions length 85 mm, width 50, height 50, if there are any questions I would be happy to help by email ilankaplan@walla.com . Also attached is a link to the animation of the mechanism -https://youtu.be/GgF15kN47Tk .A video of the toothpick box printed and working-https://youtu.be/oJm5UVDAZK4

3D PRINTING SETTINGSlayer-0.3\print speed-60\pla+\head temp -225 \bed temp50 \infill-20% \ support pattern -traingle \support overhang angle -68 68 degrees, any size below this figure will cause a lot of support and difficult cleaning, you can find it in the support tab, in any case I added a cura file with all the data inside and you can just print, print time -8 hours thread length 30 meters (It is a fast and very low quality print)

3D file format: GCODE and STL
