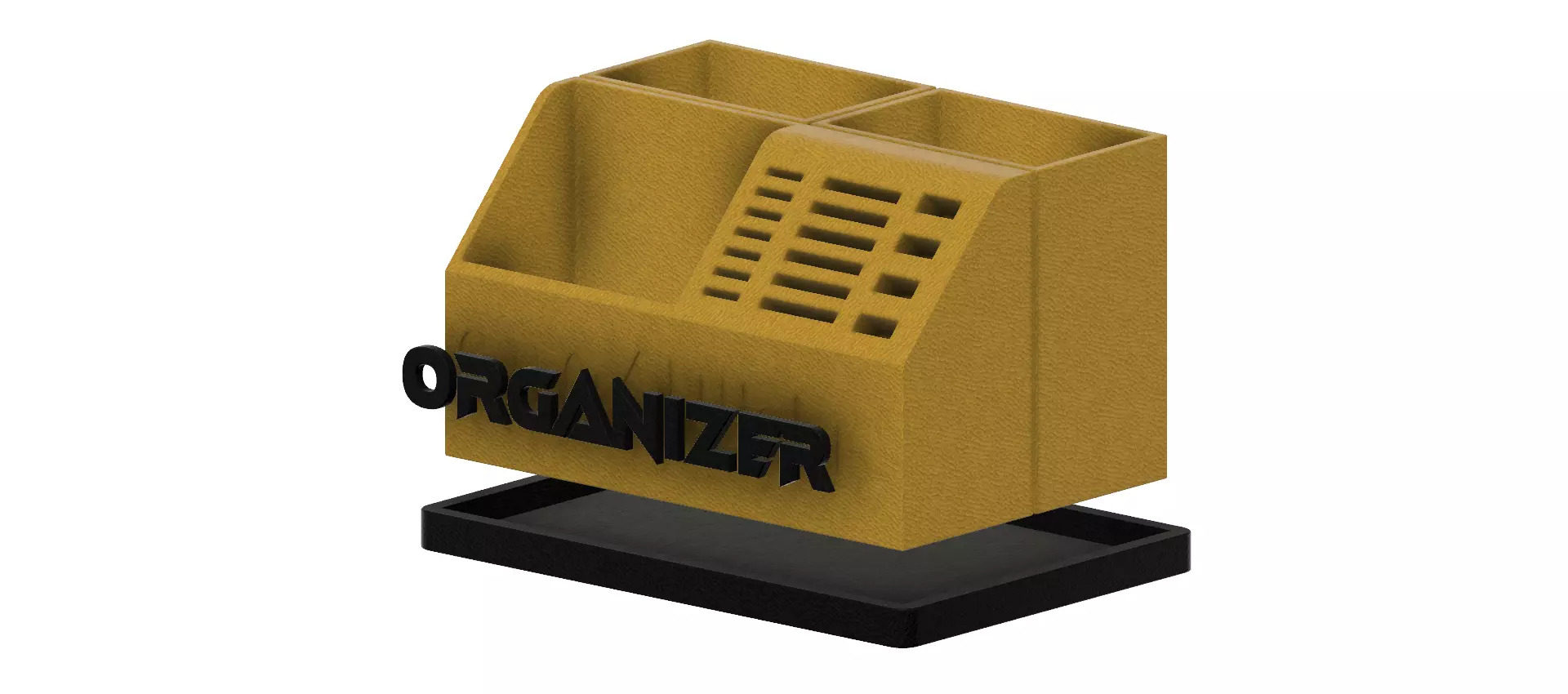

Office Organizer USB MicroSD SD and Pen Holder 3D print model

3D MODEL DESCRIPTIONHello friend, today on my profile I wanted to bring an organizer, if like me you have a desk full of usb and micro sd, this organizer is for you.

The dimensions of the base are 160 mm x 110 mm, instead the rear boxes are 70 mm x 44 mm x 84 mm deep.

For the front box, I treated two models, one all open, another with the possibility of being able to insert in an organized USB, microsd and SD.

The dimensions of the open front box are 140 mm x 60 mm x 84 mm depth, instead for the version with the usb organizer, the dimensions are 71 mm x 60 mm x 84 mm depth,

The organizer can accommodate 4 USB sticks, 6 Sd and 7 microsd.

The logo organizer is printed separately, so you can print it in another color, and glue it, so as to make it more cute, without re-running to acrylic paints to paint it.

I also added the version without logo, for those who prefer it smooth.

The whole thing does not need support.

I also want to remind you that almost all my projects are interlocking, and have a tolerance ranging from 0.35 to 0.50mm, depending on the project I go to work, I apply the right tolerance tolerance standard of all printersIf you, like many others, don’t know what tolerance your printer has, I suggest you download my tolerance test, you can find it on my profile.

As always I want to thank you for spending your time viewing my project, and if you find it interesting, I suggest you take a look at my cults profile, because you will find a lot of interesting projects, and I’m sure you’ll find something that will do for you, I also remind you to leave me a like if you appreciate my work and follow me.

Good press friend for anything, contact me via messages.

3D PRINTING SETTINGSLayer 0.20Temp 205° / 50° PLA --- 230° / 65° PETGInfill 10%Top and Bottom Layer 4Perimeter Layer 3No supportSpeed 50/60 mm/s
