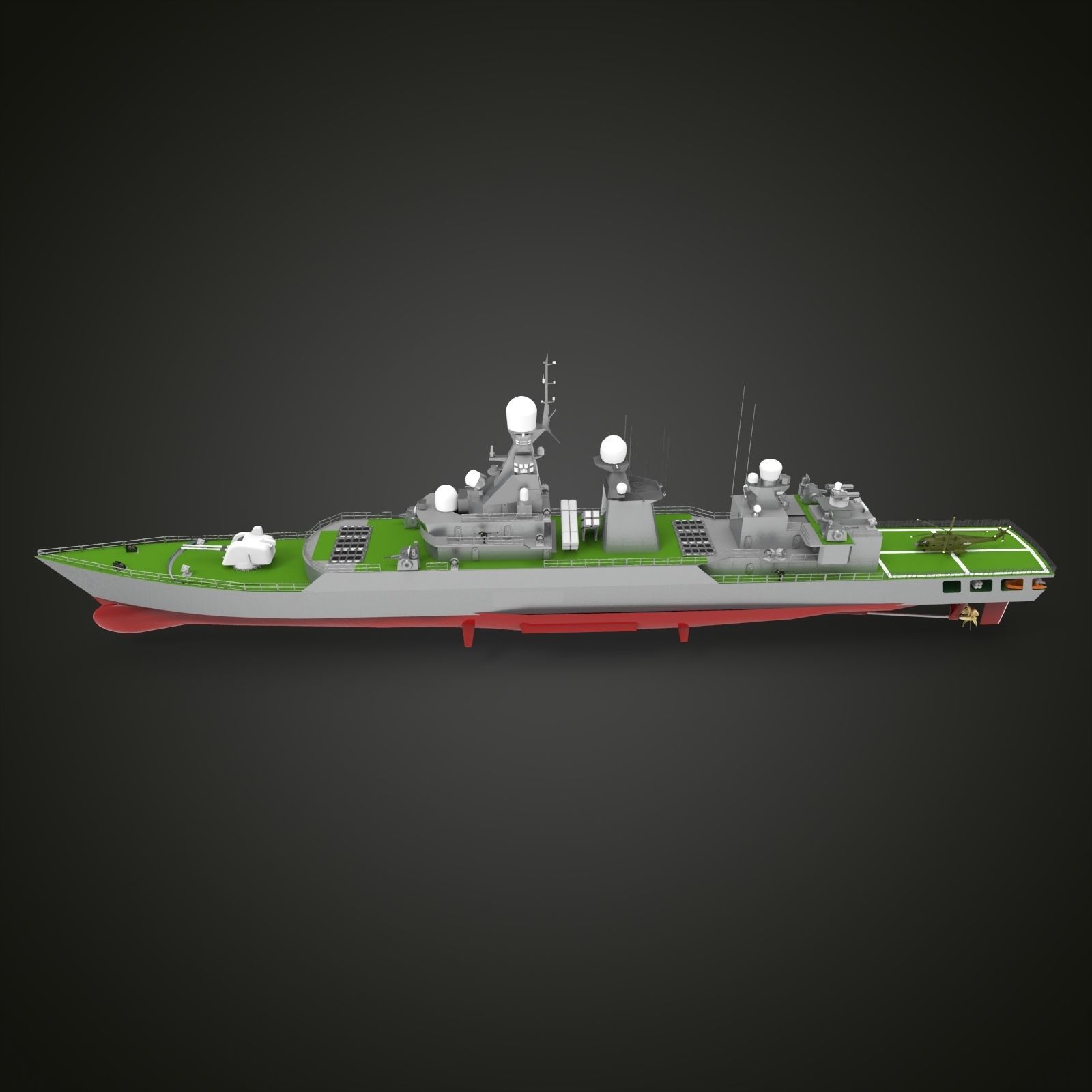

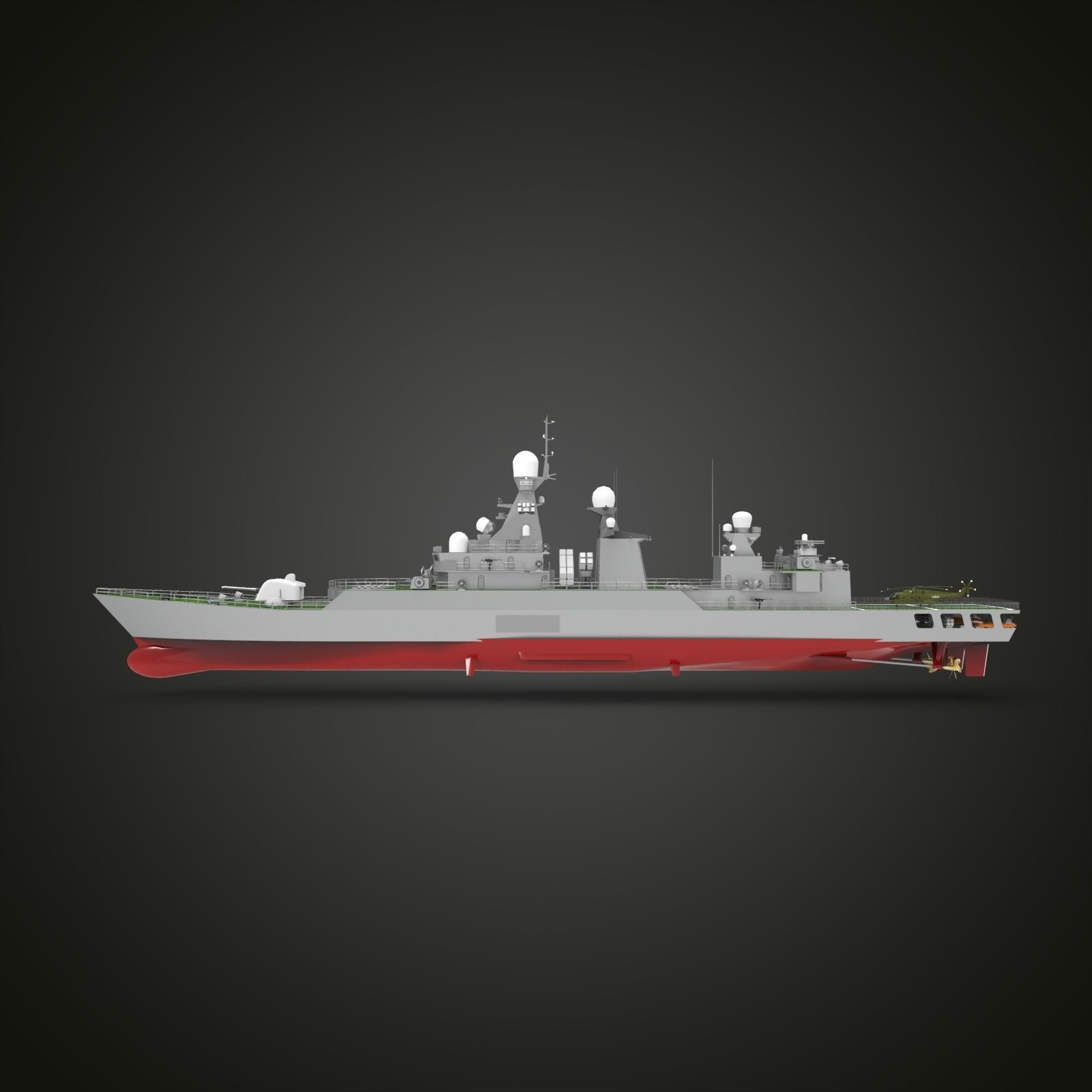

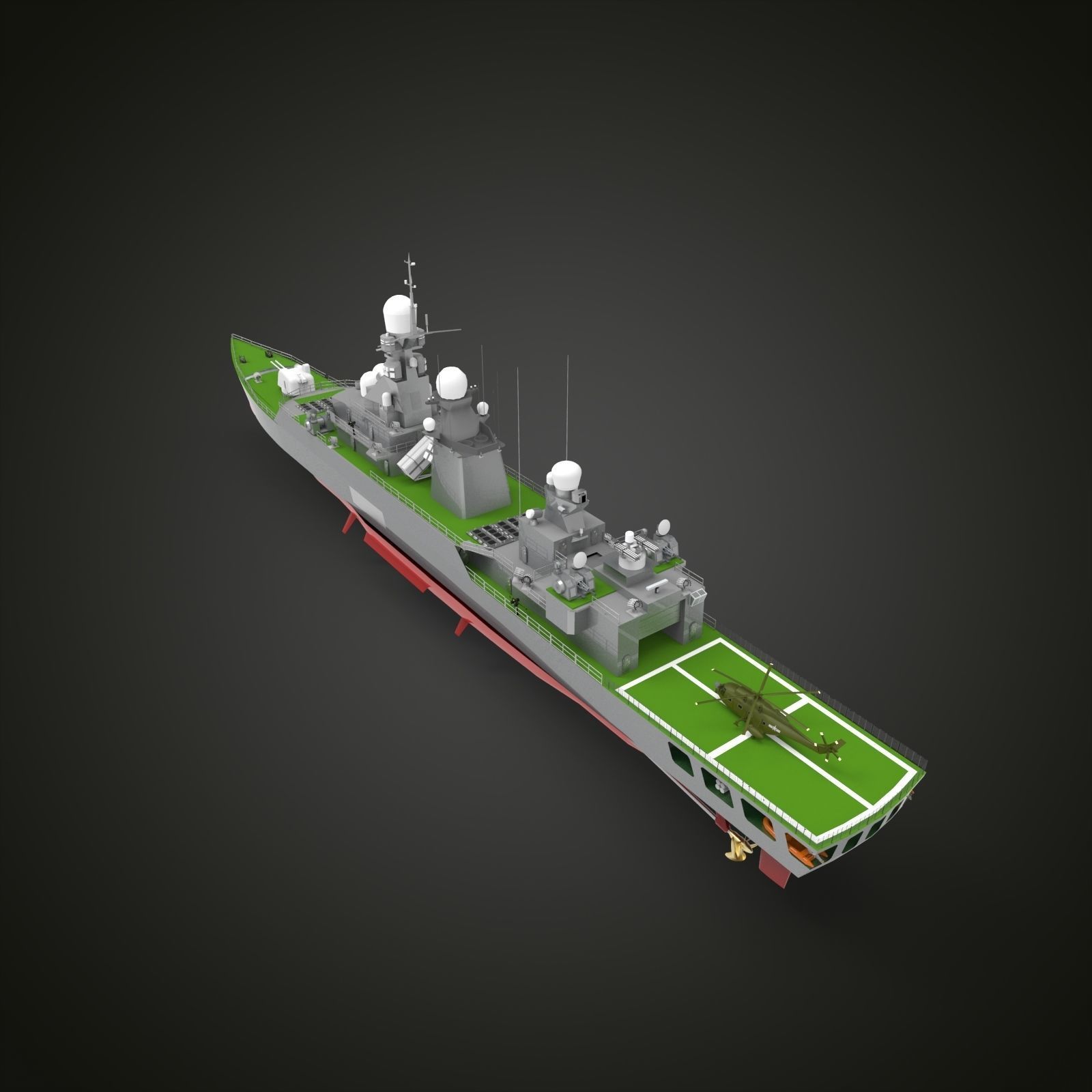

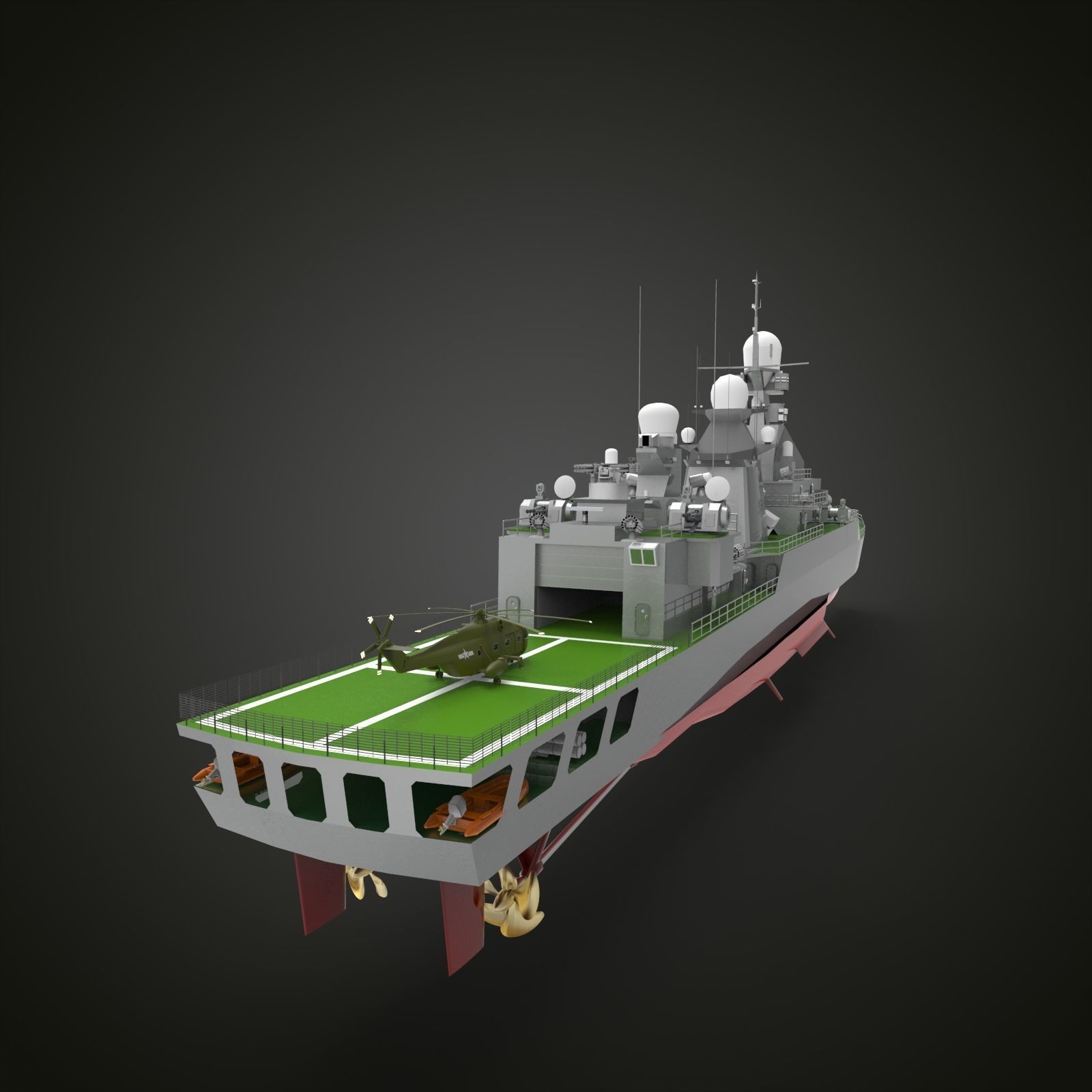

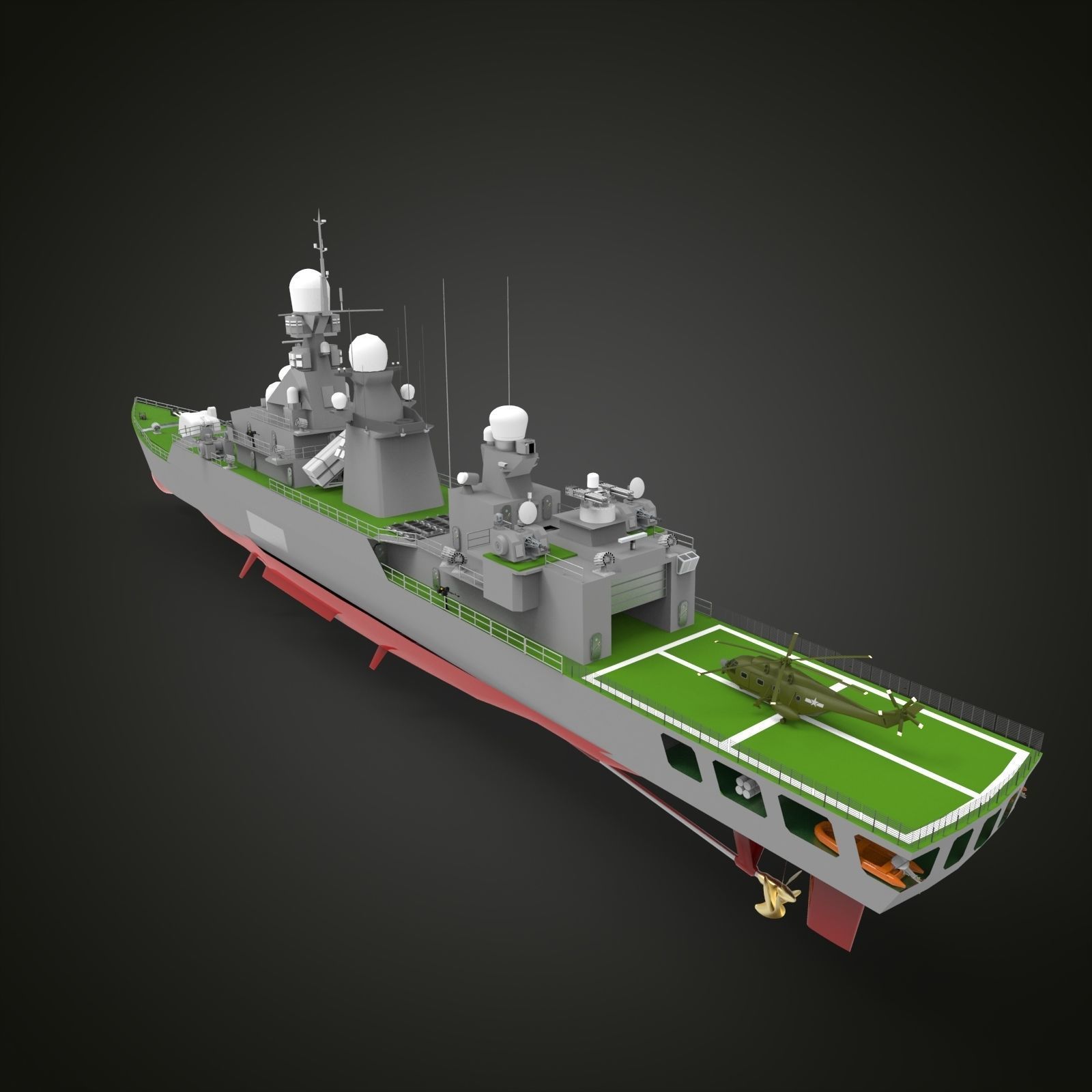

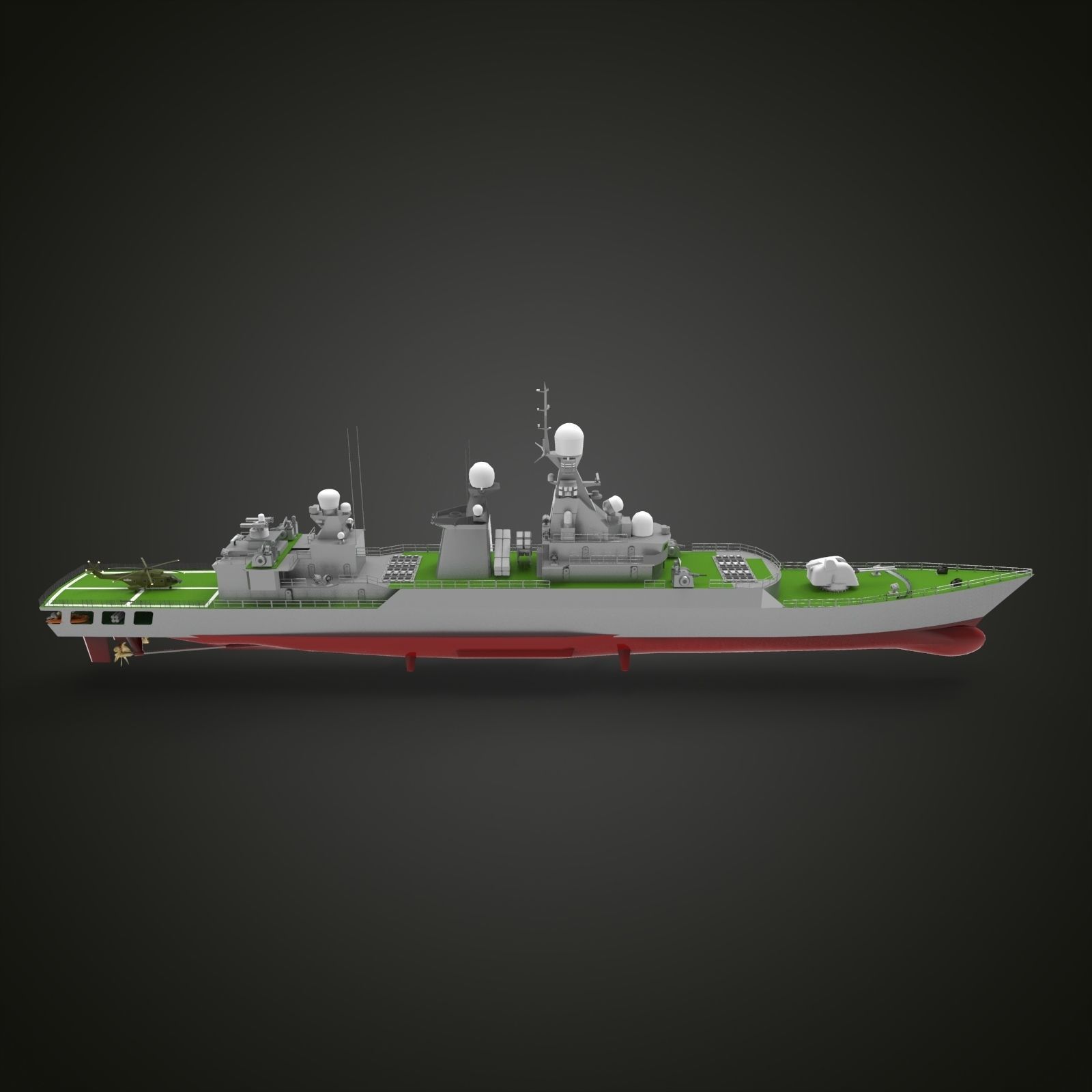

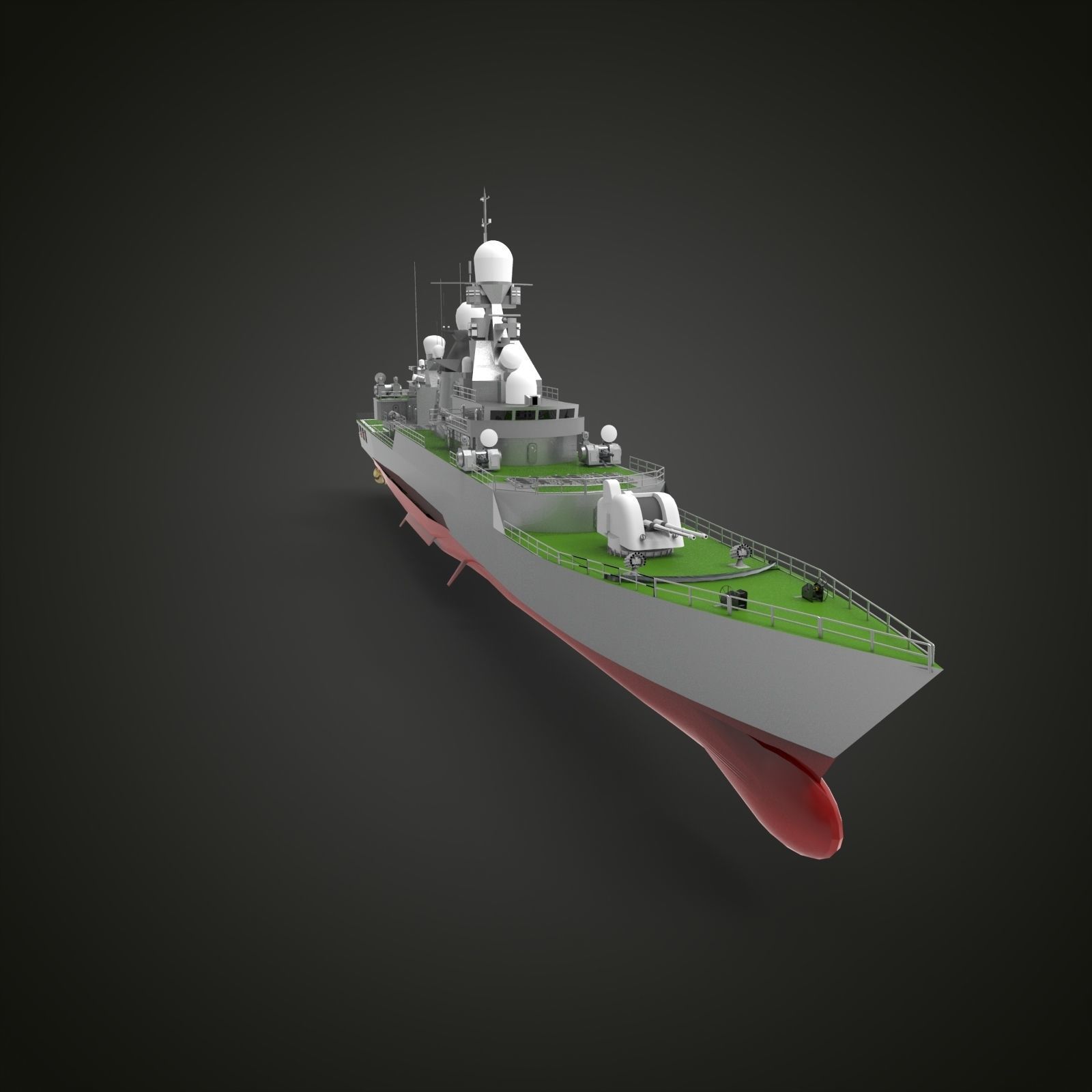

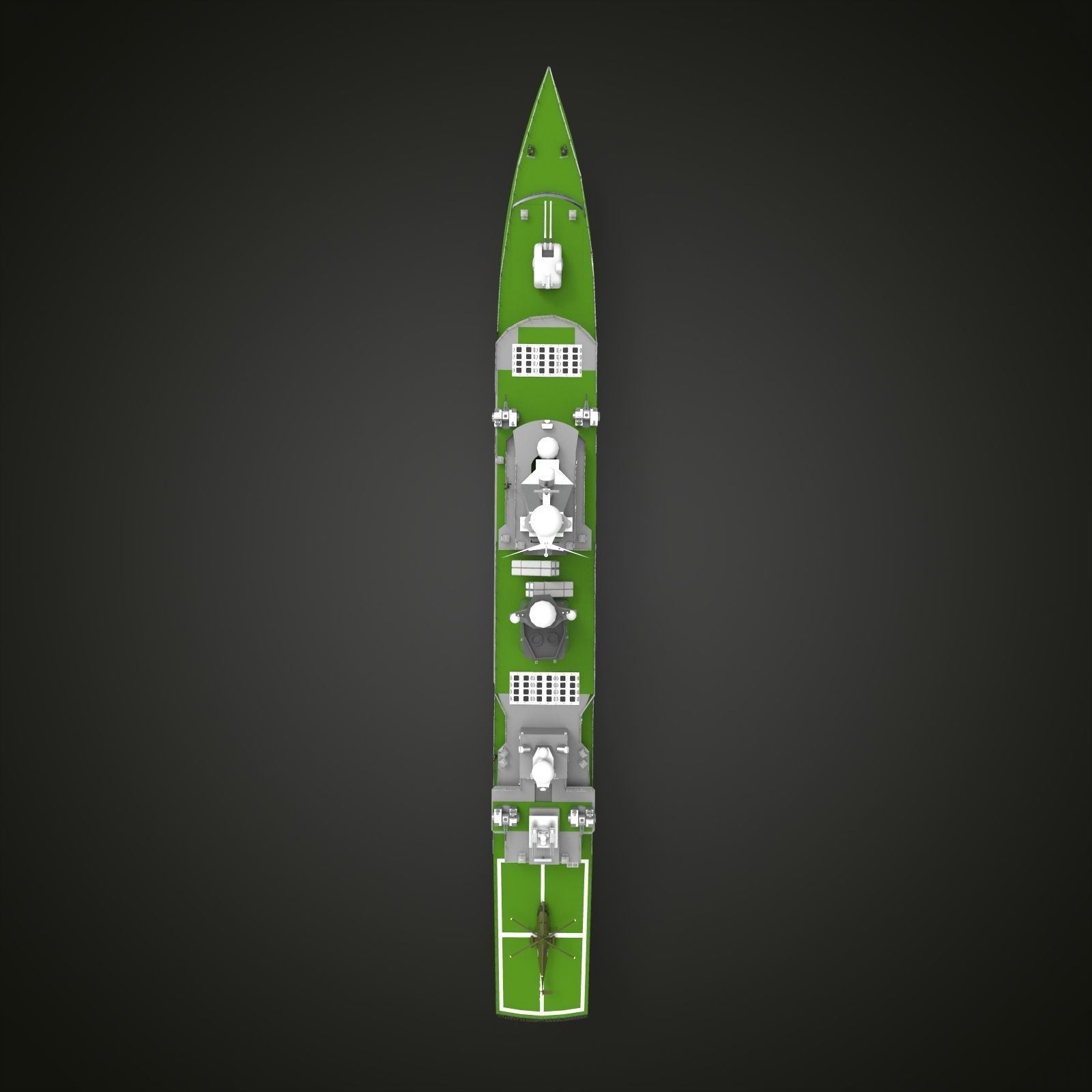

Jiangwei Class frigate 3D model

Type Frigate Displacement 2,250 tons standard, 2,393 tons full load Length 112 m (367 ft 5 in) Beam 12.4 m (40 ft 8 in) Draught 4.3 m (14 ft 1 in) Propulsion
CODAD, 2 shaft, 2 x 18E390VA diesel at 23,600 hp (17,600 kW) 2 x MTU diesel at 8,715 hp (6,499 kW) Speed 28 knots (52 km/h; 32 mph)[2] Range 5,000 nautical miles (9,300 km; 5,800 mi) at 15 to 16 knots (28 to 30 km/h) Complement 168 (with 30 officers) Sensors and processing systems
Type 360 Radar (SR60) Surface Search, E/F band Type 517H-1 (Knife Rest) 2D long-range air search, A-band Type 345 Radar (MR35) HQ-7 Surface-to-air missile fire-control, J-band Type 352 Radar (Square Tie) surface search and SSM fire control, I-band Type 343GA (Wasp Head) fire control radar for main gun, G/H-band 2 × Type 347G/EFR-1 (Rice Lamp) dual 37 mm AA gun fire control, I-band 2 × Racal RM-1290 Navigation radar, I-band Electronic warfare & decoys
Data link: HN-900 (Chinese equivalent of Link 11A/B, to be upgraded) Communication: SNTI-240 SATCOM Combat Data System: ZKJ-3C RWD-8 (Jug Pair) intercept Type 981-3 EW Jammer SR-210 Radar warning receiver Type 651A IFF 2 × Type 946/PJ-46 15-barrel decoy rocket launchers Armament
8 × YJ-83 SSM in 2 x 4-cell box launchers 1 × 8-cell HQ-7 Surface-to-air missile system 1 × PJ33A dual 100 mm gun (automatic) 4 × Type 76A dual 37 mm AA guns 2 × 6-tube Type 3200 ASW rocket launchers (36 rockets) 2 × DC racks & launcher[1] Aircraft carried Harbin Z-9C Aviation facilities Hangar

This product has no reviews yet
Jiangwei Class frigate
$17.99
All prices are exclusive of VAT
Save with CGTrader Credits
Send your price offer to the author if you want to buy it at lower price.
Royalty Free License
Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
Response - % in - h
3D Modeling
Hire me
3D model formats
  • Stereolithography (.stl)72.8 MB
  • OBJ (.obj, .mtl)72.8 MB
  • 3D Studio (.3ds)72.8 MB
  • glTF (.gltf, .glb)72.8 MB
  • Marvelous Designer (.zpac, .avt, .pos, .ZPrj)72.8 MB
  • Autodesk FBX (.fbx)72.8 MB
  • Collada (.dae)72.8 MB
  • Sketchup (.skp)72.8 MB
  • KeyShot (.bip, .ksp)72.8 MB
3D model details
  • Publish date2021-07-20
  • Model ID#3163563
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices -
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
