Dimension Accurate V6 Engine 3D Model with Individual Parts 3D model

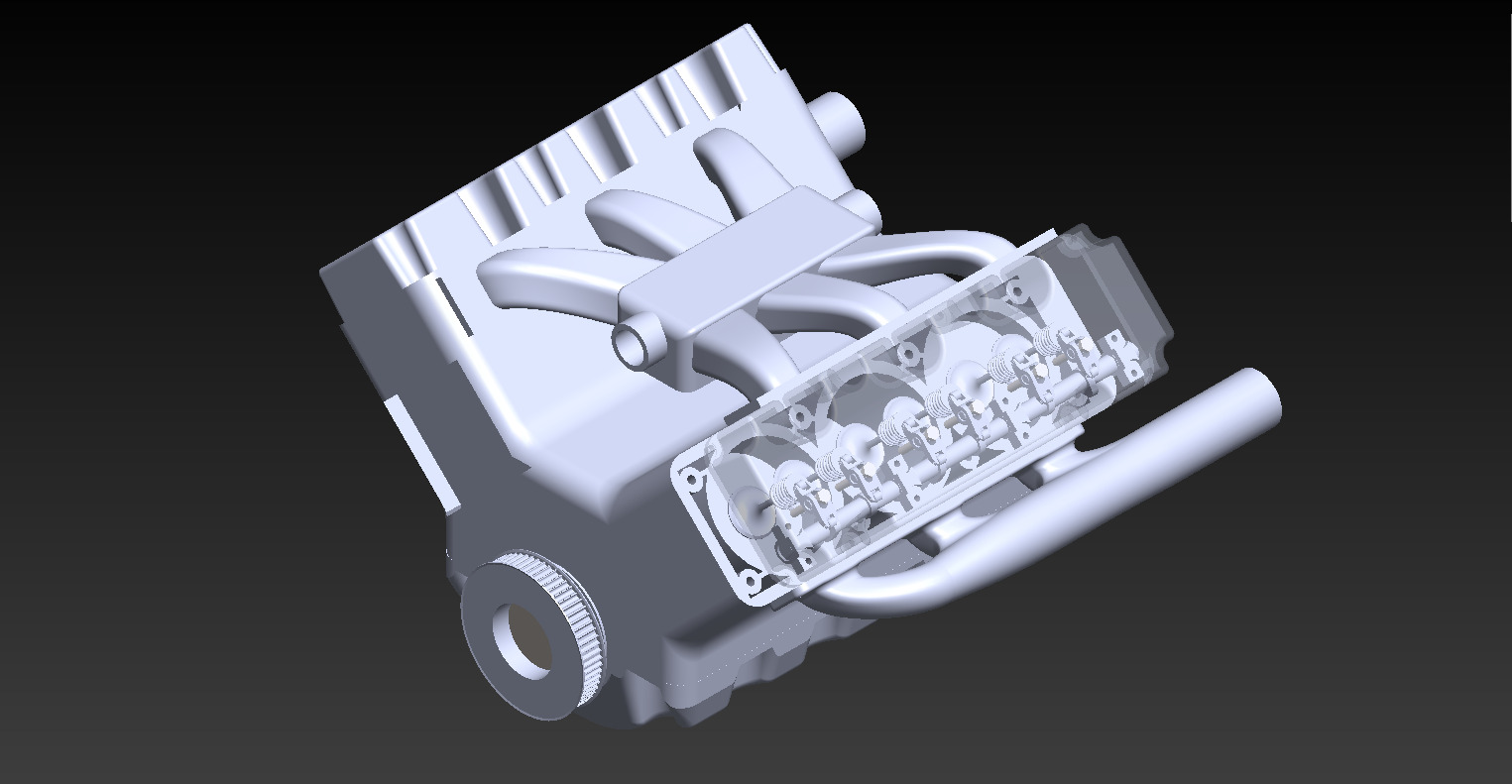

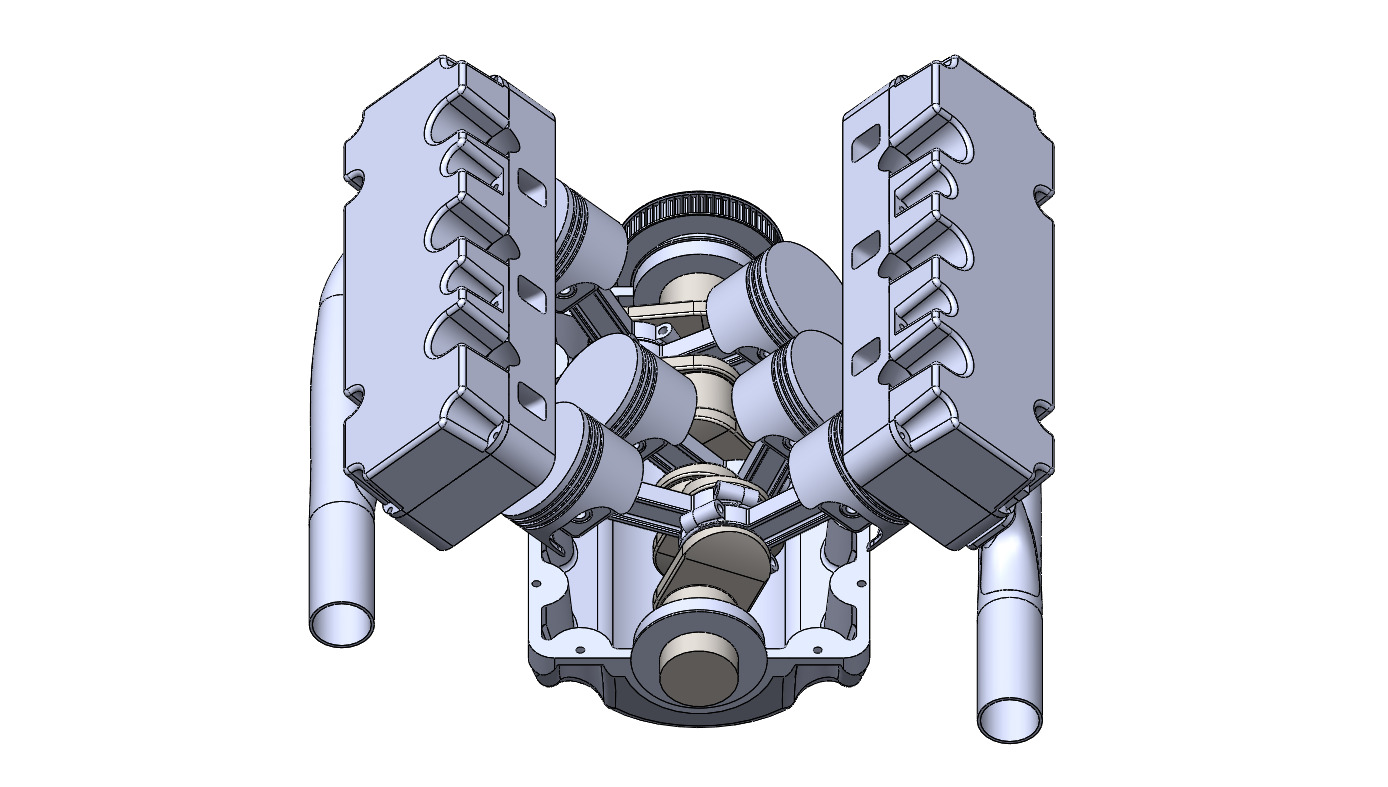

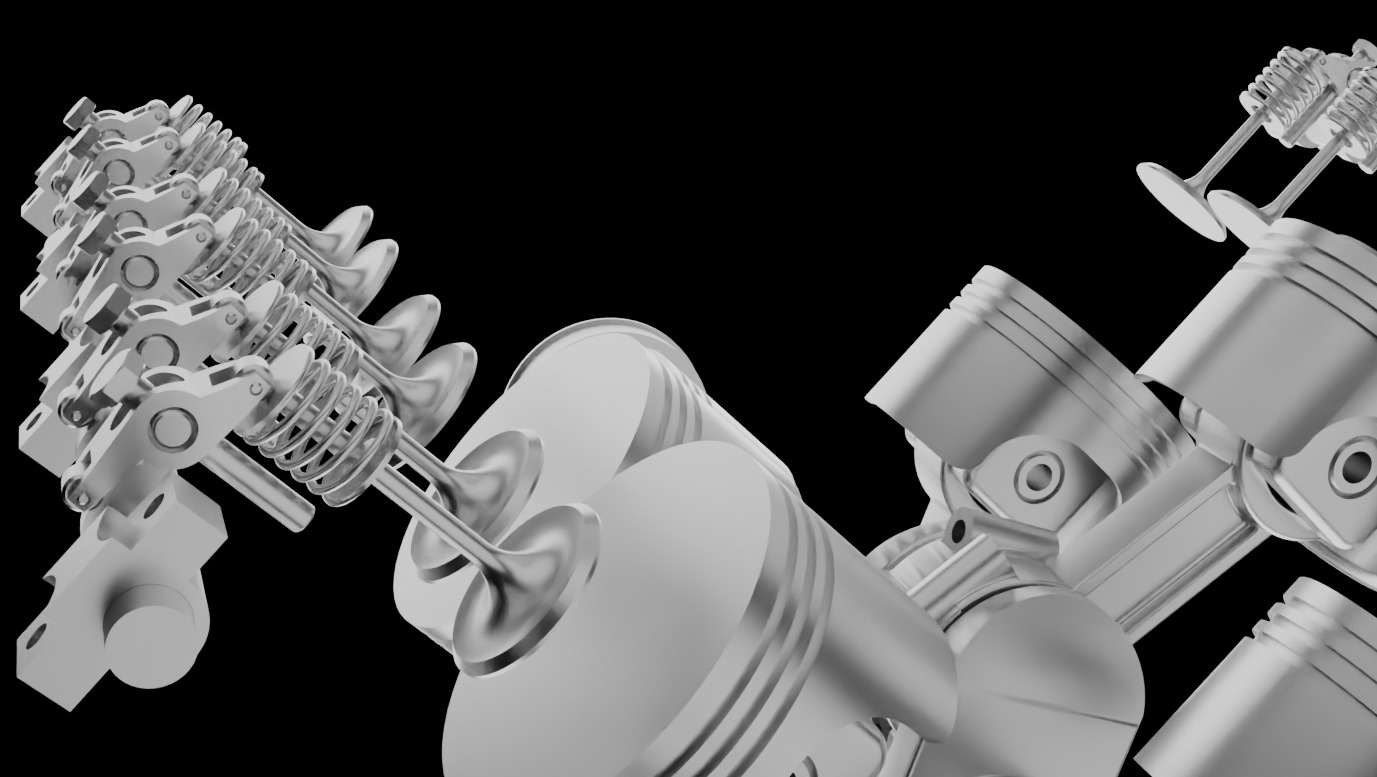

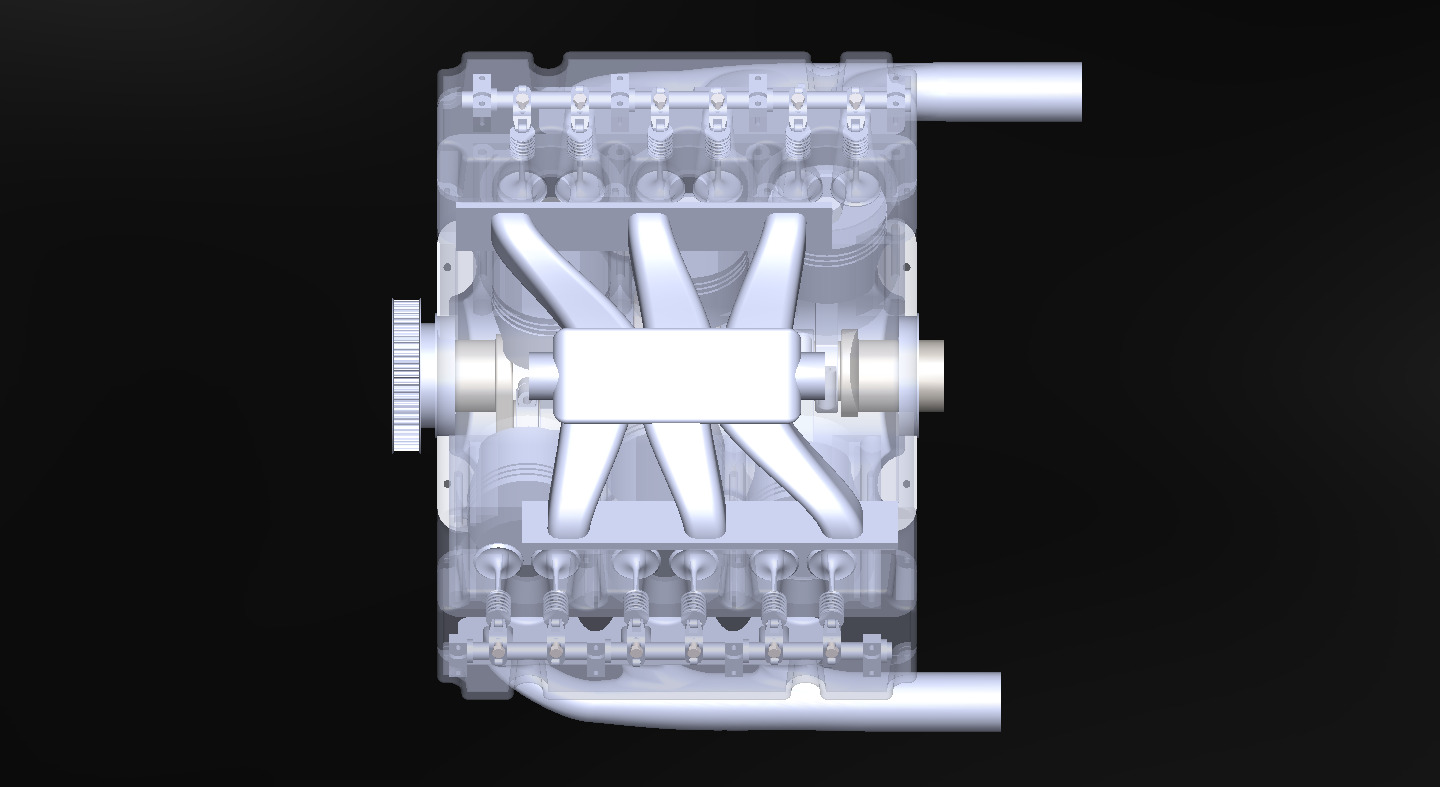

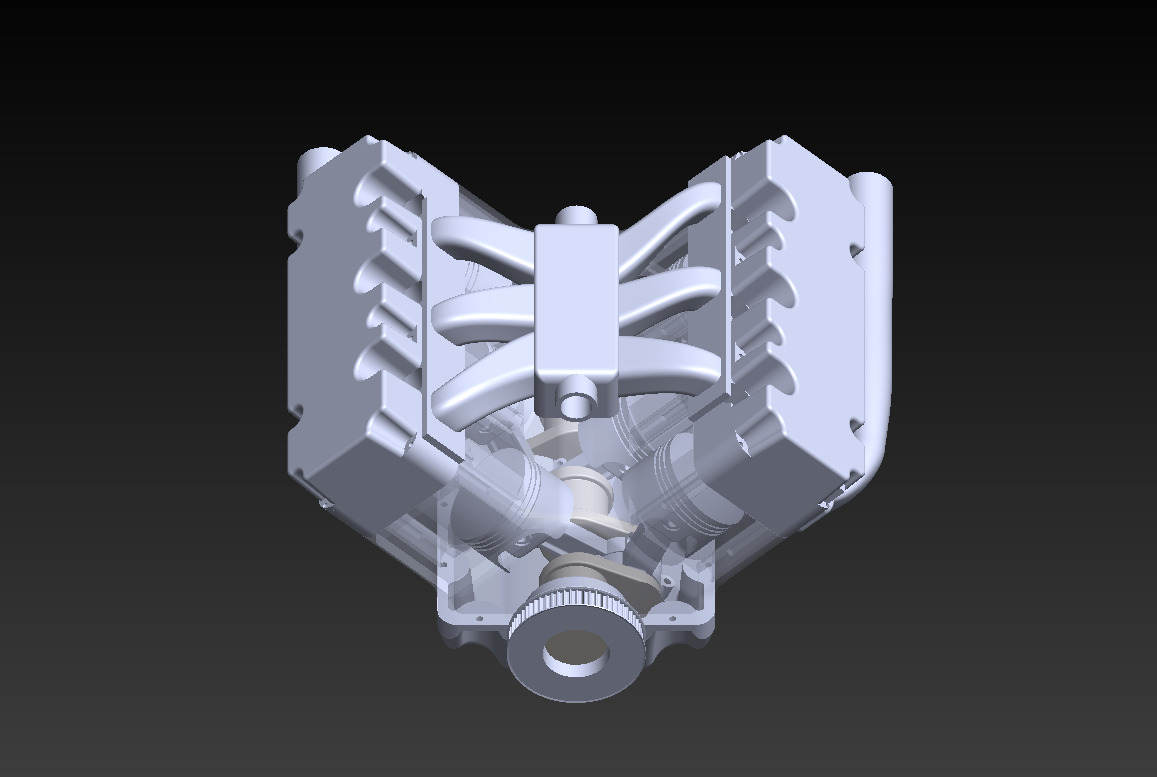

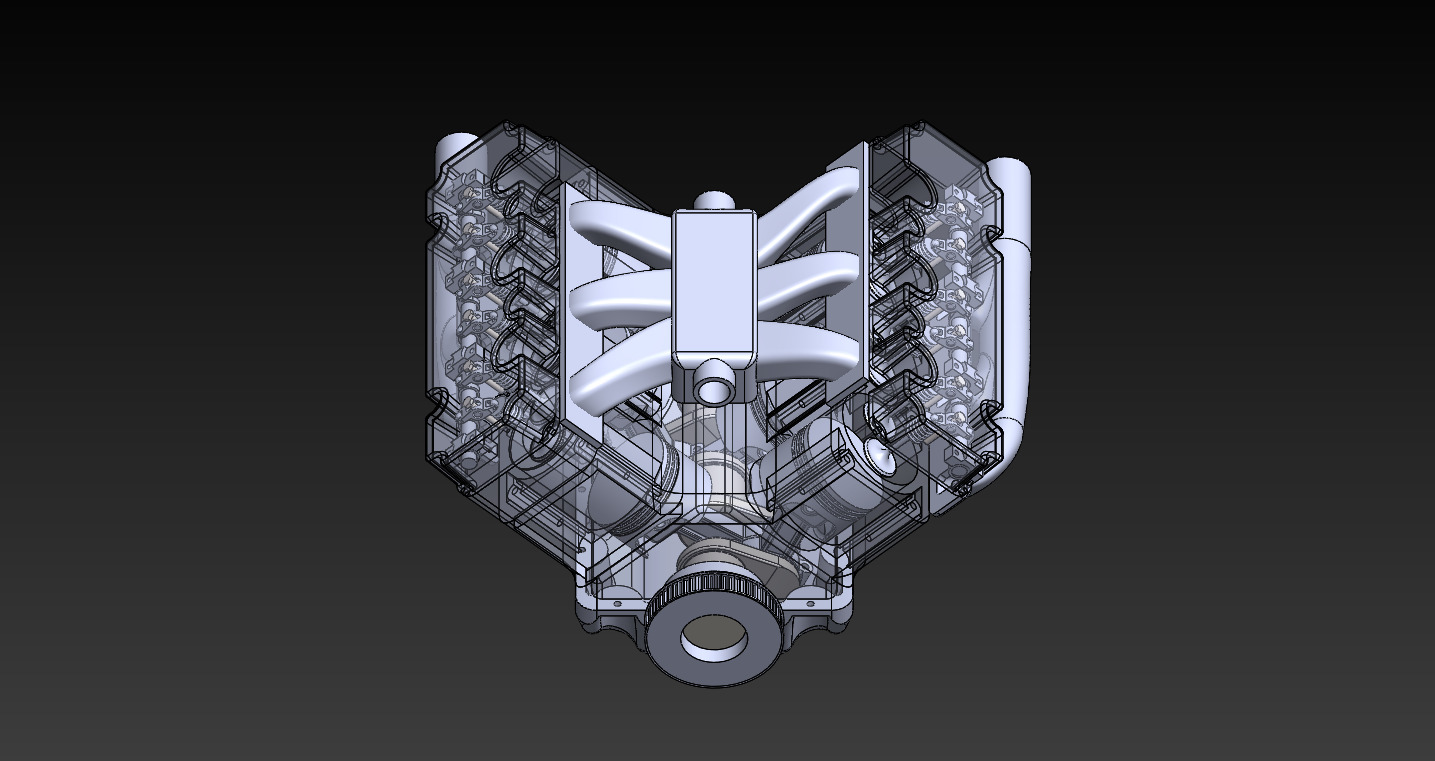

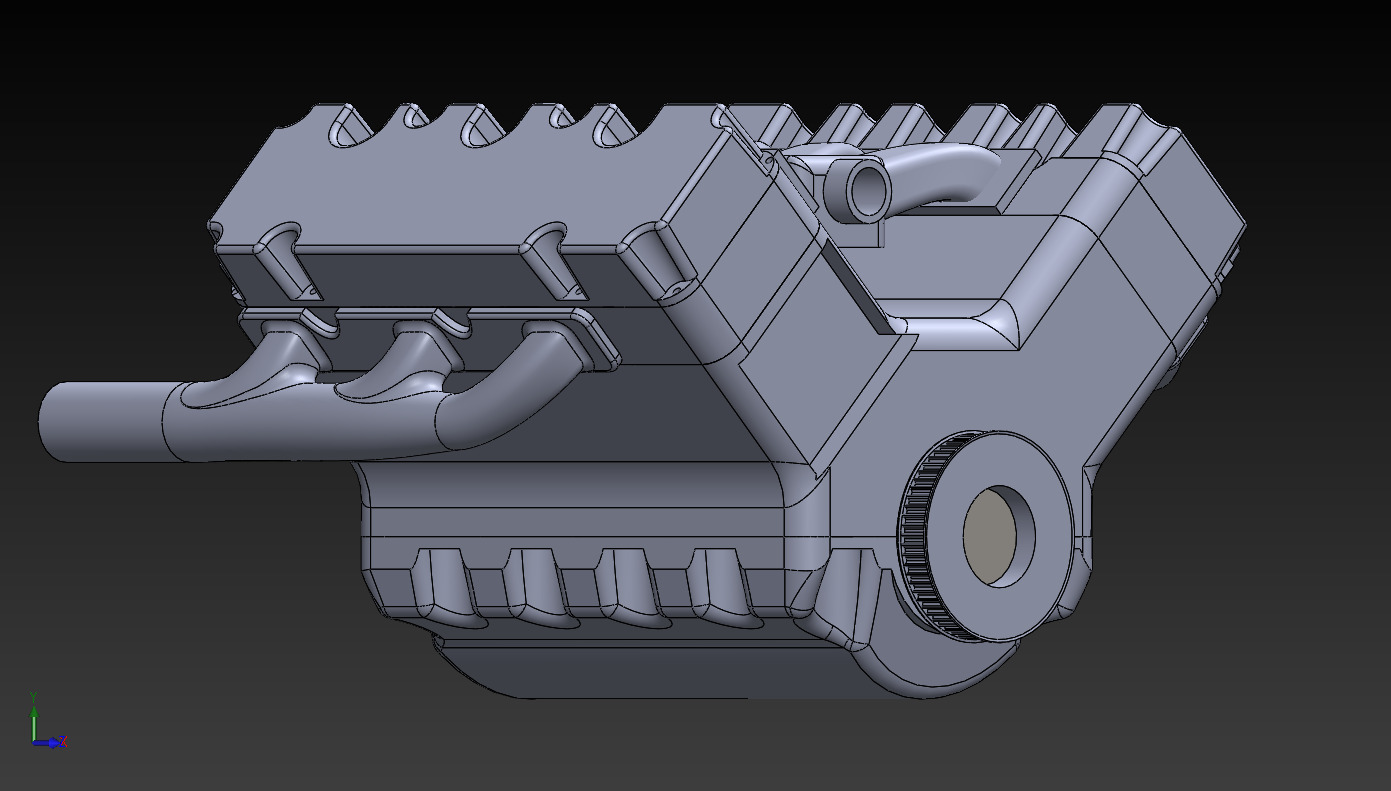

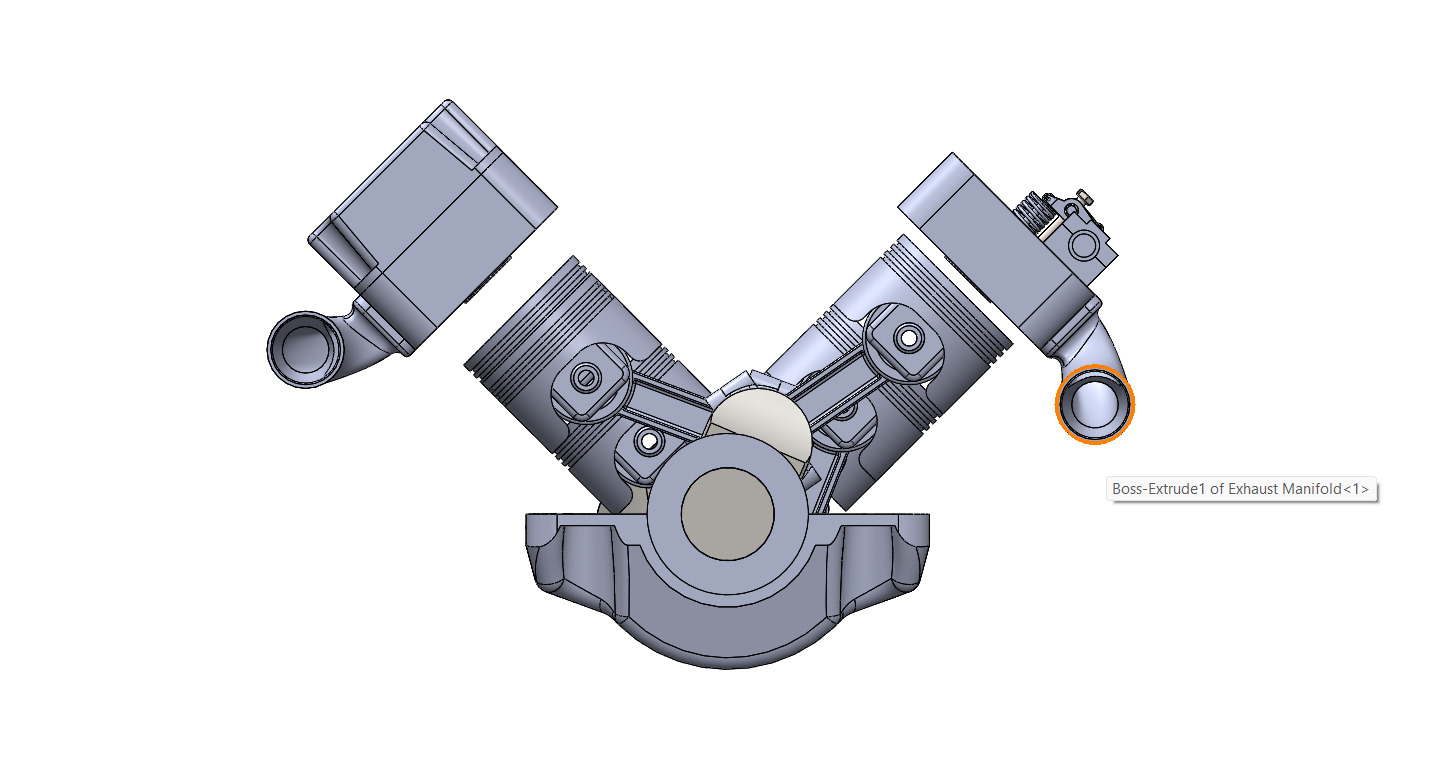

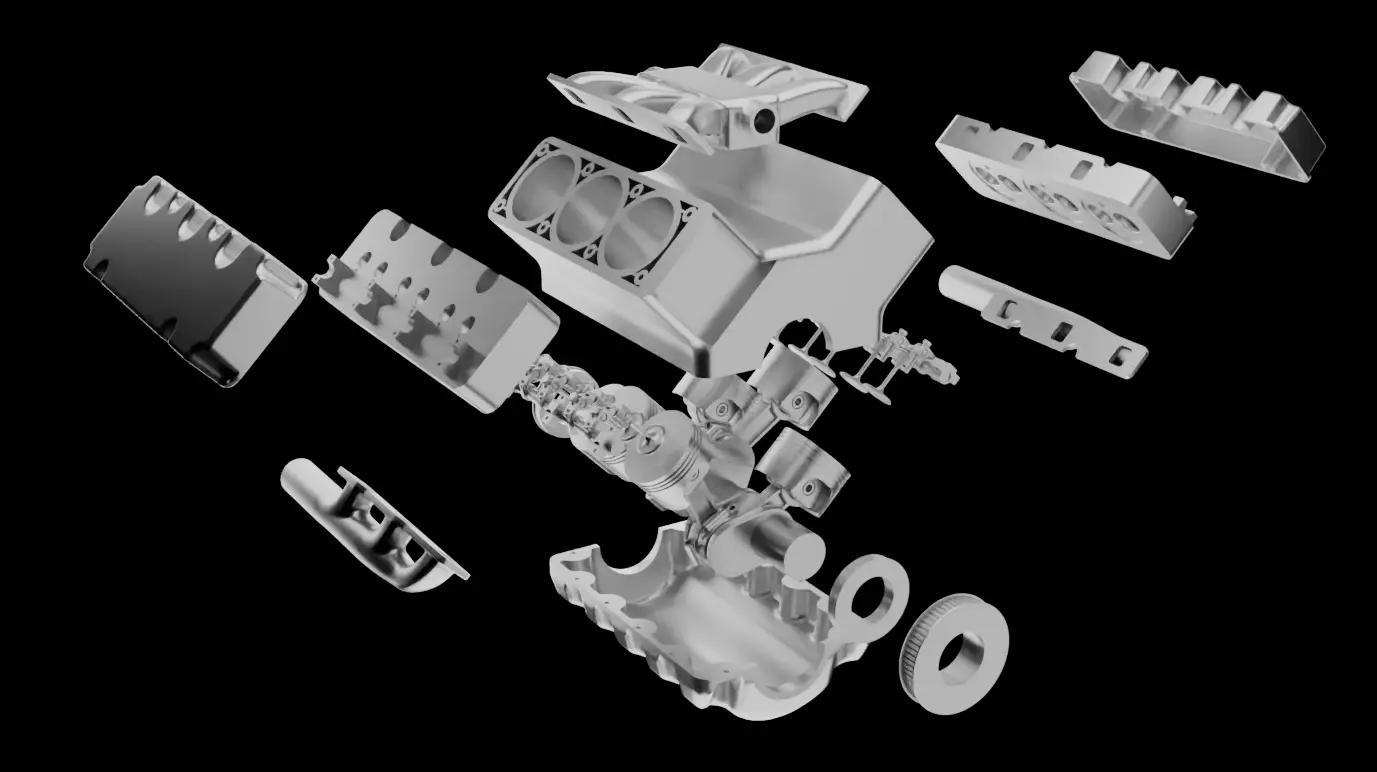

This is a dimensionally accurate 3D model of a V6 Engine, modeled in SolidWorks.

A .ZIP file with all individual part files is included for maximum flexibility. All core mechanical components are designed with a focus on their Dimensions based from Drawing files.

1. Air Filter
2. Air Tube
3. Body
4. Cam Shaft
5. Cam Shaft Retainer
6. Cam Shaft B
7. Cap Rod Piston
8. Crank Shaft
9. Crank Shaft B
10. Cylinder Cover
11. Exhaust Manifold Left and Right
12. Front Cover
13. Piston Head
14. Intake Manifold
15. Oil Pan
16. Piston Pin
17. Rocker Arm Body
18. Rocker Arm Pin 1 and 2
19. Rocker Arm Wheel
20. Rocker Spring
21. Rocker Valve
22. Piston Rod
23. Valve Cover
24. Wheel Belt

Features-Realistic V6 engine layoutAll parts modeled to actual dimensionsHigh-detail internal componentsAssembly file includedAll parts provided separately in a .zip fileIdeal for rendering, animation, educational purposes, and mechanical analysis
