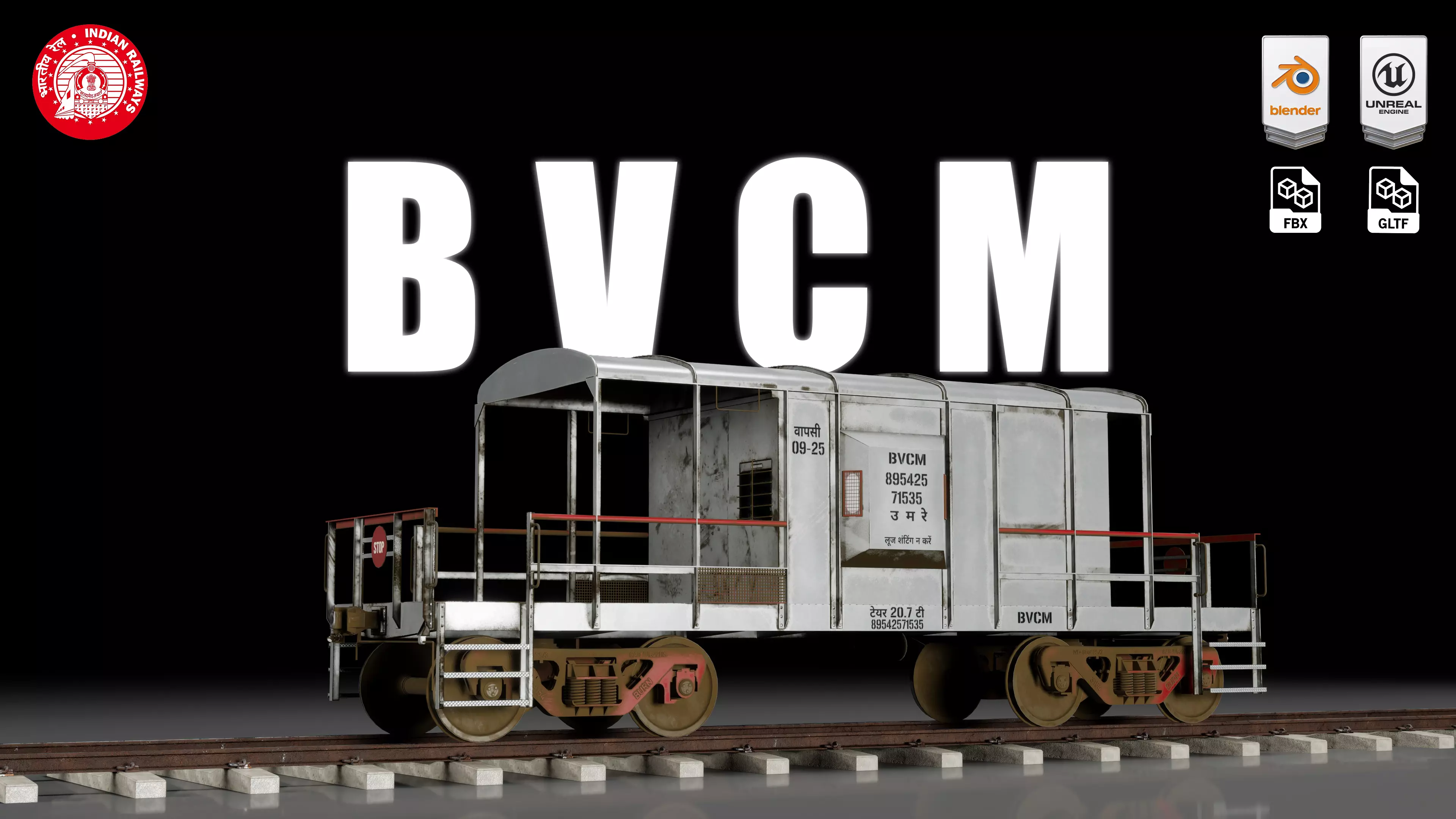

A high-fidelity, production-ready 3D model of the BVCM Bogie Brake Van, the essential trailing guard cabin for modern Indian Railways freight operations. Engineered for uncompromising technical accuracy and AAA visual realism, this asset is the perfect concluding element for high-end railway simulations, logistics visualizations, and photorealistic real-time environments.

The BVCM serves as the crucial rear operational hub for heavy freight trains, providing accommodation and monitoring capabilities for the train guard. This model accurately captures the distinctive architectural profile of the cabin, featuring detailed observation windows, front and rear verandas, heavy-duty handrails, and the robust underframe required to withstand trailing dynamic forces.

Technical Specifications

• Texturing: Ultra-realistic 4K PBR workflow. The texture sets feature authentic wear-and-tear, structural oxidation, track-level grime, peeling paint on high-traffic surfaces, and accurate operational stenciling.

• Engine Integration: Standard PBR textures are provided alongside pre-packed ORM (Ambient Occlusion, Roughness, Metallic) maps, meticulously optimized for native integration into Unreal Engine 5 and Unity.

• Scaling: Built to strict 1:1 real-world metric scale based on official Indian Railway specifications.

• Animation Ready: Mechanical components, including the CASNUB bogies and individual wheelsets, are logically isolated and hierarchically structured with precisely centered pivot points for immediate rigging.

Real-World Dimensions (Metric)

• Length over Couplers: 14,450 mm
• Overall Width: 3,200 mm
• Overall Height: 3,894 mm
• Bogie Type: CASNUB 22 HS

Included Formats

• .BLEND: Native source file with fully configured PBR material networks.
• .FBX: Industry-standard export validated for UE5, Unity, Autodesk Maya, and 3ds Max.
• .GLB: Optimized binary format with packed materials for fast AR and web deployment.

Note

• Asset Integration: The BVCM is the required final asset to complete a realistic heavy freight consist alongside the WAG-9 and other rolling stock within the Cinestrix Studios collection.
• Environment: Promotional studio lighting and track segments shown in renders are not included in the purchase.
