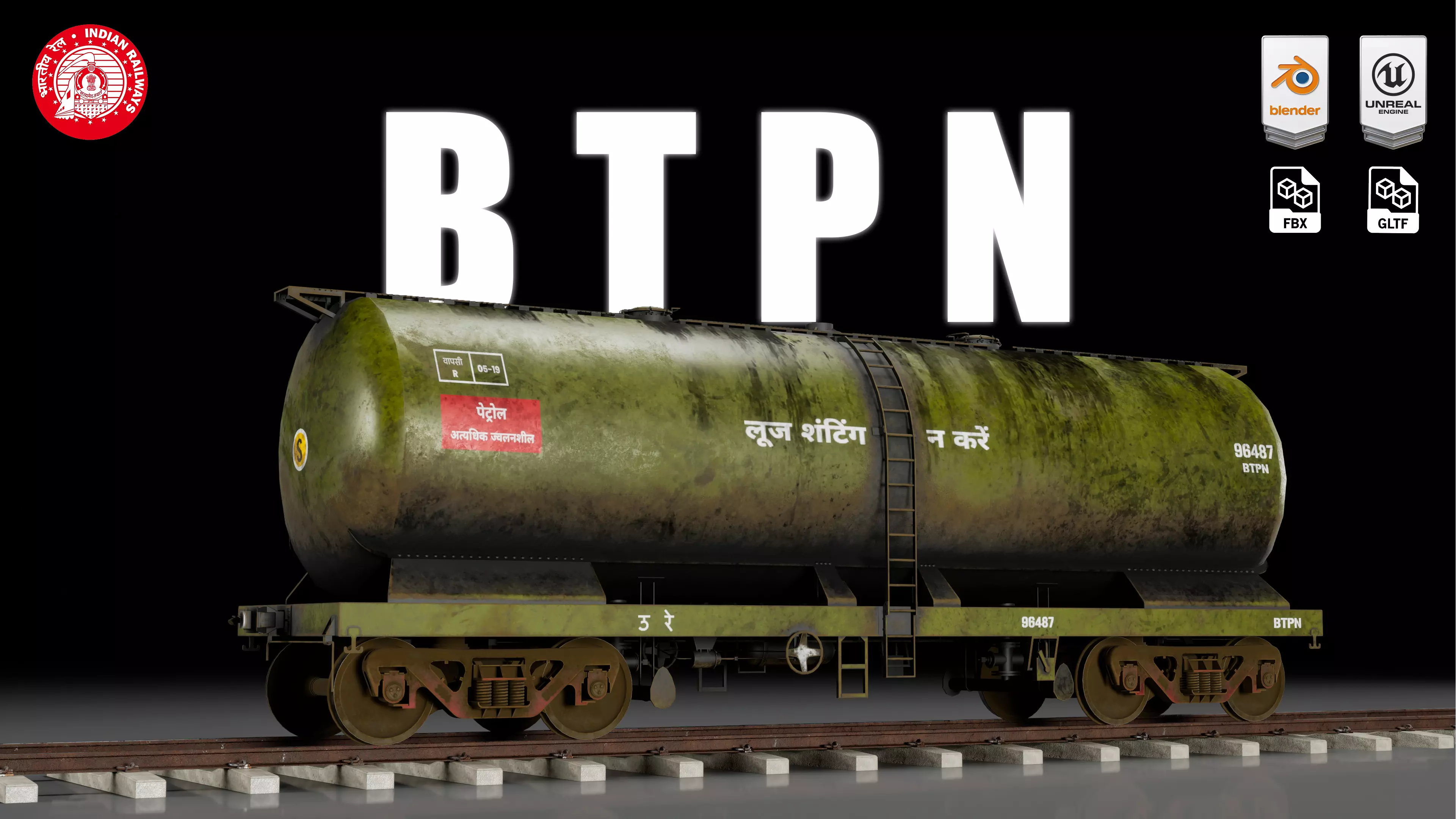

A high-fidelity, production-ready 3D model of the BTPN Bogie Tank Wagon, the primary specialized unit for liquid bulk transport across the Indian Railways network. Engineered for strict technical accuracy and AAA visual realism, this asset is optimized for high-end industrial simulations, logistics visualizations, and photorealistic real-time rendering.

The BTPN is a heavy-duty cylindrical tank wagon designed specifically for the safe transit of petroleum, oil, lubricants (POL), and other liquid chemical payloads. This model meticulously replicates the complex industrial plumbing, top-hatch access walkways, intricate valve assemblies, and the robust structural framing characteristic of these highly specialized freight units.

Technical Specifications

• Texturing: Ultra-realistic 4K PBR workflow. The texture sets feature authentic wear-and-tear, severe oxidation on the walkways, track-level grime, fluid spill stains, and accurate industrial warning stenciling.

• Engine Integration: Standard PBR textures are provided alongside pre-packed ORM (Ambient Occlusion, Roughness, Metallic) maps, meticulously optimized for native integration into Unreal Engine 5 and Unity.

• Scaling: Built to strict 1:1 real-world metric scale based on official Indian Railway specifications.

• Animation Ready: Mechanical components, including the CASNUB bogies and individual wheelsets, are logically isolated and hierarchically structured with precisely centered pivot points for immediate rigging.

Real-World Dimensions (Metric)

• Length over Couplers: 12,420 mm
• Overall Width: 2,840 mm
• Overall Height: 4,265 mm
• Bogie Type: CASNUB 22 NLB

Included Formats

• .BLEND: Native source file with fully configured PBR material networks.
• .FBX: Industry-standard export validated for UE5, Unity, Autodesk Maya, and 3ds Max.
• .GLB: Optimized binary format with packed materials for fast AR and web deployment.

Note

• Asset Integration: Designed to couple seamlessly with the WAG-9 locomotive and other heavy freight rolling stock within the Cinestrix Studios collection.
• Environment: Promotional studio lighting and track segments shown in renders are not included in the purchase.
