High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

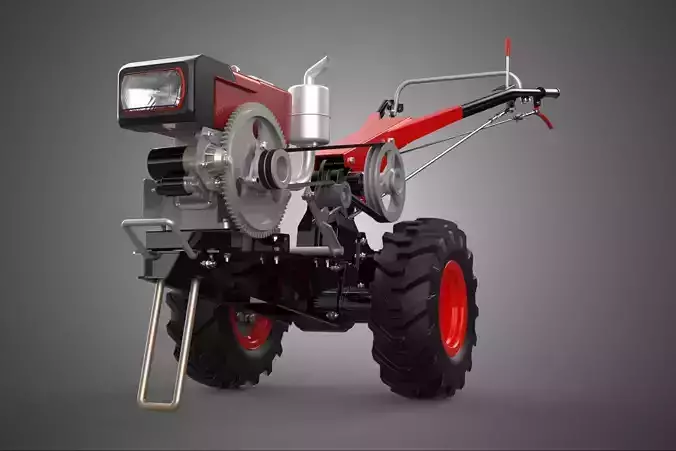

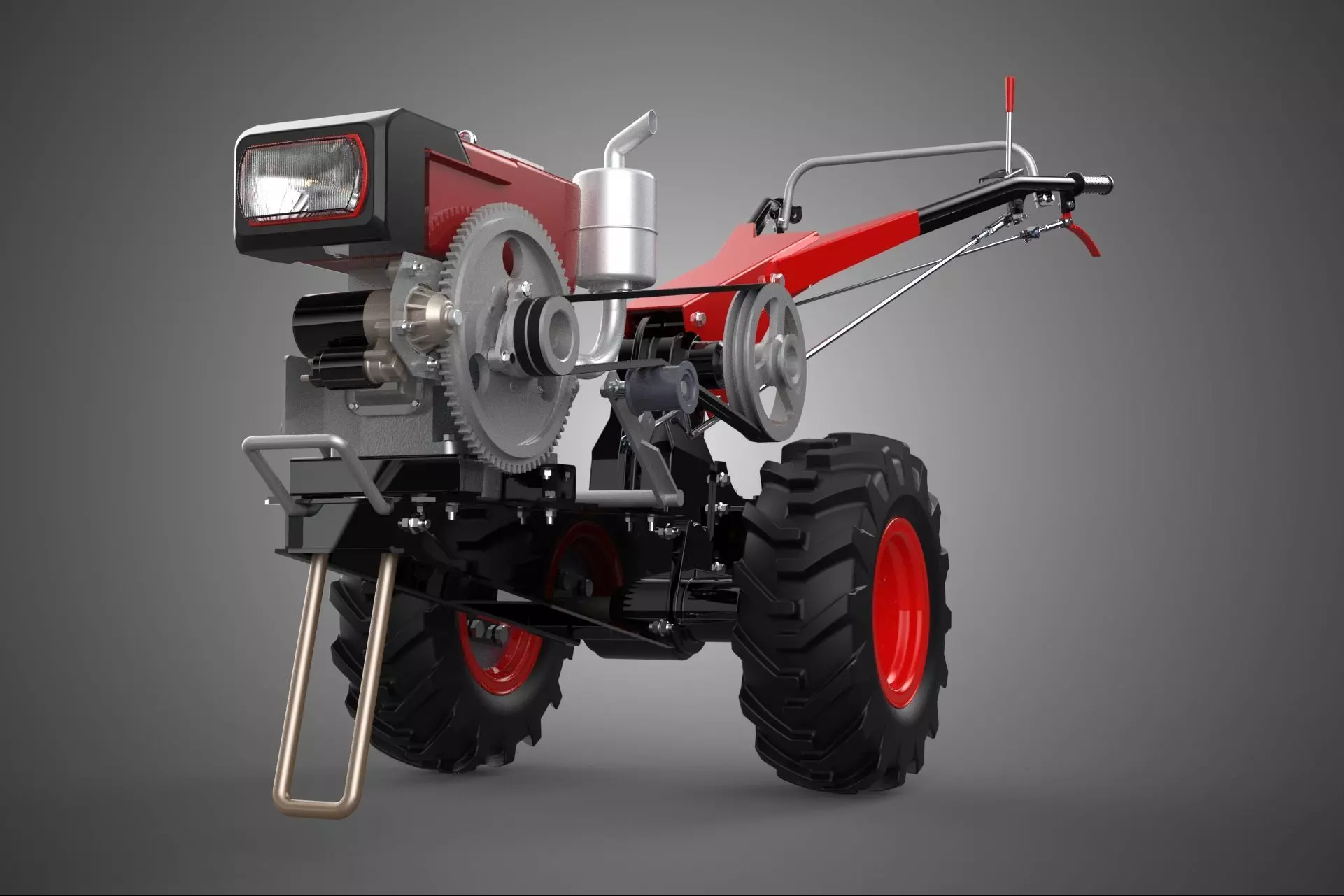

HAND WALKING TRACTOR DIESEL ENGINE ELECTRIC POWER STARTER MOTOR
The assembly comprising a diesel engine equipped with an electric power starter motor serves as the primary propulsion and operational initiation system for the Hand Walking Tractor, also widely recognized as a Power Tiller or Two-Wheel Tractor. This integrated system represents a critical modernization of small-scale agricultural machinery, enabling robust power generation and reliable starting independent of manual cranking methods.
I. The Hand Walking Tractor Context
The Hand Walking Tractor is a single-axle, pedestrian-controlled machine predominantly utilized in smallholdings, terraced fields, rice paddies, and specialized agricultural environments where the footprint and cost of larger four-wheel tractors are prohibitive. The machine typically functions through direct steering by the operator, who walks behind the unit while guiding its operation. The engine assembly often constitutes a significant portion of the machine’s overall mass, providing necessary traction and counterweight for effective soil engagement. These machines are versatile, capable of performing tillage, plowing, harrowing, planting, and powering stationary equipment via a power take-off (PTO) shaft.
II. The Diesel Engine Powerplant
The engine utilized in this configuration is generally a single-cylinder, four-stroke, compression-ignition (CI) diesel engine, commonly ranging in output from 6 to 20 horsepower (4.5 to 15 kW). Diesel powerplants are favored for their inherent characteristics beneficial to agricultural work:
- High Torque Output: Diesel engines deliver superior low-end torque, essential for overcoming resistance encountered during deep tilling or transport operations.
- Fuel Efficiency: Compression-ignition engines exhibit greater thermal efficiency compared to spark-ignition counterparts, reducing operating costs.
- Durability: Their robust construction is designed to withstand the heavy duty cycles and challenging environmental conditions typical of fieldwork.
These engines operate by compressing air to extremely high pressures, causing the temperature to rise sufficiently to ignite injected fuel, which necessitates overcoming high rotational resistance during the starting phase.
### III. The Electric Power Starter Motor Subsystem
The electric power starter motor (often referred to simply as the starter motor or self-starter) is a high-torque, low-voltage direct current (DC) motor designed specifically to overcome the rotational inertia and high compression forces of the diesel engine to achieve the minimum revolutions per minute (RPM) required for successful combustion.
#### A. Components and Operation
The system typically operates on a 12-volt or 24-volt electrical system drawing power from a dedicated lead-acid storage battery. The core functional components include:
- Starter Motor: A series-wound DC motor capable of producing high torque upon initial current application.
- Solenoid Switch: An electromagnetic switch that serves two functions: it completes the high-current circuit between the battery and the starter motor windings, and it mechanically actuates the drive mechanism.
- Pinion Gear and Drive: The pinion gear is designed to mesh temporarily with the large ring gear attached to the engine’s flywheel. This engagement is often managed by an overrunning clutch mechanism, such as the Bendix drive, which ensures the pinion retracts automatically once the engine achieves self-sustaining speeds, preventing damage to the starter armature from over-speeding.
#### B. Functional Integration
Upon operator activation (via a key switch or push-button), the solenoid engages, transferring substantial current to the motor while simultaneously extending the pinion gear into meshing contact with the flywheel. The starter motor rapidly spins the crankshaft, facilitating the initial intake, compression, and subsequent combustion cycles. Once the diesel engine ignites and its speed surpasses that imparted by the starter motor, the drive disengages, and the electrical circuit is opened.
### IV. Operational Significance
The inclusion of an electric starter motor is a significant safety and ergonomic improvement over traditional manual starting methods (such as hand cranking or pull-rope mechanisms). Manual starting of high-compression diesel engines poses a considerable risk of injury due to engine kickback. The electric starter motor eliminates this physical strain and danger, expediting machine deployment and reducing operator fatigue, thereby increasing the overall accessibility and efficiency of the Hand Walking Tractor in modern agricultural practice.
***
KEYWORDS: Power tiller, Two-wheel tractor, Diesel engine, Starter motor, Electric starting system, Compression ignition, Solenoid, Flywheel, Bendix drive, Agricultural machinery, Low-speed torque, Direct current motor, Engine initiation, High compression, Single-cylinder, Farm mechanization, Lead-acid battery, Pinion gear, Engine kickback, Four-stroke cycle, Manual alternative, Power take-off, Rotational inertia, Auxiliary system, 12V system, Engine architecture, CI engine, Ground engagement, Walk-behind tractor, Mobility.
