Description

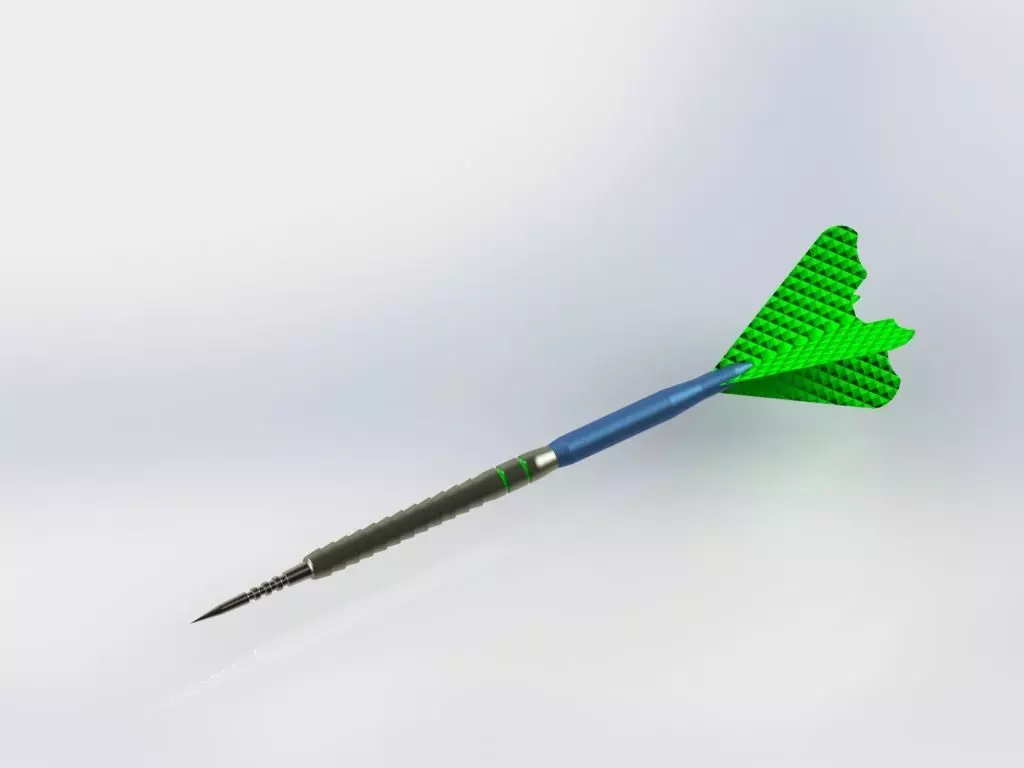

3D model and sketches from SolidWorks 2017, rendered model with materials.
Used materials:

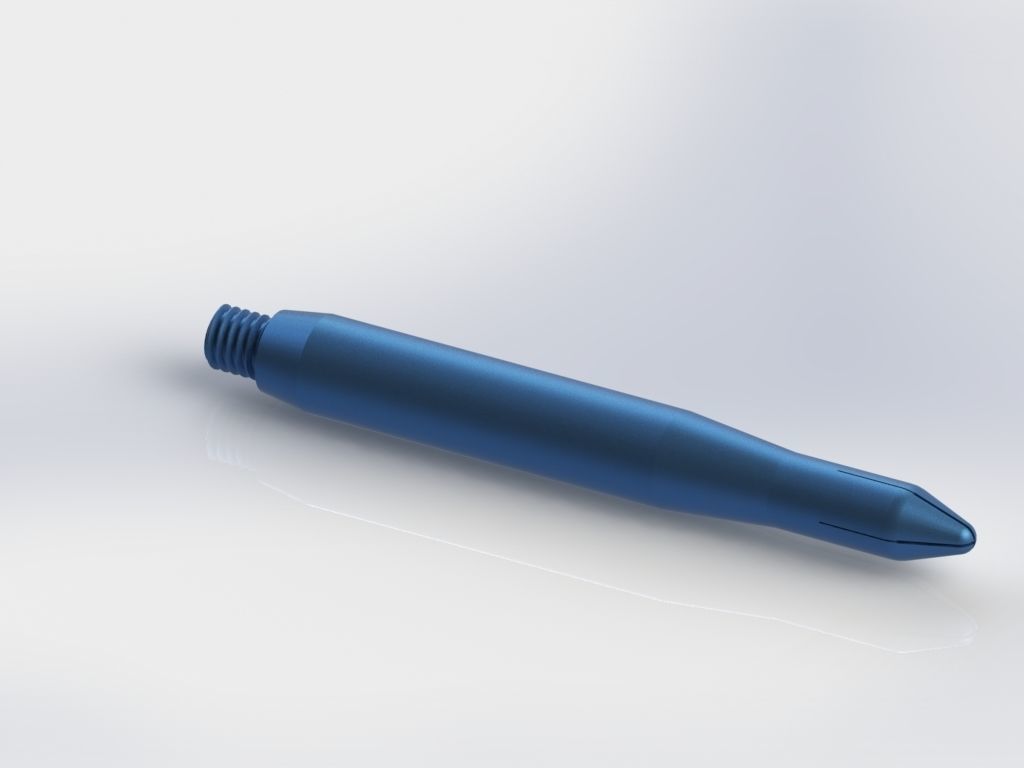

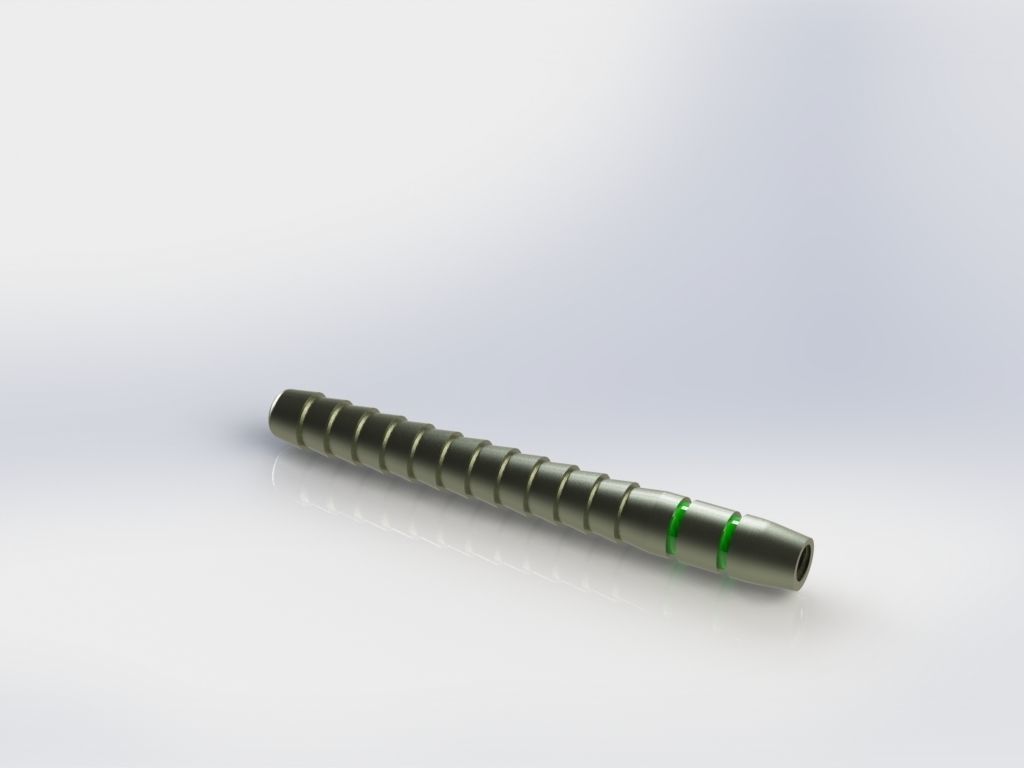

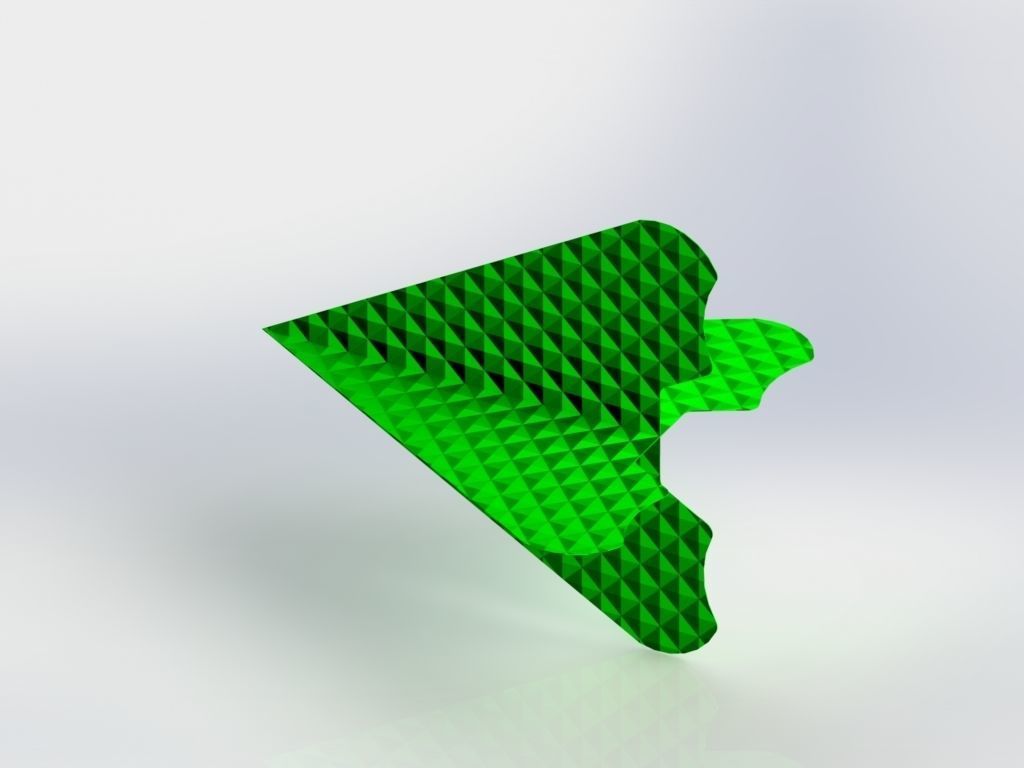

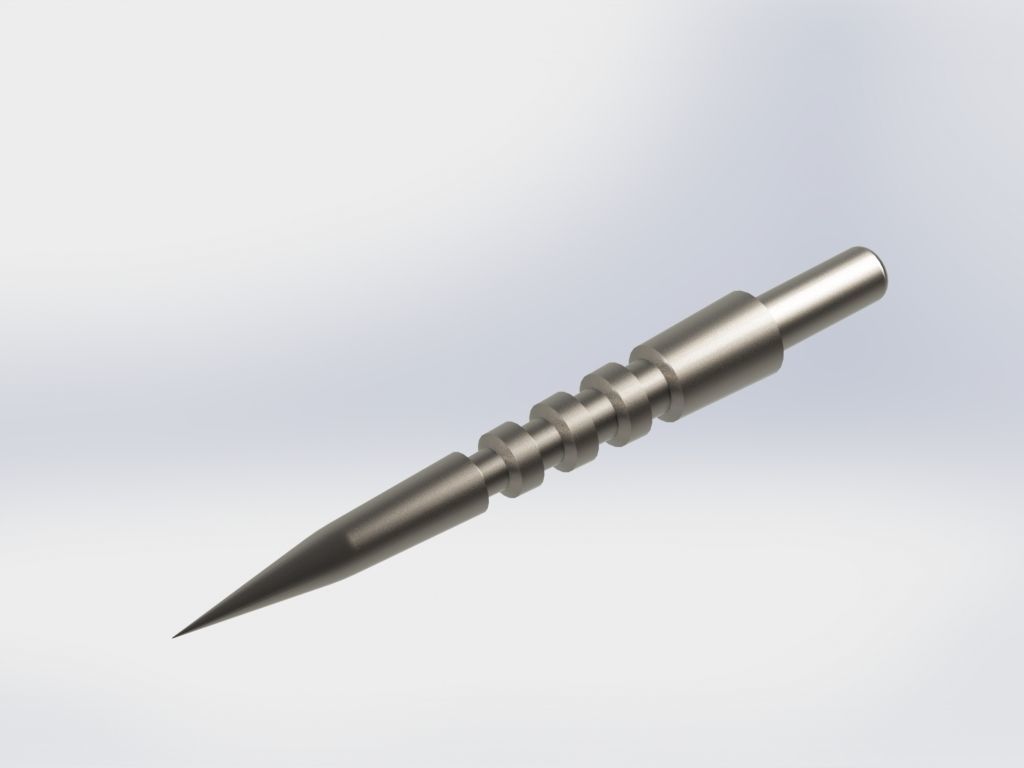

Arrow point Titanium Arrow barrel Tungsten Arrow shaft Anodized aluminium blue Arrow flight Nylon
ZIP file contains:
All 3d models from SolidWorks 2017 separated
All models are exporeted as: .sldprt (SolidWorks) .cgr (CATIA) .prt (ProE Creo) .IGS
Assembly exported in OBJ and FBX file extensions
All sketches from SolidWorks drawings with dimensions .drw and .pdf
All STL mesh files
All rendered jpg pictures of model and separated parts

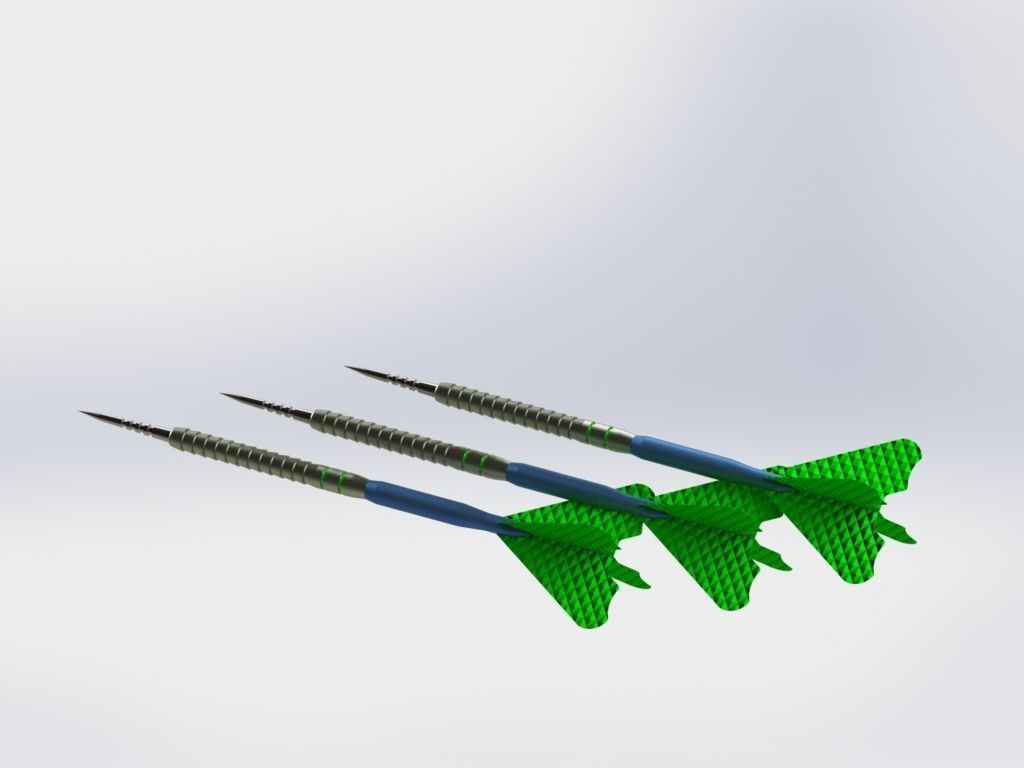

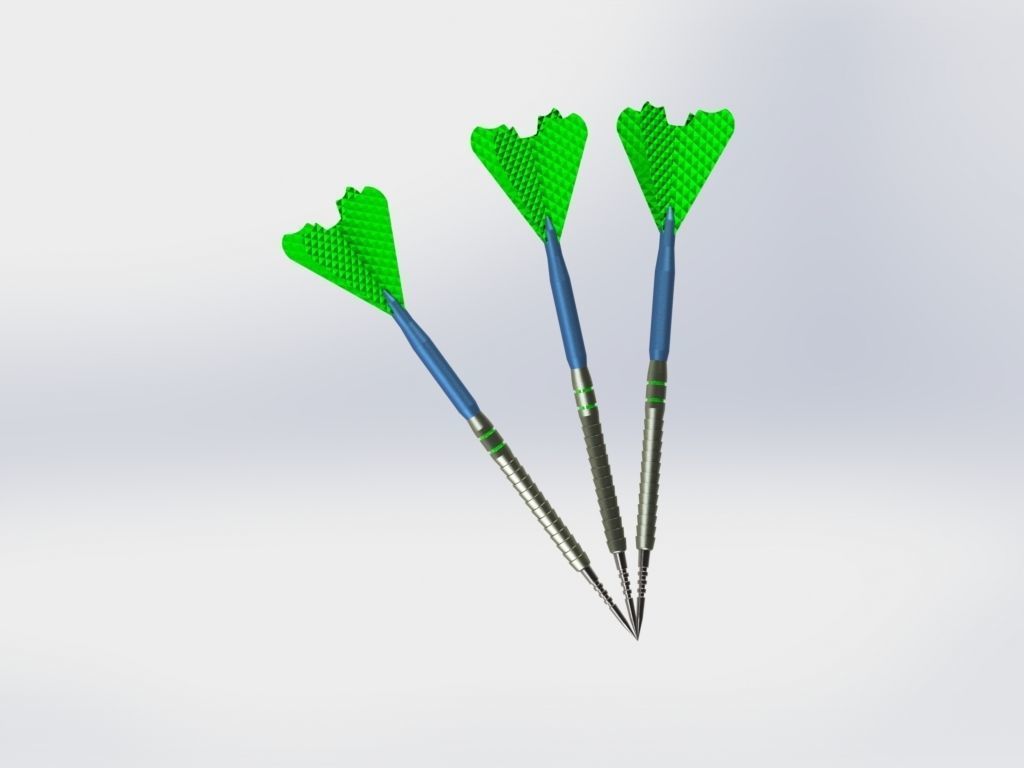

Assembly of model
PDF files of mass properties of each part
3DXML and 3MF files
Arrow weight: 28,52 gr Barrel weight: 24,75gr Shaft and barrel got 2ba threads
Ready for projects and production
For all question and help with editing send me PM
3D darts dart
Royalty Free License
3D darts dart
Royalty Free License
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw) (3 files)14.6 MBVersion: 2017Version: 2017Version: 2017
Exchange
- Stereolithography (.stl) (2 files)14.9 MB
- OBJ (.obj, .mtl) (3 files)16.2 MB
- 3D Manufacturing File (.3mf) (2 files)13.9 MB
- Autodesk FBX (.fbx) (2 files)14.3 MB
- PDF (.pdf)13.8 MB
- IGES (.ige, .igs, .iges)13.8 MB
3D Model details
- Publish date2019-07-11
- Model ID#2034208
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 21,324
- Vertices 63,972
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Mixed
- Plugins used
- Ready for 3D Printing
