High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

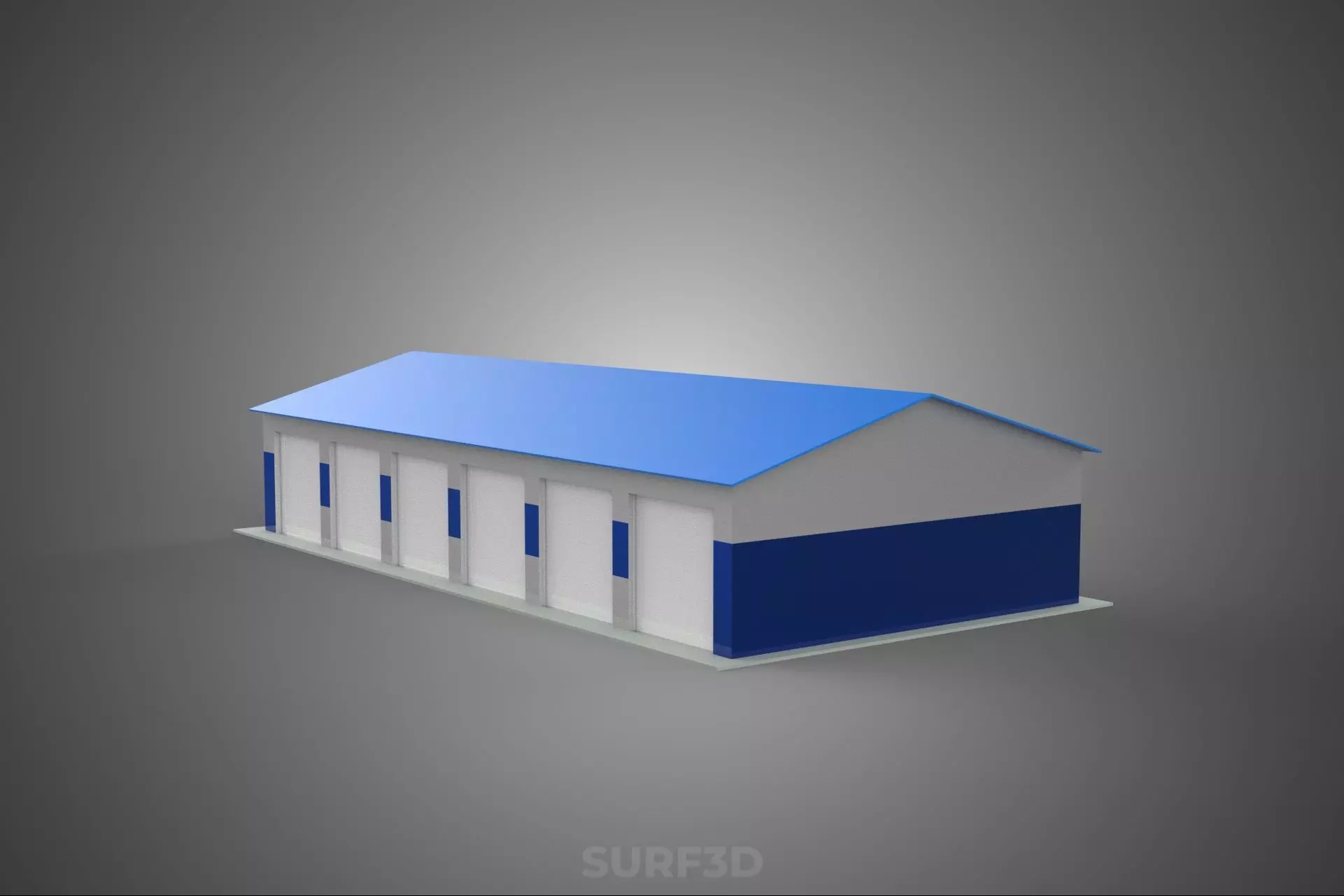

The Pit Stop Garage Door, or more accurately, the Pit Bay Aperture, is a specialized architectural and engineering component integral to the operational complex of a motorsport racing circuit. It defines the critical boundary between the high-speed environment of the pit lane and the enclosed, secure workspace of the team garage (often referred to as the pit box). This structure is designed to facilitate the rapid ingress and egress of competition vehicles for scheduled servicing, refueling (where permitted), tire changes, or emergency repair, collectively known as a pit stop.
Context and Location
The collection of pit bays and their associated apertures form the continuous façade of the pit wall complex, situated parallel to the main straightaway of the race track. Each aperture corresponds directly to a designated team allocation, governed by the event promoter or the sanctioning body (e.g., FIA, NASCAR). Due to the high-stakes nature of motorsport and the often narrow confines of the pit lane, the design of the bay opening must maximize vehicular clearance while minimizing operational footprint.
Engineering and Design Specifications
The construction materials and mechanism of the pit bay closure vary significantly depending on the level of motorsport and the permanence of the facility.
- Bay Aperture Dimensions: International governing bodies often stipulate minimum width and height clearances to accommodate the dimensions of competition vehicles, including their aerodynamic appendages and associated jacking equipment. Standard specifications often demand an unobstructed vertical clearance to permit the rapid movement of personnel and equipment above the vehicle, particularly in series utilizing high-speed overhead lifts or gantry systems.
- Closure Mechanism: While permanent facilities might utilize heavy-duty, industrial-grade sectional doors or roller shutters for long-term security, during active race weekends, the bay often remains a simple, wide opening. When a closing mechanism is employed for security or environmental separation, it must be rapidly operable. High-specification circuits increasingly utilize high-speed fabric roll-up doors, prioritizing actuation speed (to minimize elapsed time during security operations or weather changes) and reliability over long-term thermal insulation.
- Safety and Demarcation: The physical opening often correlates directly with the designated working area in the pit lane. Safety standards mandate clear demarcation of this space, often involving painted lines, and in some high-level series, the implementation of temporary, retractable, or collapsible safety walls or barriers immediately adjacent to the open bay to protect mechanics and equipment from passing traffic. The floor threshold must be flush to prevent damage to the car's low-slung chassis during entry and exit.
### Operational Function
The pit bay aperture serves several critical operational roles beyond simple vehicular passage:
- Tactical Flexibility: Allows teams to quickly retrieve a damaged or malfunctioning car from the live pit lane environment into the secure garage for complex repairs that cannot be performed in the designated pit stop box (the ‘fast lane’).
- Security and Privacy: When closed (during non-operational hours or strategic downtime), the door maintains security for proprietary equipment, data, and sensitive discussions held within the garage, a crucial element in technologically advanced series like Formula 1.
- Environmental Control: While less relevant during the actual pit stop, the ability to close the aperture protects specialized tools, diagnostic equipment, and personnel from extreme weather, debris, and excessive noise when the vehicle is not actively entering or exiting.
In contemporary high-level motorsport, the efficiency and architectural integrity of the pit bay opening are paramount, directly influencing the logistical capability and tactical execution of the race team.
