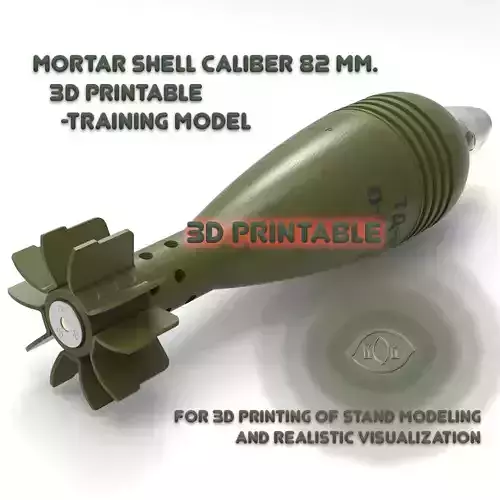

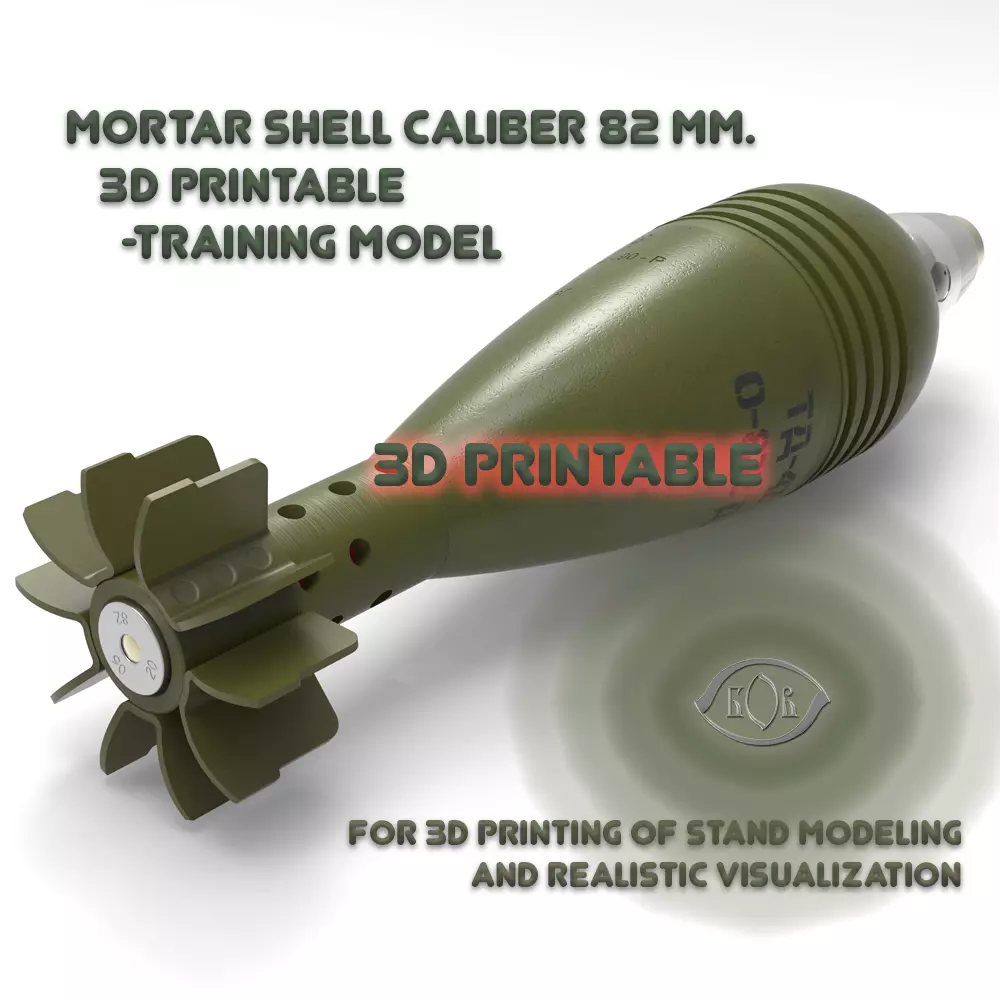

I present 3D-model of mortar shell (artillery mine) of 82mm caliber. Training model (mockup).
Historical Background:
Presented a training model of one of the ammunition for a series of mortars 82 caliber - Battalion Mortar of the USSR Army, launched into mass production in 1936.
And now they are used in the world, produced in many countries. It is one of the main types of ammunition in the Russian-Ukrainian war from 2014 to the present day.

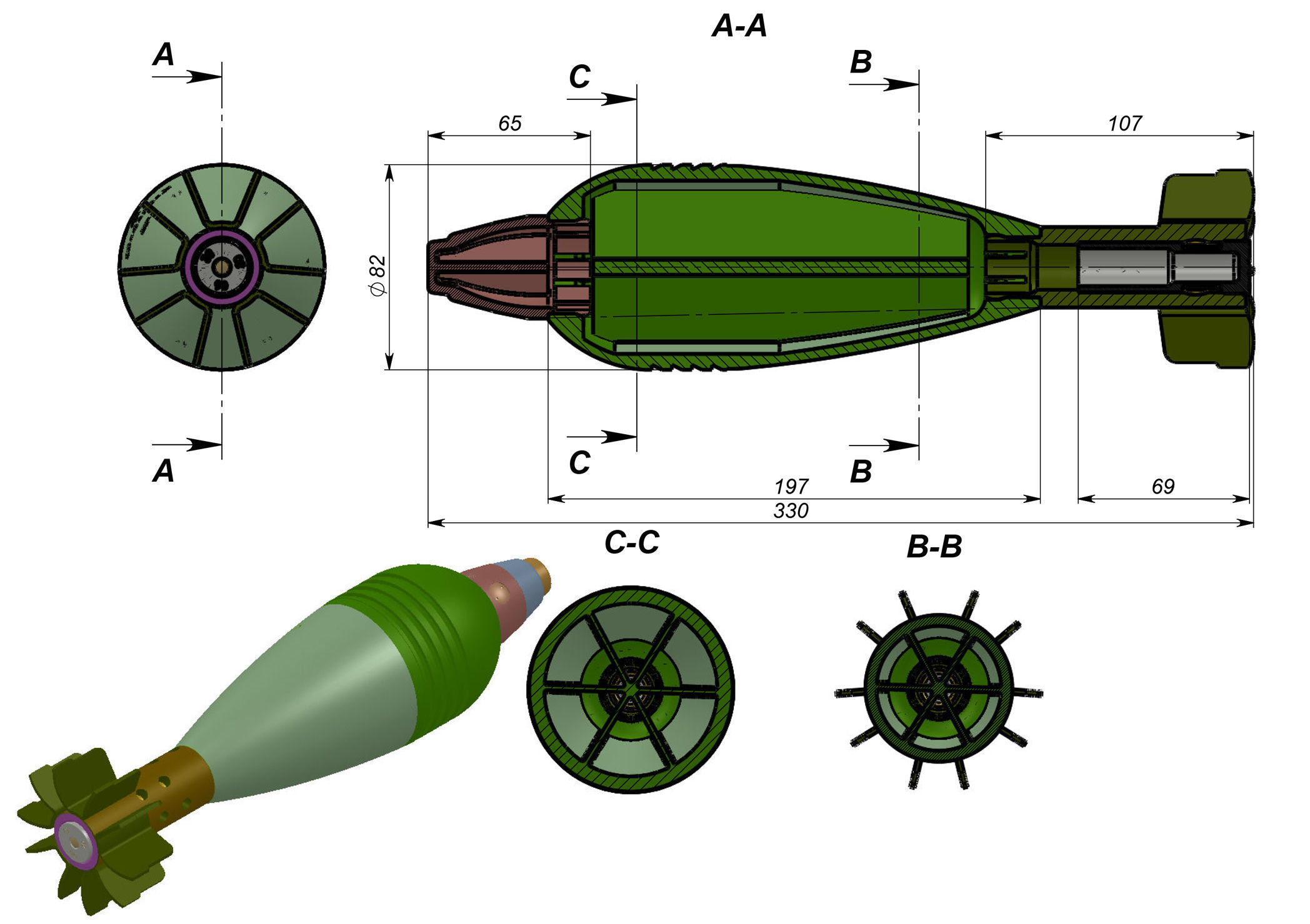

Dimensions of the model are 330x82mm. (original dimensions).

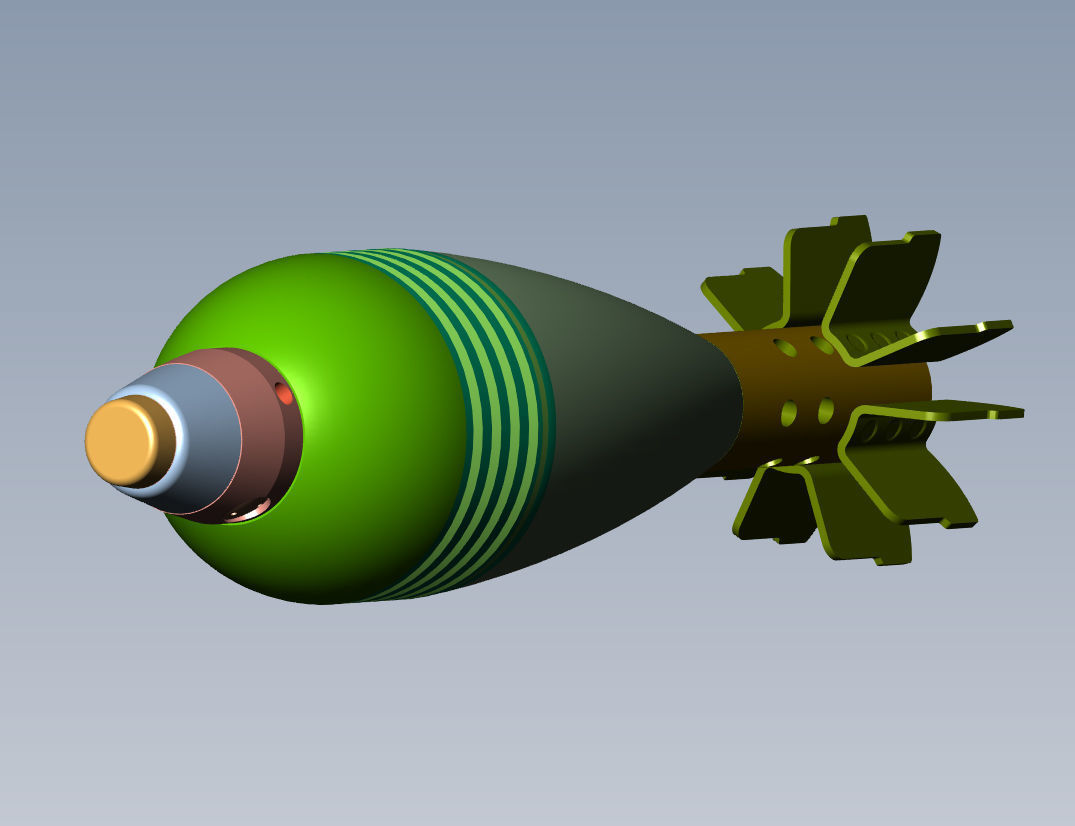

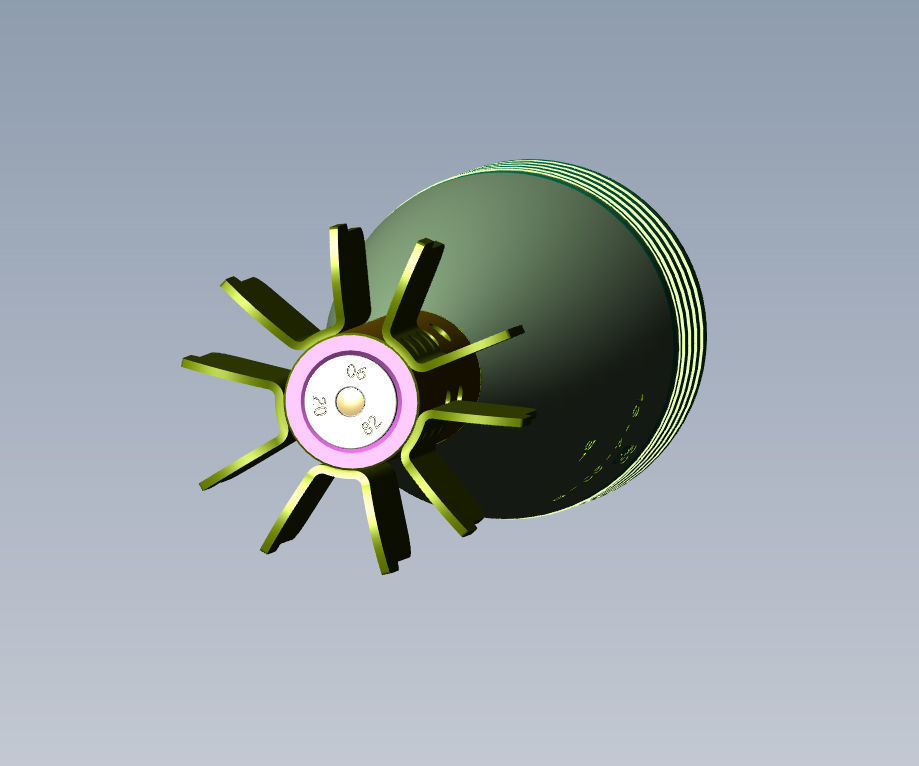

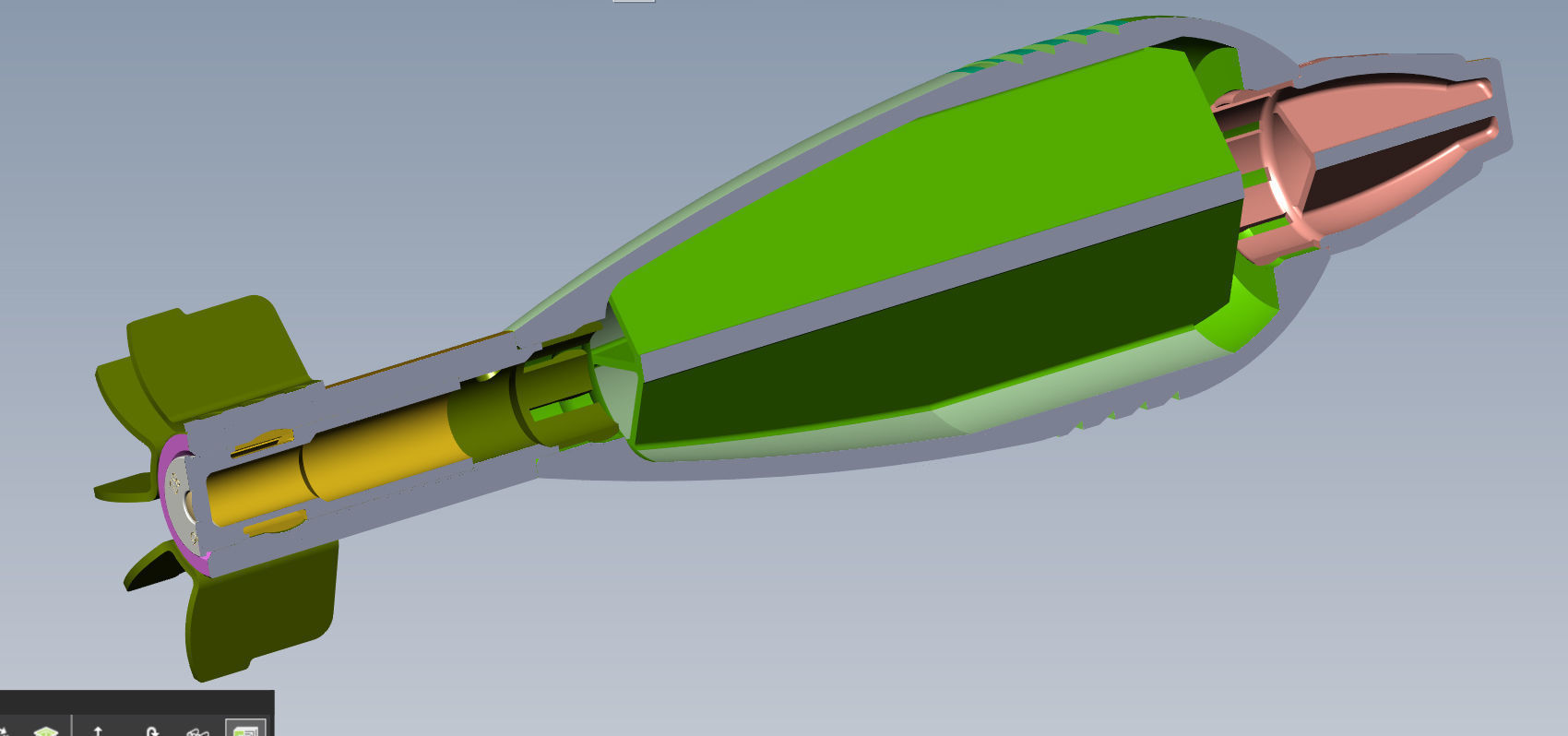

The model is made in SolidWorks . It is intended primarily for 3D printing stand model - training model,
for use as a visual aid and is not a complete copy of the external forms of the original product.

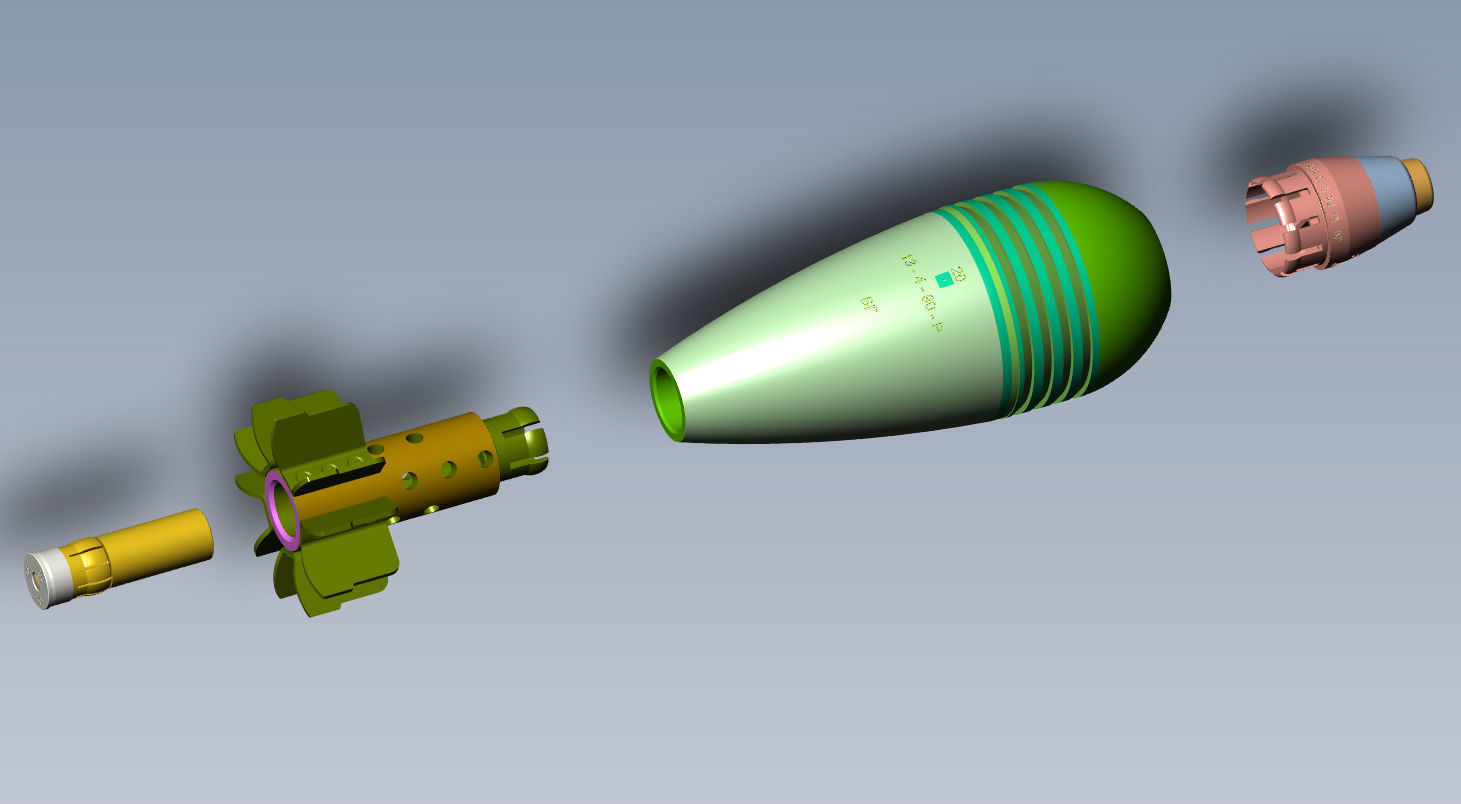

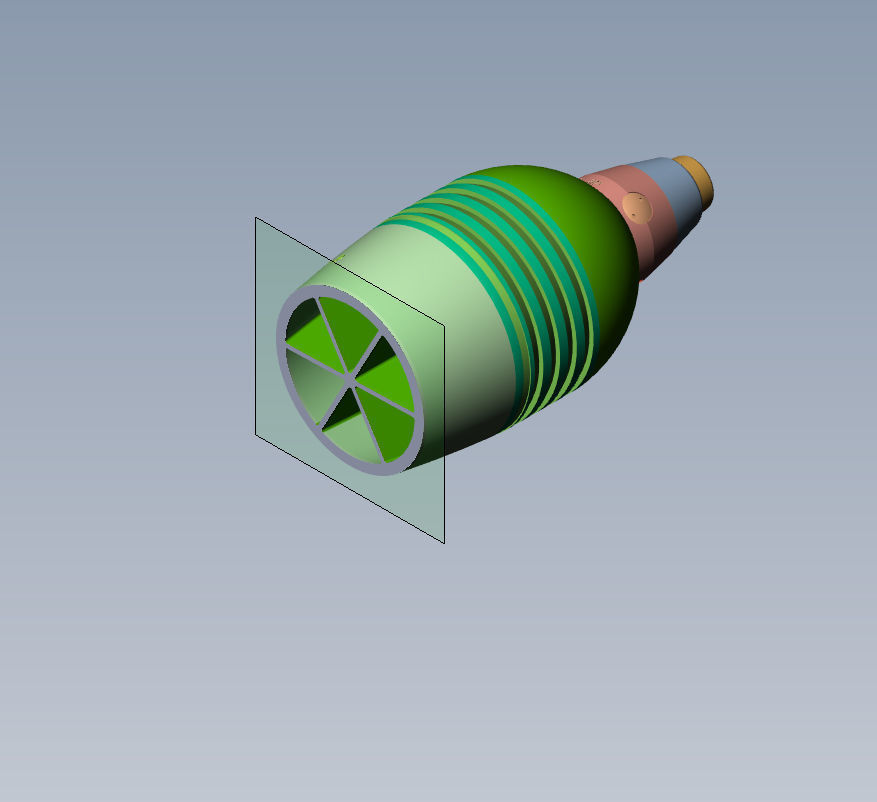

Although it does display all the basic external elements. The model is adapted for the possibility of 3D printing and subsequent assembly of the product layout.

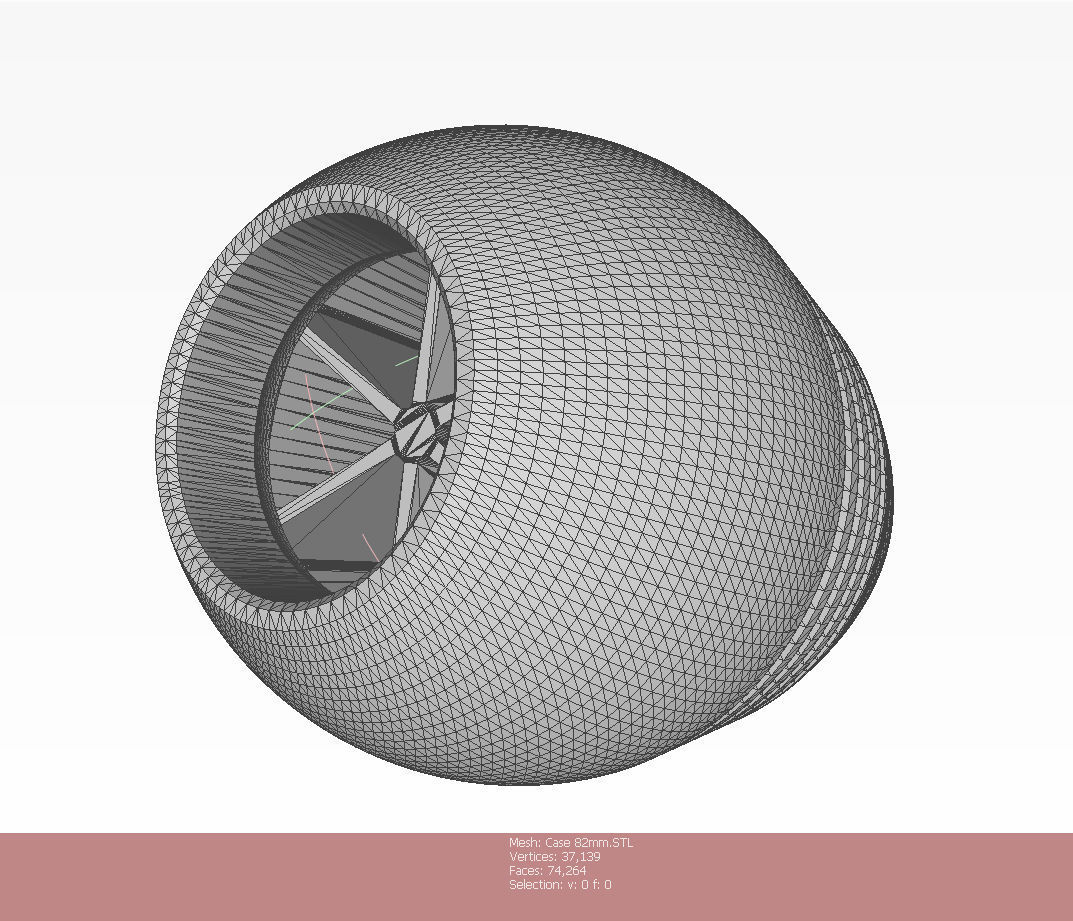

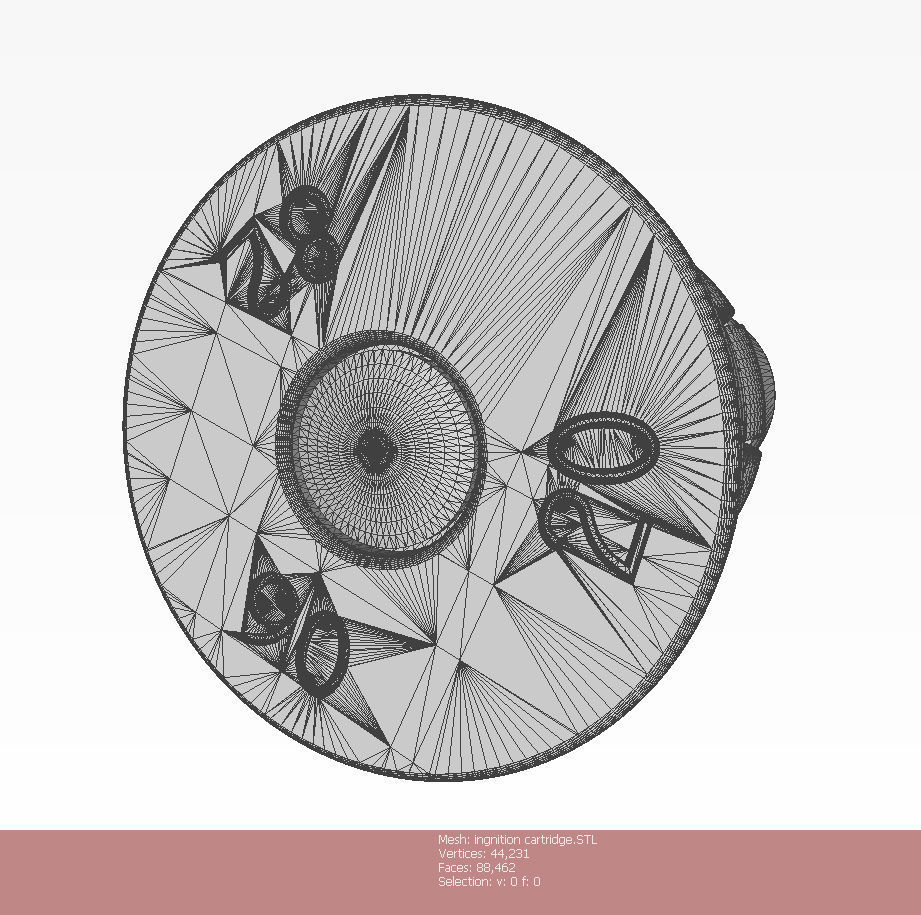

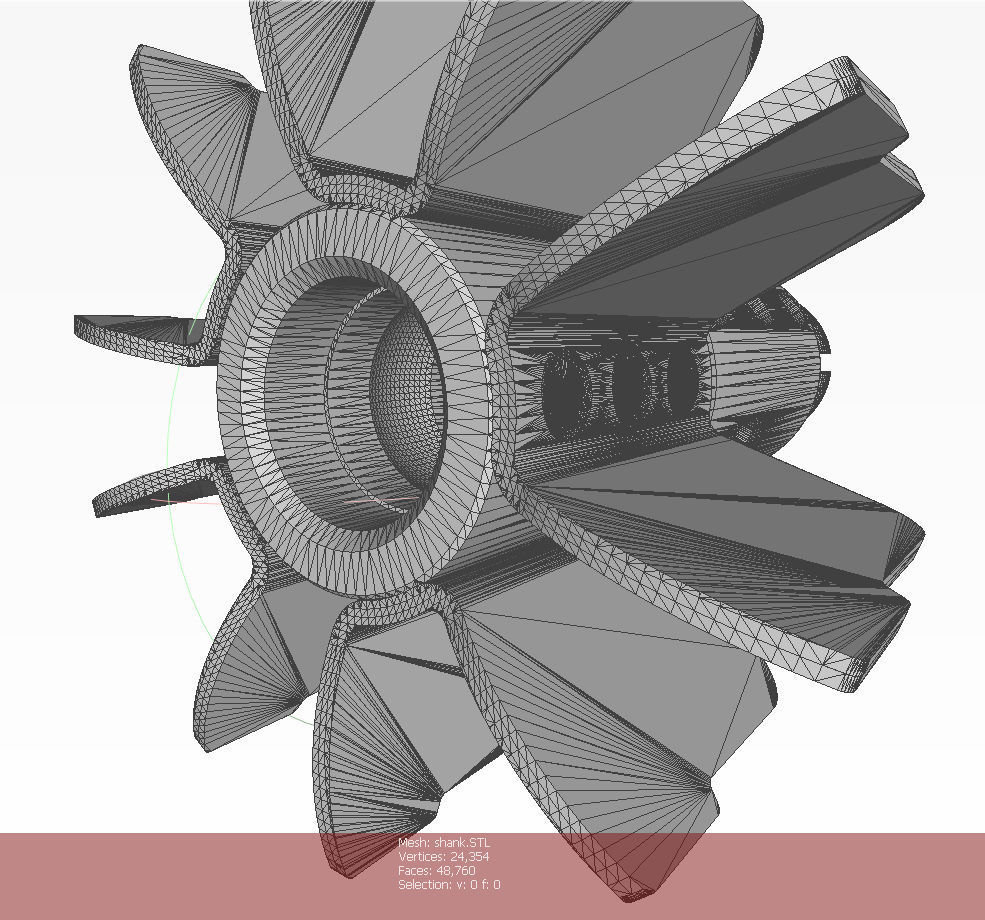

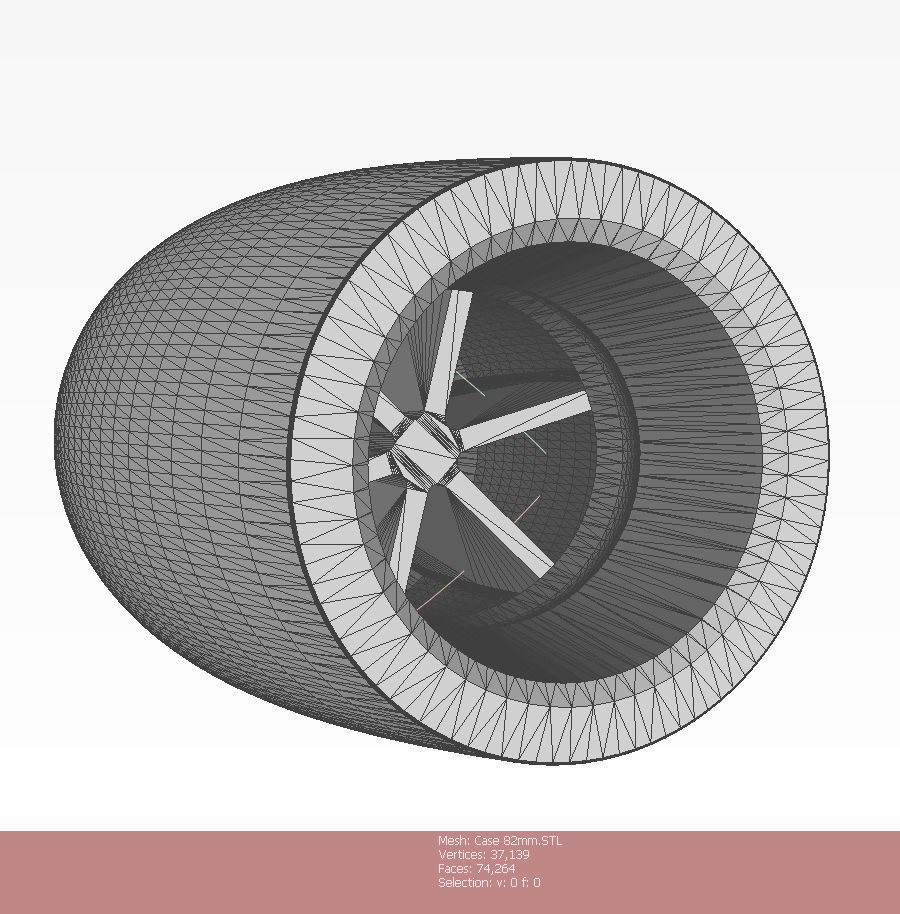

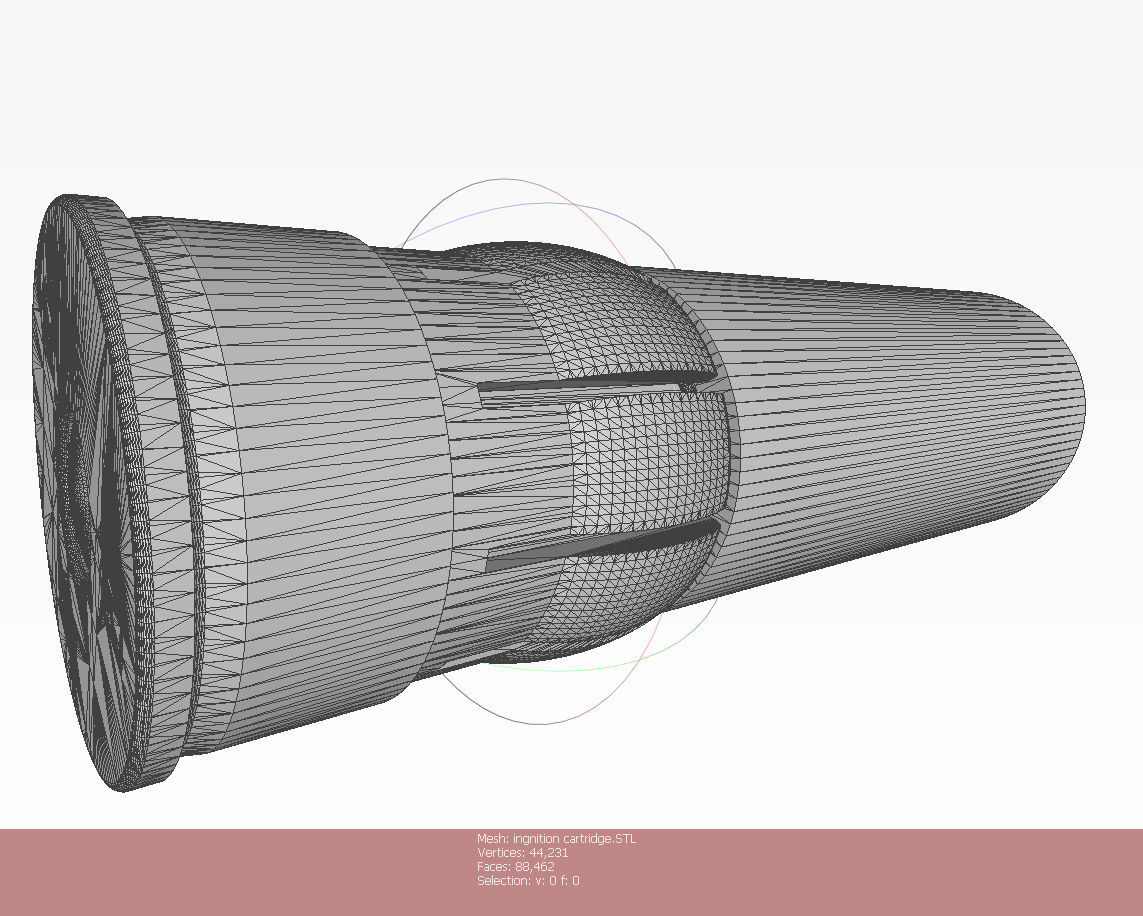

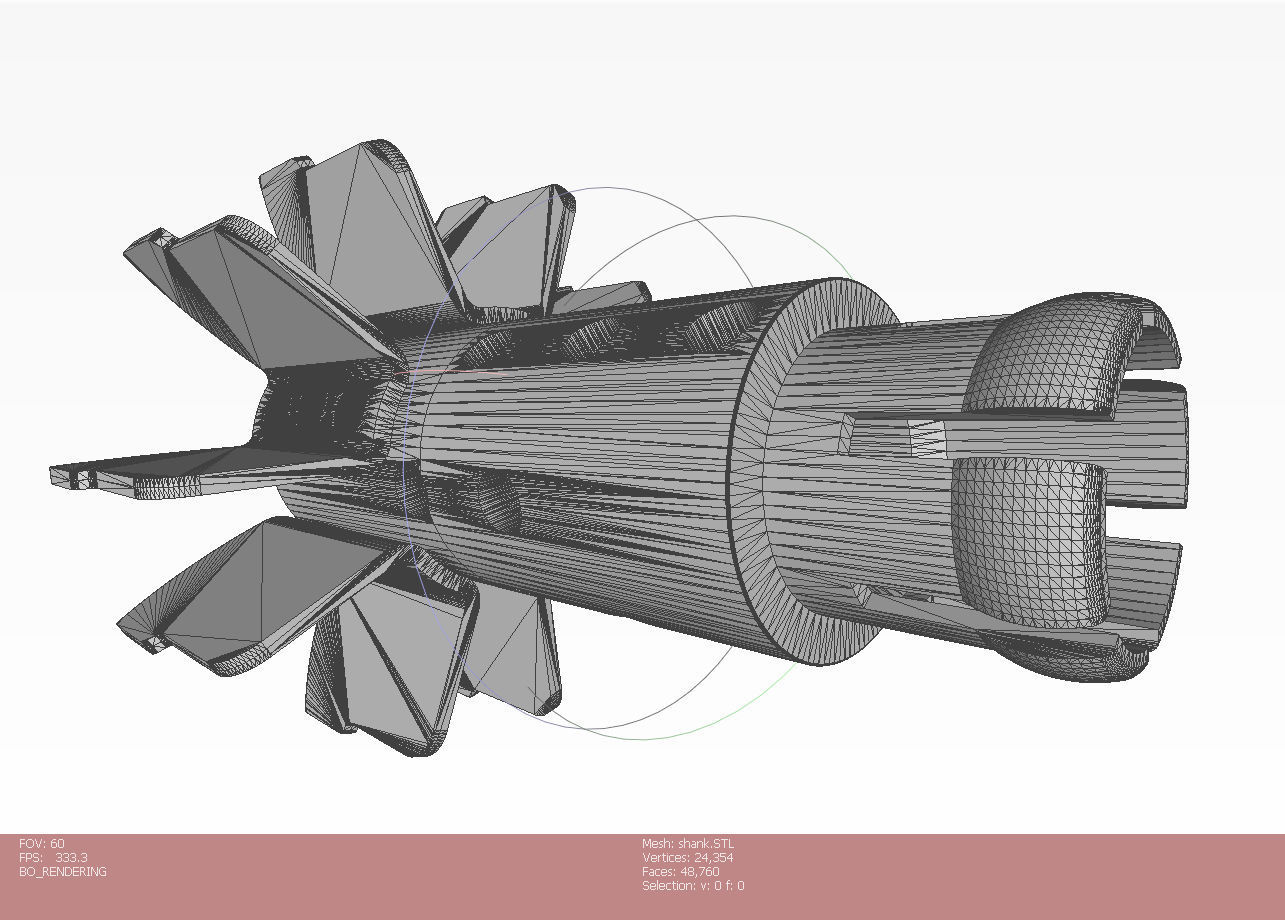

The model is assembled, contains files of all conditional parts (STL) in high-polygonal version to obtain qualitatively smooth forms.

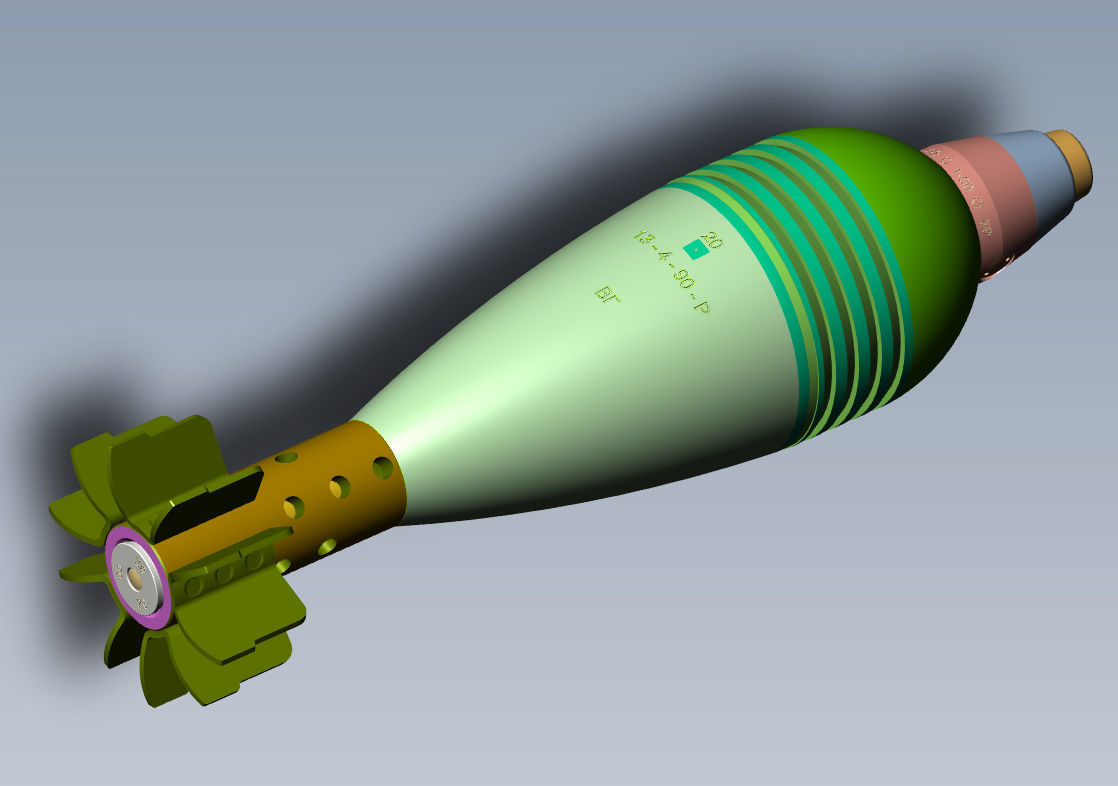

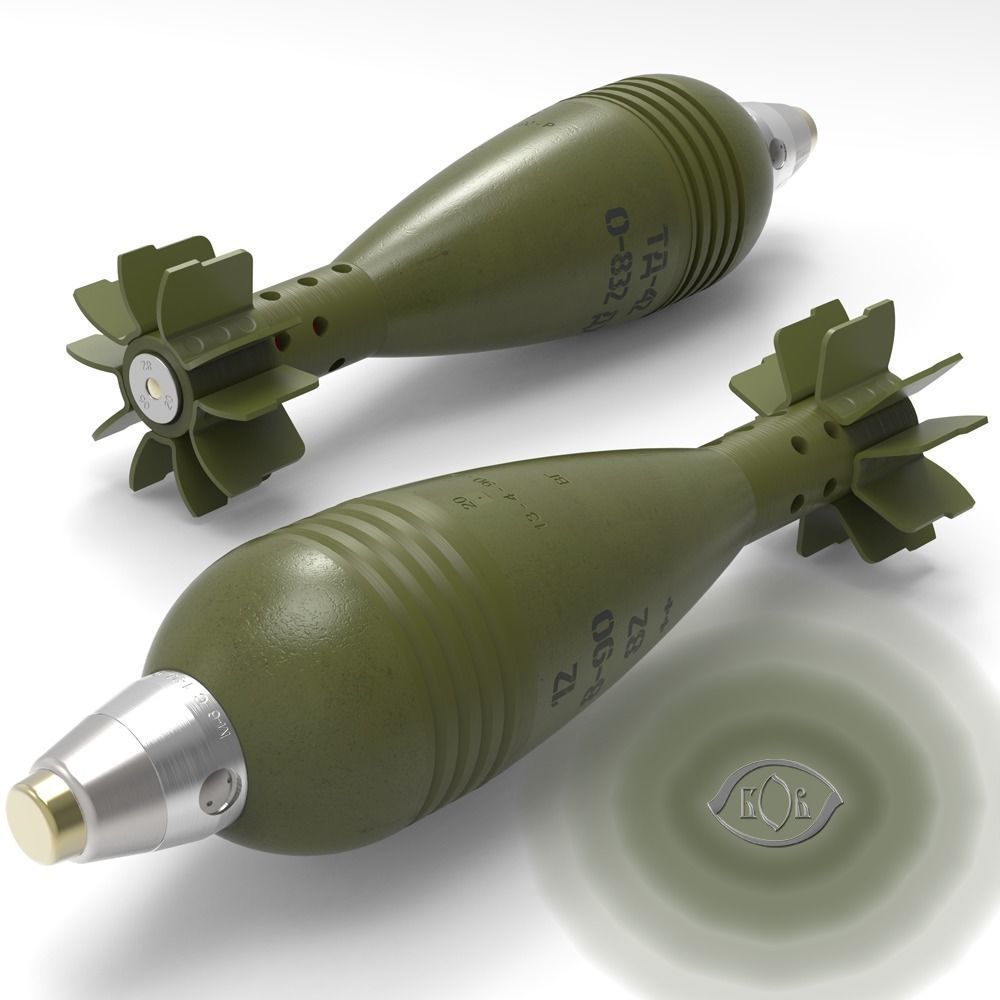

Additionally, the set contains all files for obtaining high-quality realistic visualization with close-ups
(smooth lines, selected surfaces for applying materials or textures), texture files are texture inscriptions to be applied to surfaces.(see rendering examples).
In addition to solid model file formats, converted high detail polygonal file formats are additionally provided.

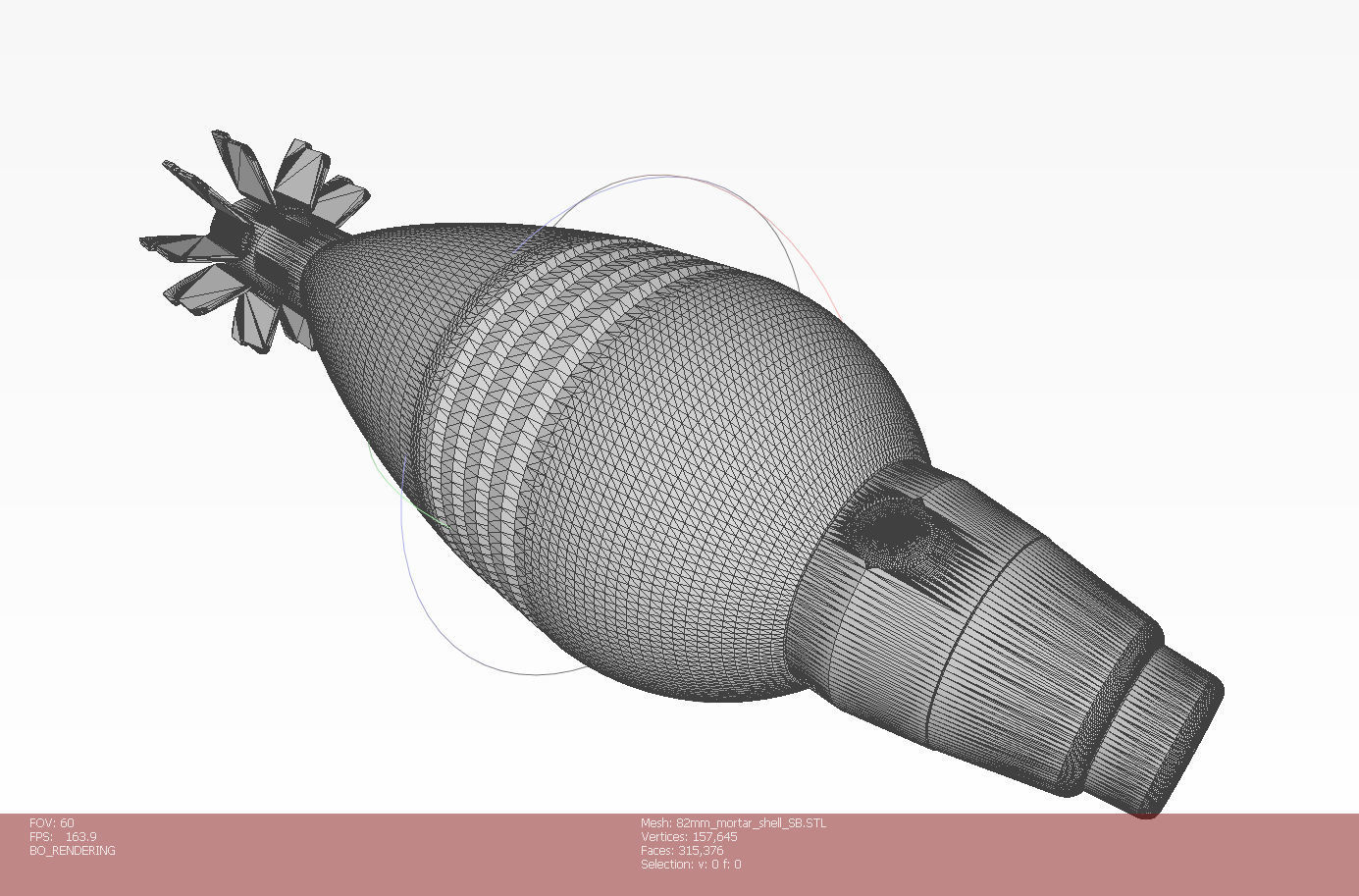

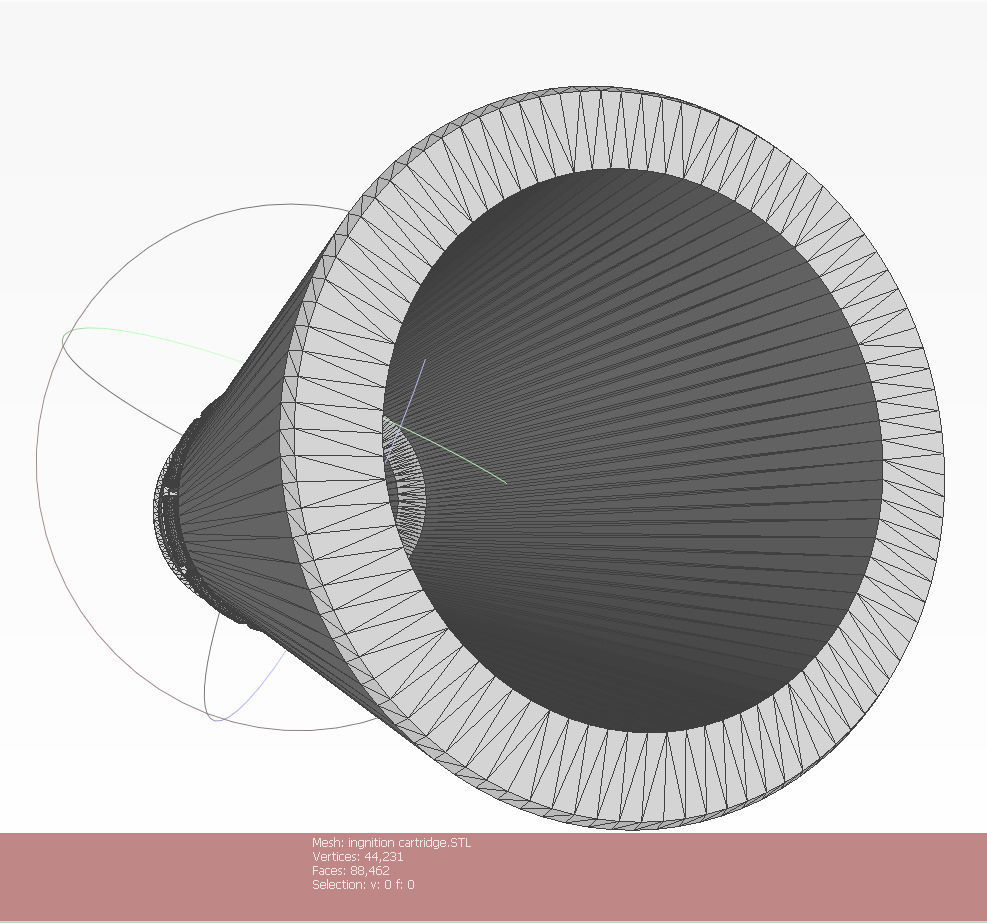

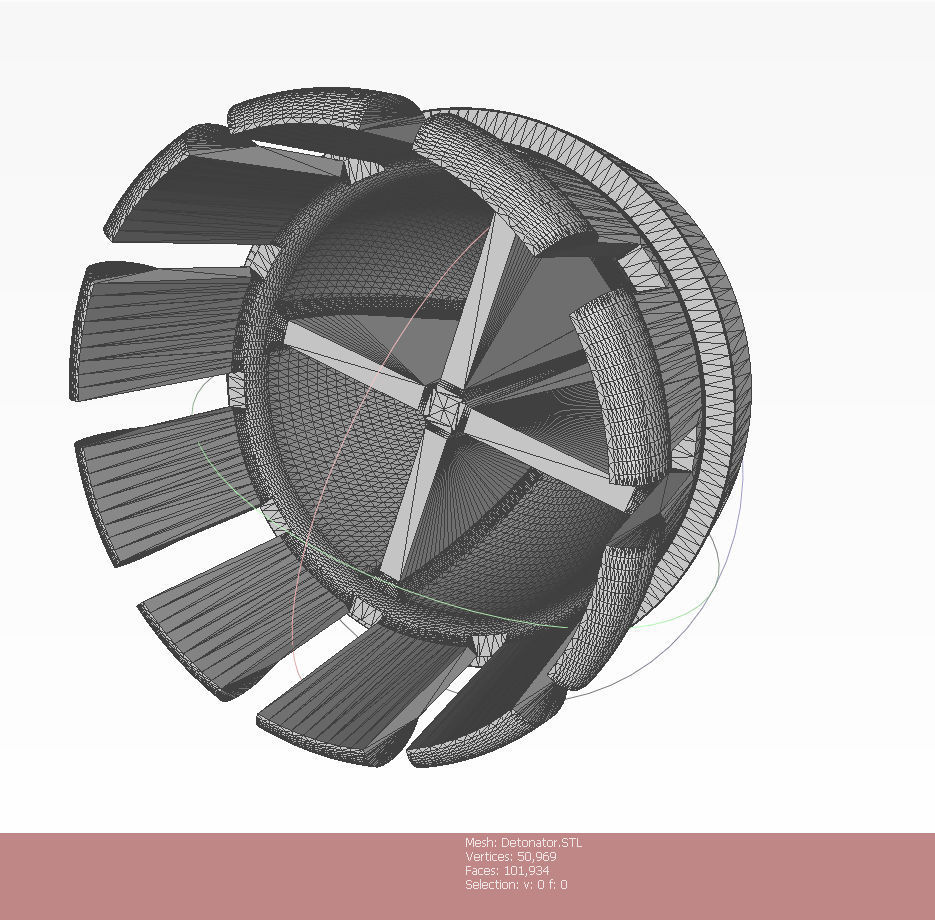

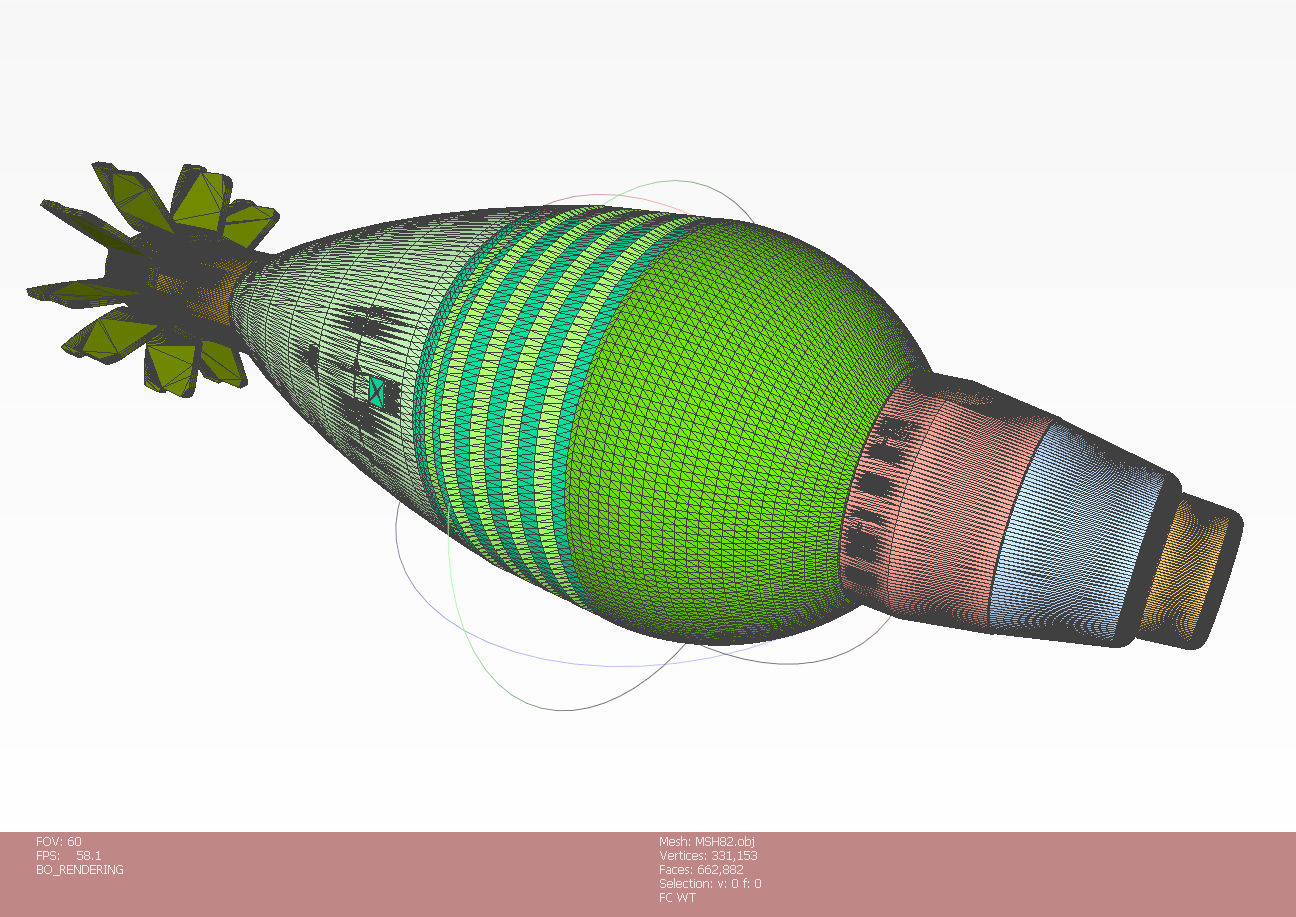

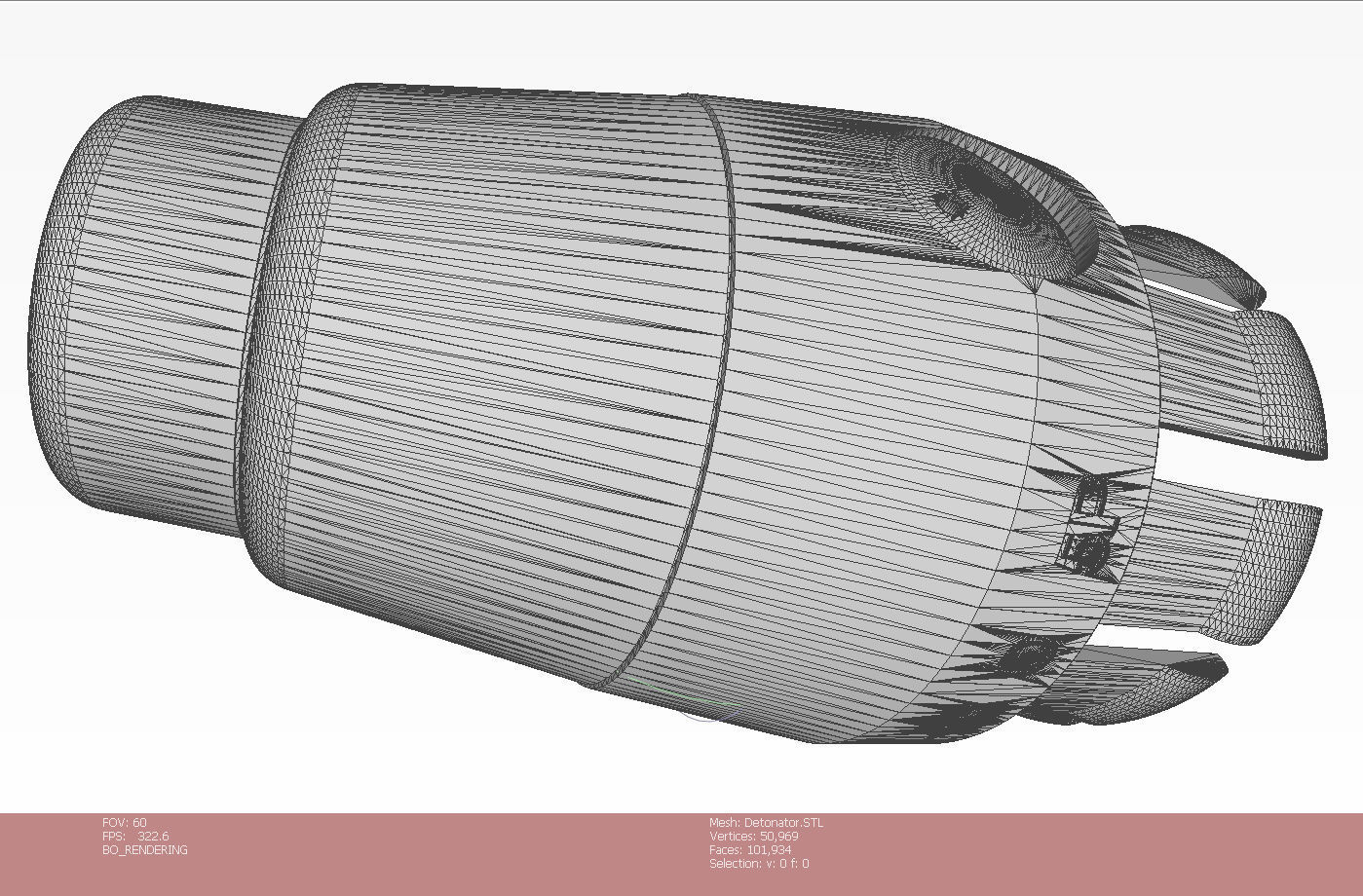

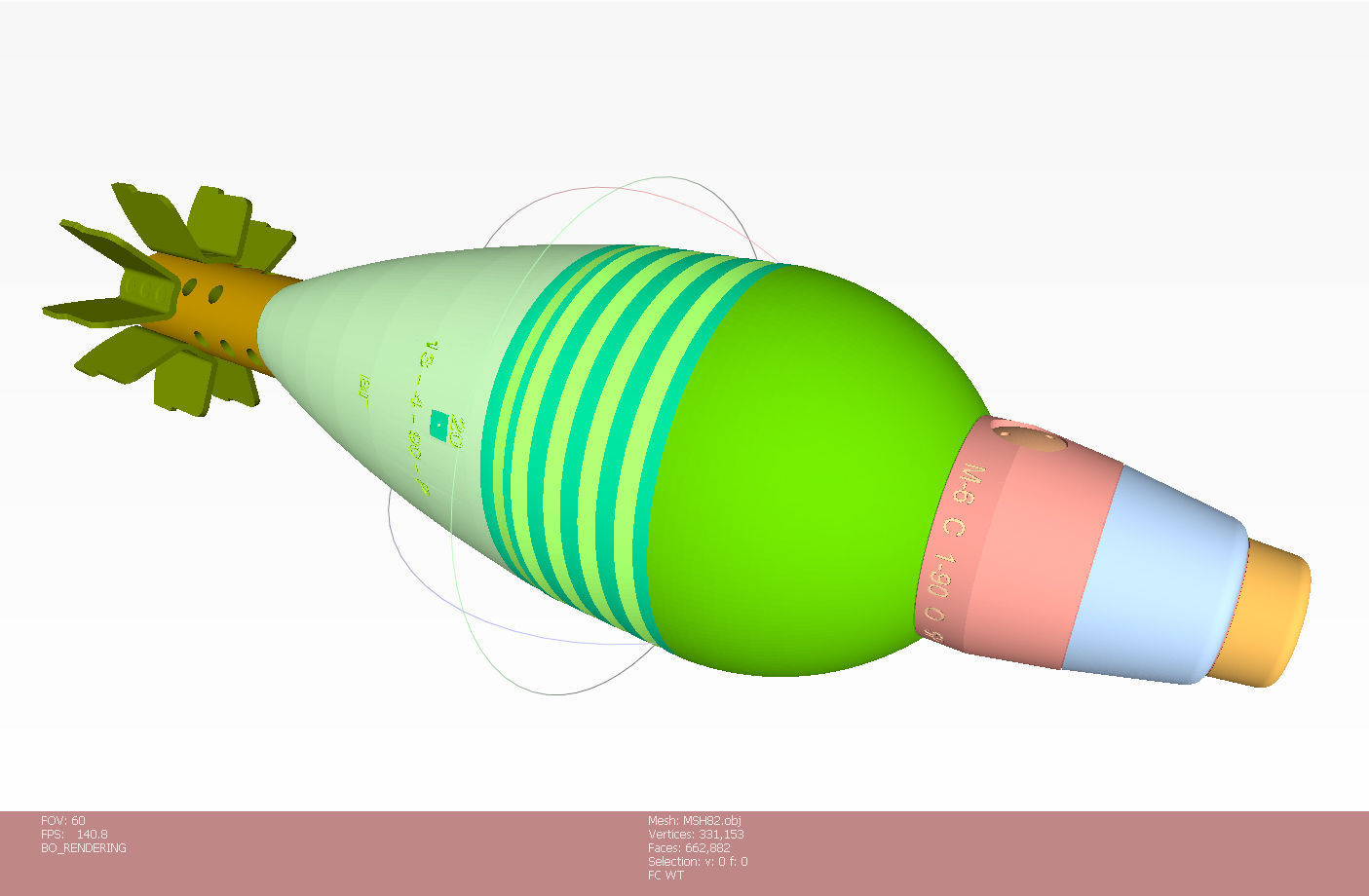

Mesh:
Vertices 331153
Faces 662882
(obj)
Please rate and write a review about this model.
If you have any questions, please message me.
Thank you.
