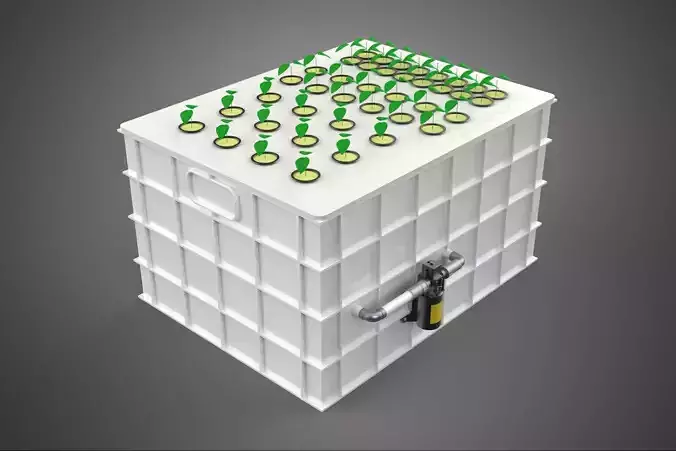

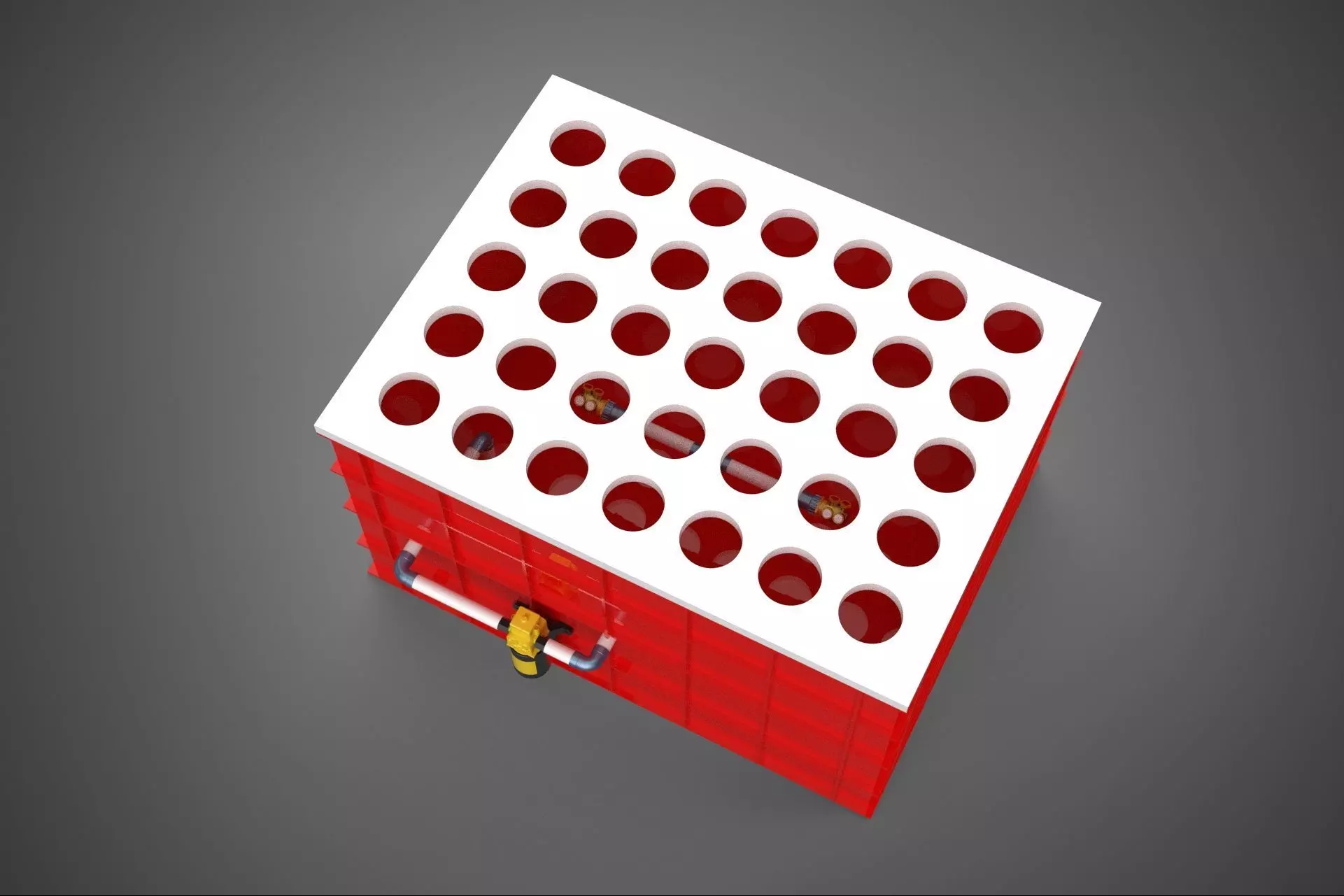

IRRIGATION PIPE SPRAYING LAYOUT AEROPONIC PLANT HOLE CULTIVATION

The integrated system described as Irrigation Pipe Spraying Layout Aeroponic Plant Hole Cultivation represents a highly sophisticated methodology within controlled environment agriculture (CEA), characterized by the precise engineering of nutrient delivery to plant roots suspended in air. This technique is a specialized form of aeroponics, prioritizing optimized root oxygenation and highly efficient nutrient use through timed, pressurized mist applications.

Principles of Aeroponic Cultivation


Aeroponics is a soilless cultivation method where plant roots are suspended within an enclosed, light-impermeable chamber (often referred to as the cultivation chamber or plant hole system). Unlike traditional hydroponics, where roots are submerged or flowered through a nutrient solution, aeroponic systems deliver nutrients via atomized spray or fog. This suspension maximizes the availability of oxygen to the rhizosphere, promoting superior nutrient uptake efficiency and often accelerating growth rates.

Irrigation Pipe Spraying Layout


The efficacy of aeroponic plant hole cultivation hinges critically on the design and execution of the irrigation pipe spraying layout. This layout involves the calculated placement and configuration of high-pressure delivery lines (typically opaque PVC or HDPE piping) and micro-nozzles within or adjacent to the cultivation chambers.

1. Piping Infrastructure


The irrigation pipes function as manifolds, drawing nutrient-rich solution from a reservoir and maintaining it under regulated pressure (often 60–90 psi for high-pressure systems). The pipe layout must ensure minimal pressure differential across all nozzles to guarantee uniform droplet size and spray intensity. Opaque materials are essential to prevent photosynthesis within the pipes, mitigating the growth of algae and biofilm which can lead to nozzle clogging.

2. Spraying Mechanism and Nozzle Selection


The spraying layout dictates the geometric pattern of nutrient delivery. Nozzles are strategically positioned relative to the plant holes to ensure that the entire root mass receives consistent coverage without generating excessive runoff.

  • Droplet Size: Optimal nutrient absorption occurs when water droplets are maintained within a specific diameter range, typically 20 to 70 micrometers. Droplets larger than 100 micrometers tend to saturate the roots, reducing oxygen exchange; smaller droplets (foggers, below 10 micrometers) are difficult to deliver uniformly and often result in nutrient precipitation. The layout design must account for the spray pattern and throw distance of the chosen nozzles (impingement pin, vortex, or ultrasonic transducers) to maintain this optimal size range.
  • Arrangement: Common layouts include linear arrays along deep-channel systems, or circular manifolds within vertical tower systems. The angle and orientation of the spray head are critical to avoid 'shadowing,' where upper root sections block the spray intended for lower sections, leading to localized desiccation.

    #### 3. Plant Hole Integration

    Plant holes are the structural interface between the plant and the internal environment of the aeroponic chamber. They consist of apertures in the cultivation channel surface, typically housing net pots or rigid collars that anchor the plant stem while allowing the roots to hang freely.

    In vertically stacked systems, the plant holes are often offset to minimize spray interference between levels. The enclosed chamber environment, created by the pipe and nozzle layout, maintains high humidity (near 100%) and allows the roots to rapidly transition between periods of moist nutrient saturation and high atmospheric oxygen exposure.

    ### Engineering Requirements and Performance

    Successful implementation requires precise cyclical timing (often cycles lasting seconds, repeated every few minutes) managed by solenoids and electronic controllers. The uniformity coefficient of the spraying layout—a metric measuring how evenly the nutrient solution is distributed—is the primary determinant of system efficiency and crop yield consistency.

    The major engineering challenges inherent to the pipe spraying layout include:
  • Maintaining precise pressure tolerance across extensive pipe networks.
  • Preventing physical or biological clogging of the micro-nozzles.
  • Designing the layout to allow for simplified access and maintenance of the root chambers and nozzles without excessive disruption to the growing cycle.

    This methodology offers significant advantages in water conservation (up to 98% less water than conventional agriculture), nutrient control, and yield density, making it a critical technology for urban farming and sustainable high-value crop production.

    KEYWORDS: Aeroponics, Hydroponics, Controlled Environment Agriculture, CEA, Nutrient Delivery System, Spraying Layout, Root Zone, Rhizosphere, Micro-Nozzles, High-Pressure Systems, Irrigation Pipe, Manifold, Cultivation Chamber, Plant Hole, Vertical Farming, Soilless Cultivation, Droplet Size, Atomization, Uniformity Coefficient, Root Oxygenation, Solenoid Valve, PVC Piping, HDPE, Net Pot, Nutrient Film Technique, Impingement Pin, Crop Yield, Precision Agriculture, Desiccation, Biofilm.
