Dial Caliper 3D model

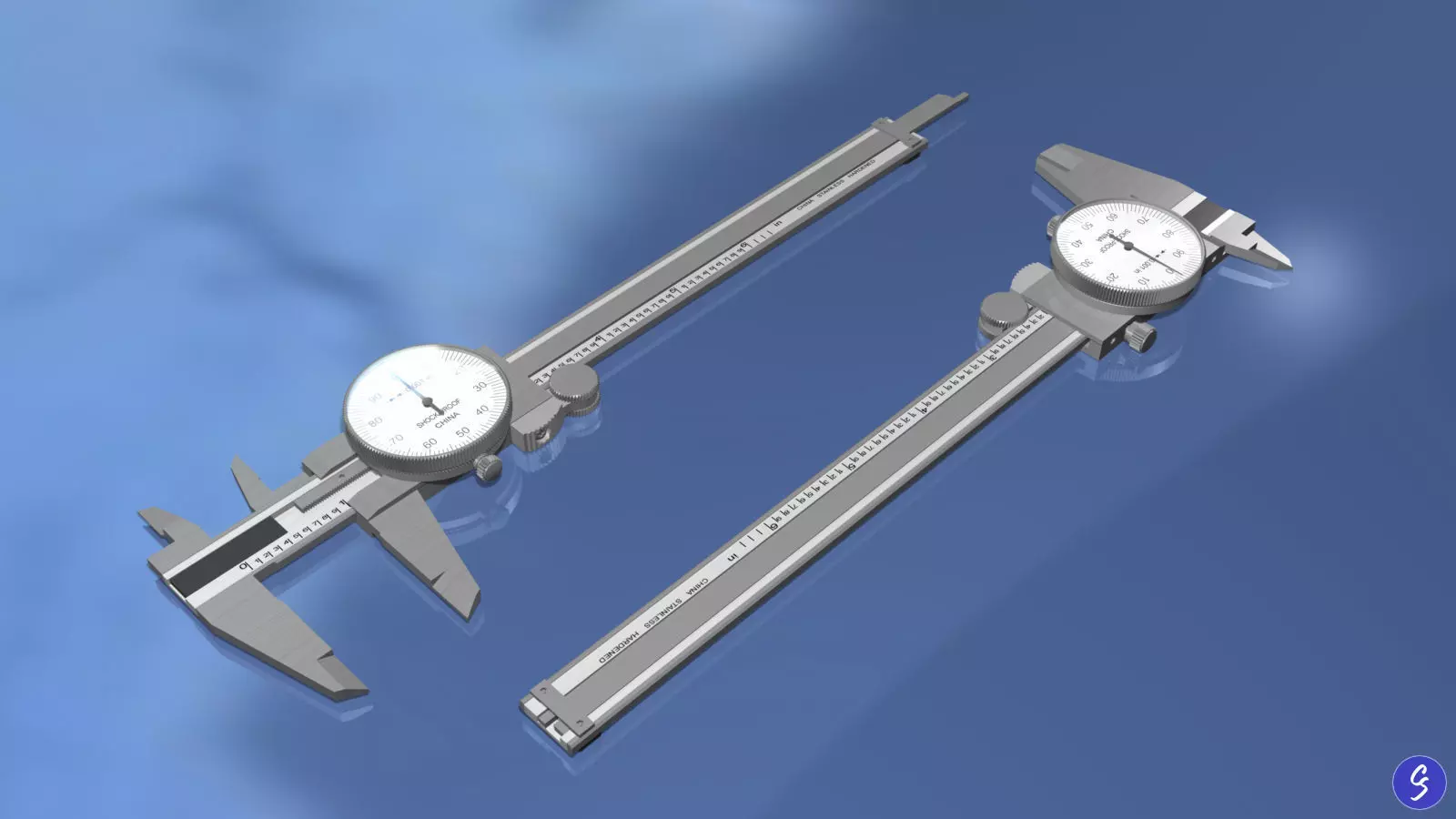

Detailed dial caliper modeled in Carrara 4.0 and provided in .CAR, .3DS, and .OBJ formats. Used by engineers and machinists to accurately measure internal and external component dimensions to within 0.001 inches.

The model is dimensionally-accurate and faithfully reproduces all visible detail, down to the last screw. Knurled surfaces and gear rack are fully modeled. Appropriate edges are chamfered to produce realistic highlights. Jaws, knobs, and dial needle are modeled individually to allow for movement.

Product includes: • Caliper Carrara file (.CAR) • Caliper .3DS file • Caliper .OBJ file • All caliper texture maps (.BMP)

Note: All materials and textures are applied as shown in the native .CAR file. Due to the format conversion, the .3DS and .OBJ files may require reapplication of texture maps (included with the product).
