The gantry rotating equipment 3D model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

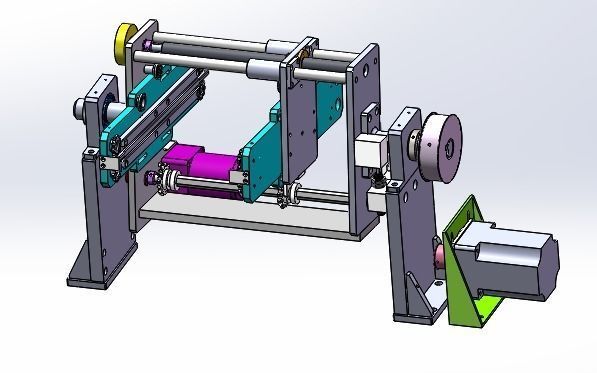

The gantry rotating mechanism, the whole structure of the gantry frame, through the synchronous belt drive the composition of the rotating mechanism.The core is the axis of symmetry, which needs to be installed on the same axis to flip smoothly.It also includes an X-axis adjustment module, which USES the screw and chrome shaft to slide the guide bar to adjust the work platform.It is a typical design model for the mechanism to use a number of rollover platforms, to set up the gantry in case of size interference, and to fine-tune the work pieces.
