Pressure test platform 3D model

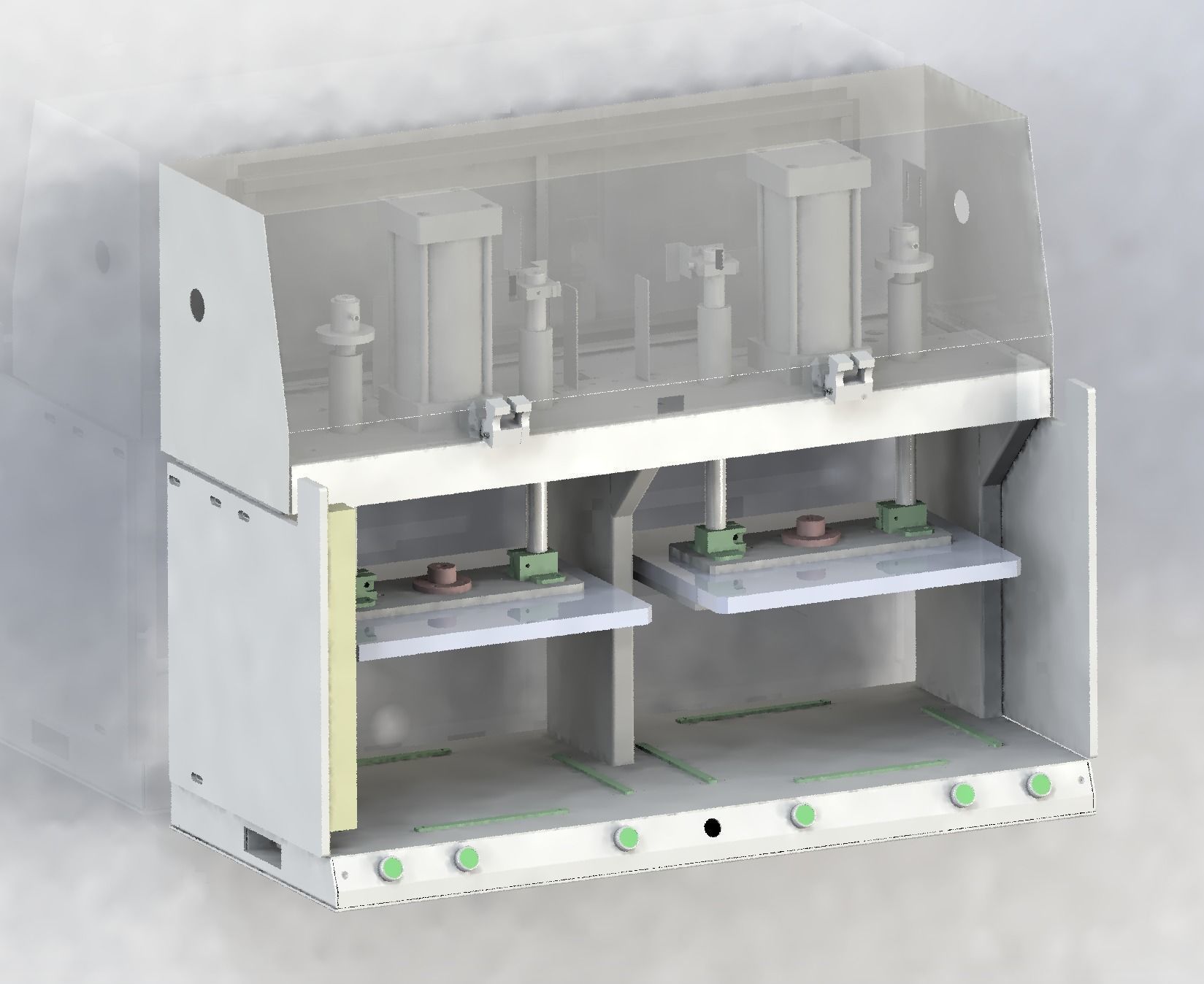

Pressure test platform. The device performs pressure test on the product through the pressure plate controlled by the cylinder, including the test induction sensor in the two-station test platform mechanism

Mechanism include

1. Cylinder downward pressure mechanism

2. Test platform

3. Electric control box structure

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

    This product has no reviews yet
    Pressure test platform
    $9.00
    All prices are exclusive of VAT
    Save with CGTrader Credits
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 100% in 25.3h
    3D Modeling
    Hire me
    3D model formats
    • OBJ (.obj, .mtl) (2 files)-
    • SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)-Version: 2017Version: 2017
    • STEP (.stp)6.9 MB
    • 3D Studio (.3ds)18.4 MB
    • Autodesk FBX (.fbx)19.1 MB
    • Stereolithography (.stl)43.6 MB
    • Autodesk 3ds Max 2017 (.max)50.5 MBVersion: 2017Renderer: Default (Scanline)
    • IGES (.ige, .igs, .iges)1.31 MB
    3D model details
    • Publish date2018-10-31
    • Model ID#1025133
    • Animated
    • Rigged
    • VR / AR / Low-poly
    • PBR
    • Geometry Polygon mesh
    • Polygons 456,331
    • Vertices 914,364
    • Textures
    • Materials
    • UV Mapping
    • Unwrapped UVs Unknown
    • Plugins used
