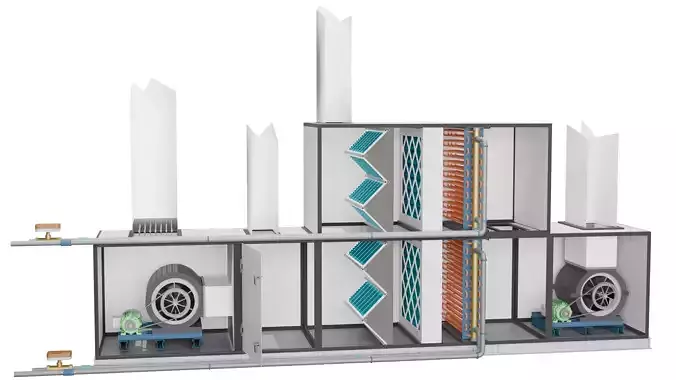

Air Handling Unit 3D model
thumbnail
DESCRIPTION

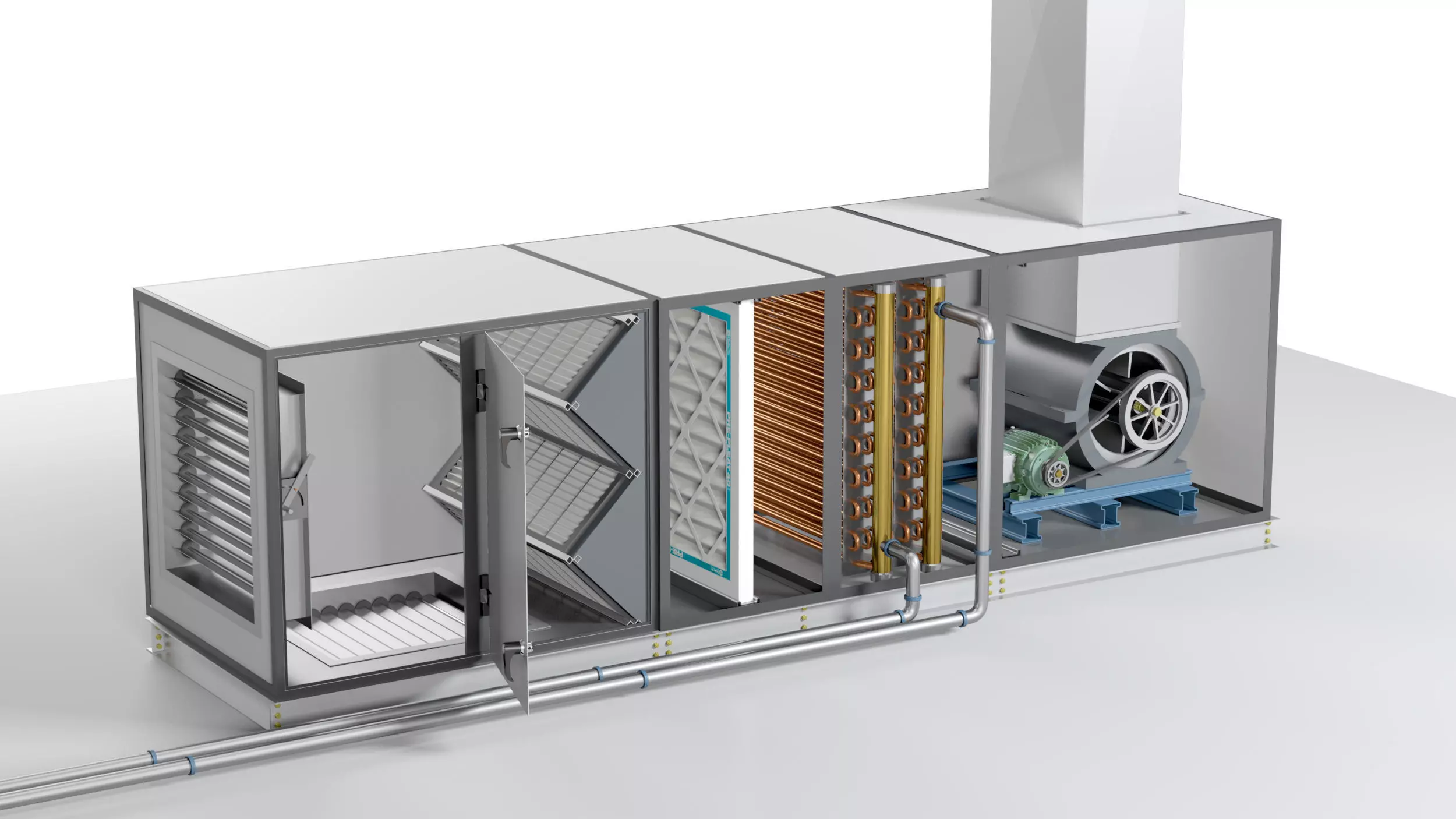

A highly detailed, photo-realistic 3D model of a typical Commercial Air Handling Unit (AHU) shown in a cutaway view. This model is perfect for architectural visualizations, HVAC engineering presentations, educational materials, or product demonstrations.Key Features / Components Visible:

  • Air Intake Section with Dampers/Louvers: The initial opening for fresh or return air.
  • Pre-Filter Section (e.g., Washable Filters): The first stage of air purification.
  • Bag Filter Section (High-Efficiency Filters): For fine particulate removal.
  • Cooling/Heating Coil Section: Visible copper tubing and fins for heat exchange (connected to piping).
  • Fan/Blower Section: A large centrifugal fan driven by an electric motor, mounted on a base (for air movement).
  • Insulated Casing/Modular Design: The overall structural enclosure showing typical bolted panels.
  • Piping and Drainage: Detailed water/refrigerant piping connecting to the coil, and a drain pan at the bottom of the cooling section.Model Applications:
  • Educational diagrams and animations.
  • Realistic visualization in building information modeling (BIM) projects.
  • Technical schematics and manuals.
  • Sales and marketing materials for HVAC companies.
Related Tags
ahu
hvacairconditioner
bms
buildingservicesindustrialmachineindustrial machine

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.
NEW
Recently added to CGTrader - explore one of the latest models on the marketplace.

Air Handling Unit 3D model

Royalty Free License (no AI)
Created by
h
huynhhoi308
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
JPG
JPG<br />File Size: 36.2 MB
FBX
Autodesk FBX | 2 files<br />File Size: 71.6 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
The model includes animations (movement or actions) that can be played in supported software or engines.
The model has a skeleton or bone structure, making it ready for posing or animation.
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Unwrapped UVs
Unknown
Publish date
2025-10-23
Model ID
#6541916
