CNC ROUTER MACHINE DESIGN

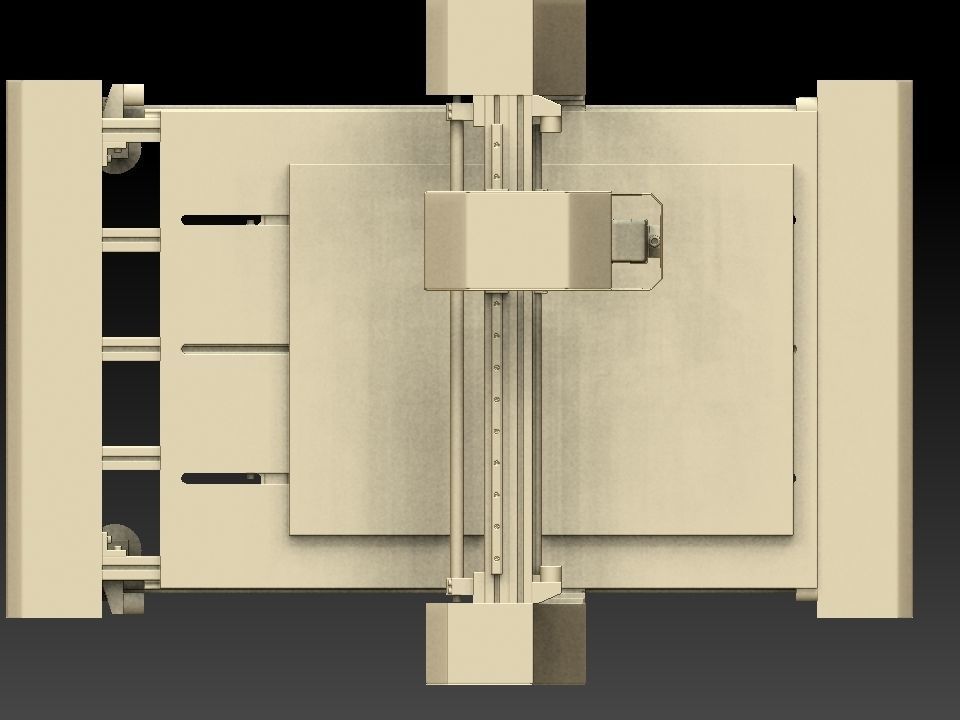

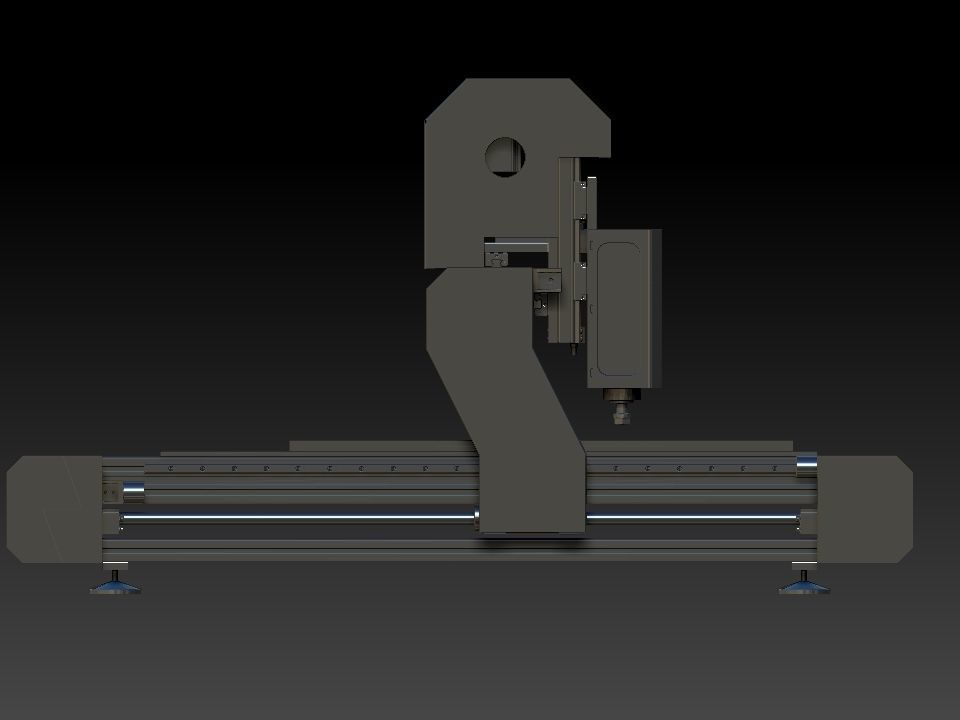

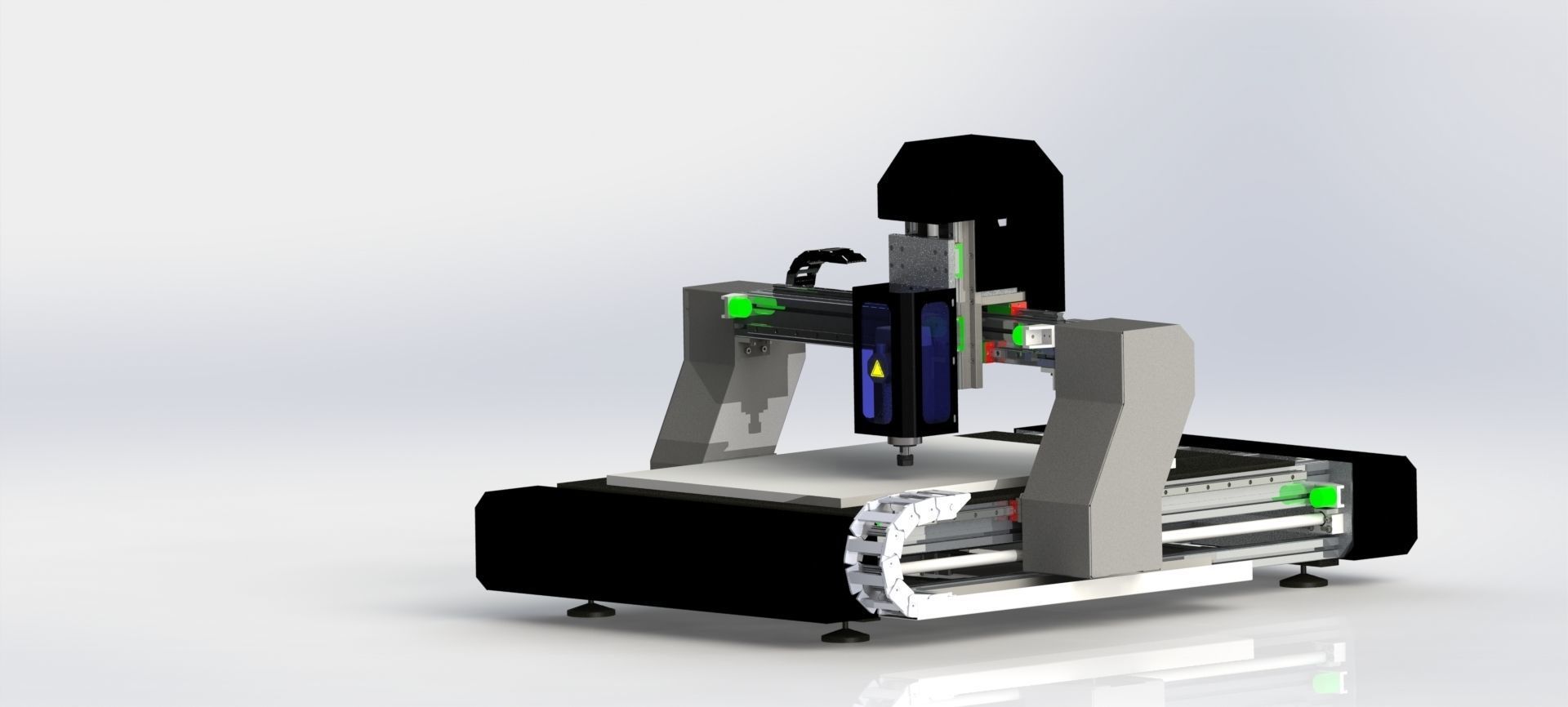

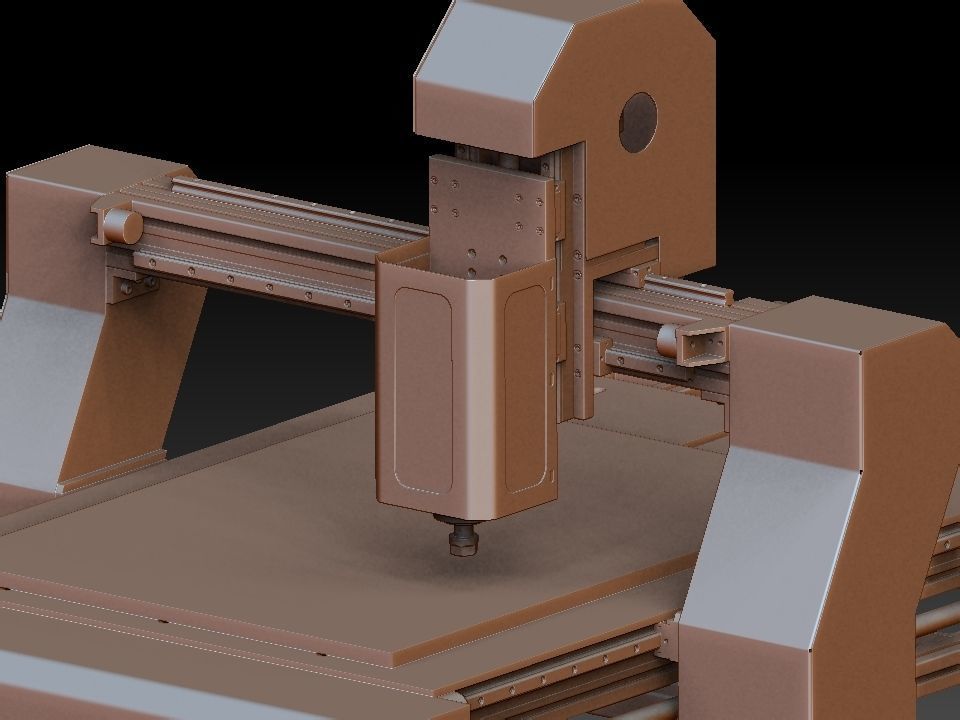

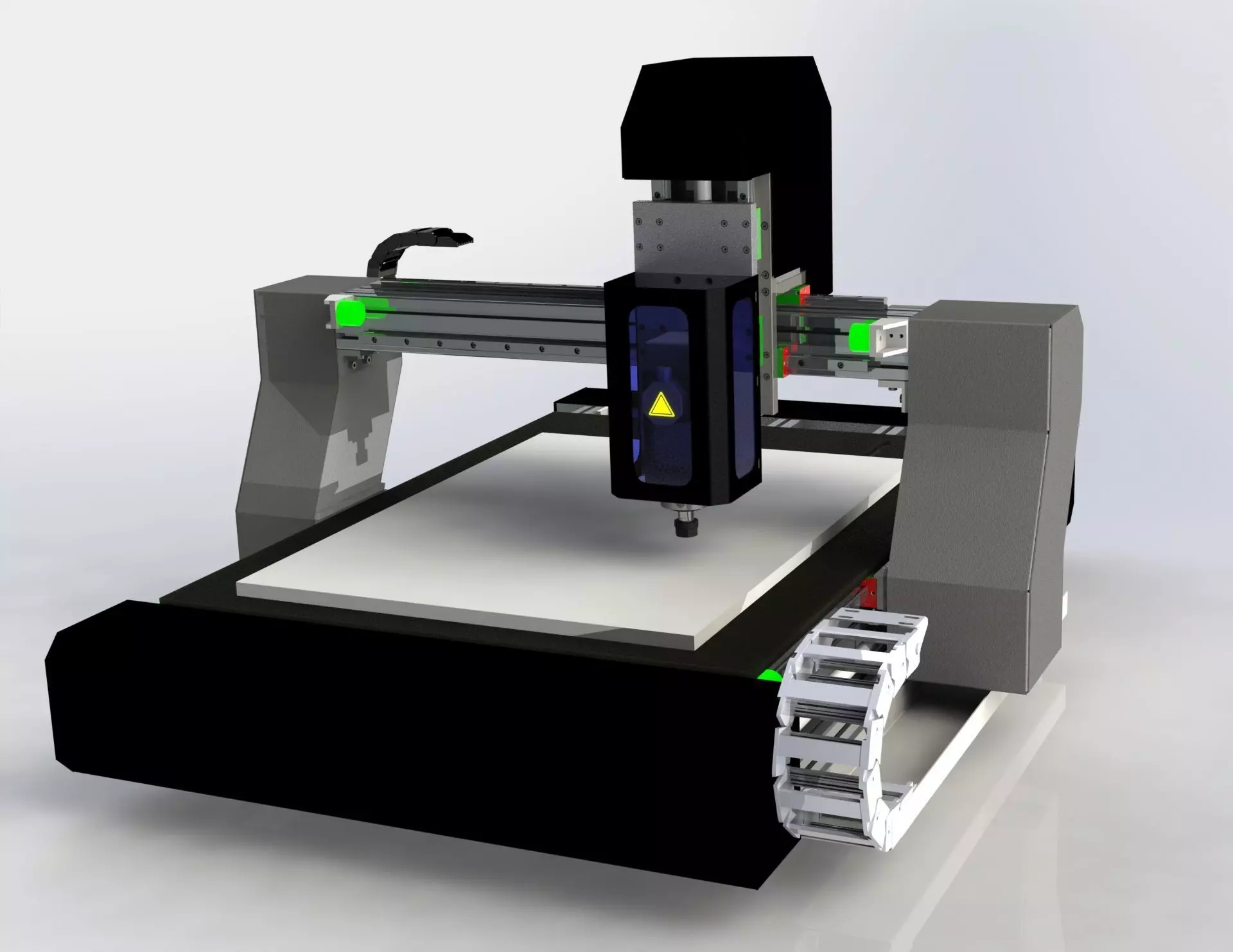

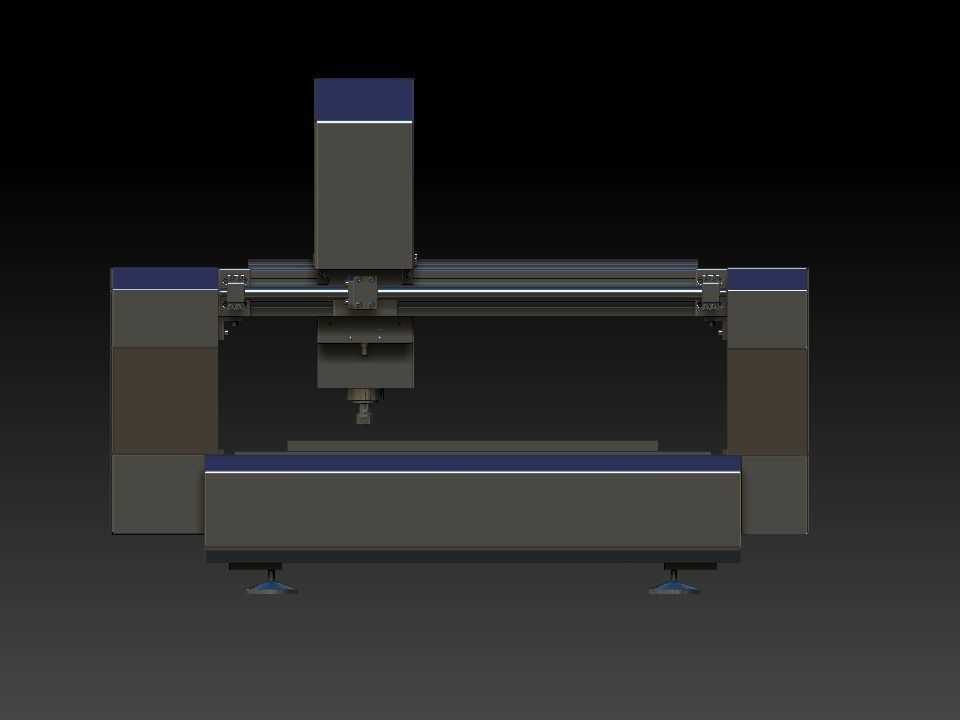

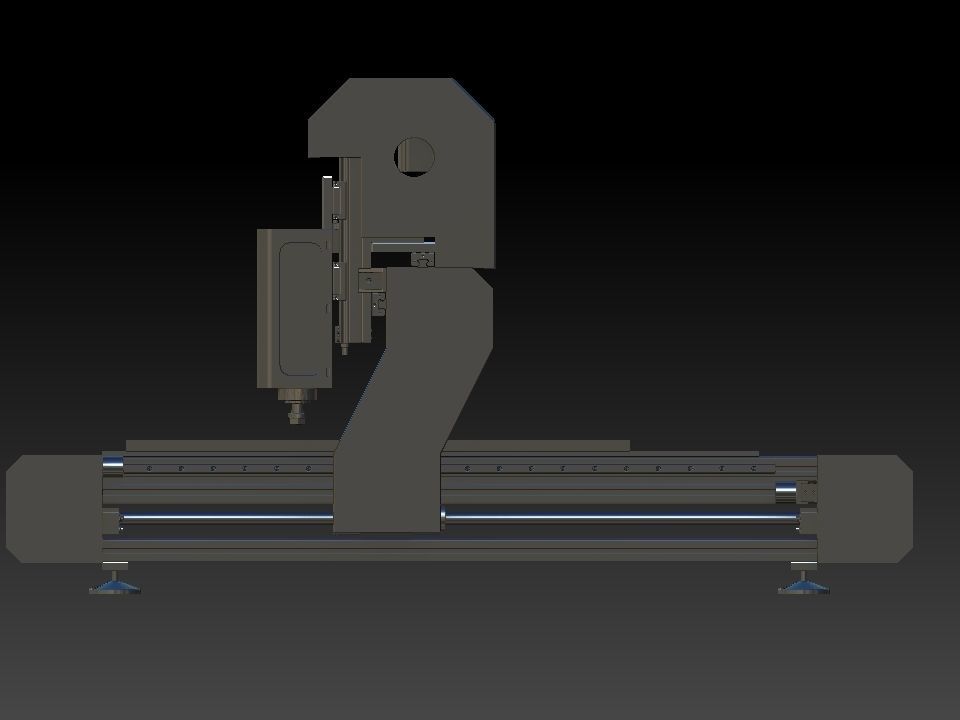

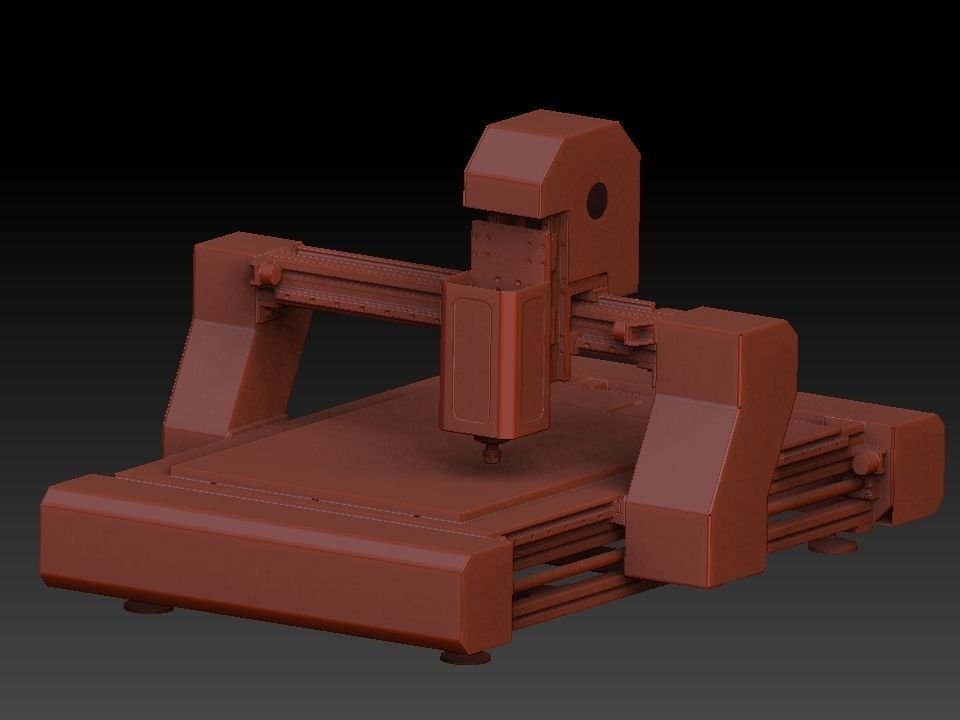

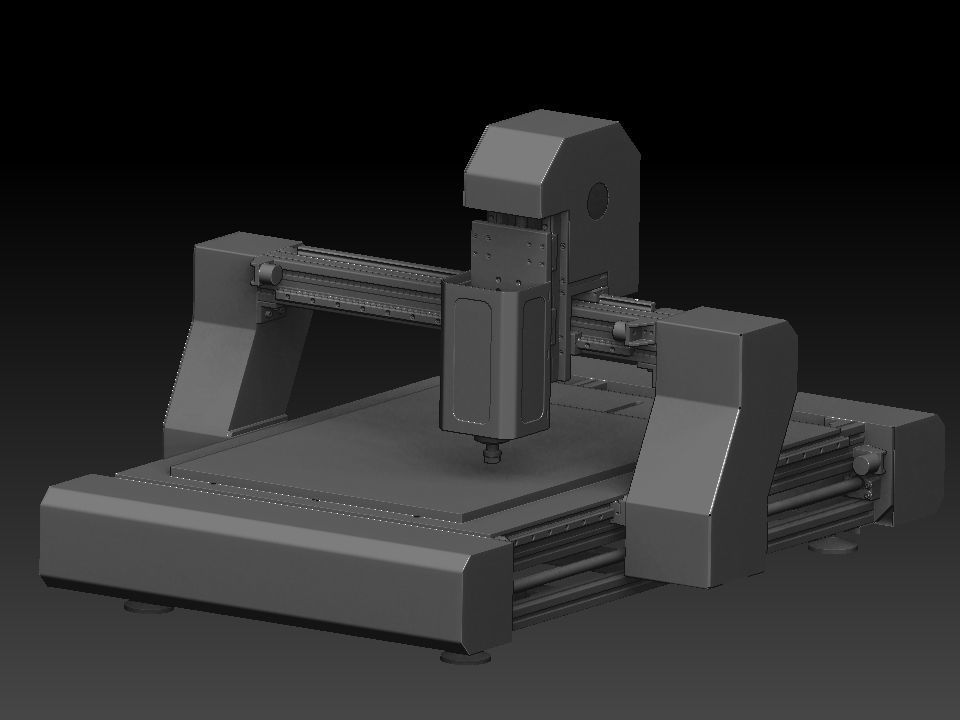

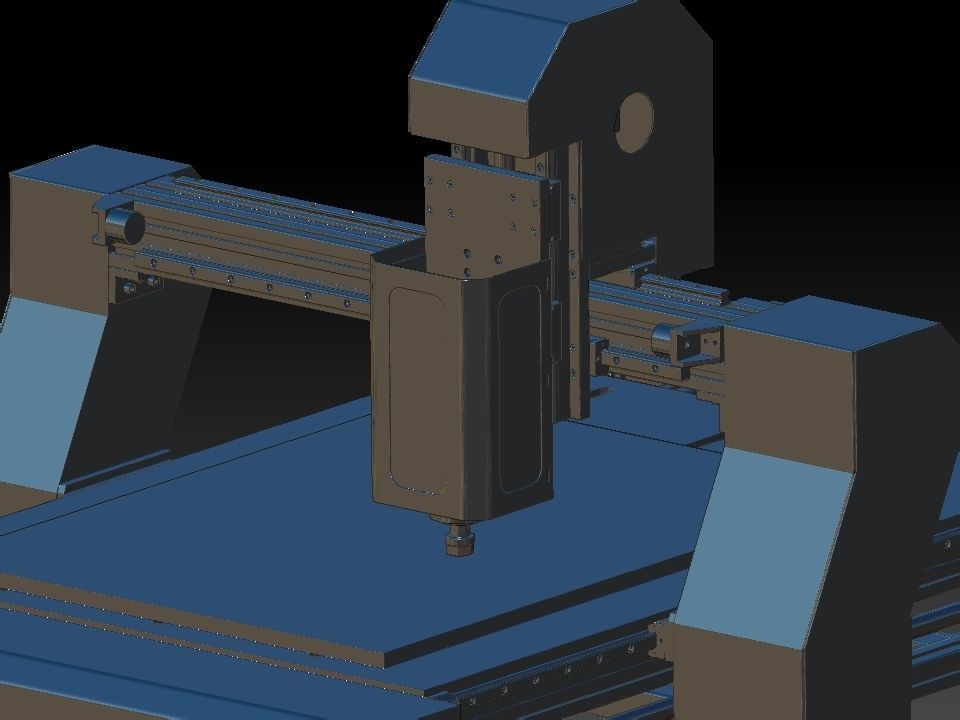

CNC ROUTER MACHINE DESIGN 3D model

Description

this machine design easy to assemble and stone also you can carve working area 2feet x 2 feet
if any one needs full drawing files that also will provide for that amount is different

A CNC wood router is a CNC router tool that creates objects from wood. CNC stands for computer numerical control. The CNC works on the Cartesian coordinate system (X, Y, Z) for 3D motion control. Parts of a project can be designed in the computer with a CAD/CAM program, and then cut automatically using a router or other cutters to produce a finished part. The CNC router is ideal for hobbies, engineering prototyping, product development, art, and production work.

Operation A CNC wood router uses CNC (computer numerical control) and is similar to a metal CNC mill with the following differences:

The wood router typically spins faster — with a range of 13,000 to 24,000 RPM Professional quality machines frequently use surface facing tools up to 3" in diameter or more, and spindle power from 5 to 15 horsepower. Machines capable of routing heavy material at over a thousand inches per minute are common. Some machines use smaller toolholders MK2 (Morse taper #2 - on older machines), ISO-30, HSK-63 or the tools just get held in a collet tool holder affixed directly to the spindle nose. ISO-30 and HSK-63 are rapid-change toolholding systems. HSK-63 has begun to supplant the ISO-30 as the rapid change standard in recent years. A wood router is controlled in the same way as a metal mill, but there are CAM and CAD applications such as Artcam, Mastercam, Bobcad, and AlphaCam, which are specifically designed for use with wood routers.

Wood routers are frequently used to machine other soft materials such as plastics.

Typical three-axis CNC wood routers are generally much bigger than their metal shop counterparts. 5' x 5', 4' x 8', and 5' x 10' are typical bed sizes for wood routers. They can be built to accommodate very large sizes up to, but not limited to 12' x 100'. The table can move, allowing for true three axis (xyz) motion, or the gantry can move, which requires the third axis to be controlled by two slaved servo motors.

Advantages The advantages of CNC wood router (compared to general machine) as follows,

High degree of automation Consistent quality High productivity Processing complex shape Easy to implement CAD/CAM 2D, 2.5D and 3D capable
