DESCRIPTION

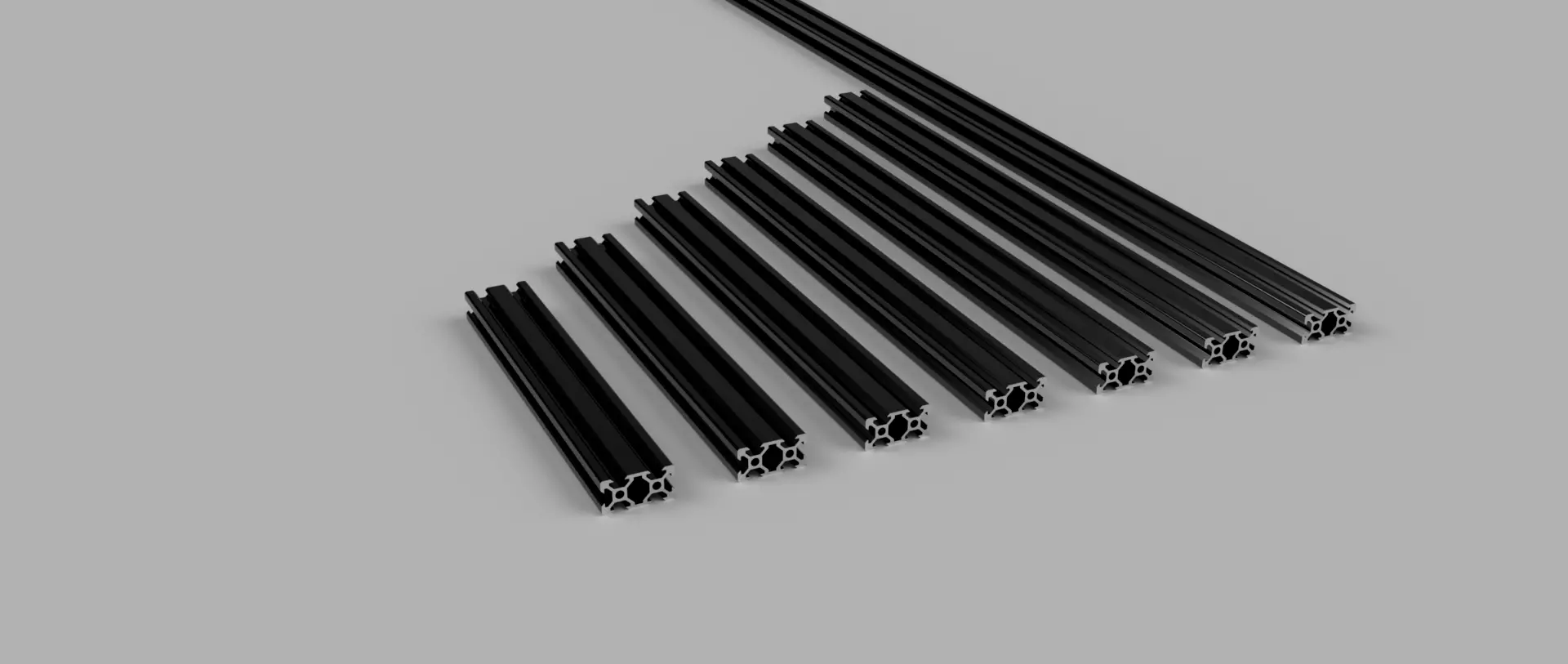

Stop rebuilding the same profile from scratch. This professional CAD pack gives you 7 production-ready lengths of the V-Slot 2040 aluminum profile, all verified against OpenBuilds official specifications.

The backbone of heavy-duty CNC machines and large-format 3D printers. Extra rigidity thanks to its dual-channel design.

Technical Specifications:

  • Section: 20x40mm (Series 20)
  • Center holes: 5.0mm (M5 tapping ready)
  • Slot width: 6.2mm (Series 20 T-nut compatible)
  • V-groove: verified 90 degree geometry for OpenBuilds wheels
  • Dual-channel design for increased torsional rigidity

Lengths Included:

  • 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 1000mm

Files Included (per length):

  • Universal: .STEP (Fusion 360, FreeCAD, SolidWorks, Inventor, Onshape)
  • Visualization: .STL

Used in: Voron 2.4, RatRig V-Core, heavy-duty CNC frames and gantry systems.

Precision is not an option. It's our standard.Designed by B-Motion CAD - Nuclear industry precision, applied to every model.
