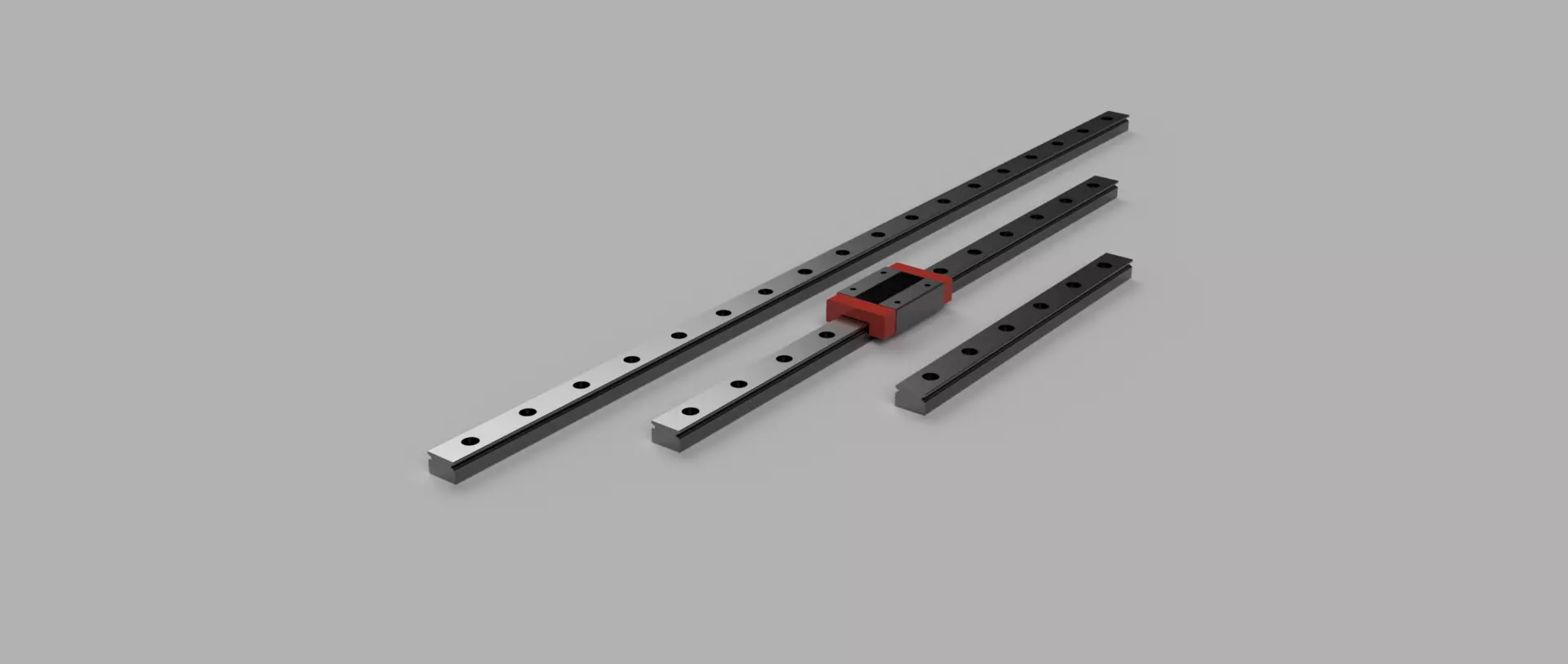

MGN12H Linear Rail Carriage Full Assembly 150 300 450mm STEP 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

Everything you need to model a complete MGN12H linear axis — rails, carriage, and pre-mated assembly included. Drop it straight into your project and save hours of positioning work.

The most complete MGN12H CAD bundle available: three rail lengths plus the MGN12H long-body carriage, fully assembled and constrained.

Technical Specifications:

  • Rail type: MGN12 | Carriage: MGN12H (long body)
  • Rail lengths: 150mm, 300mm, 450mm
  • All dimensions verified against Hiwin official datasheet
  • Assembly: pre-mated, constrained and ready to position

Bundle Content:

  • MGN12 Rails: 150mm, 300mm, 450mm (.STEP + .STL each)
  • MGN12H Carriage block (.STEP + .STL)
  • Full pre-mated assemblies: 3 versions (.STEP)

Files compatible with: Fusion 360, FreeCAD, SolidWorks, Inventor, Onshape.

Used in: Voron 2.4, Voron Trident, RatRig V-Core, CoreXY builds, custom CNC stages.

Precision is not an option. It's our standard.Designed by B-Motion CAD - Nuclear industry precision, applied to every model.
