DESCRIPTION

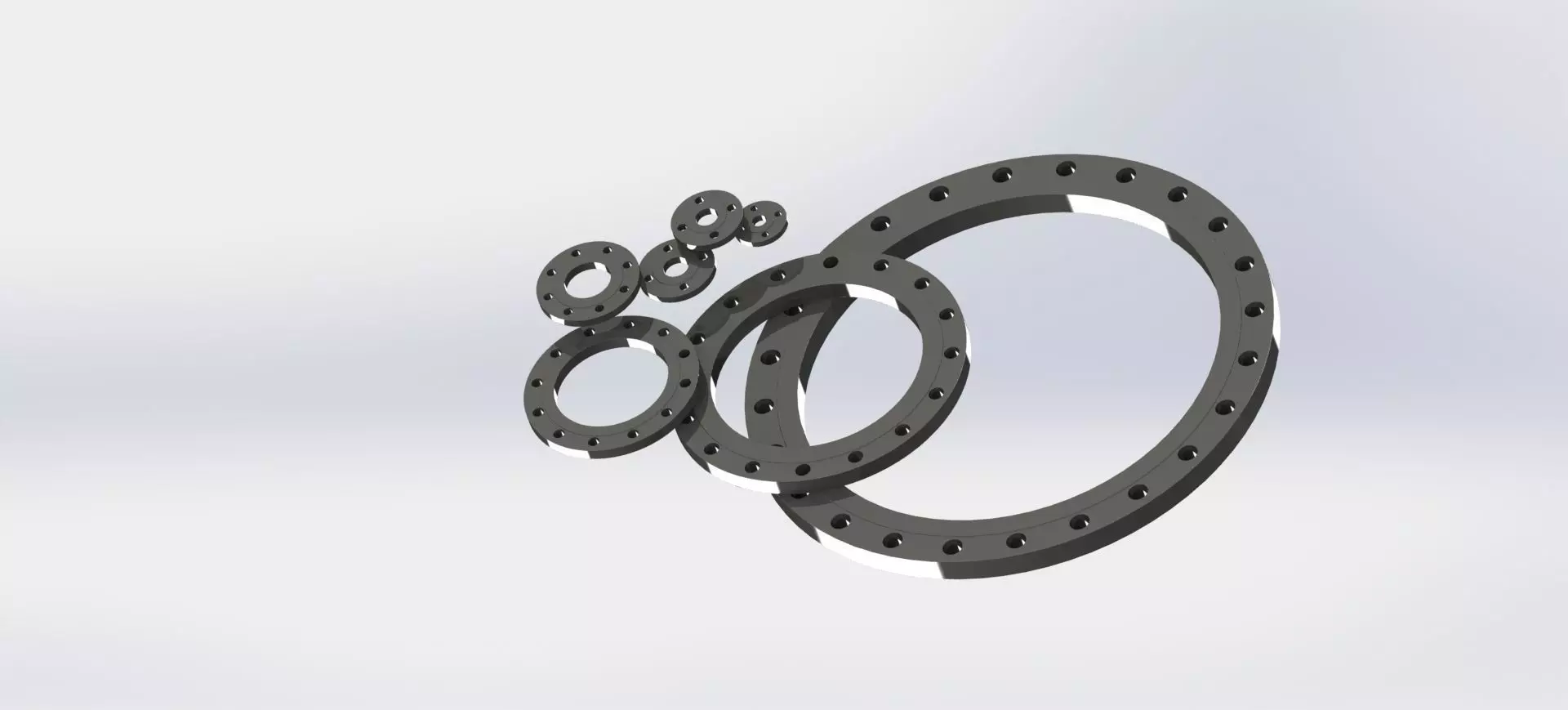

This model is including Flat Flanges (EN 1092-1) between DN15 - DN1000.

  • DN 15 - DN 1000 PN 16 Flat Flanges .Step and .Part Files.
  • Flange material chose as S235JR but you can changed to any material like (AISI 304L or AISI 316L).
  • There are 3 files in ZIP file, Part Files, Photos and STEP files.
  • DN 15 PN 16 Flat Flange, DN 20 PN 16 Flat Flange, DN 25 PN 16 Flat Flange, DN 32 PN 16 Flat Flange, DN 40 PN 16 Flat Flange, DN 50 PN 16 Flat Flange, DN 65 PN 16 Flat Flange, DN 80 PN 16 Flat Flange, DN 100 PN 16 Flat Flange, DN 100 PN 16 Flat Flange, DN 125 PN 16 Flat Flange, DN 150 PN 16 Flat Flange, DN 200 PN 16 Flat Flange, DN 250 PN 16 Flat Flange, DN 300 PN 16 Flat Flange, DN 350 PN 16 Flat Flange, DN 400 PN 16 Flat Flange, DN 450 PN 16 Flat Flange, DN 500 PN 16 Flat Flange, DN 600 PN 16 Flat Flange, DN 700 PN 16 Flat Flange, DN 800 PN 16 Flat Flange, DN 900 PN 16 Flat Flange, DN 1000 PN 16 Flat Flange

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

EN 1092-1 PN16 FLAT FLANGES 3D model

Royalty Free License
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
Native file format
SLDPRT
Size: 7.14 MB
Renderer: 2018 | 2018
Exchange format
STP
STEP<br />Version: AP214<br />File Size: 7.14 MB
