Carbon steel pipe fittings - butt weld 3D model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

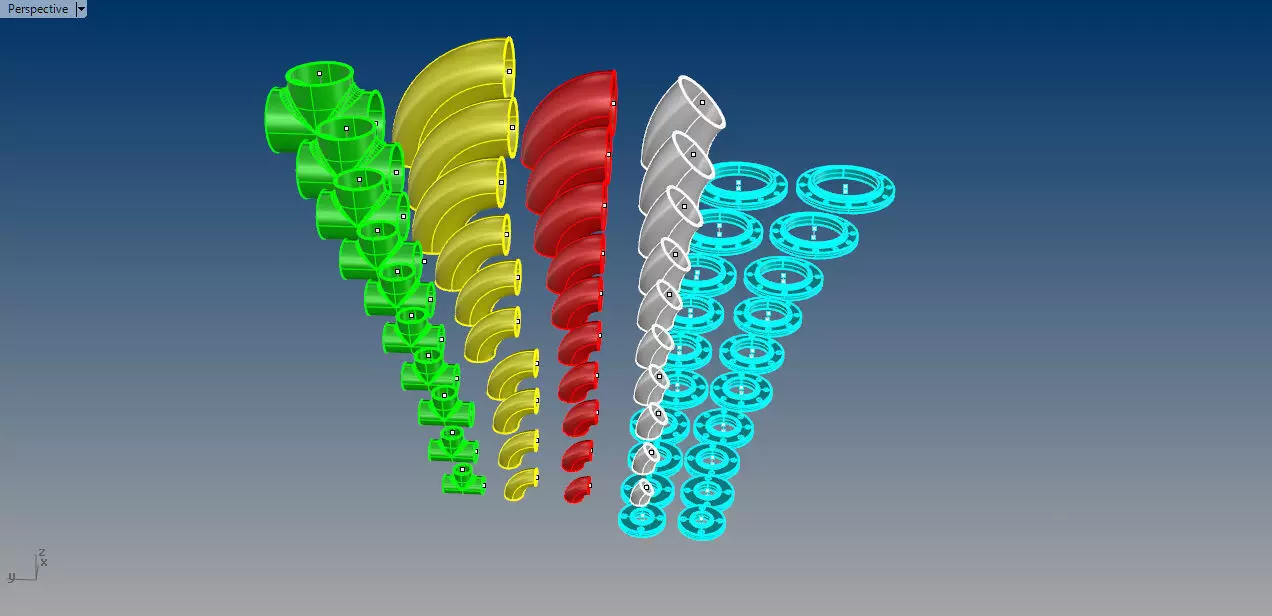

In this archive is a library of 3-d Models of ANSI standard Pipe fittings. Each model is a block and inserted into a single file for convenience.

This library contains Carbon Steel Butt-Weld fittings as followsElbow, 90 degree, sch. 40, LR 2" - 12"Elbow, 45 degree, sch. 40, LR 2" - 12"Elbow, 90 degree, sch. 40, SR 2" - 12"Tees, sch. 40 2" - 12"Flange, Slip on 150 lb. RF 2" - 12"Flange, Slip on 150 lb. FF 2" - 12"

Each model has a point object at each insertion point for ease in snapping together components. For instance, connecting pipes to one of the tees only requires snapping to each of the three point objects. The insertion point of the block is at the intersection of the three center lines, as you would expect.

This library, along with the three others (CS/SW, Sil-Brz, and Wrought Copper) are perfect for Mechanical designPulp and paper designChemical plant designWaste water facilities designMarine design

Models are available as shown in the listing. Also included is a text file to be used as an AutoCAD Attribute Block extract template in your AutoCAD drawings

More libraries are in the works. If you don't find what you need, feel free to ask a question on this or the other libraries and let me know what's missing.

Key WordsPiping, Design, Tee, Elbow, Flange, Carbon Steel, Slip-on Flange, Rhino 3-d, 3-d Model

Related Tags
slip on
rhinodesignpipingteeelbowflangefittingflanges
ansi
sliponweldengineeringindustrialpartindustrial part

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.
BEST PRICE GUARANTEED
Found this model cheaper on another marketplace? Let our support team know - we’ll match it.

Carbon steel pipe fittings - butt weld 3D model

Royalty Free License
Created by
c
cestes001
(0 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
OBJ
OBJ<br />File Size: 25.7 MB
DWG
AutoCAD<br />File Size: 2.12 MB
3DM
Rhinoceros 3D<br />File Size: 6.95 MB
OTHER
Other | 4 files<br />File Size: 190 KB
IGE
IGES<br />File Size: 11.4 MB
DXF
DXF<br />File Size: 5.79 MB
Provided by designer
Information and details shared directly by the model's designer.
3D Features
The model includes animations (movement or actions) that can be played in supported software or engines.
The model has a skeleton or bone structure, making it ready for posing or animation.
PBR
Uses Physically Based Rendering materials, which give the model realistic lighting and surface properties.
Textures
The model includes image files (textures) that add color, patterns, or detail to its surfaces.
Materials
The model has material settings that define how surfaces look (color, shine, transparency, etc.).
UV Mapping
The model's surfaces are mapped to a 2D image, allowing textures to display correctly.
Plugins Used
Some external plugins were used to create the model. These may be required for full functionality.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is not 3D printable
The designer indicates this model is intended for digital use only (rendering, animation, or AR/VR) and not for 3D printing.
Geometry
Nurbs
A model created with curved surfaces using mathematical splines, not polygons.
Unwrapped UVs
Unknown
Publish date
2015-04-16
Model ID
#126043
