DESCRIPTION

Items in this collection:

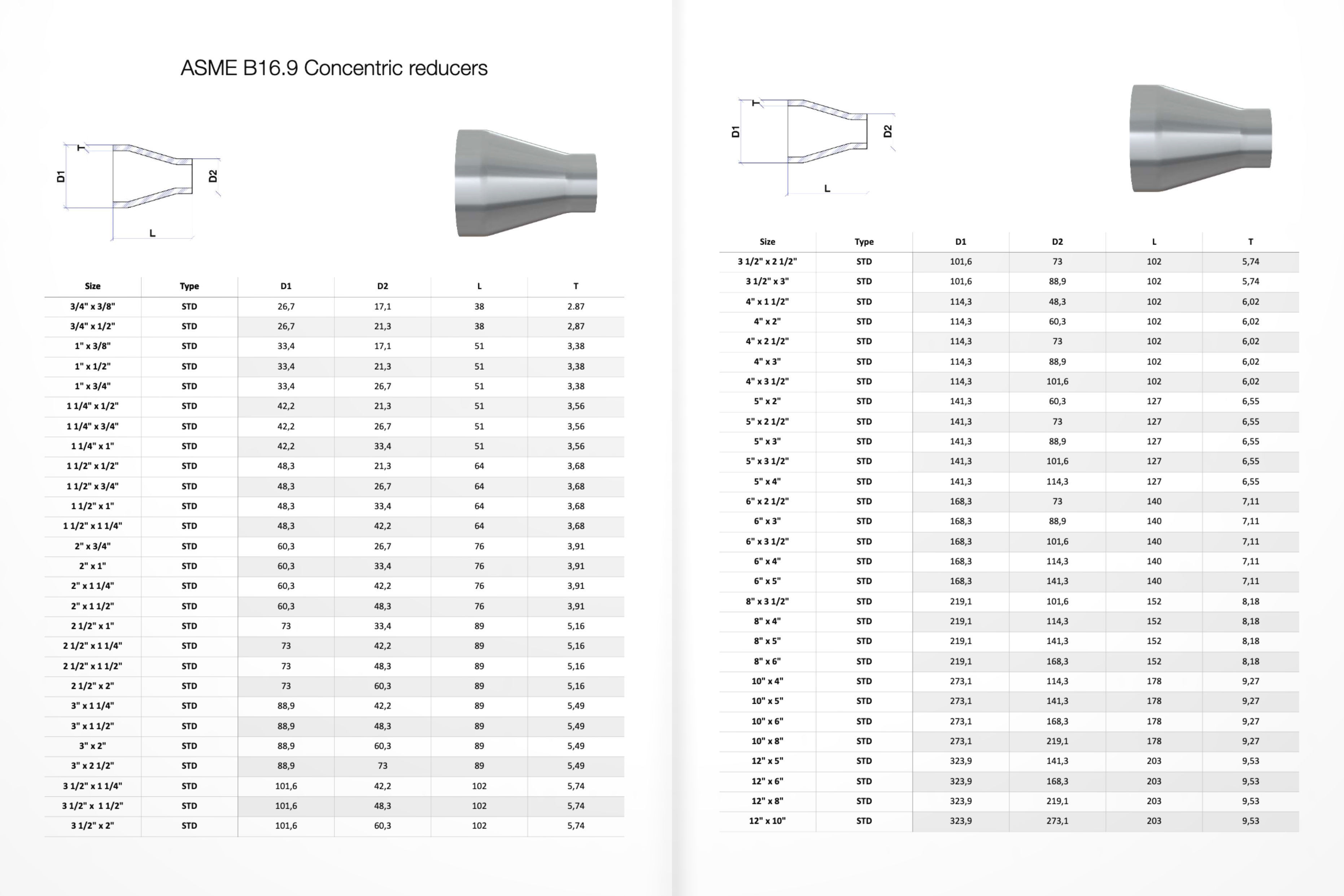

  • Concentric reducers: 3/4 inch - 24 inch

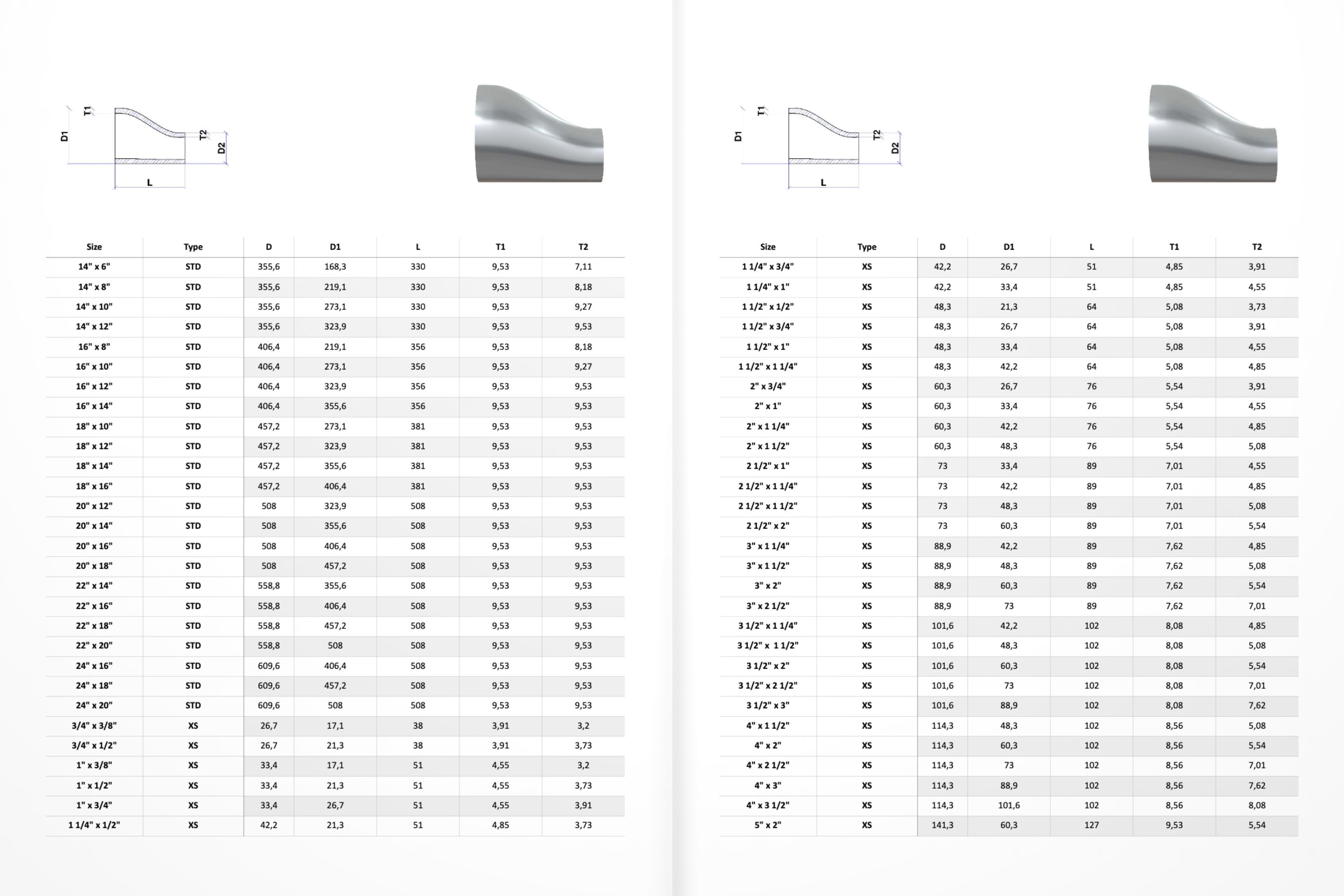

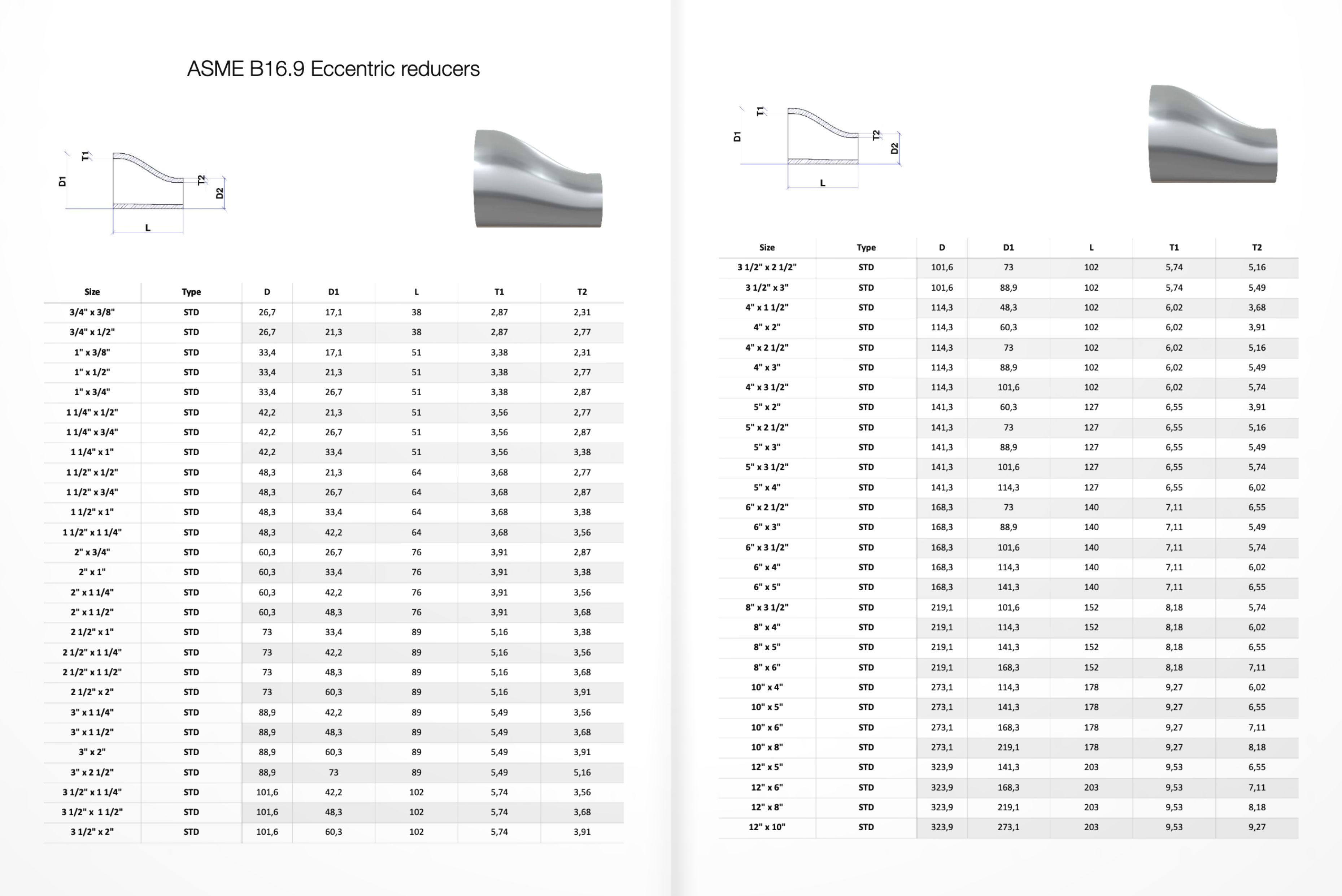

  • Eccentric reducers: 3/4 inch - 24 inch
  • End caps: 1/2 inch - 24 inch

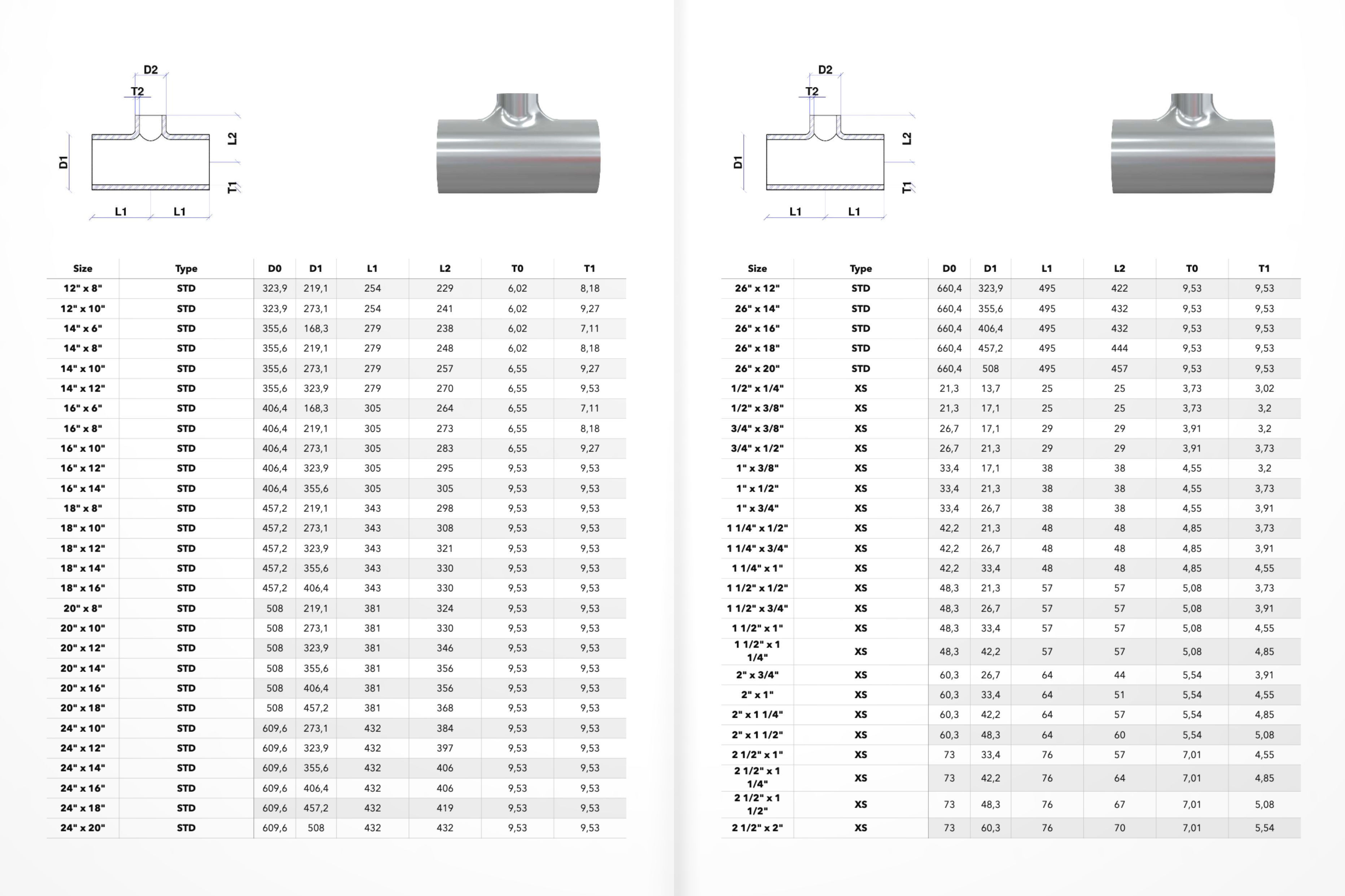

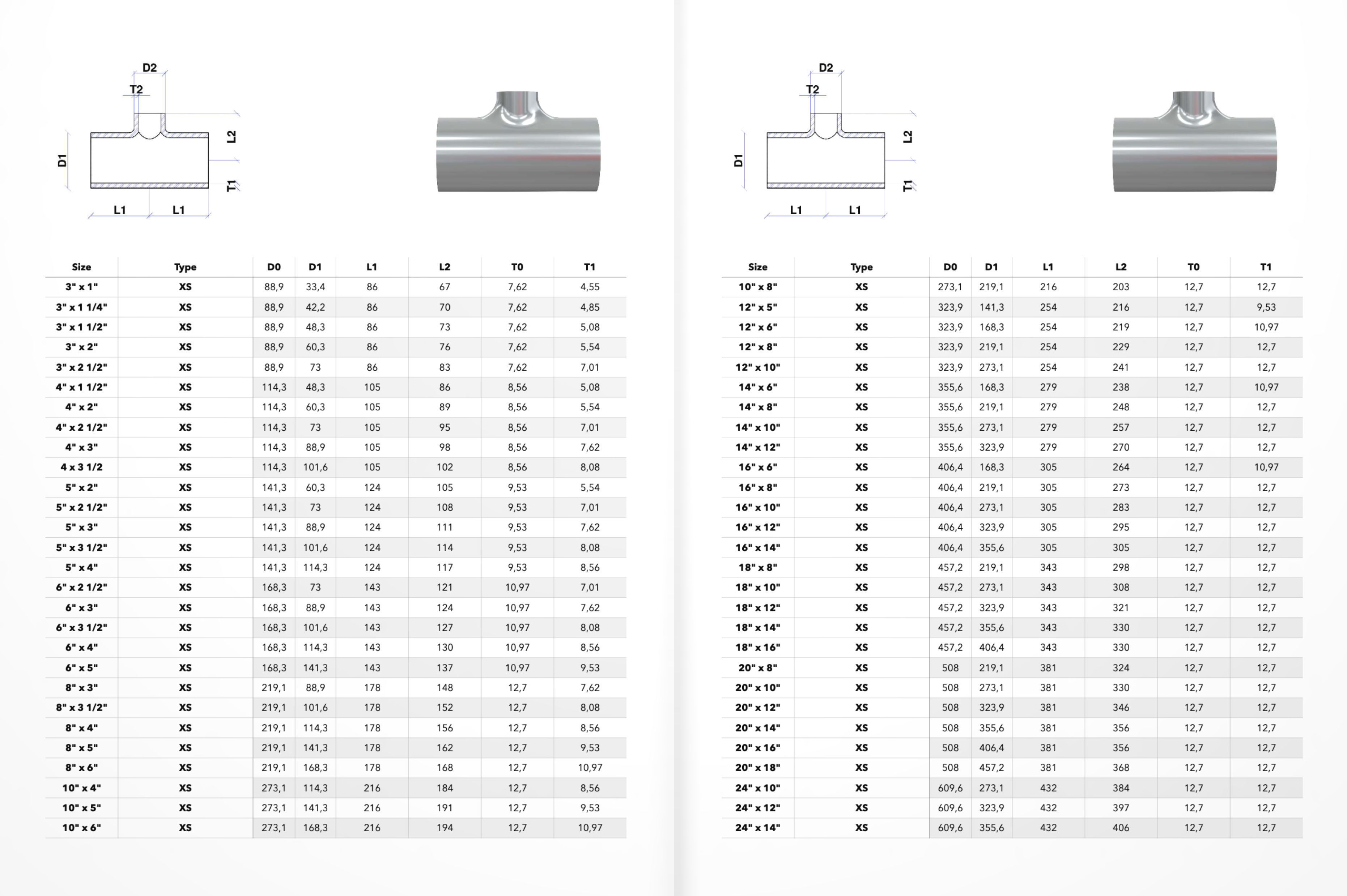

  • Reduced tees: 1/2 inch - 26 inch

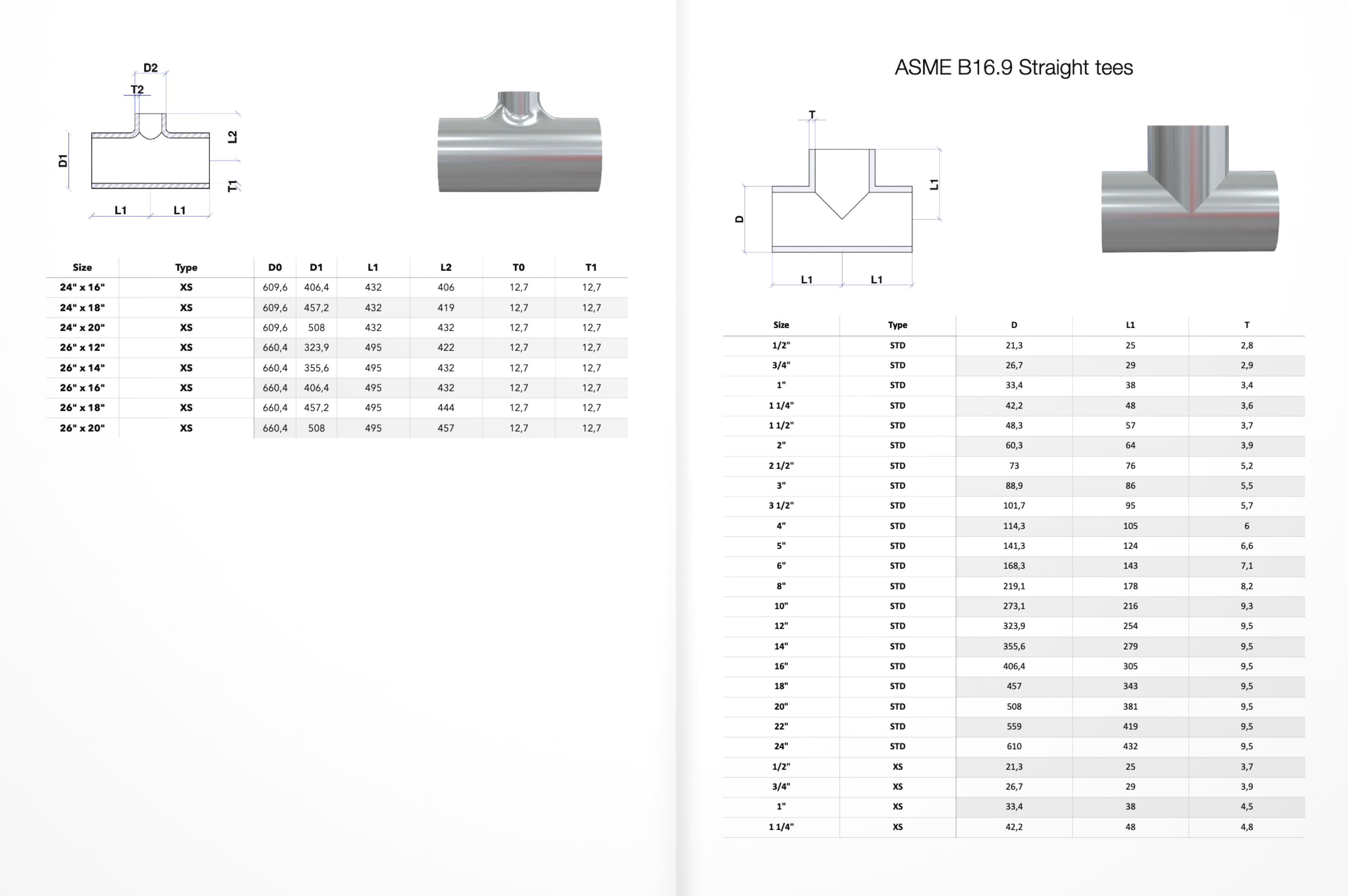

  • Equal tees: 1/2 inch - 24 inch
  • Short radius elbows 45°: 1/2 inch - 24 inch

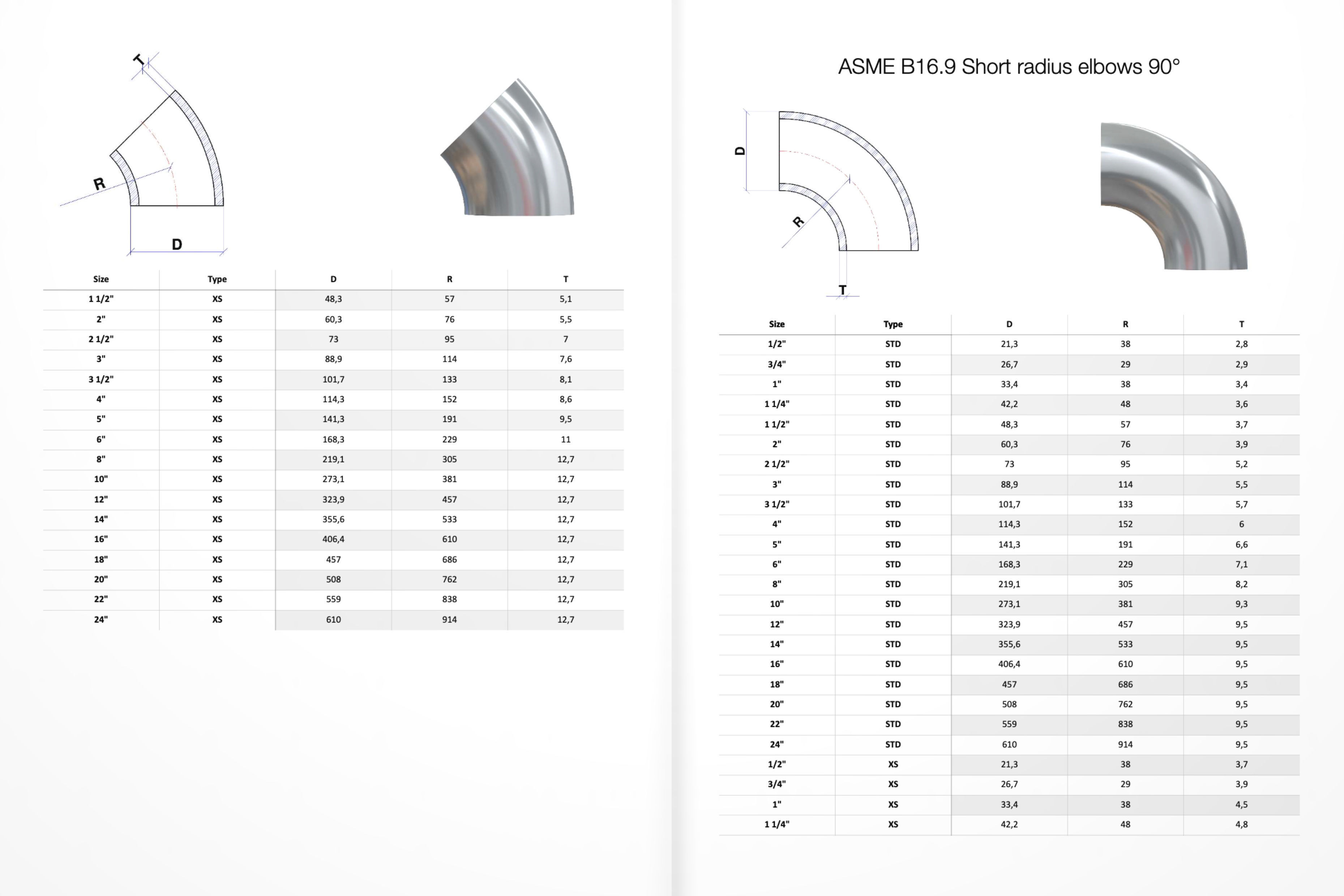

  • Short radius elbows 90°: 1/2 inch - 24 inch

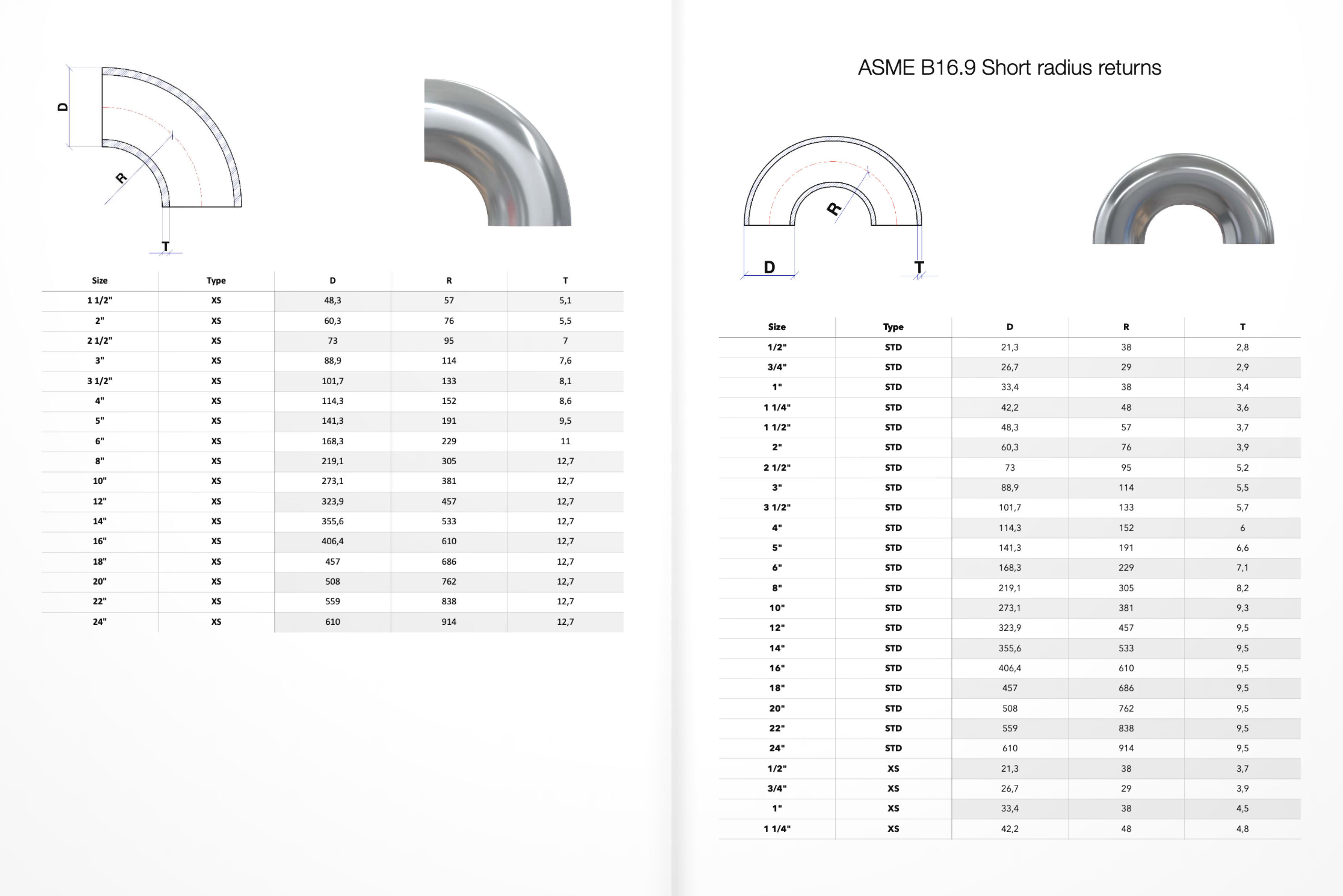

  • Short radius returns: 1/2 inch - 24 inch

Two Premium File Formats

  1. F3D (Fusion 360)
  2. STEP (Inventor, Solidworks and more)

To cater to your specific software requirements, our library offers files in both .f3d and .step formats. Whether you're using Fusion 360, SolidWorks, AutoCAD, Autodesk Inventor or any other 3D modeling software, you'll find a seamless and hassle-free integration.

Unlock a World of 3D Piping Excellence with Our Comprehensive Library.

Are you ready to take your 3D modeling projects to the next level? Introducing our unparalleled 3D Models Library, a treasure trove of 700 meticulously crafted files, all dedicated to ASME B16.9 standard pipe fittings. This comprehensive collection empowers engineers, designers, and drafters to supercharge their work and streamline their projects with unmatched precision.

Unrivaled Variety

Our library boasts an impressive range of pipe fittings, including elbows, tees, concentric reducers, eccentric reducers, and more. What sets us apart is our commitment to detail; these fittings are available in STD and XS diameter and wall thickness, ensuring that you have access to the perfect fit for your unique needs. From small-scale projects to industrial masterpieces, we have you covered.
