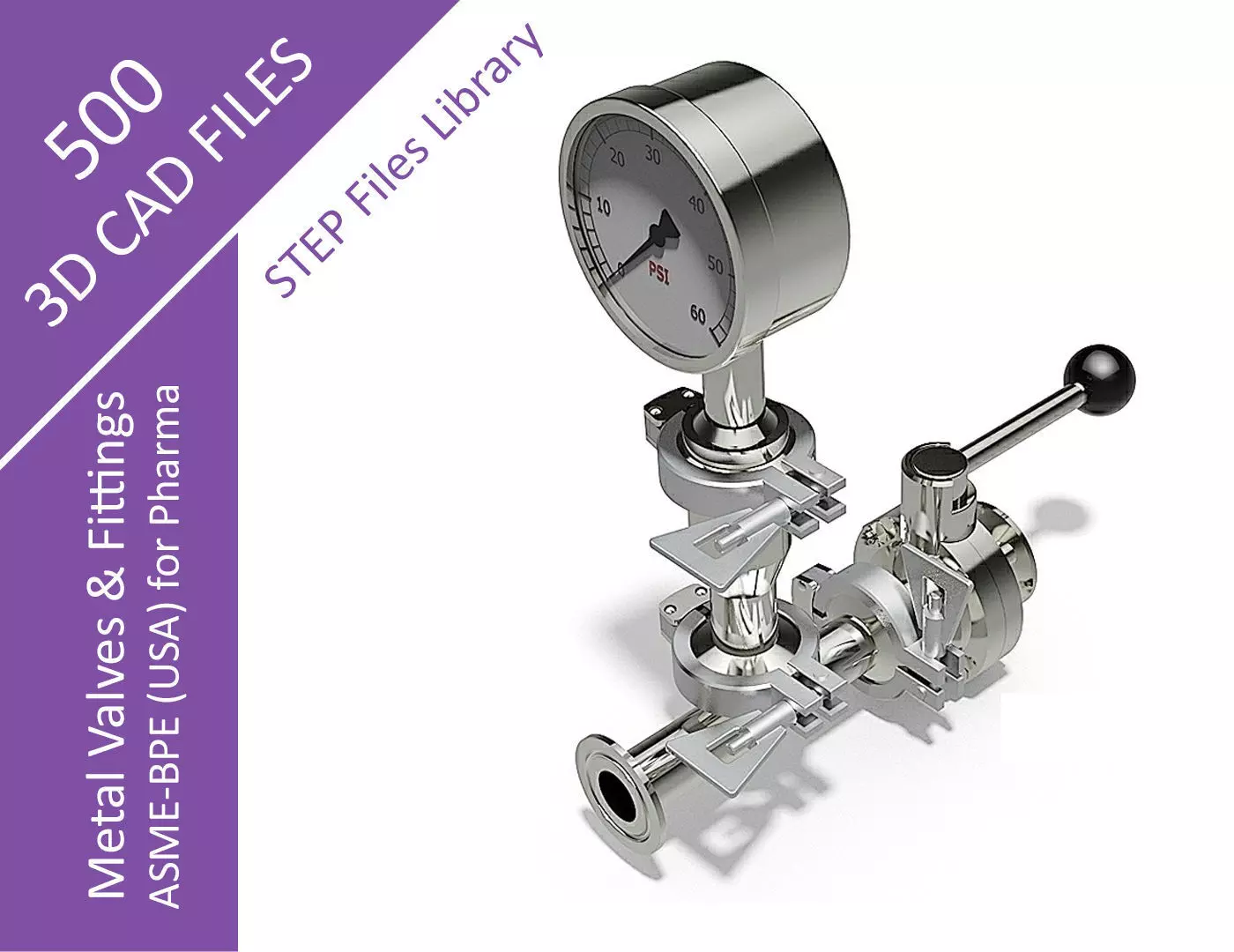

ASME-BPE PHARMA - VALVES AND FITTINGS - STEP 3D model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

ABOUT THE LIBRARY:

This collection of CAD files contains the most commonly used fittings and valves for the pharma industries in The US and Europe, and lots of other countries.All component dimensions are standardized according to the applicable ASME-BPE standards.

As a result, you are not dependent on your valves and fittings supplier for your 3D CAD models, they are interchangeable. You now have an entire library in your own computer system (!).

With this warehouse full of tubing parts (in full diameter series), it is possible for every engineer with a CAD system to design complex pharma tubing systems according to the ASME-BPE standards.

  • All in one zip file (12Mb)

  • Valves and Fittings for pharma ASME-BPE standardized.

  • 39 Types in full range diameters.

  • 500+ Different CAD files.

  • File format: Step(.stp), for use in Autodesk Inventor, Fusion 360, Solidworks, Catia, Solid Edge and more.

NOW AUTODESK INVENTOR IPARTS INCLUDED!

THE PARTS:

  1. Butterfly Valves - Welding ends
  2. Butterfly Valves - Tri clamps
  3. Caps - Welding end
  4. Crosses - Welding ends
  5. Crosses - Tri clamps
  6. Elbows 45° – Welding ends
  7. Elbows 45° – Welding end x Tri clamp
  8. Elbows 45° – Tri clamps
  9. Elbows 90° – Welding ends
  10. Elbows 90° – Welding end x Tri clamp
  11. Elbows 90° – Tri clamps
  12. Instrument Tees - Welding ends
  13. Instrument Tees - Tri clamps
  14. Pressure Gauges 0-30psi - Tri clamp
  15. Pressure Gauges 0-60psi - Tri clamp
  16. Pressure Gauges 0-100psi - Tri clamp
  17. Pressure Gauges 0-160psi - Tri clamp
  18. Pressure Gauges 0-200psi - Tri clamp
  19. Eccentric Reducers - Welding ends
  20. Eccentric Reducers - Welding end x Tri clamp
  21. Eccentric Reducers - Tri clamps
  22. Concentric Reducers – Welding ends
  23. Concentric Reducers – Welding end x Tri clamp
  24. Concentric Reducers – Tri clamps
  25. Return Bends - Welding ends
  26. Return Bends - Tri clamps
  27. Straight Equal Tees - Welding ends
  28. Straight Equal Tees - Tri clamps
  29. Long Reduced Tees - Welding ends
  30. Long Reduced Tees - Tri clamps
  31. Short Reduced Tees - Welding ends
  32. Short Reduced Tees - Tri clamps
  33. Short Outlet Run Tees - Welding ends x Tri clamp
  34. Short Outlet Tees - Welding ends
  35. Short Outlet Tees - Welding ends x Tri clamp joint
  36. Caps for Tri clamp
  37. Clamps for Tri clamp
  38. Ferrules for Tri clamp
  39. Seals for Tri clamp
