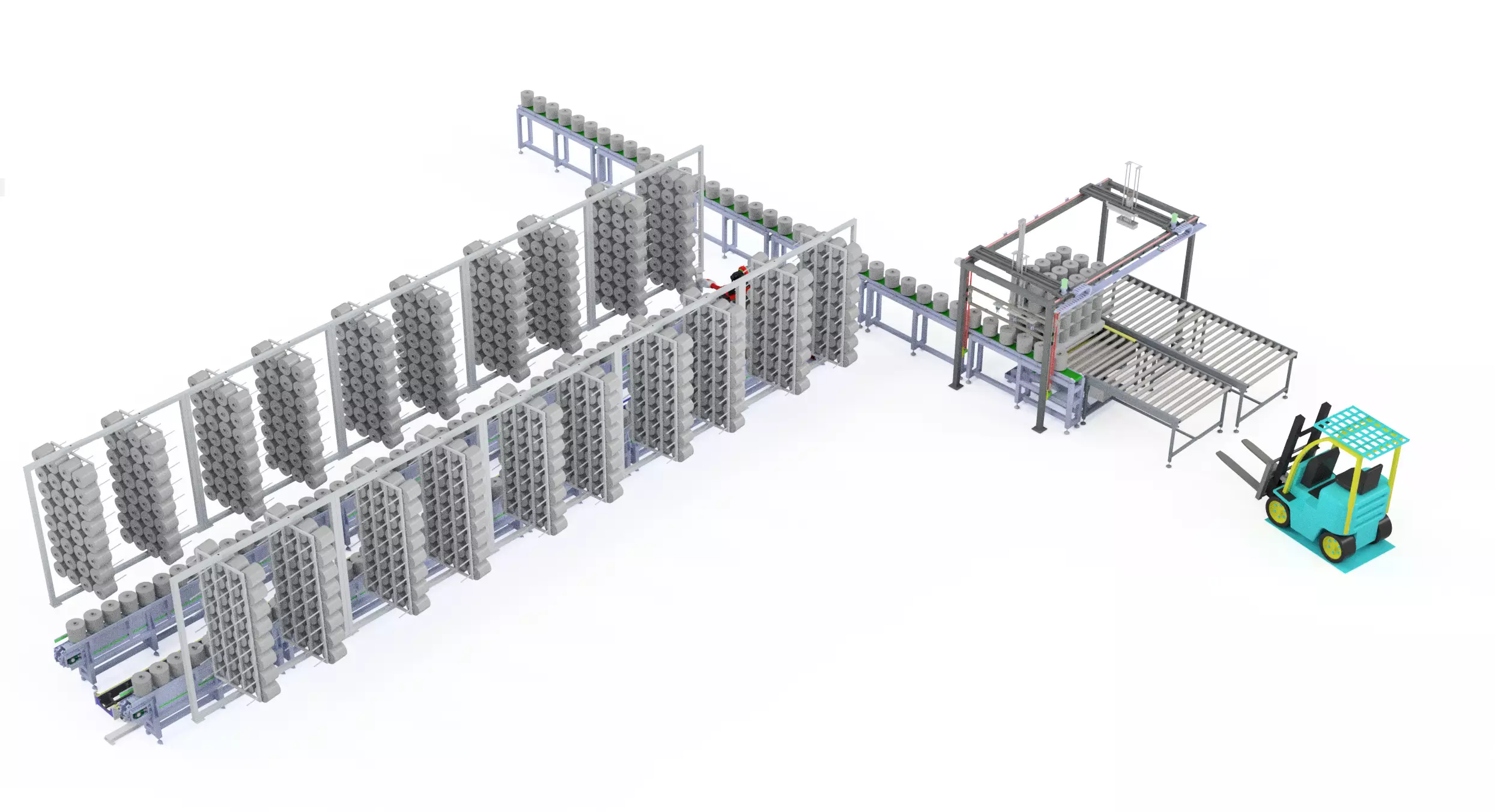

The Warping Machine Yarn Automation System is an integrated solution designed to streamline the yarn handling process in textile manufacturing, encompassing storage, transportation, and automated palletizing. Leveraging advanced automation technologies, this system enhances efficiency, reduces labor dependency, and ensures consistent yarn quality throughout the warping process.

Storage Module: The system begins with a high-density yarn storage system, such as an Automated Storage and Retrieval System (AS/RS) or a specialized yarn warehouse, which efficiently organizes and manages yarn packages. This storage solution is equipped with intelligent inventory management software, enabling real-time tracking of yarn stock levels, locations, and usage patterns. The storage area is designed to optimize space utilization while ensuring easy accessibility for the subsequent handling processes.

Transportation System: Once yarn is retrieved from storage, it is transported to the warping machine using an automated conveyor system. This conveyor system can include a variety of mechanisms, such as roller conveyors, belt conveyors, or Automated Guided Vehicles (AGVs), depending on the specific layout and requirements of the manufacturing facility. The transportation system is integrated with the storage and warping machine, ensuring seamless and efficient yarn flow. During transportation, the system maintains precise control over yarn tension and alignment to prevent tangling or damage.

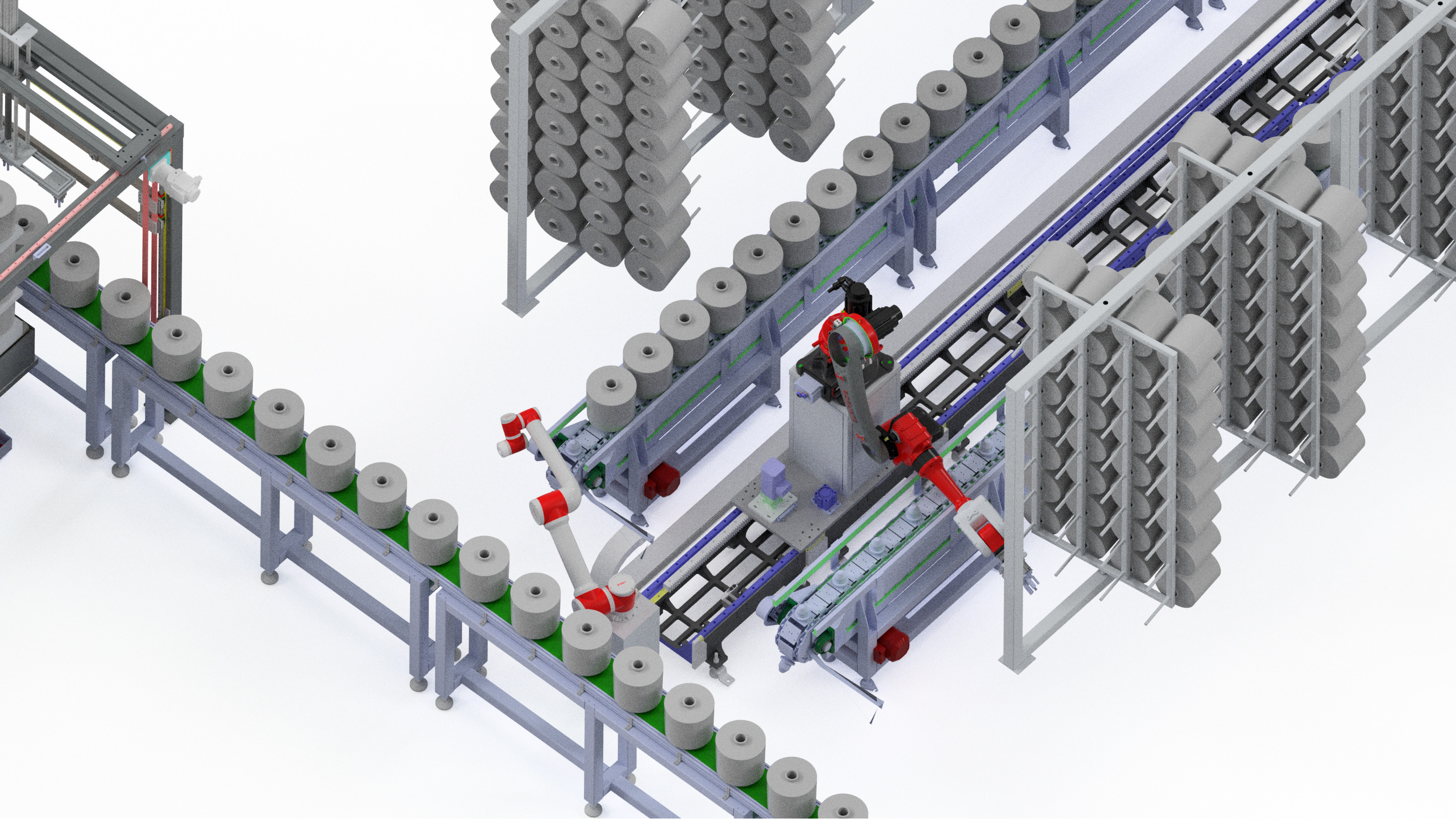

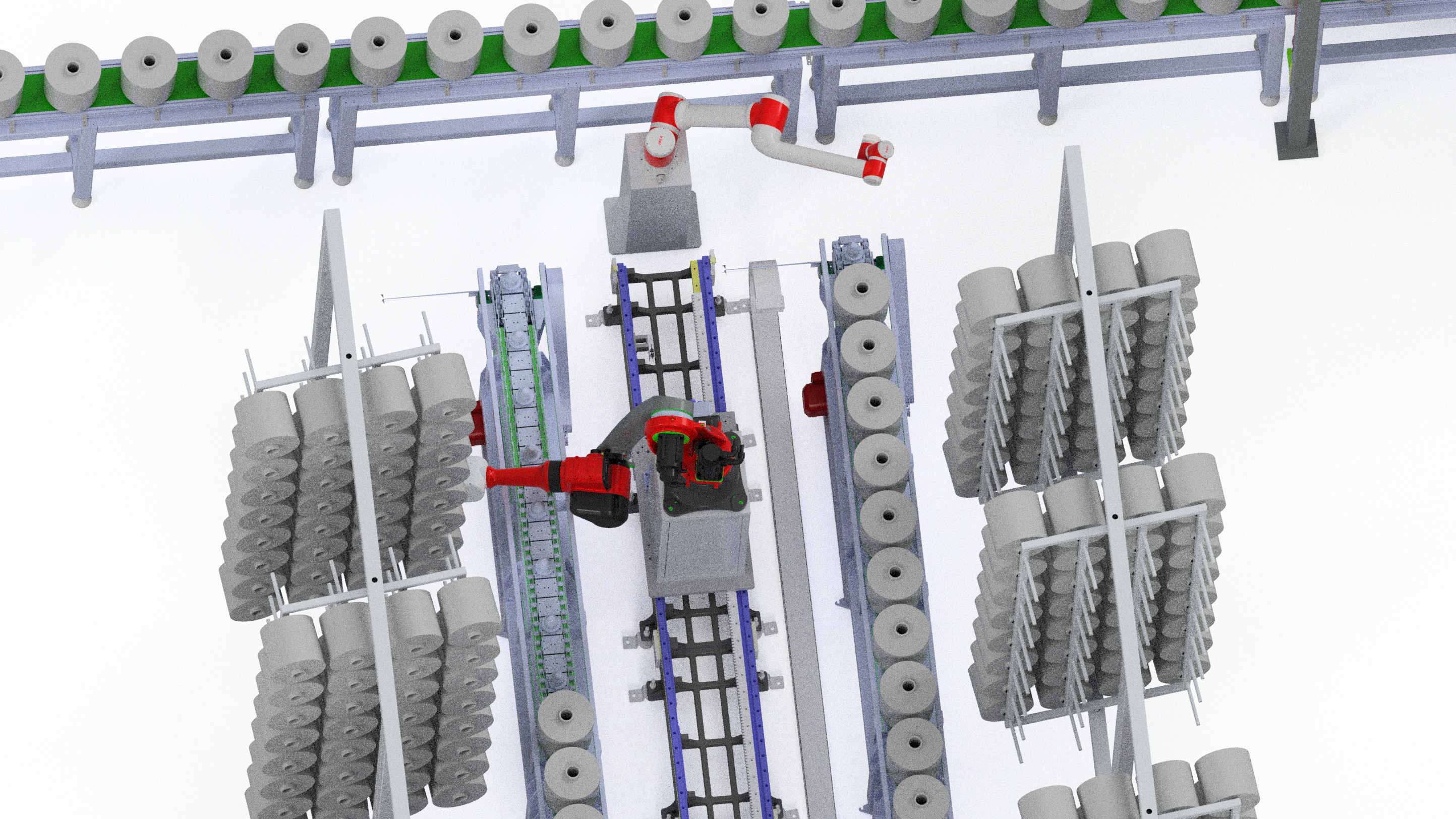

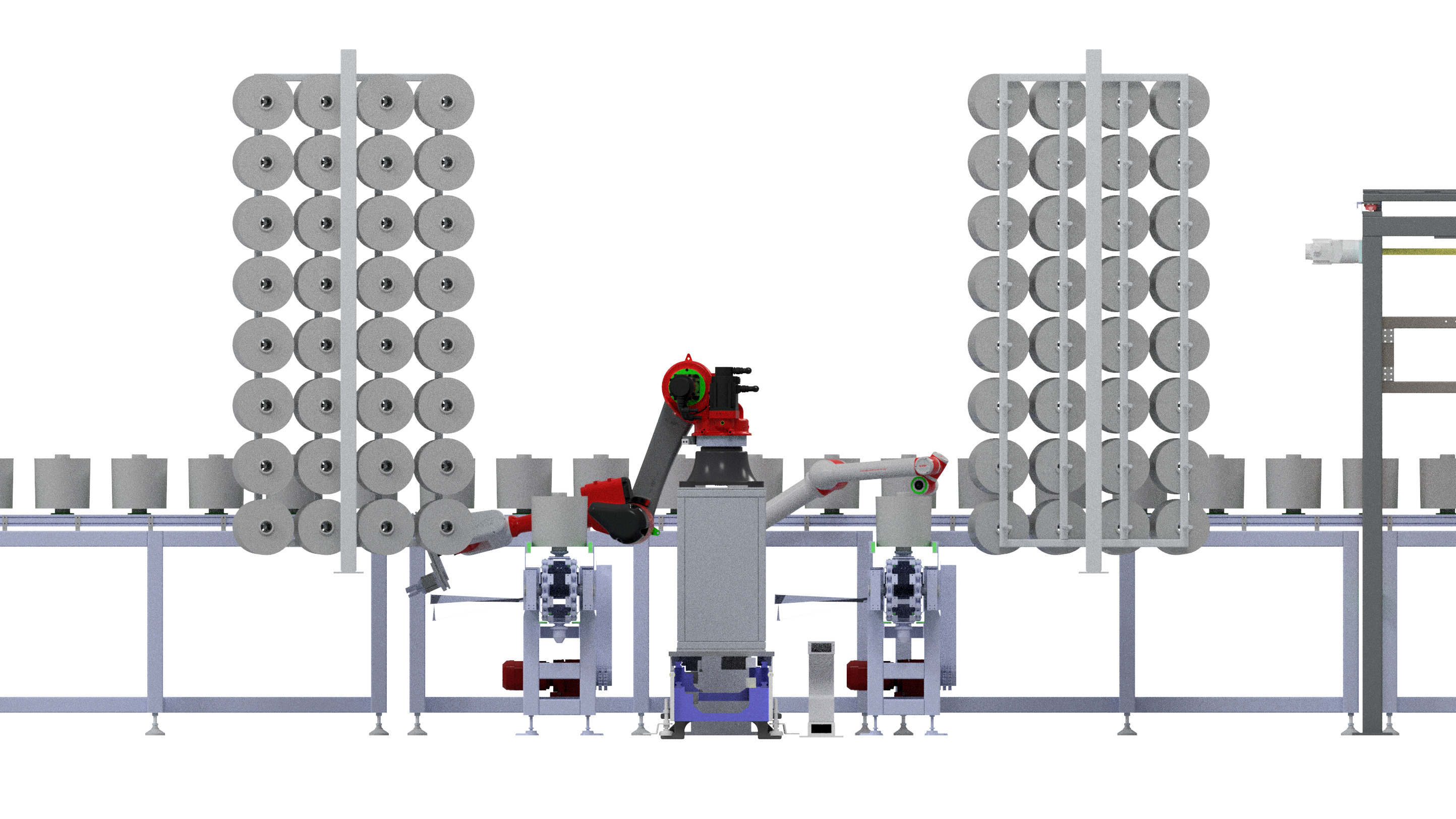

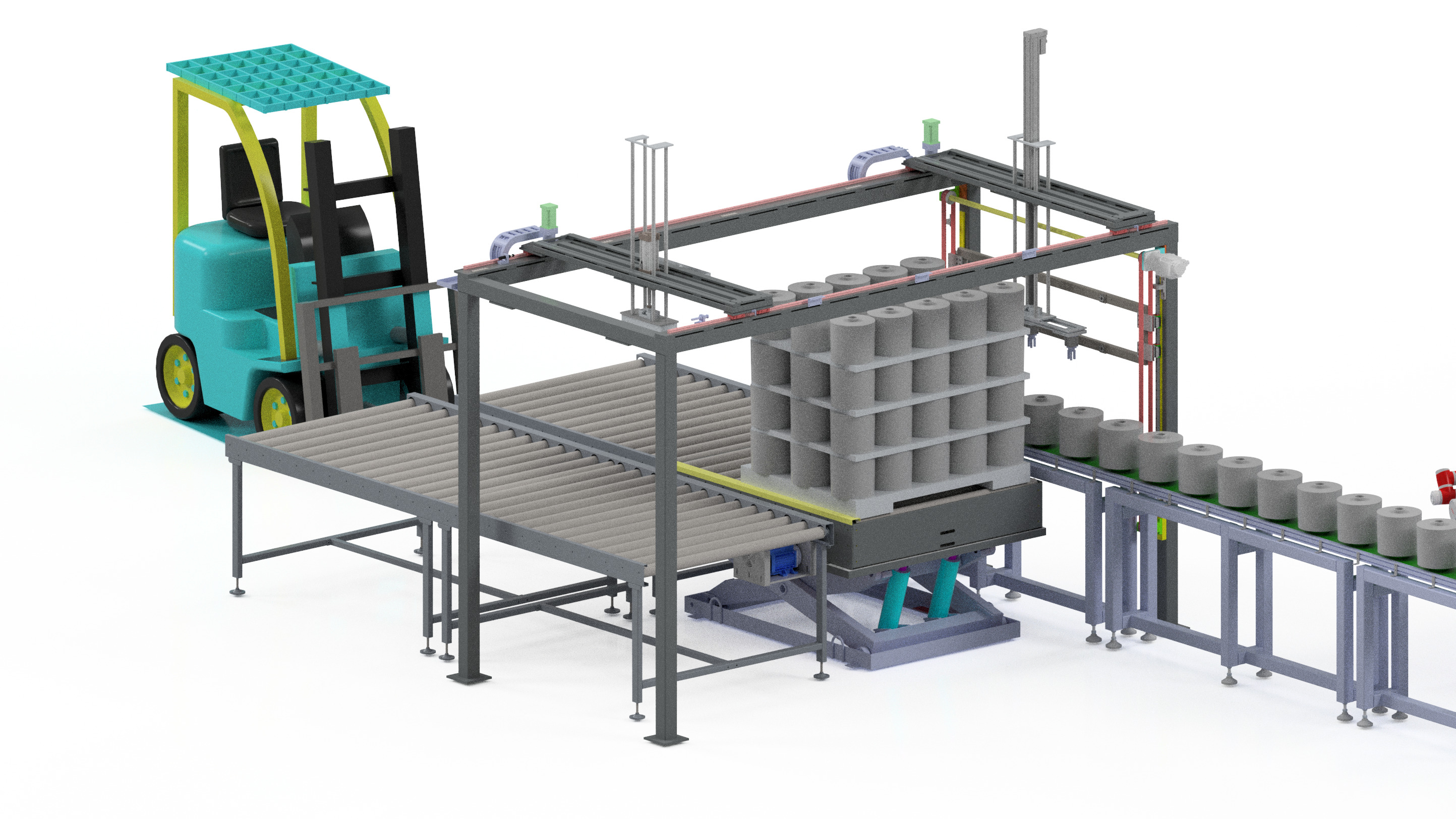

Automated Palletizing with Robotic Manipulators: At the warping machine, the yarn is processed and wound onto warp beams. The Automated Manipulator, a key component of the system, takes over the task of stacking these warp beams onto pallets. Equipped with advanced vision systems and precision grippers, the manipulator can neatly and automatically stack warp beams of different sizes and weights on pallets. It optimizes the stacking pattern to maximize pallet utilization and stability, ensuring that the pallets can be safely and efficiently transported to the next stage of production. The manipulator operates at varying speeds, from low to high, to accommodate different production demands, and it is widely used in industries such as textiles, chemicals, and food.

Integration and Control: The entire system is integrated through a centralized control system, often based on Programmable Logic Controllers (PLCs) or Industrial Personal Computers (IPCs). This control system coordinates the operation of the storage, transportation, and palletizing components, ensuring smooth and synchronized workflow. It also provides real-time monitoring and diagnostic capabilities, allowing operators to quickly identify and resolve any issues that may arise during operation.

Benefits: The Warping Machine Yarn Automation System offers numerous benefits to textile manufacturers. It significantly reduces labor costs and improves production efficiency by automating repetitive and time-consuming tasks. The system also enhances yarn quality consistency by minimizing human error and ensuring precise control over yarn handling processes. Additionally, the automated palletizing feature improves warehouse space utilization and facilitates safer and more efficient material handling.
