Three-axis engraving machine Low-poly 3D model

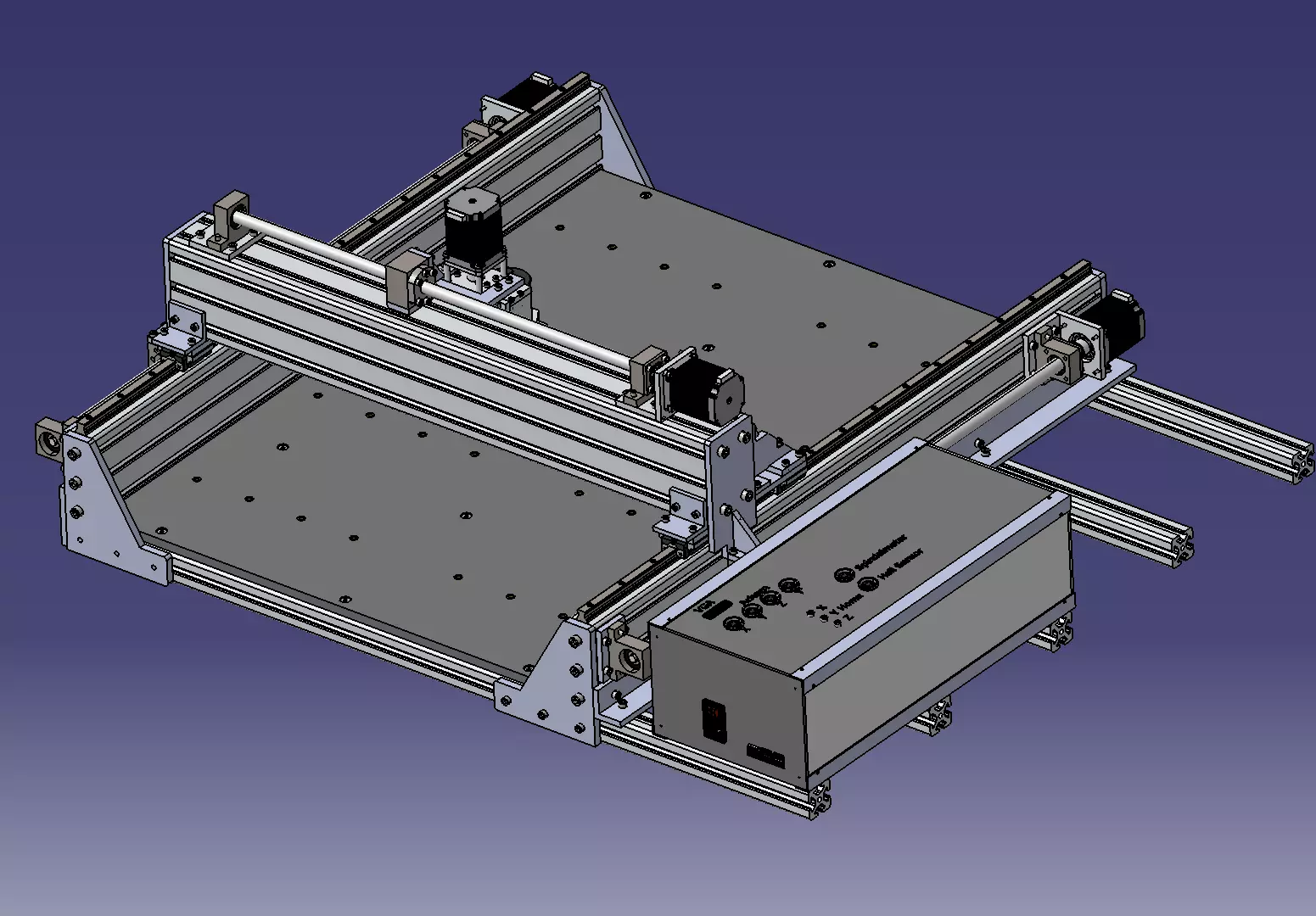

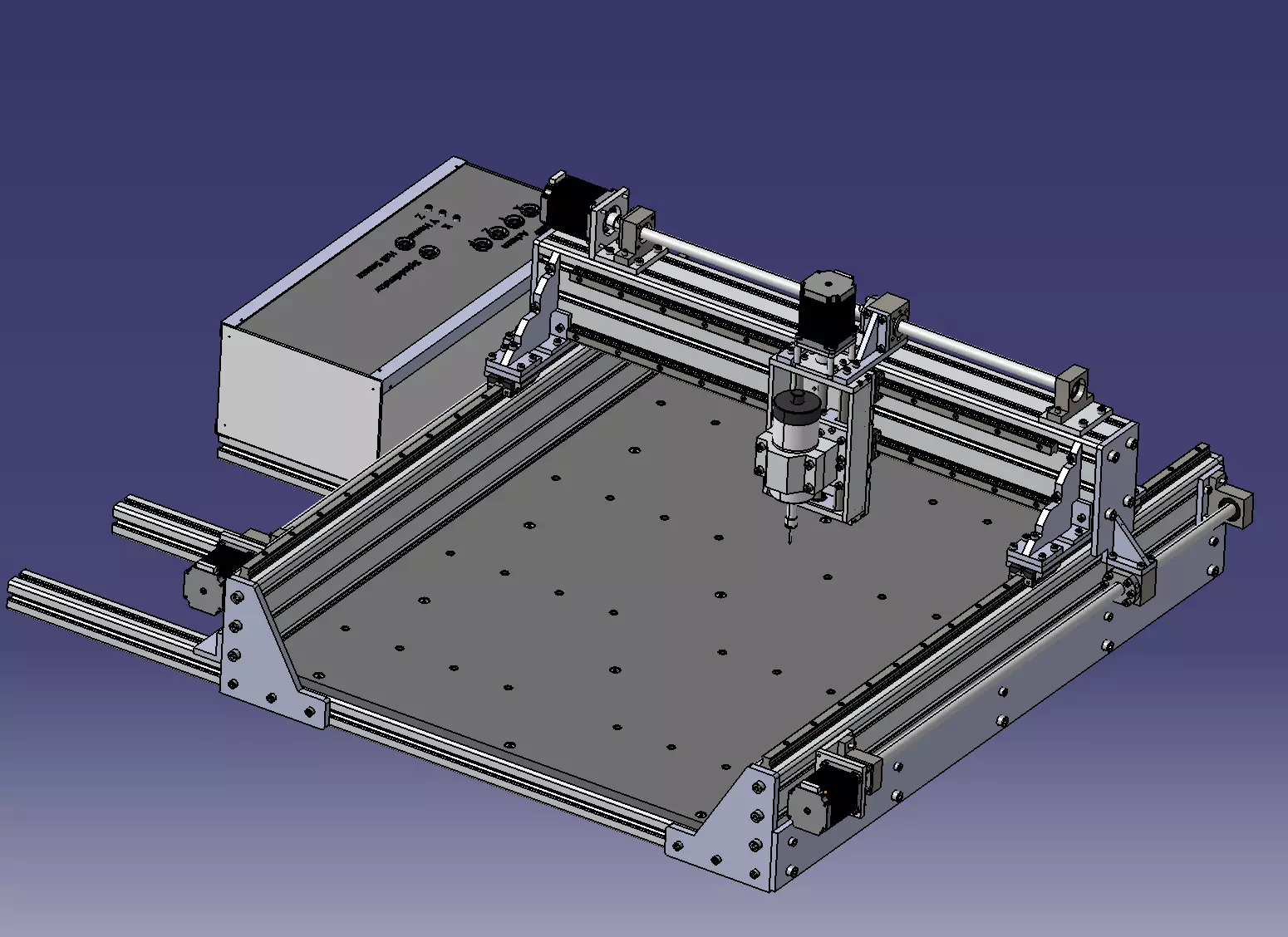

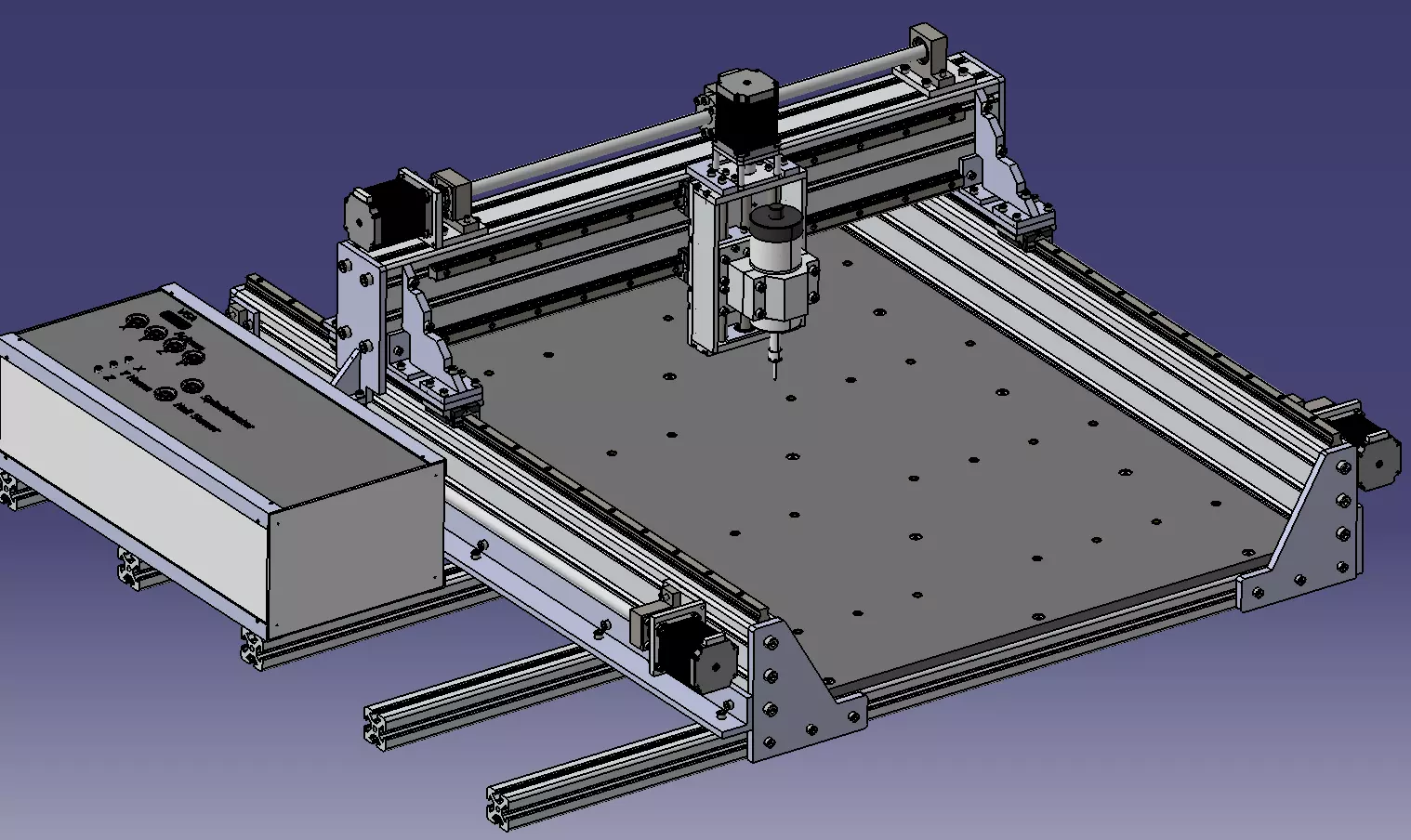

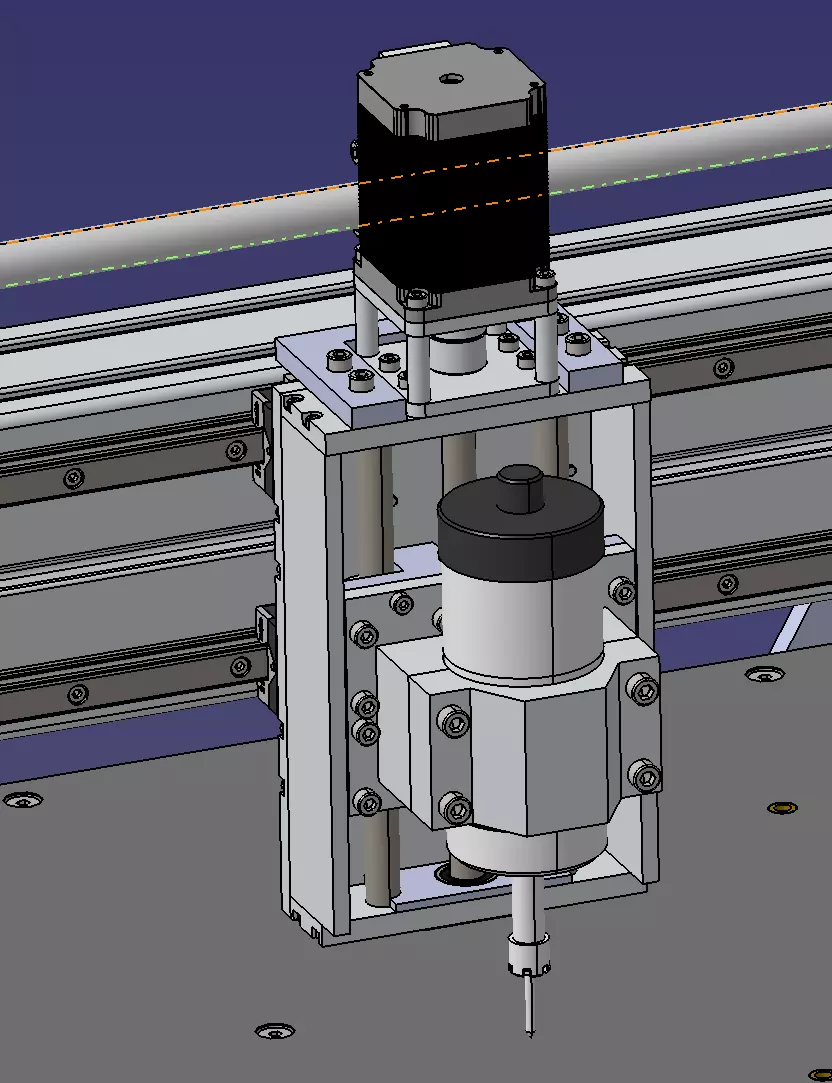

This 3D model of a three-axis engraving machine serves as its perfect digital twin, showcasing the core structure comprised of a rigid bed, a sturdy gantry, and the three linear motion axes (X, Y, and Z). It demonstrates how motors drive ball screws and linear guides to precisely control the movement of the cutting tool attached to the spindle through three-dimensional space, enabling the transformation of digital designs into physical carved objects. More than just a visual aid, this model acts as the definitive design blueprint for interference checks, performance analysis, and generating manufacturing drawings.
