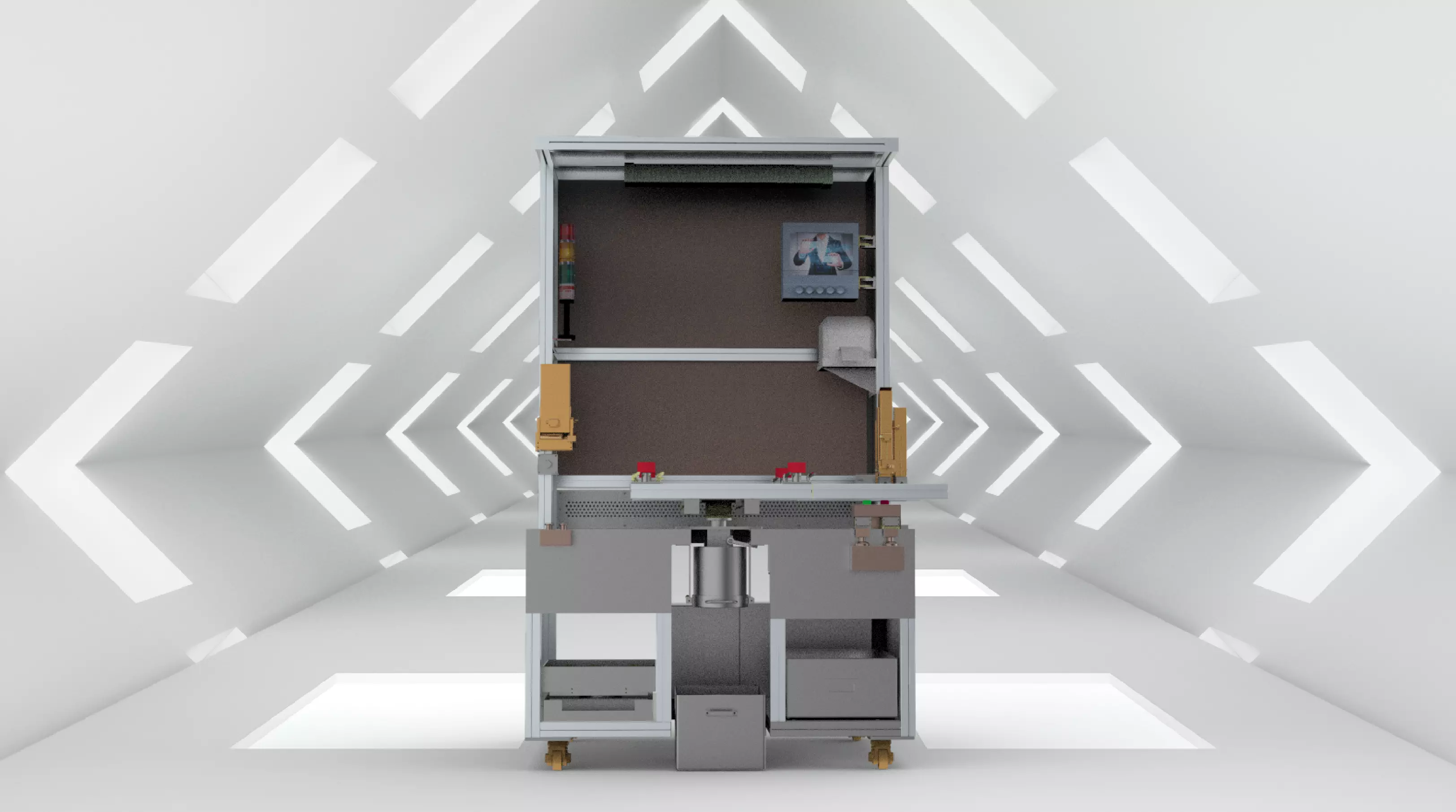

Spraying-manual-table electronic machine with computer 3D model

Manual spraying platform

The platform is used for manual spraying of products. Machine setting and process configuration, spray paint tank installation station, self-shaking device, no process operation according to requirements, set switch lock.For example: When no. 1 spray paint can is needed, the switch lock will be opened only after pressing the button, and the operator can take out the can for spray paint operation.At the same time, there are many tooling positions, such as automatic discharge tank device, can automatically take out the tooling tank, automatically use the mechanism of the spring principle of automatic feeding.Although the equipment is manual workbench, but a lot of tooling and Settings are very simple, very reference value, is a good reference template for the design of different types of equipment mechanism.

polygons: 7307381

Vertice: 14612550

Files format contains-solidworks 2017-step-iges-dxf-3ds-Fbx-3dmax

• and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot
