Roofing Panel Machine I SolidWorks Assembly I BOM I Drawings 3D model
Description

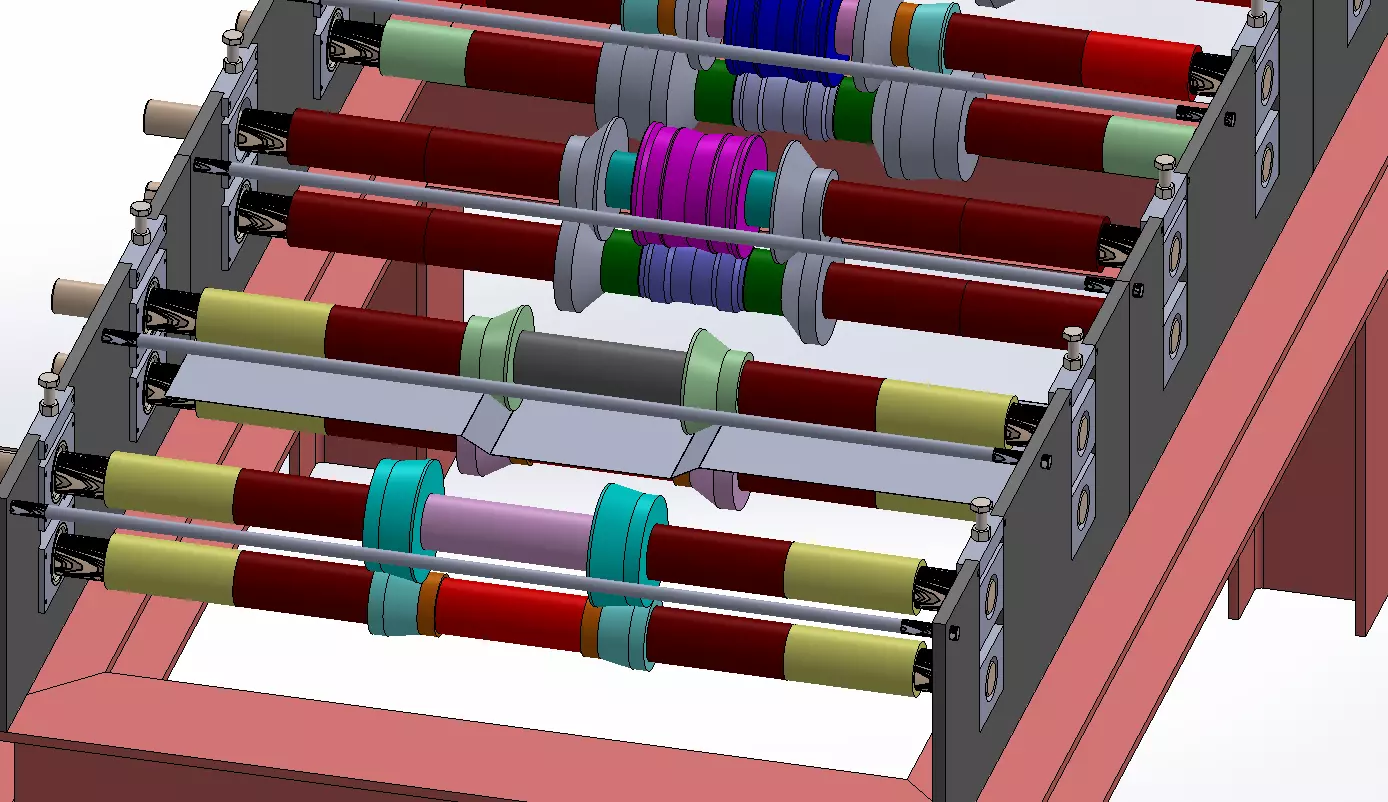

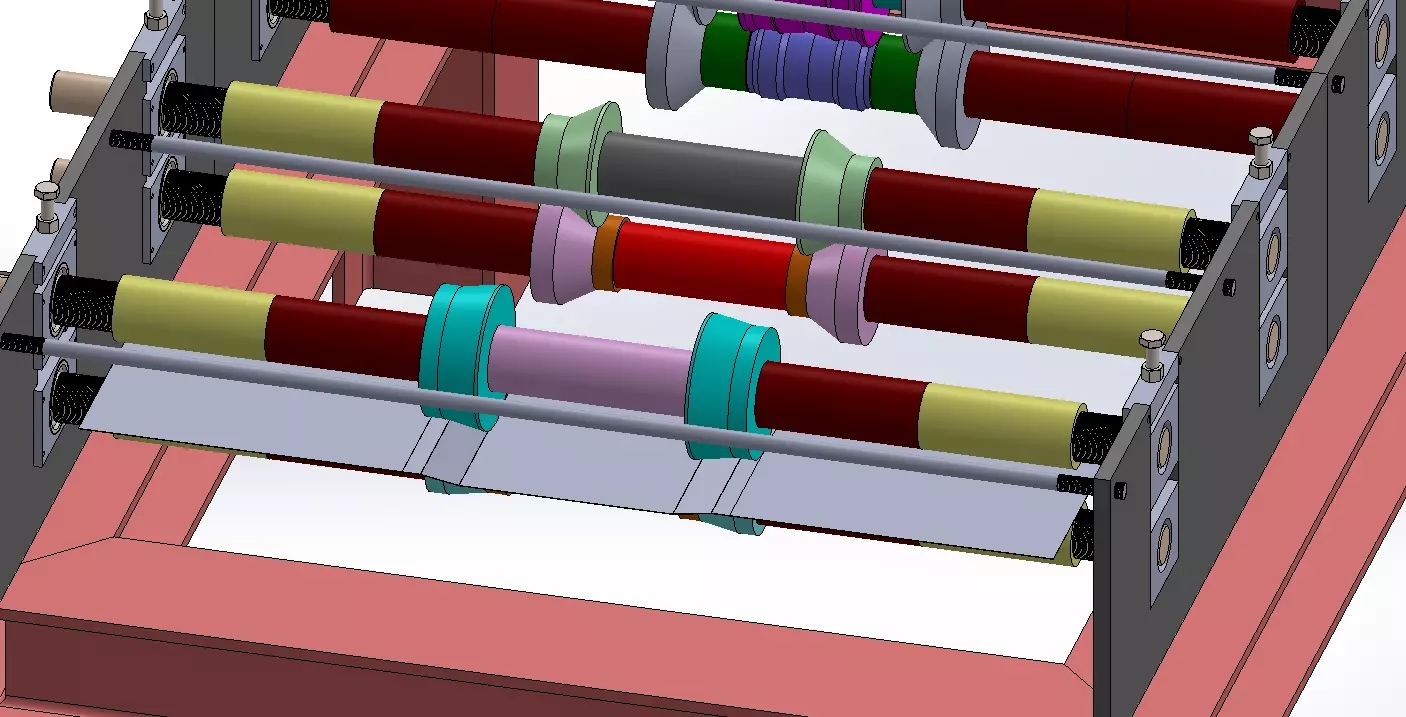

This is a complete mechanical design of a roofing panel production machine created in SolidWorks. Every part has been modeled individually and assembled in a fully functional layout.
Included in the package:
Full SolidWorks assembly (.SLDASM) and part files (.SLDPRT)

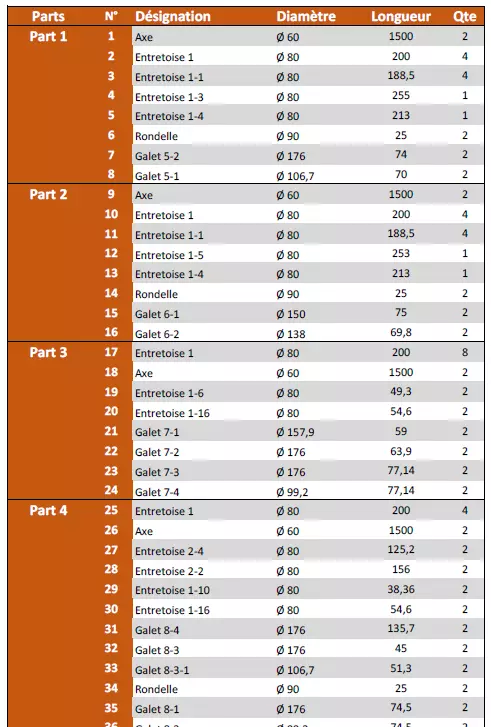

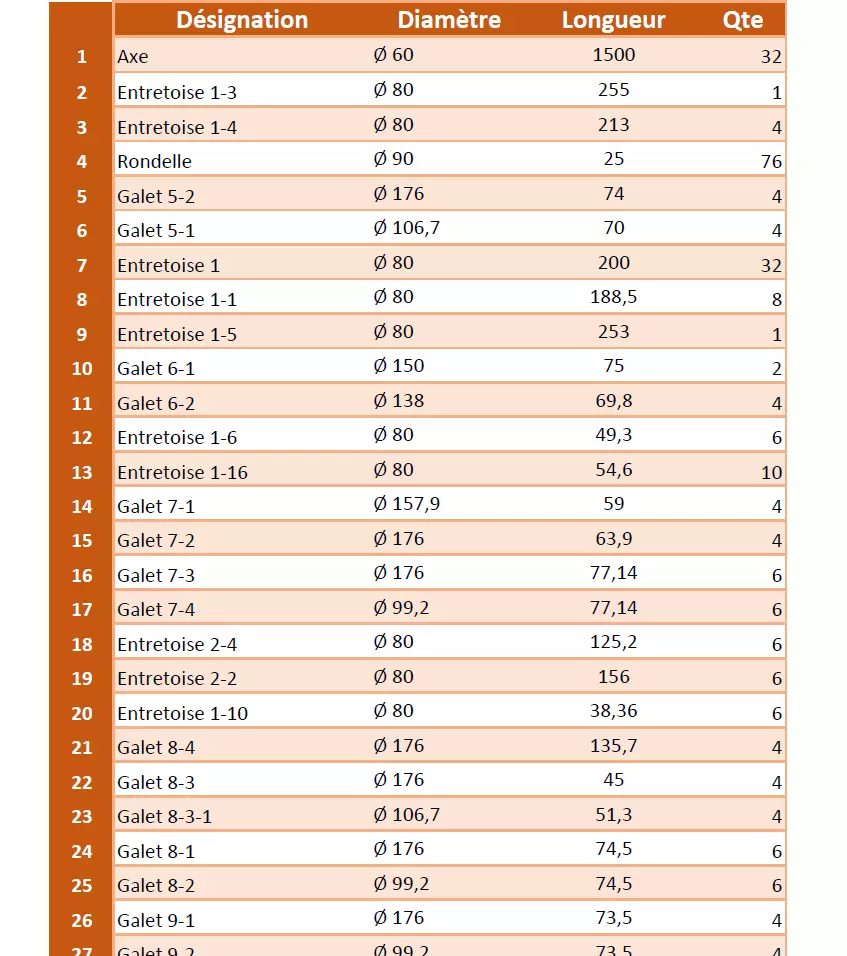

Bill of Materials (BOM) in PDF

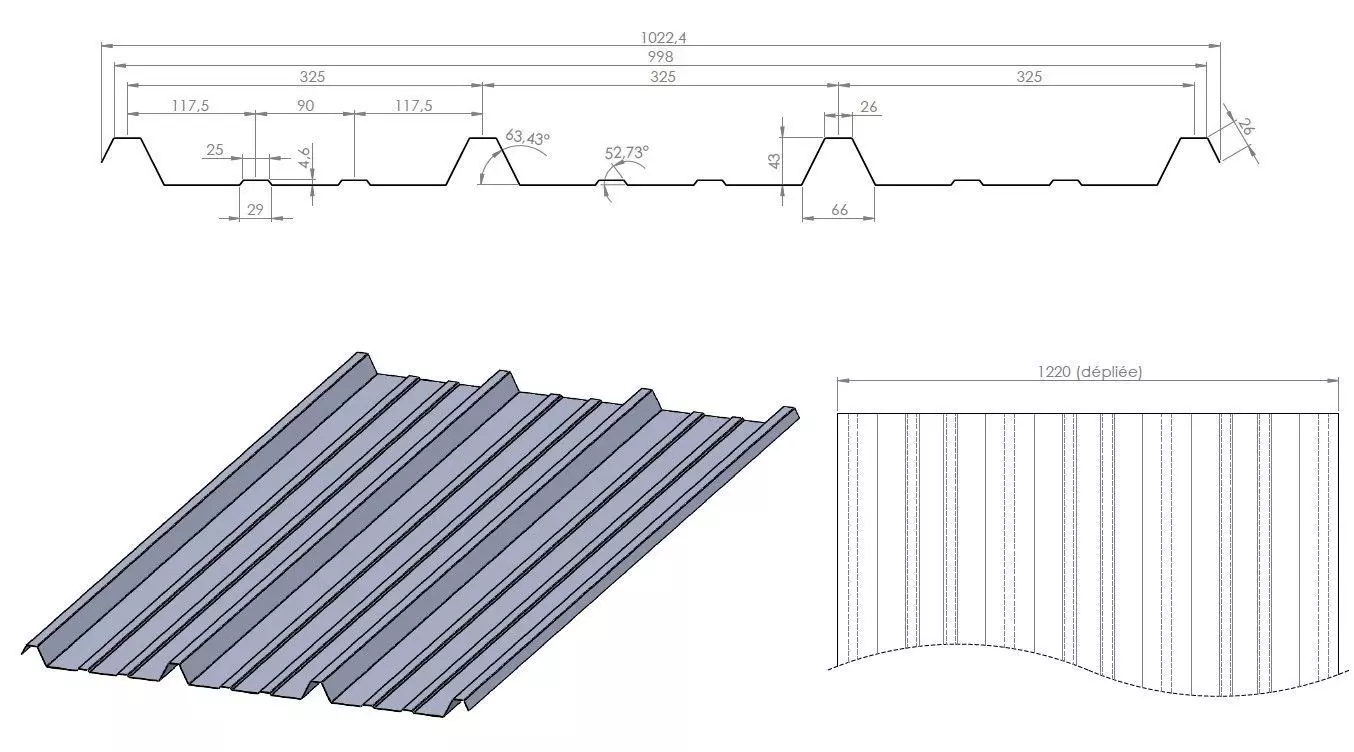

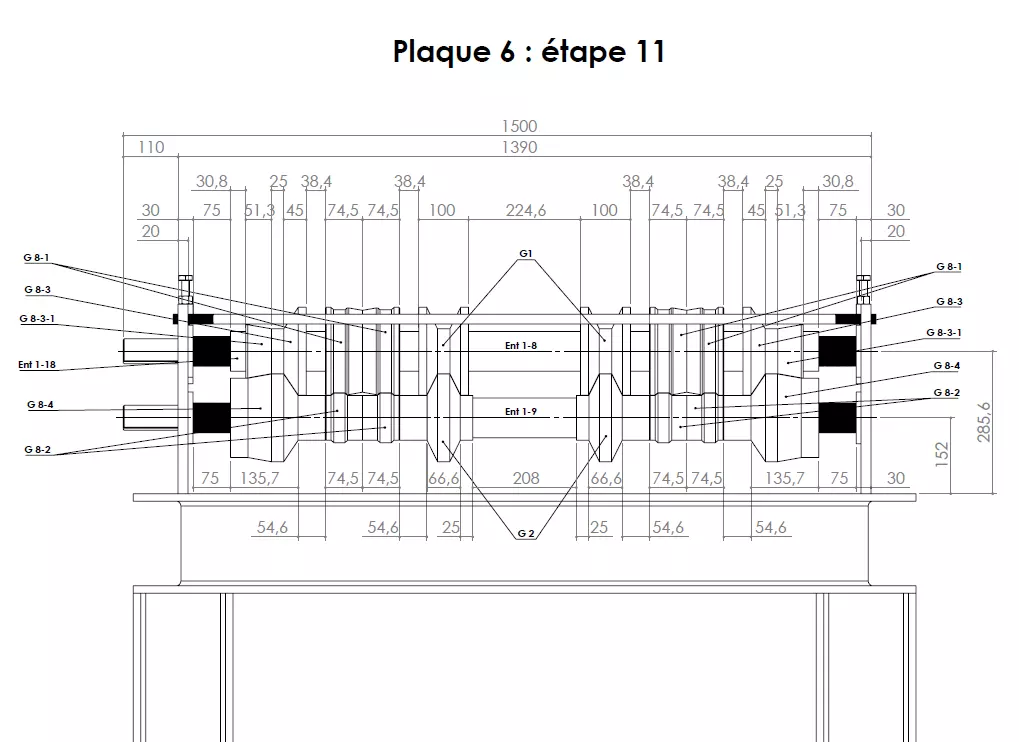

Detailed 2D technical drawings with dimensions (SLDDRW and PDF)

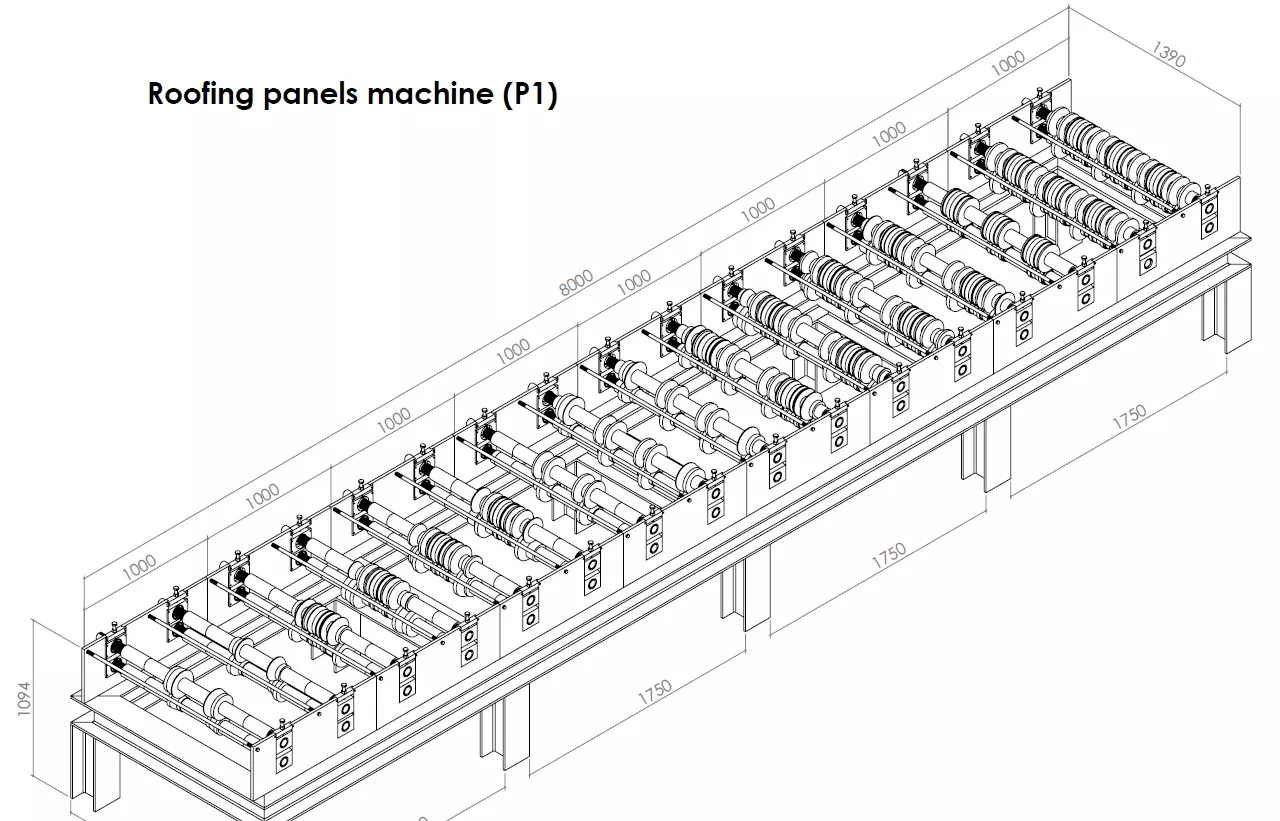

Step-by-step 2D assembly drawings with dimensions for the complete machine (SLDDRW and PDF)
This model is ideal for mechanical engineers, manufacturers, and designers working in roll-forming or sheet metal processing.Ready for simulation, analysis, or fabrication.
Roofing Panel Machine I SolidWorks Assembly I BOM I Drawings
Royalty Free License
Roofing Panel Machine I SolidWorks Assembly I BOM I Drawings
Royalty Free License
3D Model formats
Format limitations
- SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)101 MBVersion: 2020Version: 2020
- PDF (.pdf) (6 files)36 MBVersion: 2
- DXF (.dxf) (2 files)67.3 MBVersion: 2020
- Other 67.1 MB
3D Model details
- Ready for 3D Printing
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry -
- Polygons 0
- Vertices 0
- Textures
- Materials
- UV Mapping
- Unwrapped UVs Unknown
- Plugins used
- Publish date2025-09-02
- Model ID#6349745
