DESCRIPTION

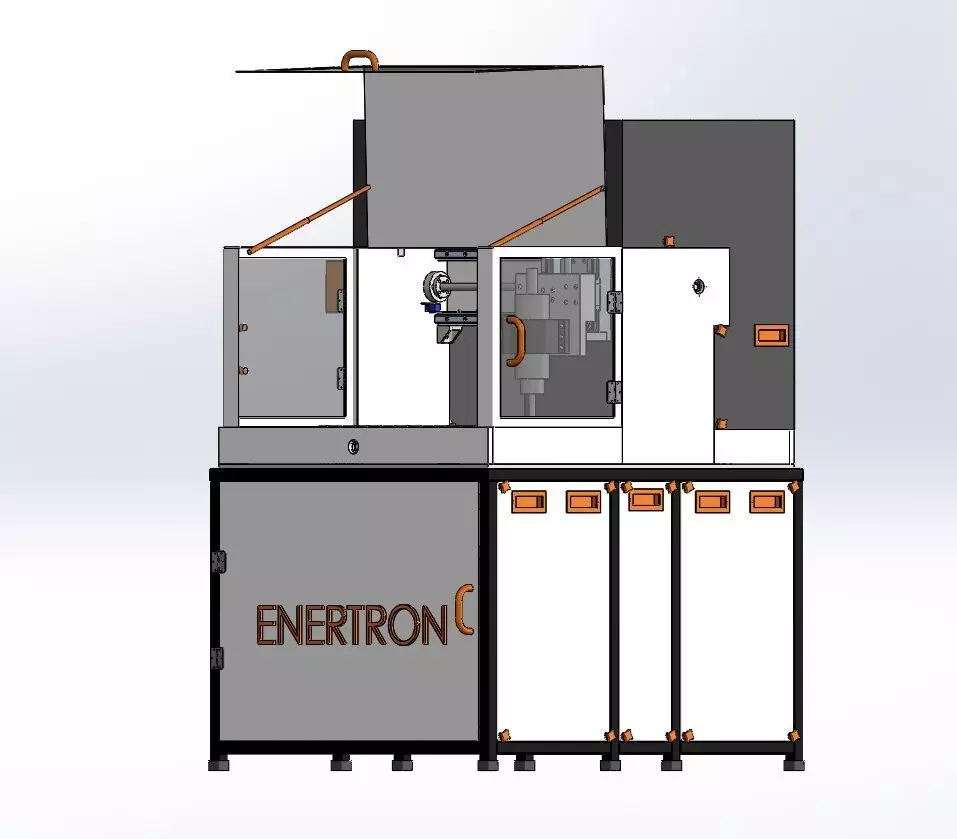

This is CNC PCB drilling and cutting machine. Bed Type : Standard PCB clamp bed / T slot bedMachine Type : Vertical Machining CentersDimensions: 1500 mm × 1300 mm × 1170 mm
X-axis travel : 600 mmY-axis travel : 450 mmZ-axis travel: 65 mmCutting Spindle 1.5KW Air – Cooled SpindleER11 ColletTool Diameter: 3 to 7 mmVariable Speed 6000 to 24000 rpmXY-Travel speed 5500 mm/min (Variable) Ports USB 2.0 Control language Standard G-Code, M-Code Programming LanguageElectrical Drive Hybrid Servo motor 2- PHASE 22KG-CM 1000 LINE ENCODERMechanical Drive Hiwin ball screw with linear- guidewaysInterpolation Linear and circularCommand Type Absolute and IncrementalProgramming G, M, X, Y and Z CodeInput SystemMetric/InchControl Axis Simultaneous axisType Of Control System PC/Laptop based systemAddressable Resolution0.025 mmPower supplyInput Voltage: 230V-240V ACInput Current: 2.5 A – 3AFrequency: 50HZ , 1 Phase
