Circular Saw Bench Workshop Industry Carpenter DIY Joinery Tool 3D model

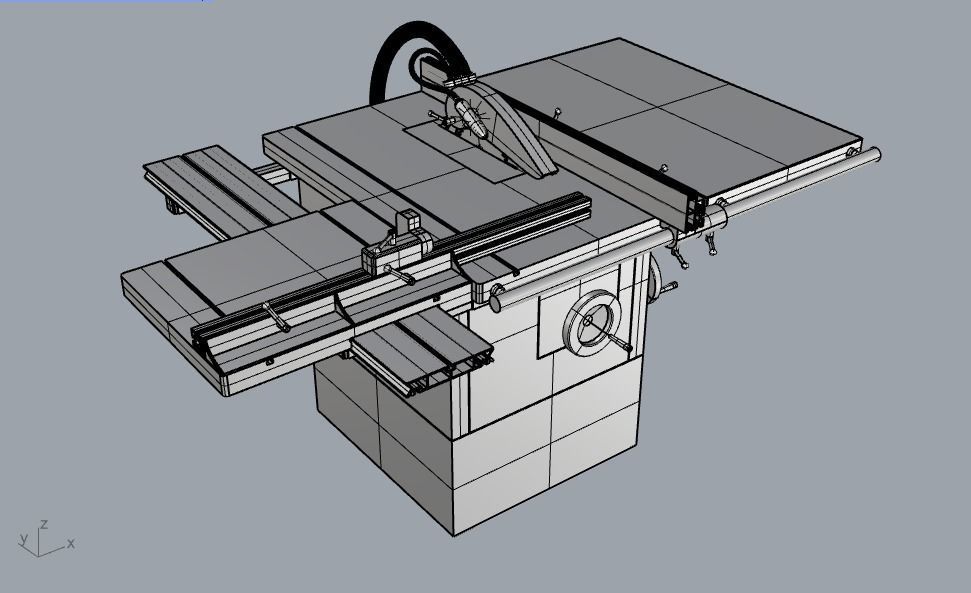

This is the model of a circular bench saw. Created with Rhinoceros 3D.

• Bounding box is ~ 1919 x 1294x 1138 mm
• Sizes of the maintable 700 x 1000 mm
• Sizes of the tableextension on the right 600 x 1000 mm
• Sizes of the Slider on the left 608 x 500 mm
• Heights of all tables are 850 mm
• Mixed Materials: PBR and nonPBR

The downloadable files contain:

• NURBS-files
  • .3dm-files for Rhino 6 and Rhino 7 (with material library CircularBenchSaw_1_Materials.rar) containing 60 polysurfaces and 75 extrusions with 551.630 polygons
  • .stp-file (without textures) containing 139 polysurfaces with 239.864 polygons in sum
• MESH-files
  • .obj-file (.obj with simplified textures (OBJ-Archive.rar)) containing 81 meshes with 492.058 polygons in sum

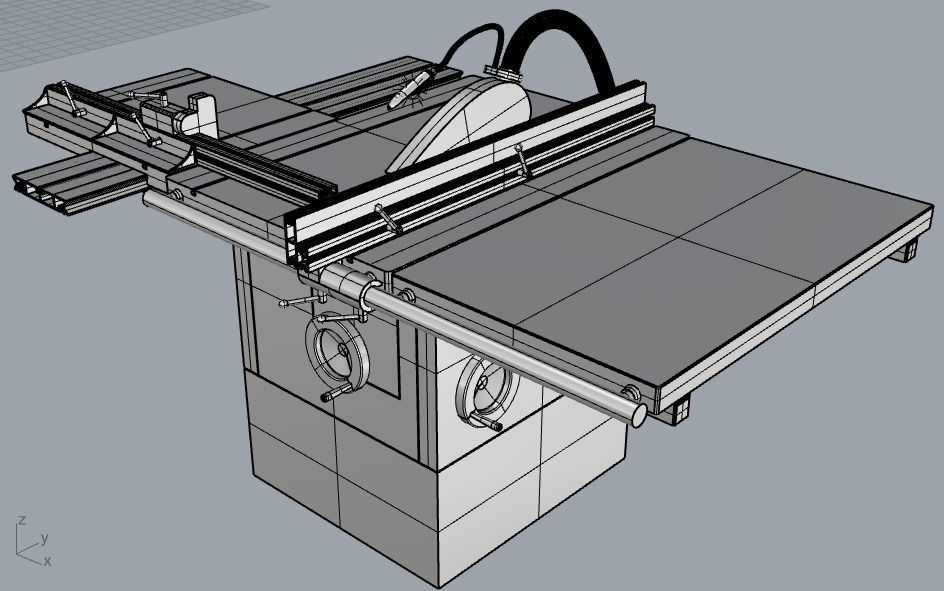

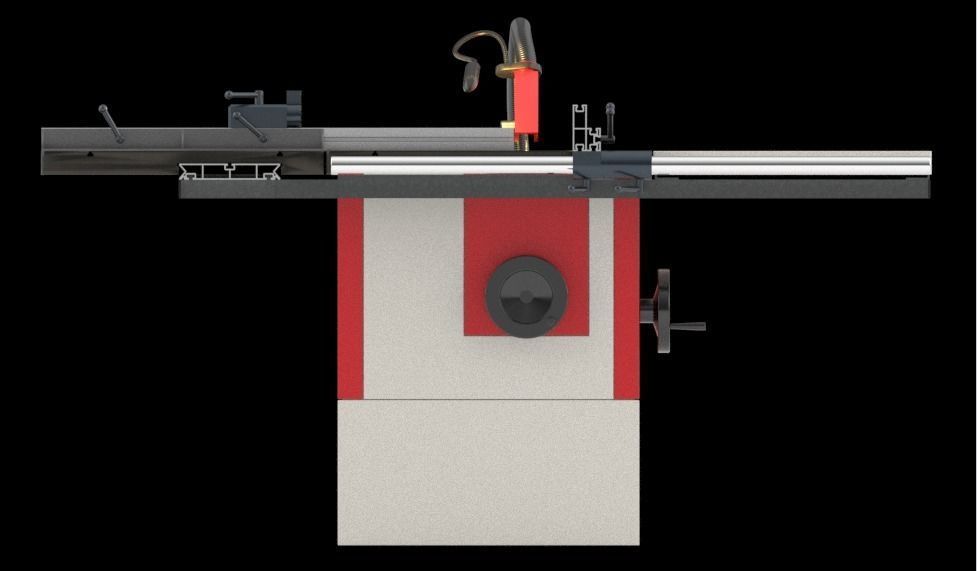

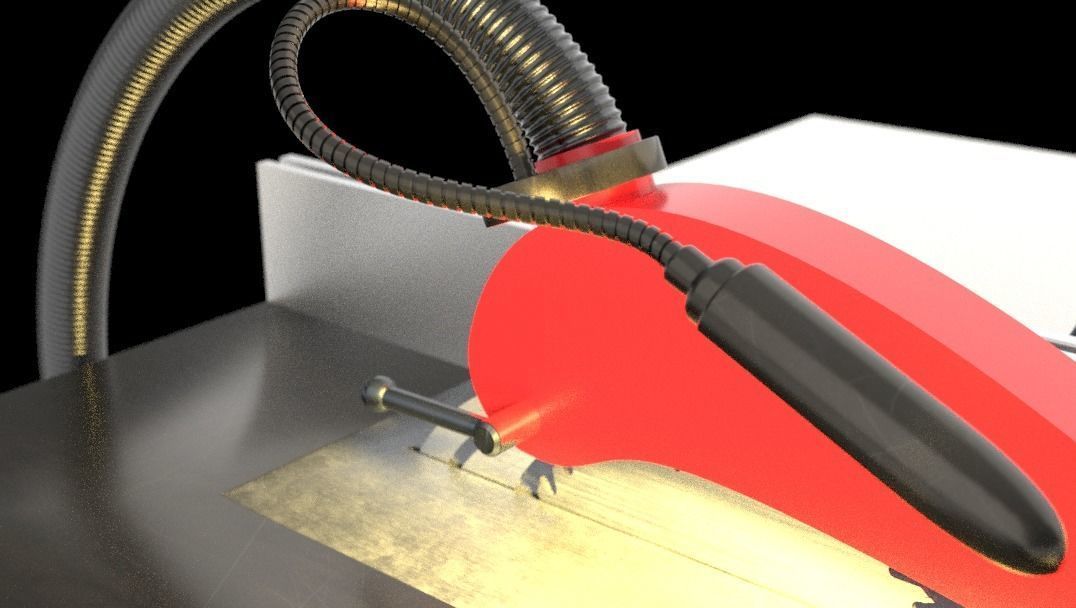

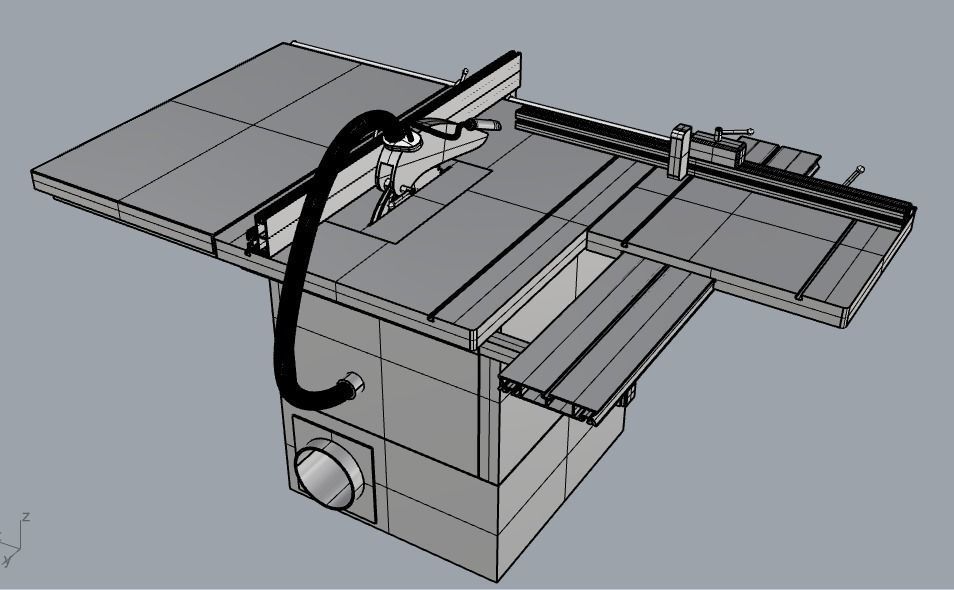

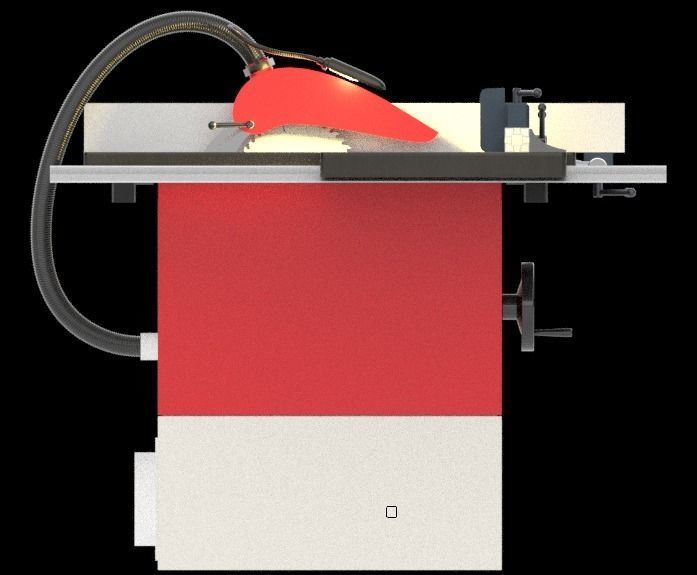

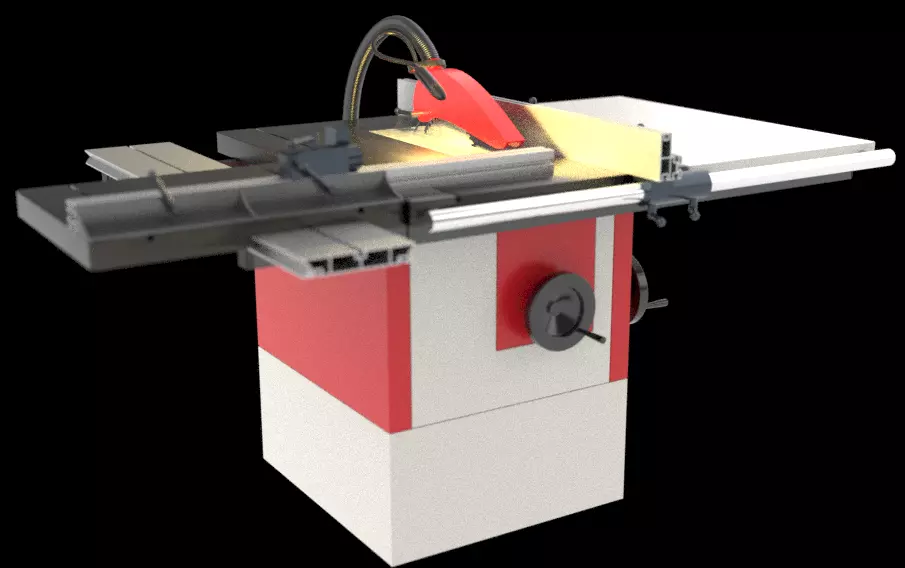

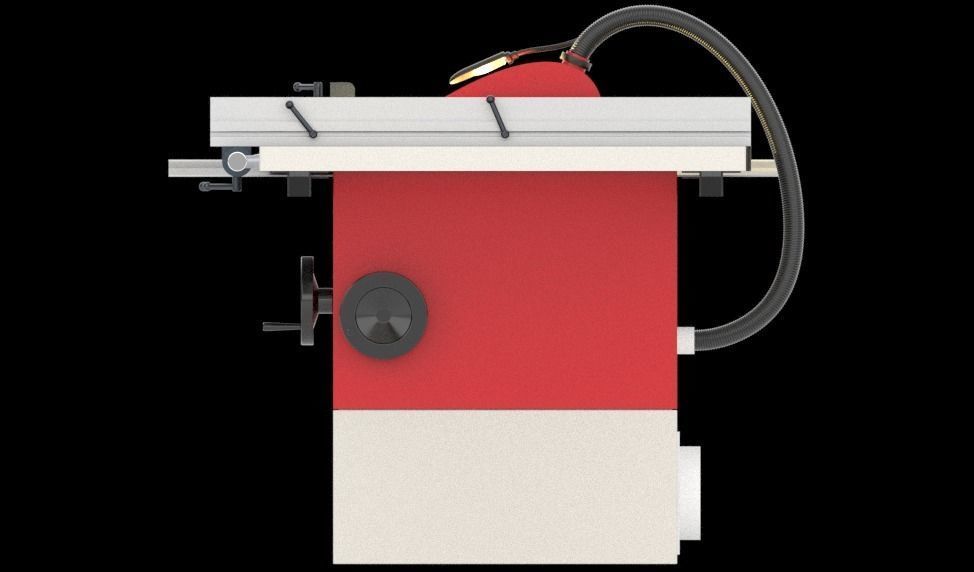

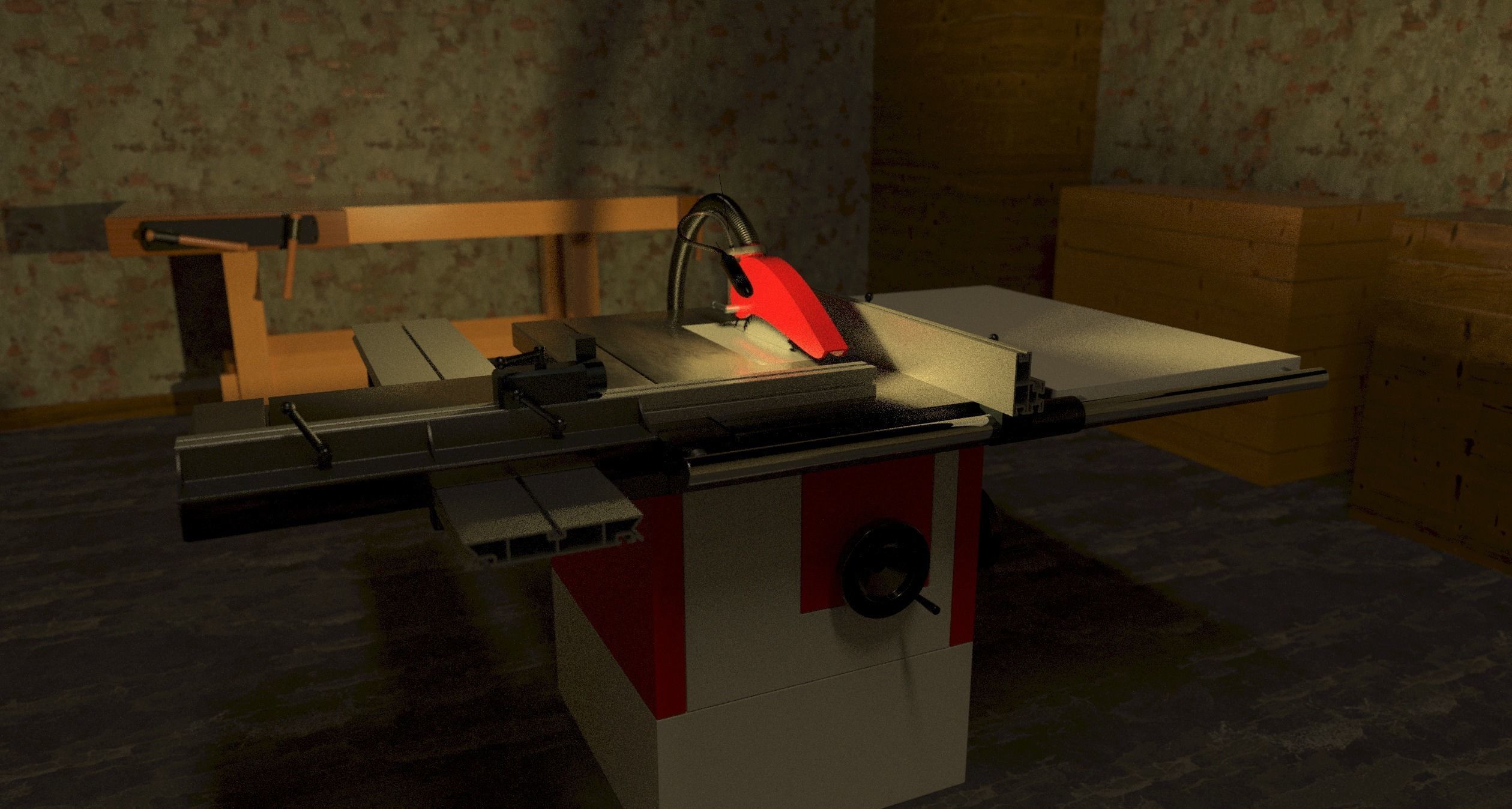

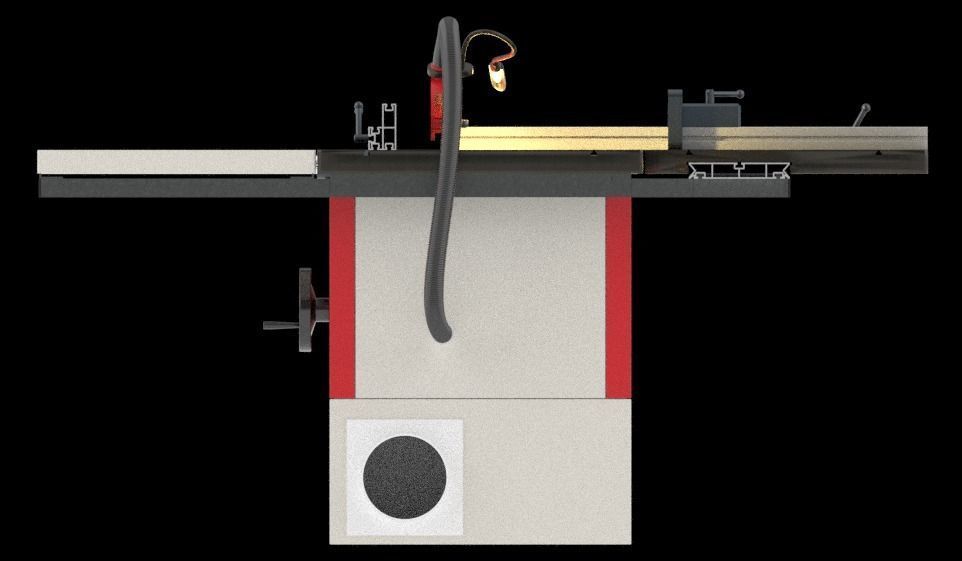

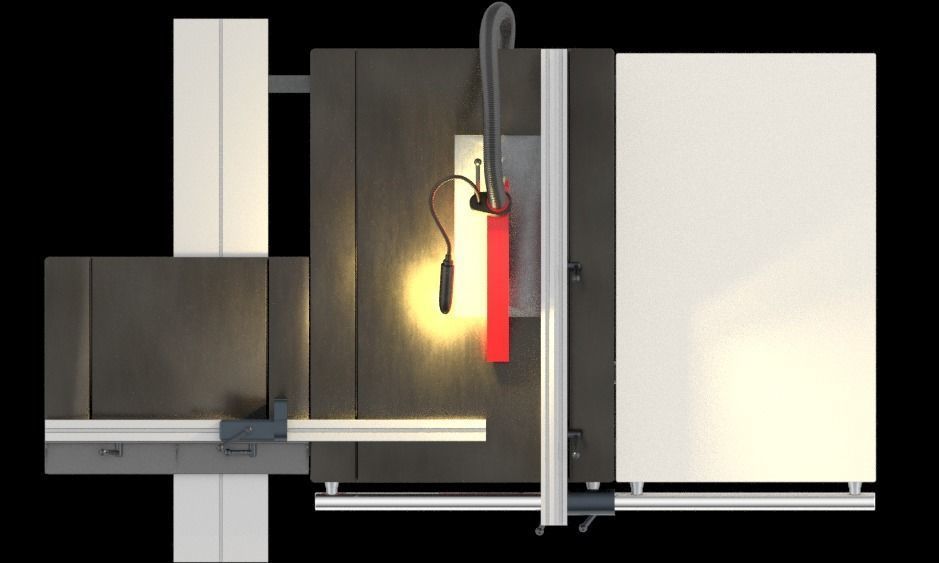

The models is oriented on low priced models of circular bench saws in the middle price segment of those machines. The preview pictures were rendered with Rhino Render only.
