Centrifugal Pump

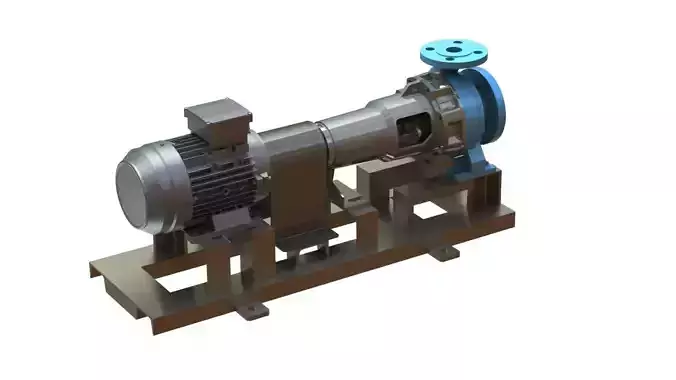

Centrifugal Pump 3D model


Working Principle: Centrifugal pumps operate based on the principle of centrifugal force. They use a rotating impeller, which is a disk with curved blades, to create a flow of fluid. As the impeller spins, it imparts kinetic energy to the fluid, causing it to move outward due to centrifugal force. This outward movement creates a low-pressure area at the center of the impeller, causing more fluid to be drawn into the pump's inlet.

Components: The main components of a centrifugal pump include the impeller, casing, inlet, outlet, and a motor or engine to drive the impeller. The impeller is typically attached to a shaft connected to the motor or engine.

Types: There are various types of centrifugal pumps, including single-stage and multi-stage pumps. Single-stage pumps have a single impeller and are used for low-pressure applications, while multi-stage pumps have multiple impellers stacked in series to generate higher pressures.

Applications: Centrifugal pumps are widely used in a variety of industries, including agriculture, chemical processing, water supply and distribution, wastewater treatment, oil and gas, power generation, and more. They can handle a wide range of fluids, from water and sewage to corrosive chemicals and abrasive slurries.

Advantages: Some advantages of centrifugal pumps include their simplicity of design, high efficiency, and ability to handle a wide range of flow rates and pressures. They are also generally easy to maintain and repair.

Limitations: Centrifugal pumps are not well-suited for high-viscosity fluids or applications that require high suction lift. They may also experience cavitation, a phenomenon where vapor bubbles form in the pump due to low pressure, which can lead to damage if not addressed.

Maintenance: Regular maintenance is essential to ensure the proper functioning of centrifugal pumps. This includes lubricating bearings, checking for wear and tear, and ensuring that the pump's impeller and casing are in good condition.

Efficiency: Centrifugal pumps are known for their high efficiency, especially when operating near their Best Efficiency Point (BEP). Proper sizing and operation within the BEP range can maximize energy efficiency.

Safety: Safety precautions must be taken when working with centrifugal pumps, especially in industrial settings where they may handle hazardous substances. Operators should be trained in safe operating procedures, and protective measures should be in place to prevent accidents.

Item rating
0 0
Centrifugal Pump
Royalty Free License
Centrifugal Pump
Royalty Free License
Response - % in - h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • SolidWorks (.sldprt, .sldasm, .slddrw) (80 files)12.7 MB
  • PDF (.pdf)6.66 MB

3D Model details

  • Publish date2023-10-01
  • Model ID#4810842
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry -
  • Polygons 0
  • Vertices 0
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
