Automatic Horizontal Chamfering Rough Turning Machine

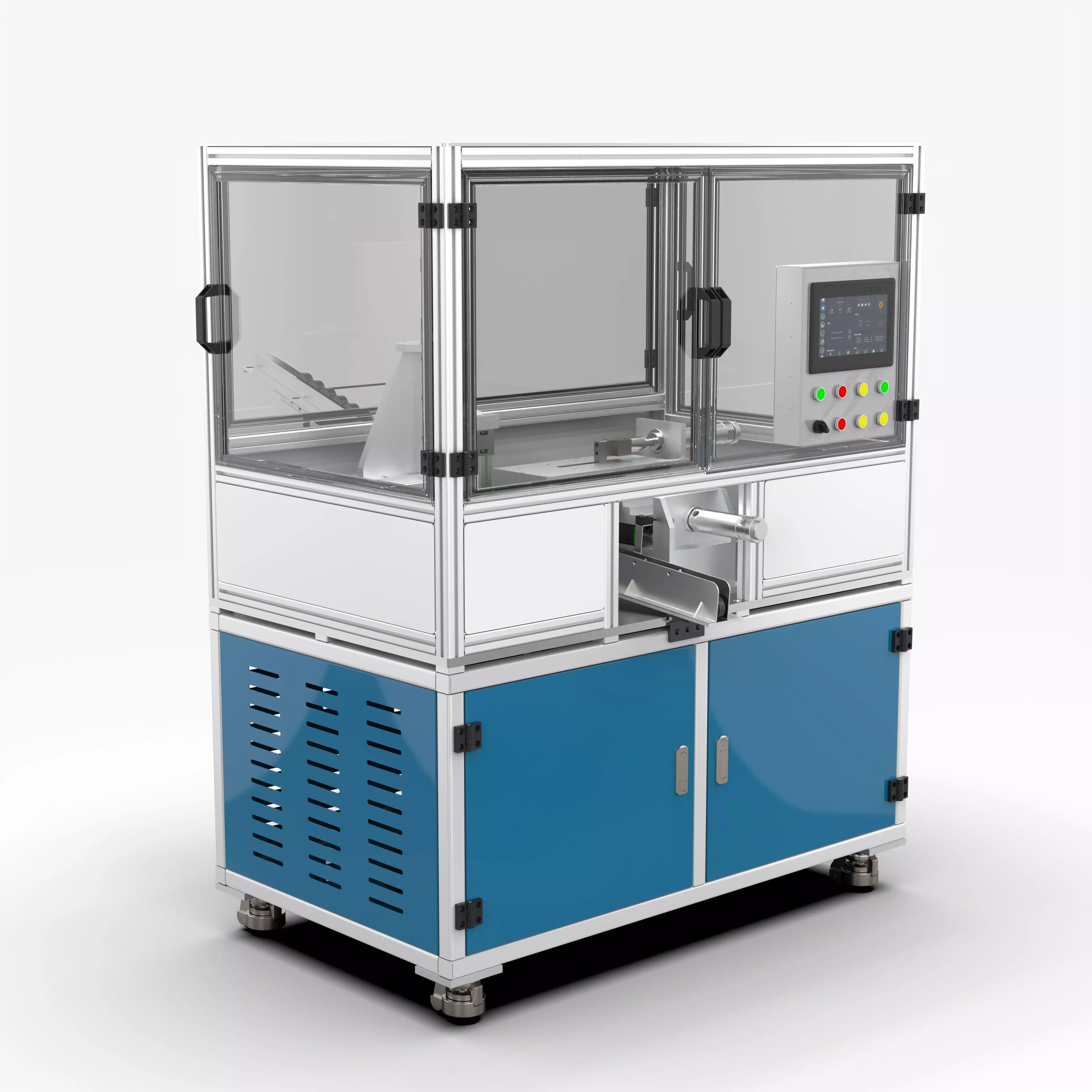

Automatic Horizontal Chamfering Rough Turning Machine 3D model

Description

Automatic Horizontal Chamfering Rough Turning Machine

Introduction

This set of drawing models is an all-in-one machine for rough turning of the outer circle of the squirrel cage rotor aluminum ring, which is mainly used for the rough turning and end chamfering of the outer circle of the cast aluminum rotor of the motor manufacturer. The mechanism removes foreign matter such as burrs produced during the die-casting of the squirrel cage rotor, and adopts a power head mechanism. The rotor is transferred by a non-powered slideway mechanism.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 866,932
  • Vertice: 2,600,796
Item rating
0 0
Automatic Horizontal Chamfering Rough Turning Machine
$59.00

Royalty Free License
Automatic Horizontal Chamfering Rough Turning Machine
$59.00

Royalty Free License
Response 74% in 1.2h
3D Modeling
Rendering
Hire me

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw)74.4 MBVersion: undefinedRenderer: Mental Ray 3.0
Exchange
  • Stereolithography (.stl)41.3 MB
  • IGES (.ige, .igs, .iges)117 MB
  • OBJ (.obj, .mtl)65 MB

3D Model details

  • Publish date2023-03-10
  • Model ID#4351351
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 866,932
  • Vertices 2,600,796
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs Unknown
  • Plugins used
  • Ready for 3D Printing
