Automatic Circuit Board Robot Handling and Testing Machine

Introduction

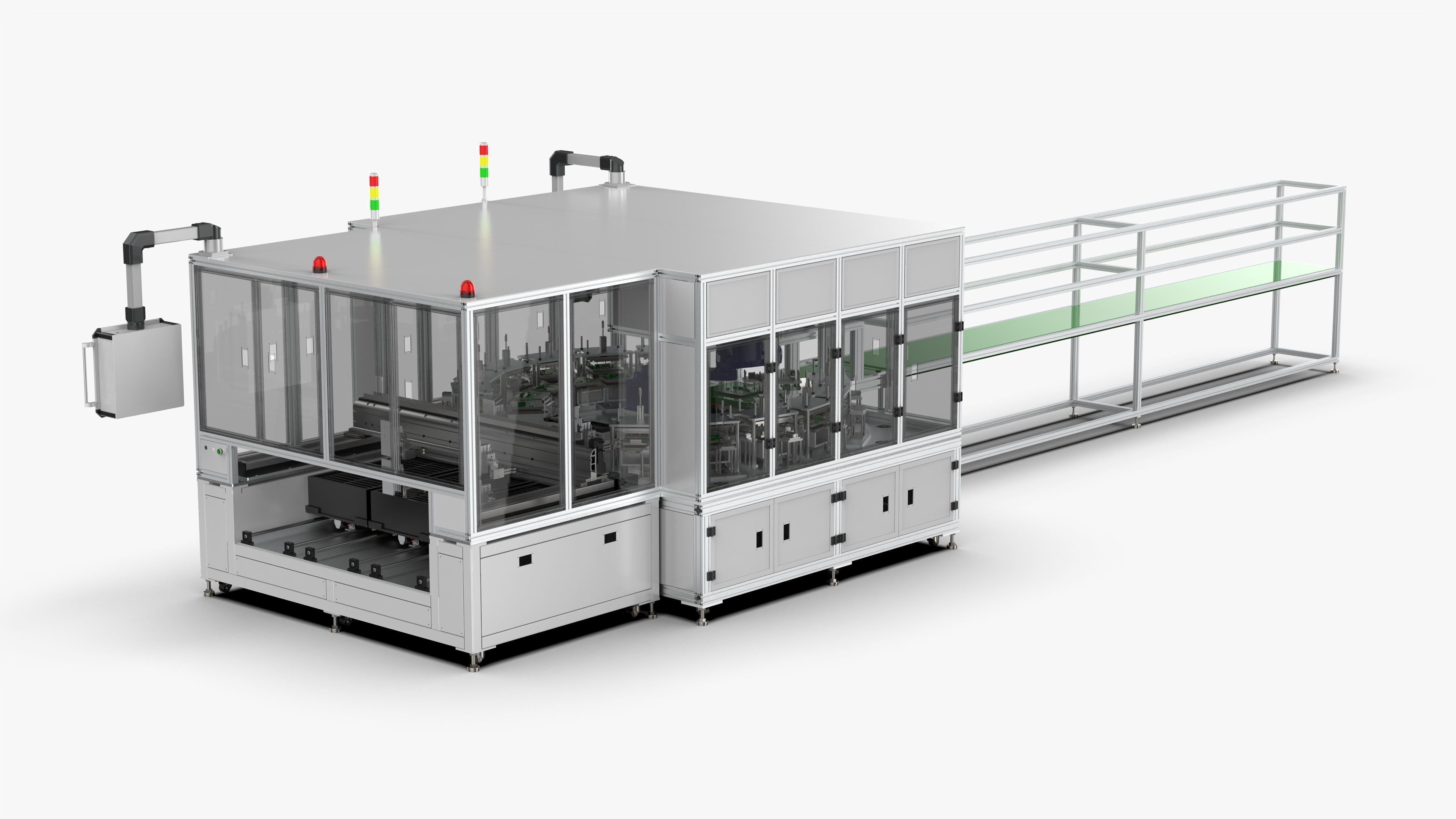

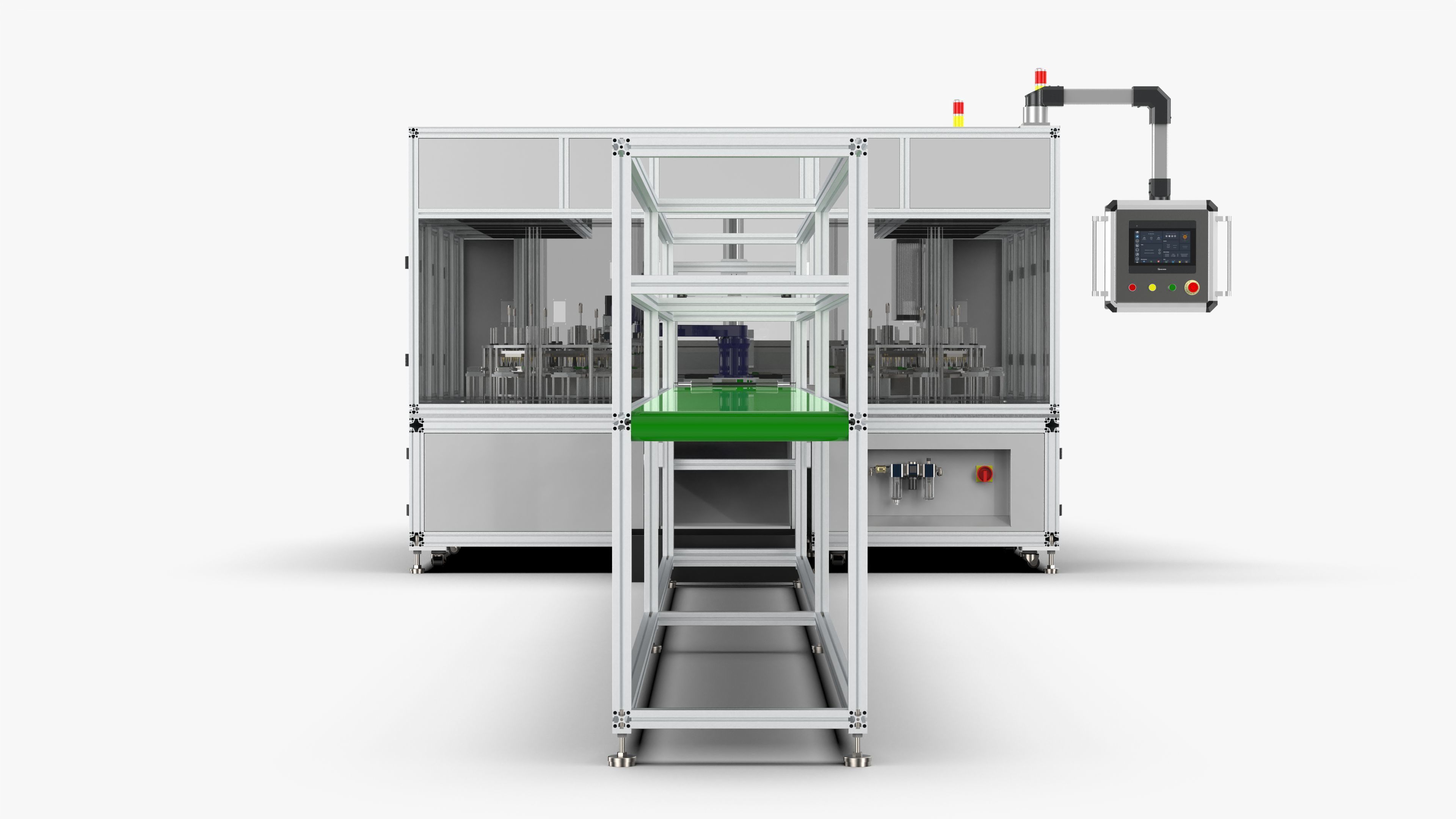

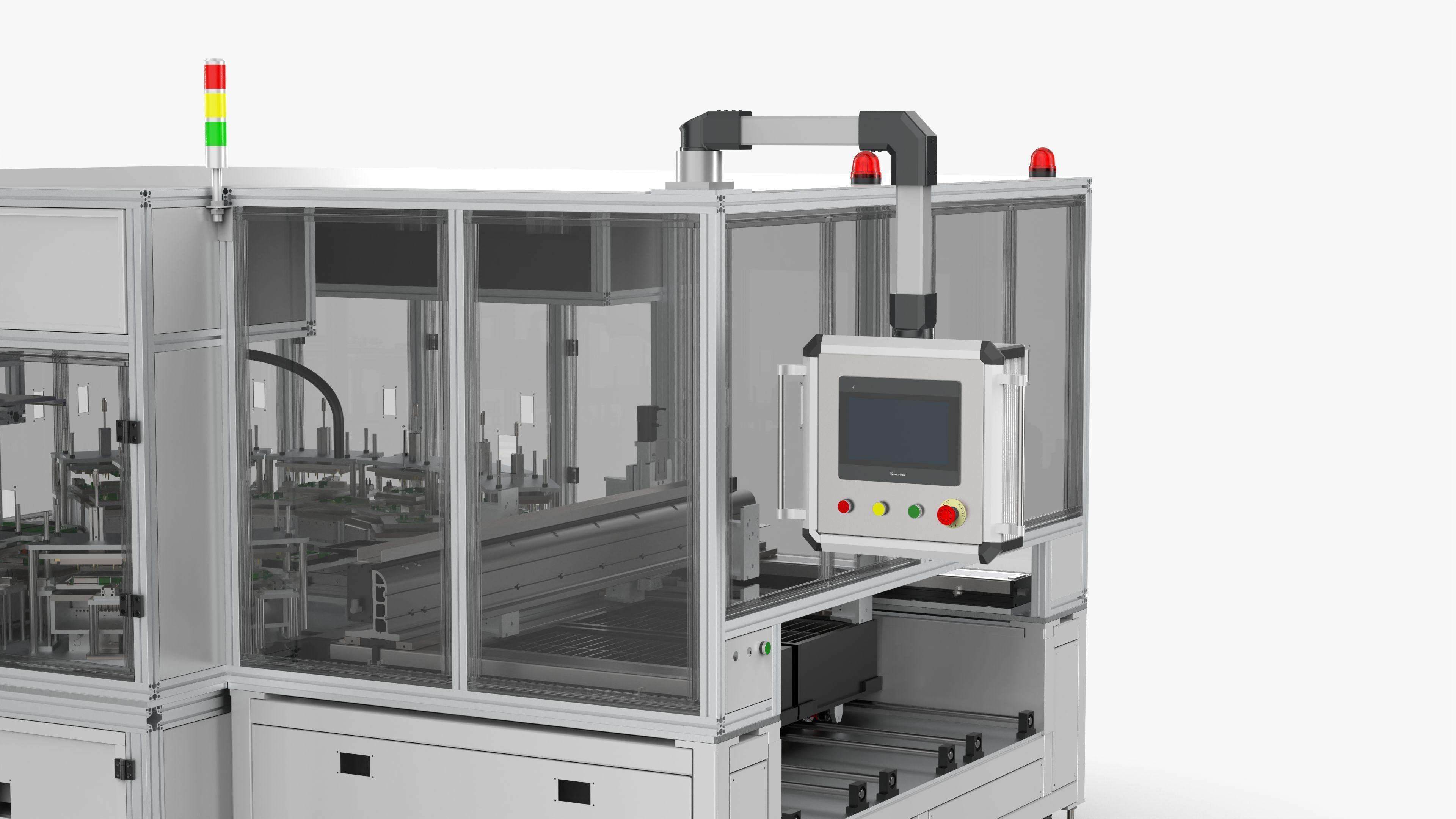

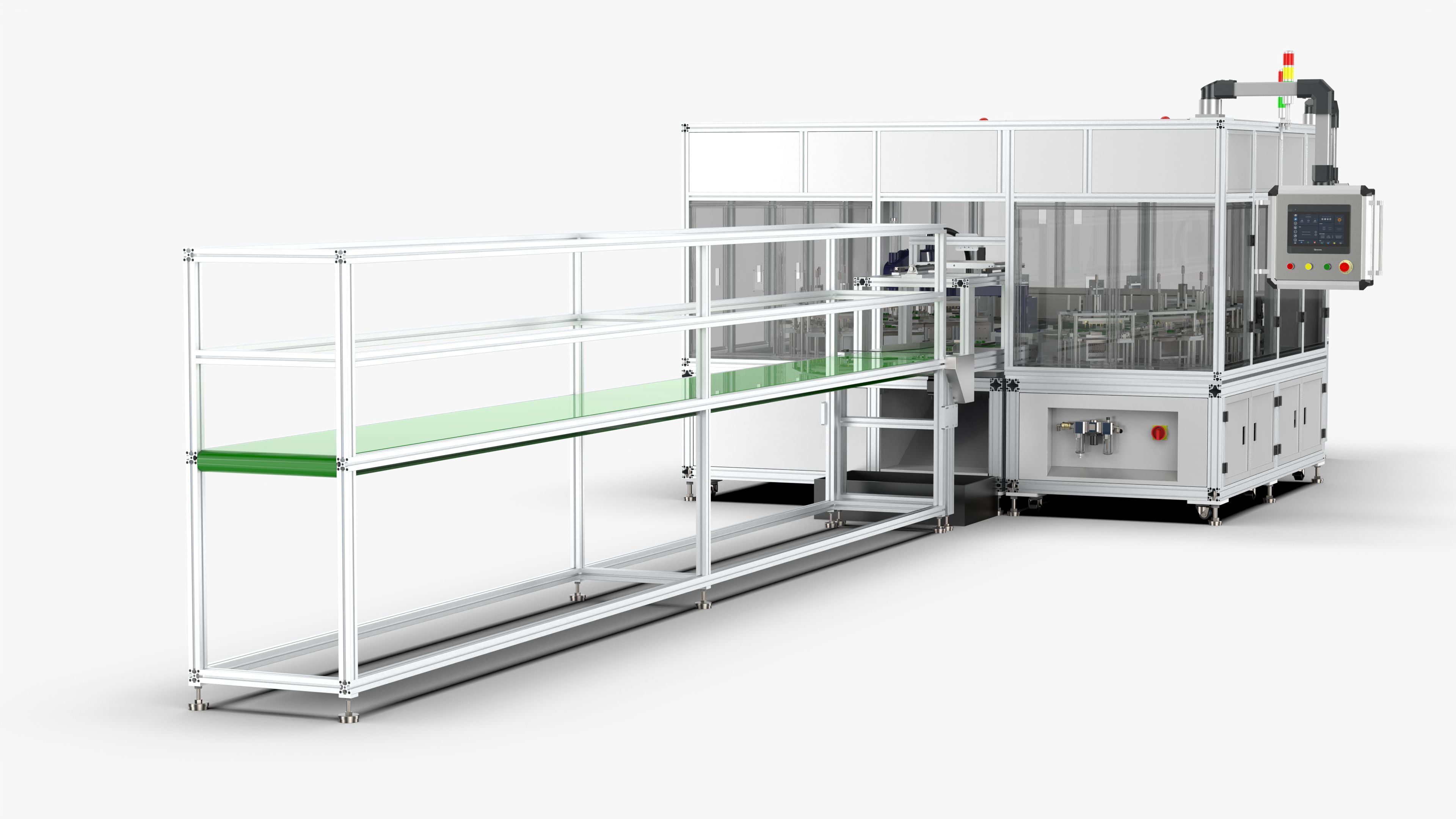

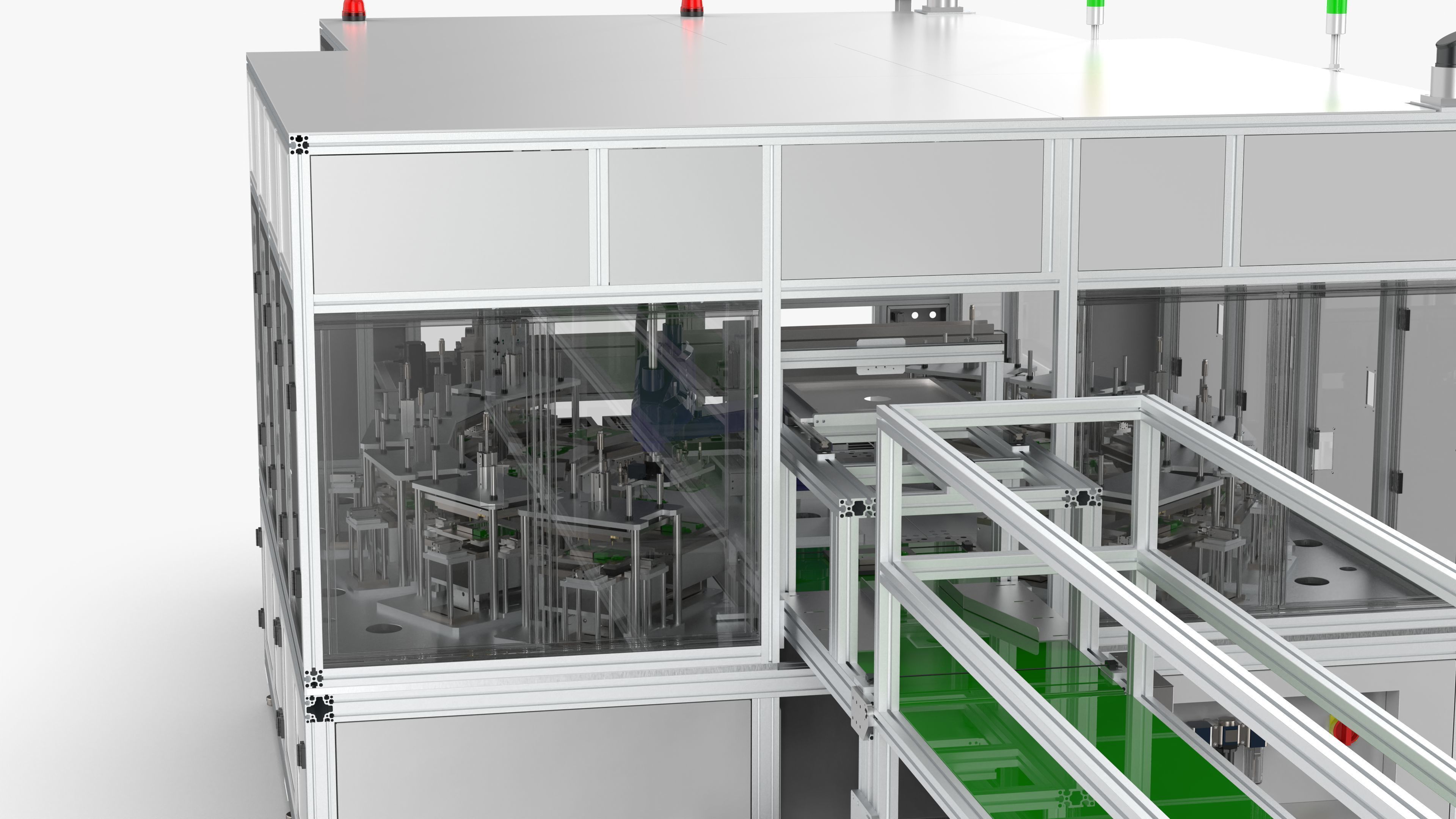

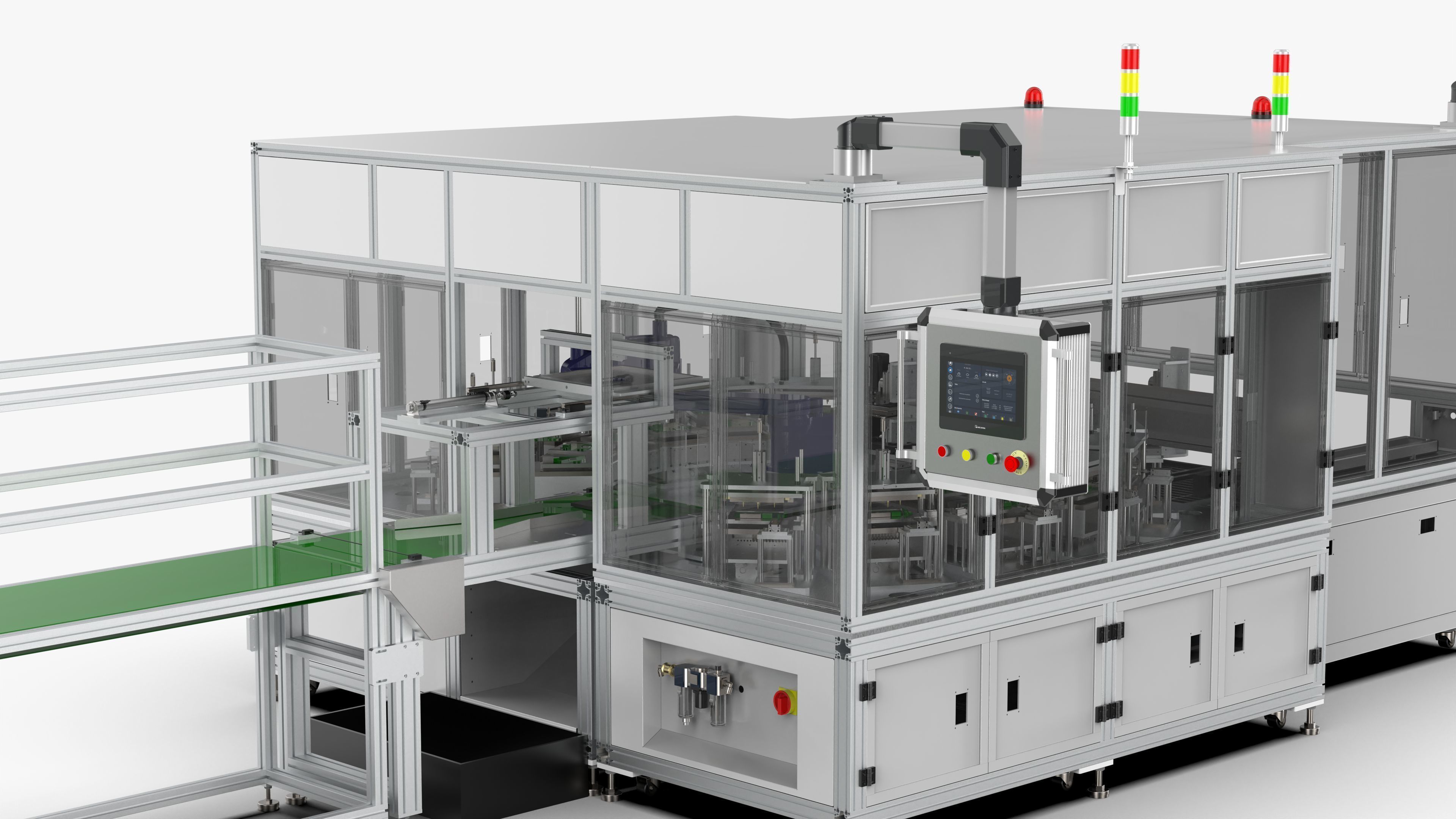

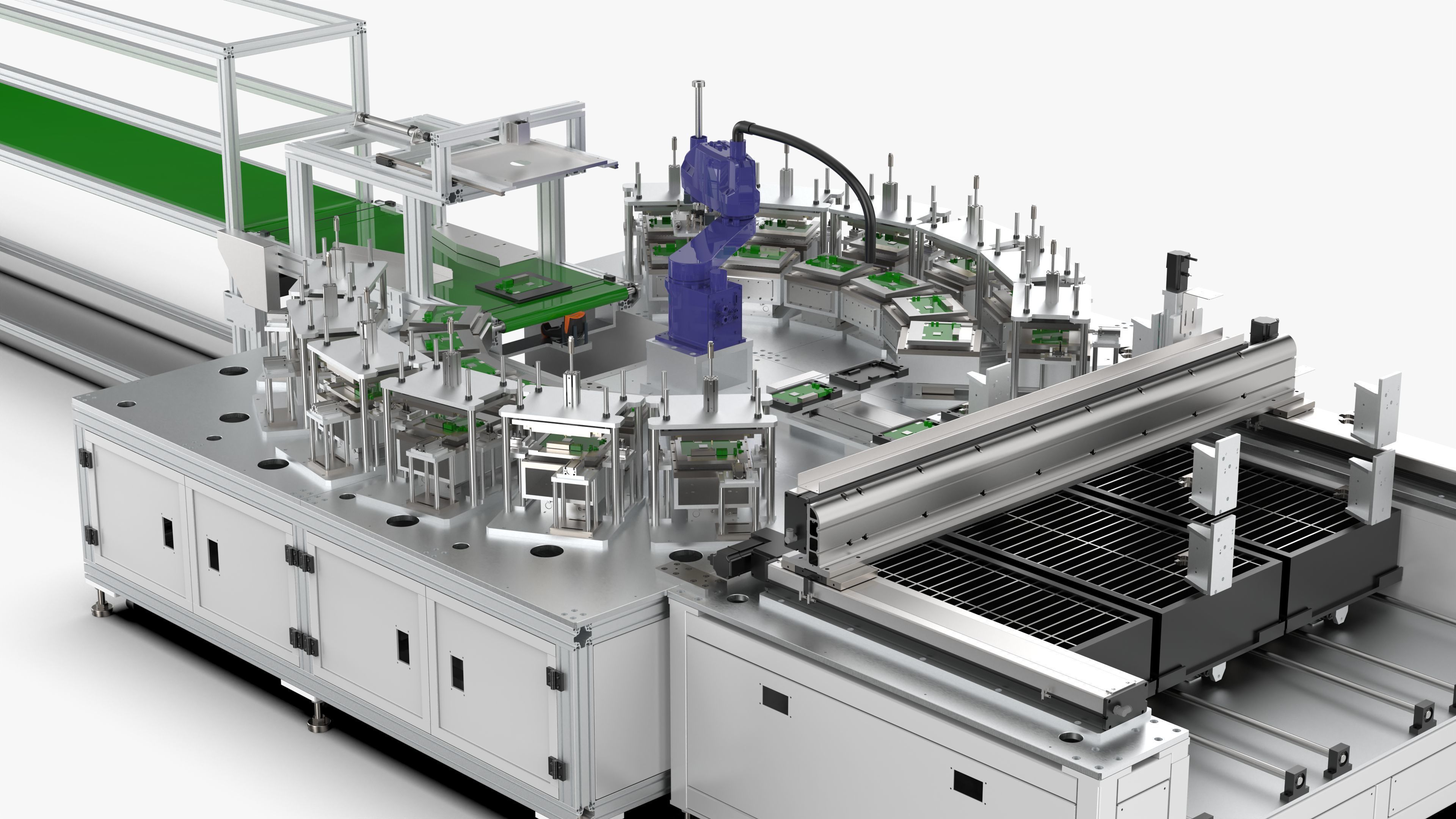

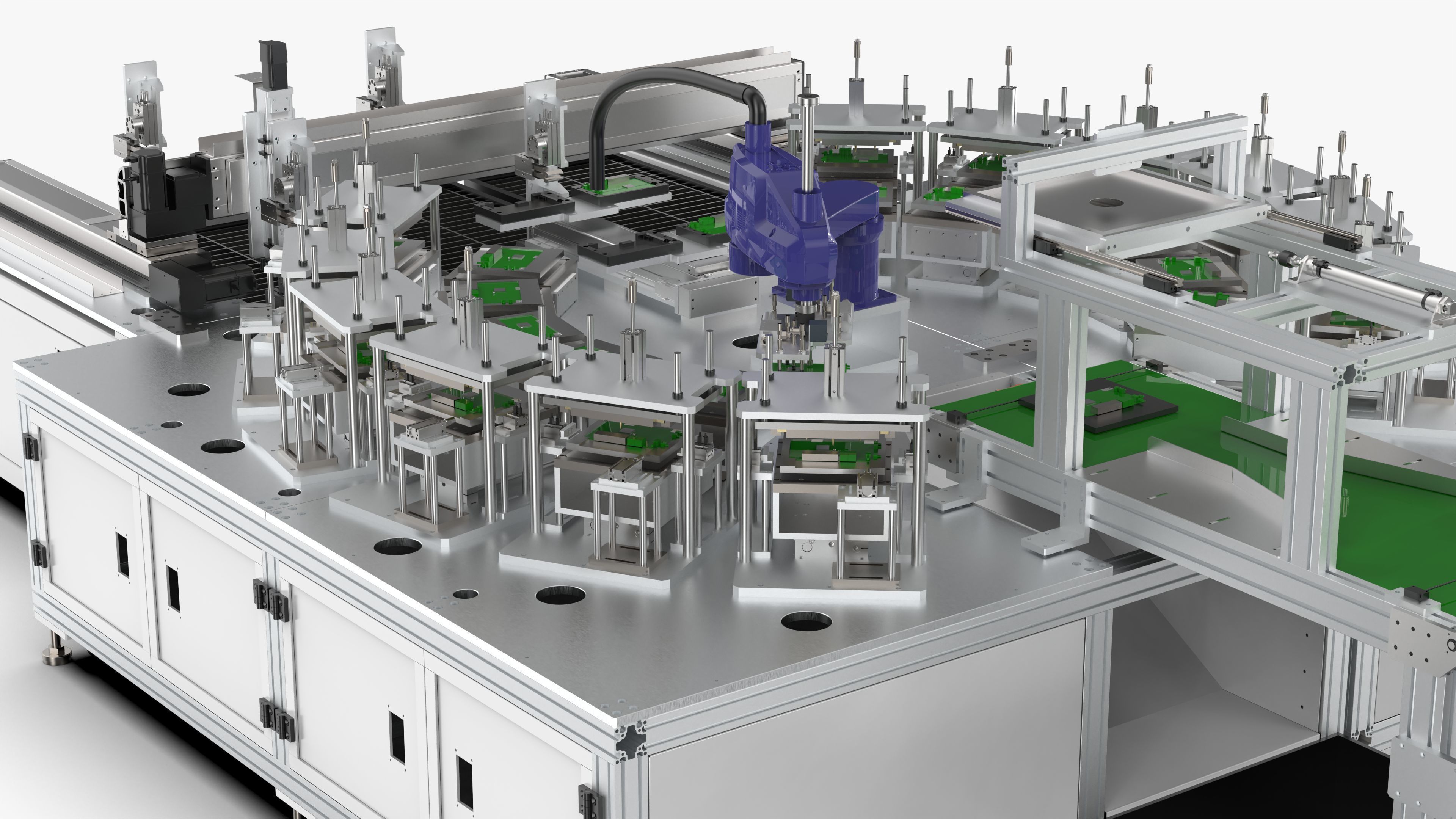

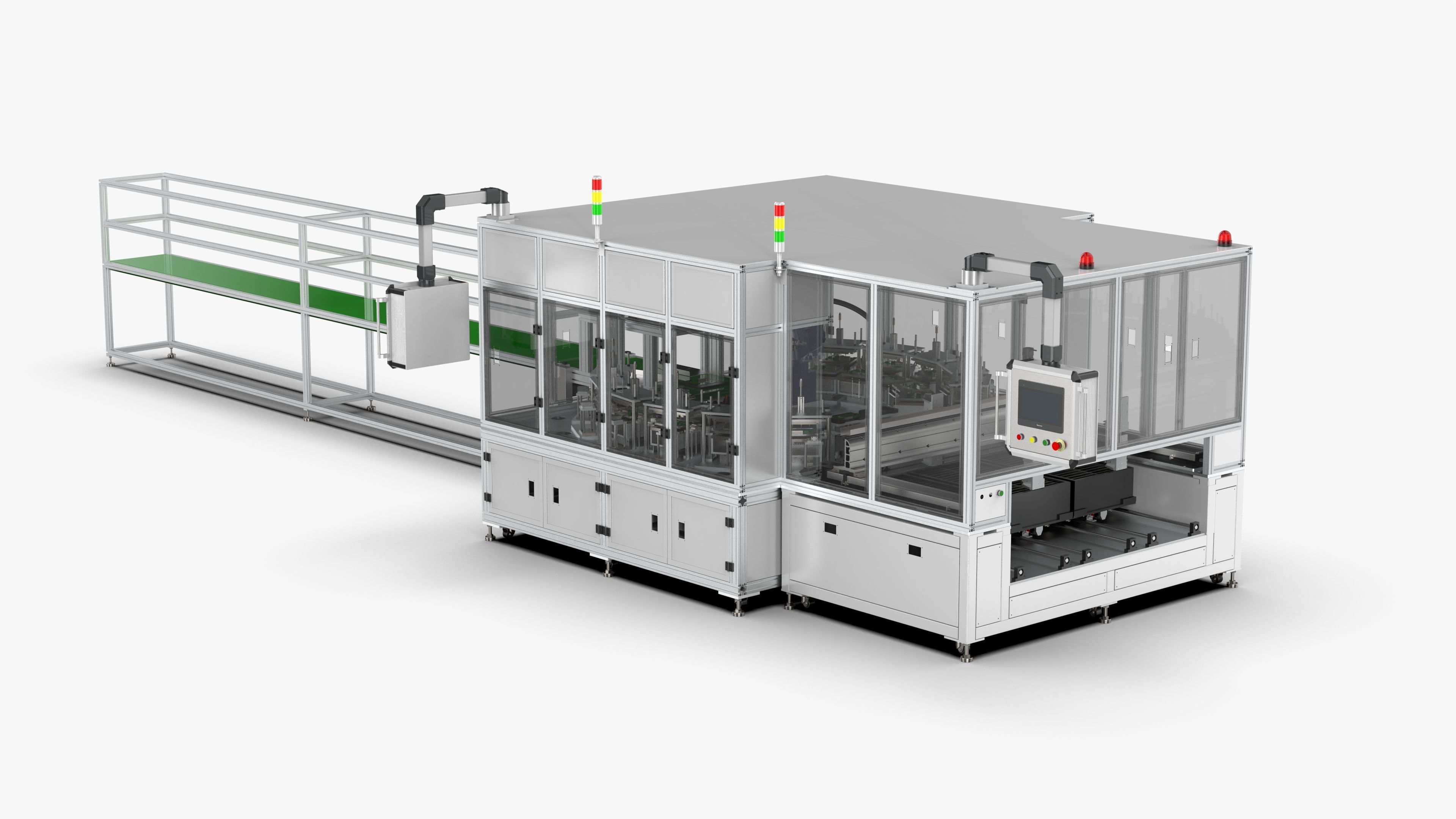

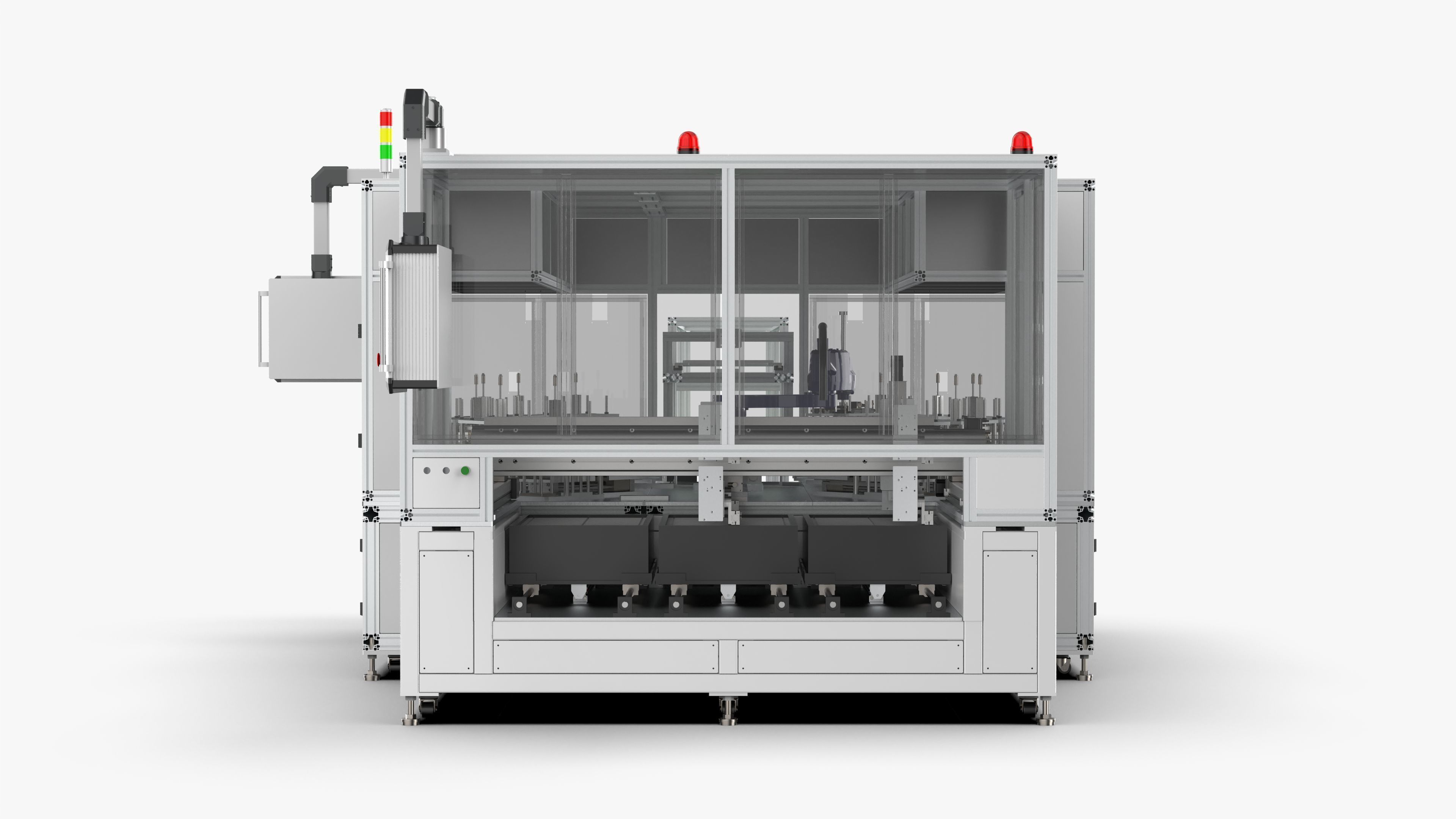

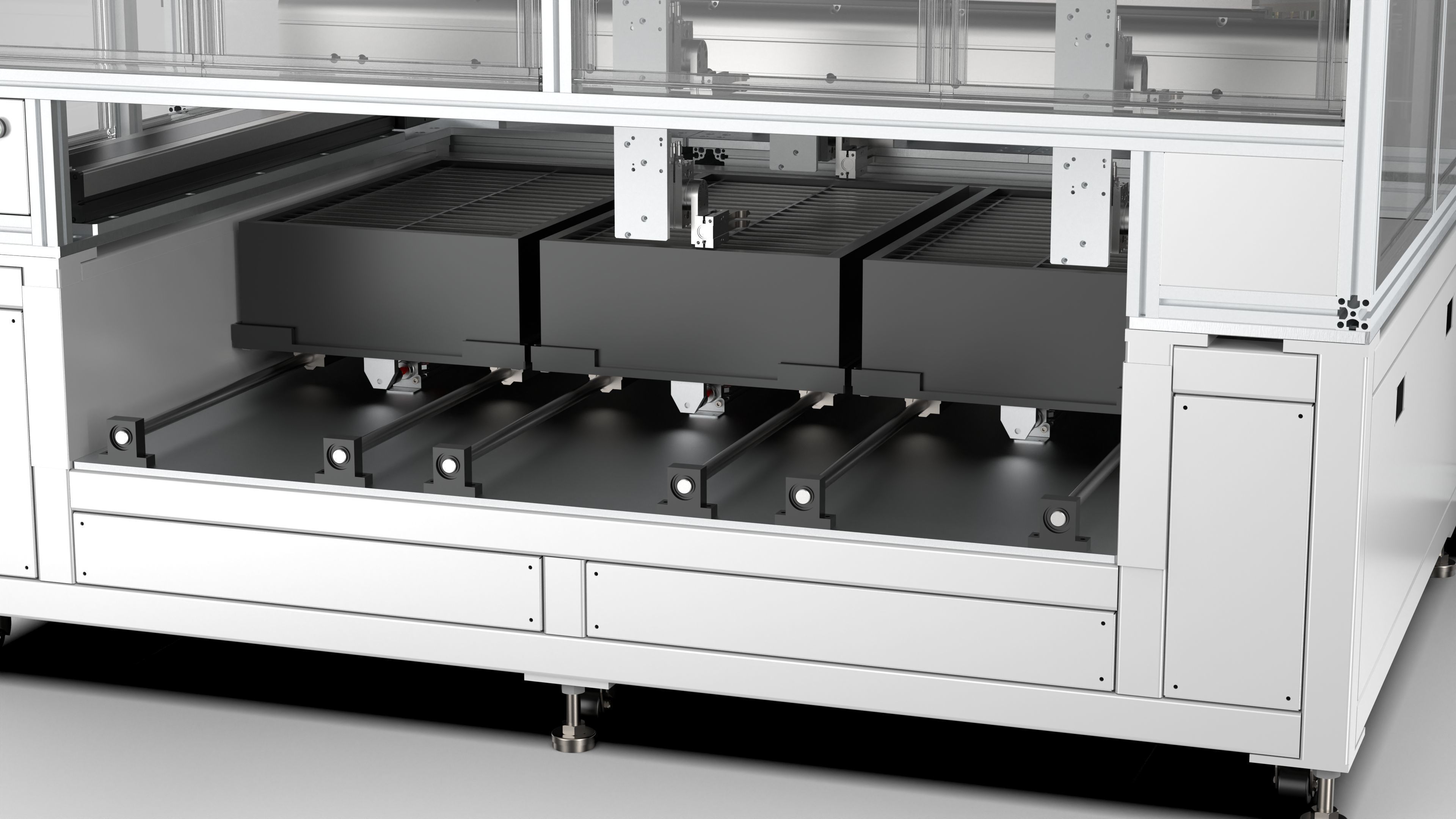

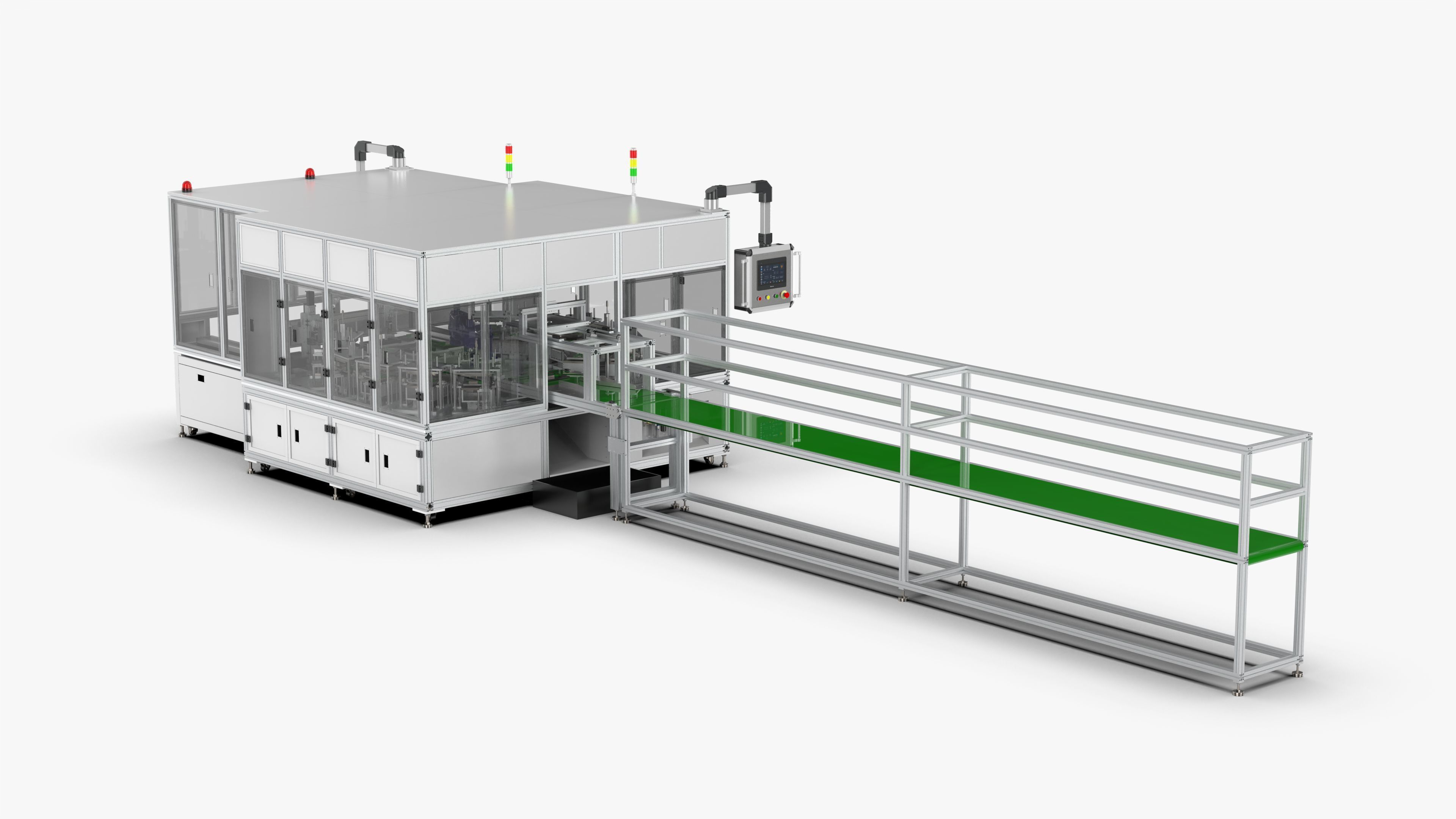

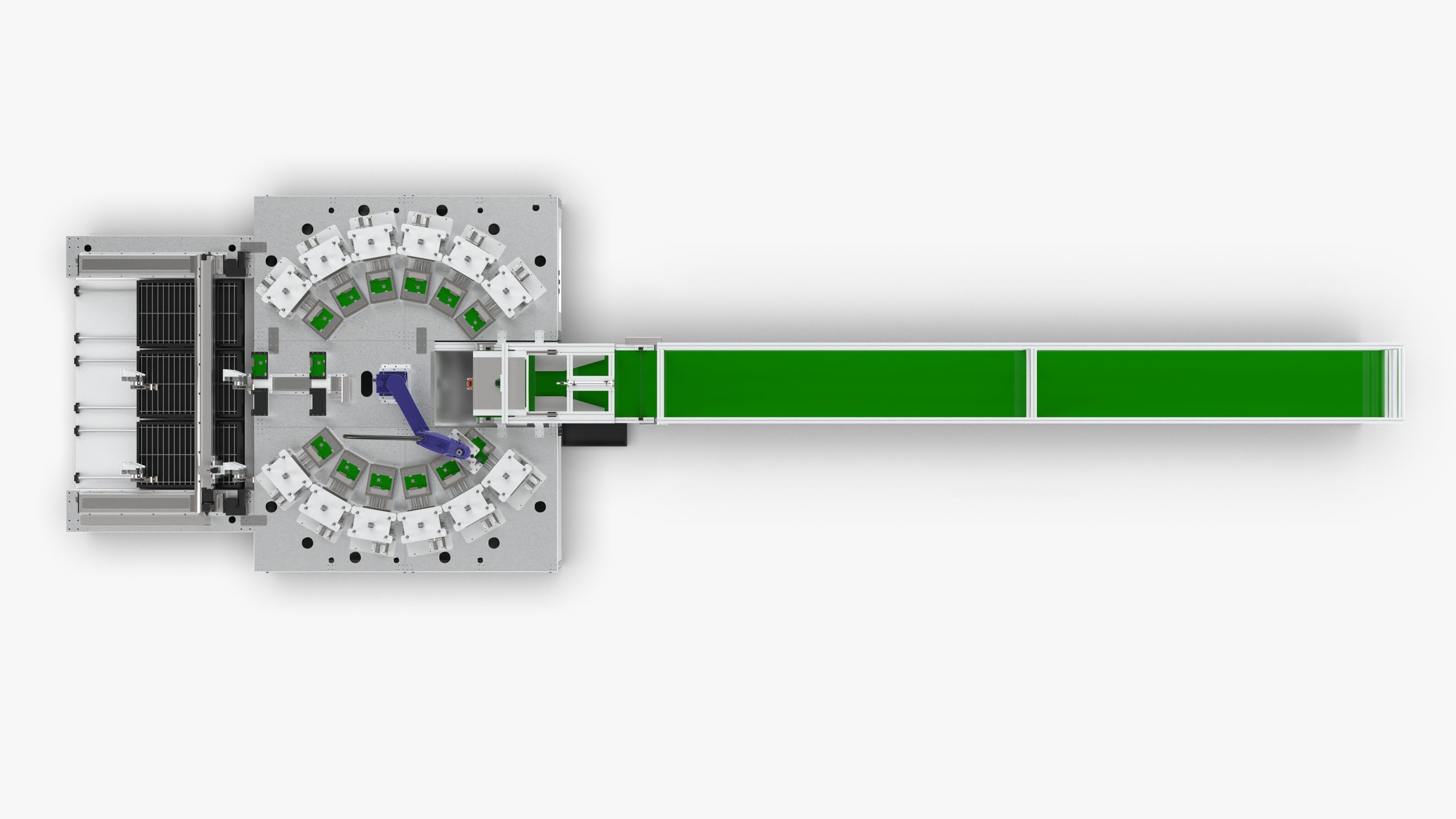

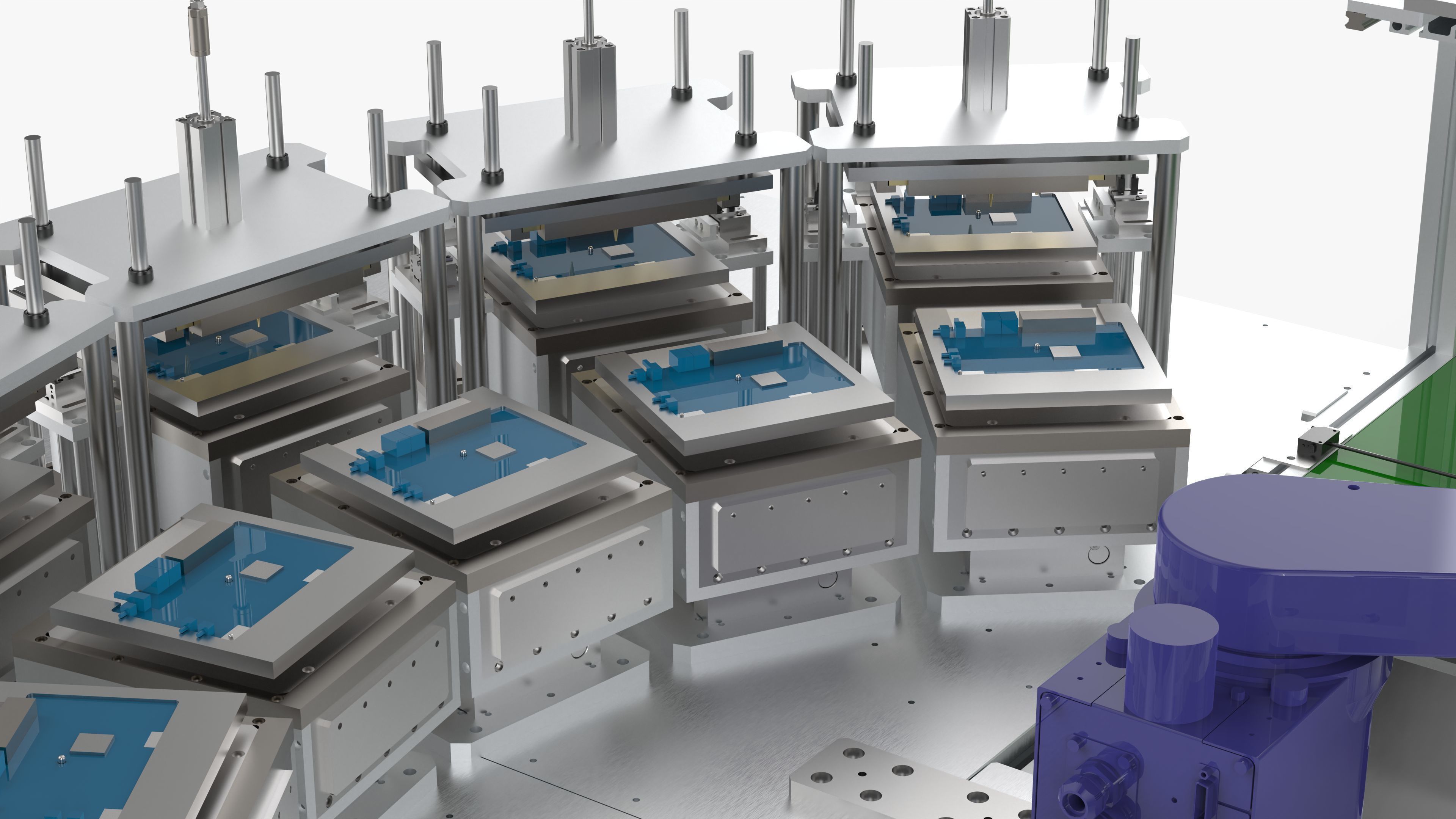

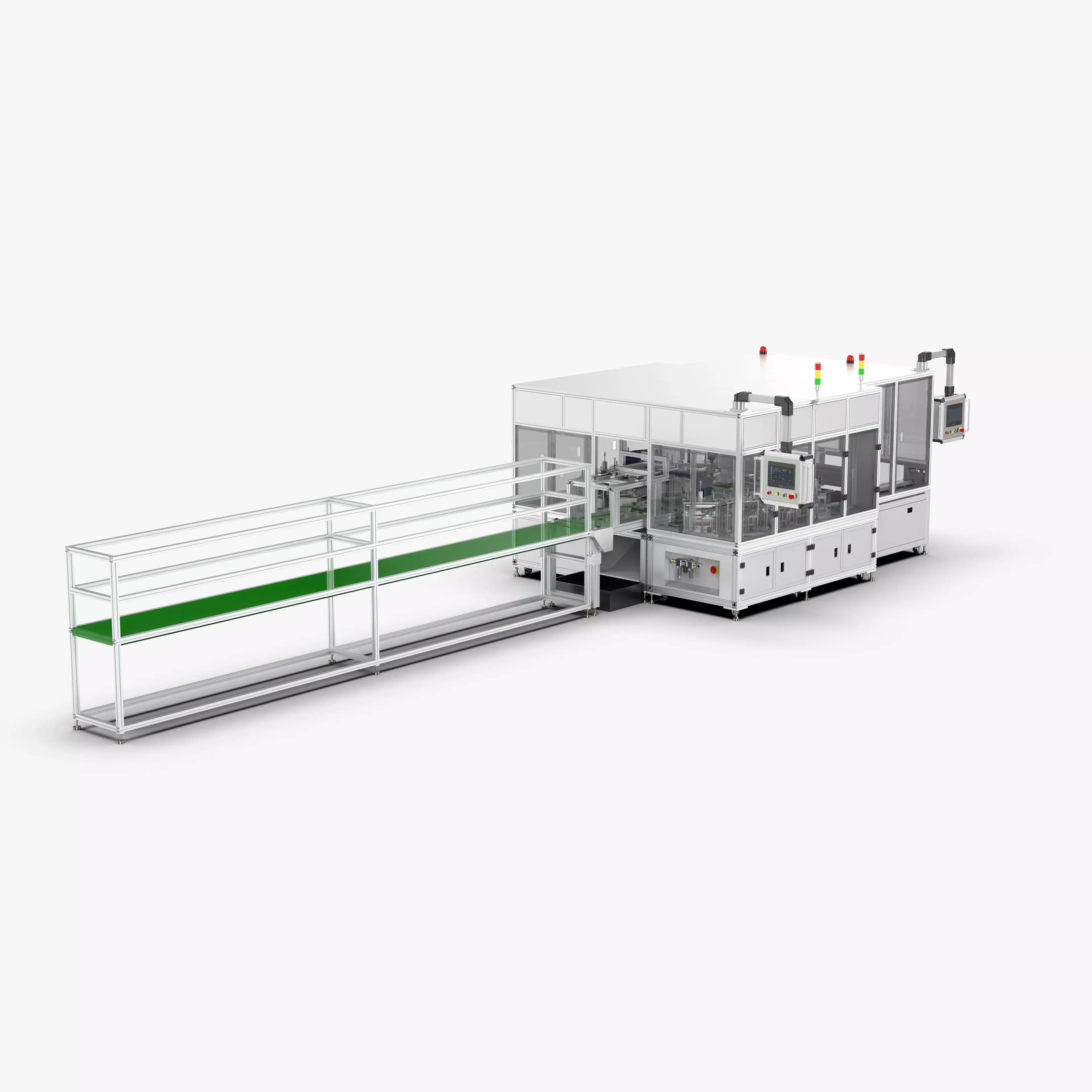

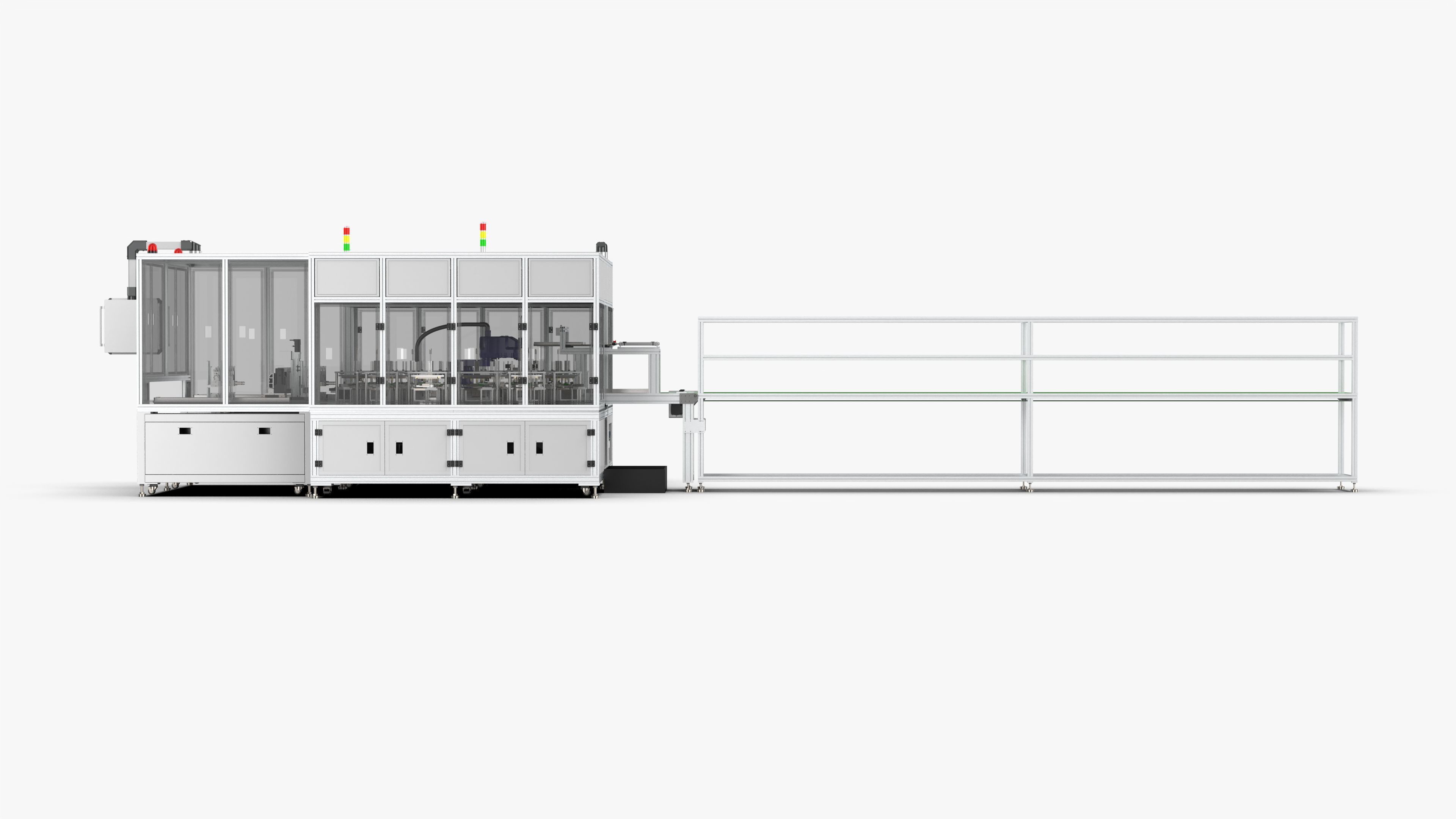

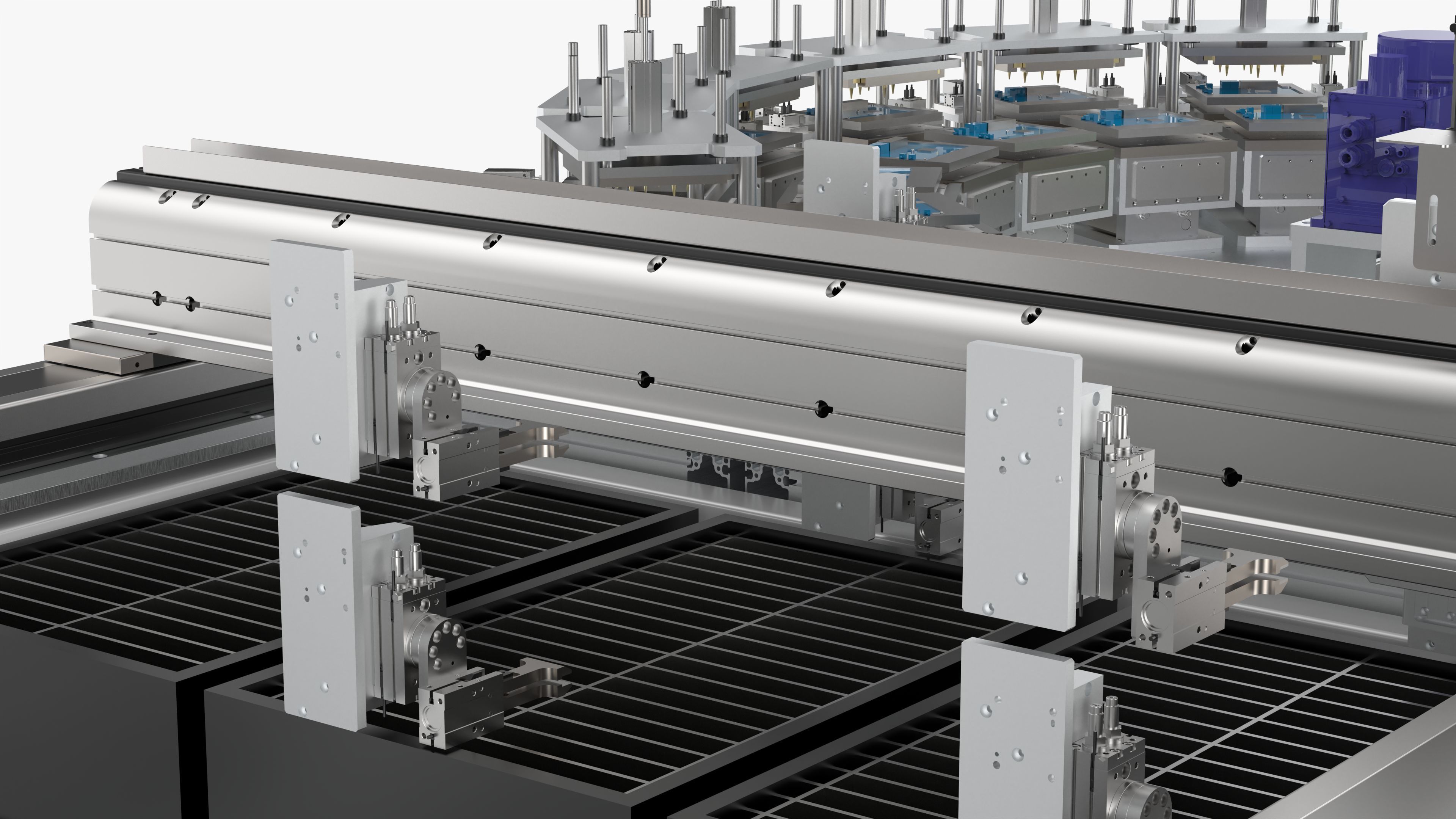

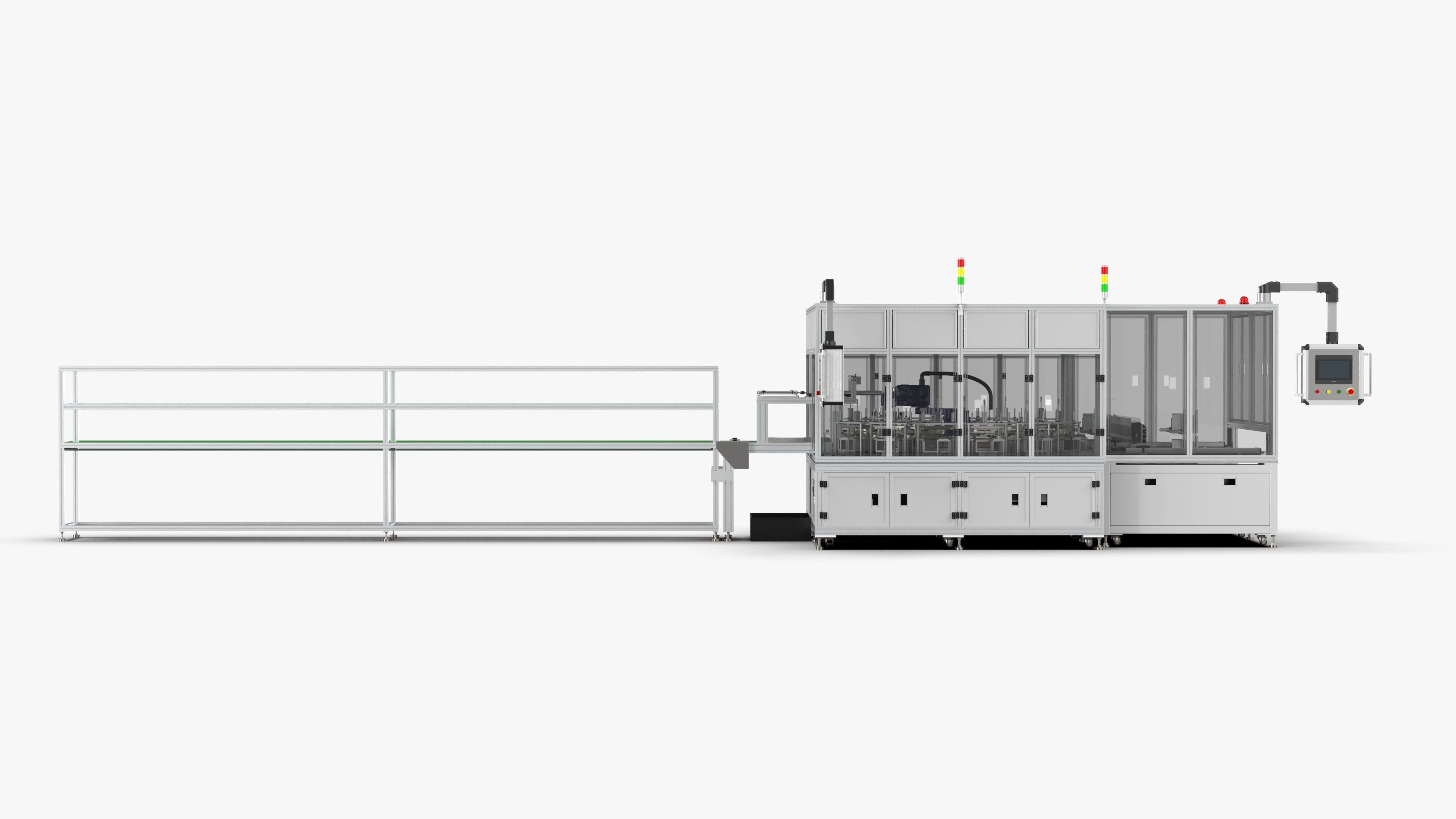

The 3D model of the complex optical cat circuit board automatic handling and testing equipment This set of complete non-standard equipment drawings is designed with SolidWorks. Its main functions are robot handling of circuit boards, visual inspection, product testing, and finally finished product blanking. The structure of the drawing is very complicated and worth learning.

Welcome to place an order for reference.
