DESCRIPTION

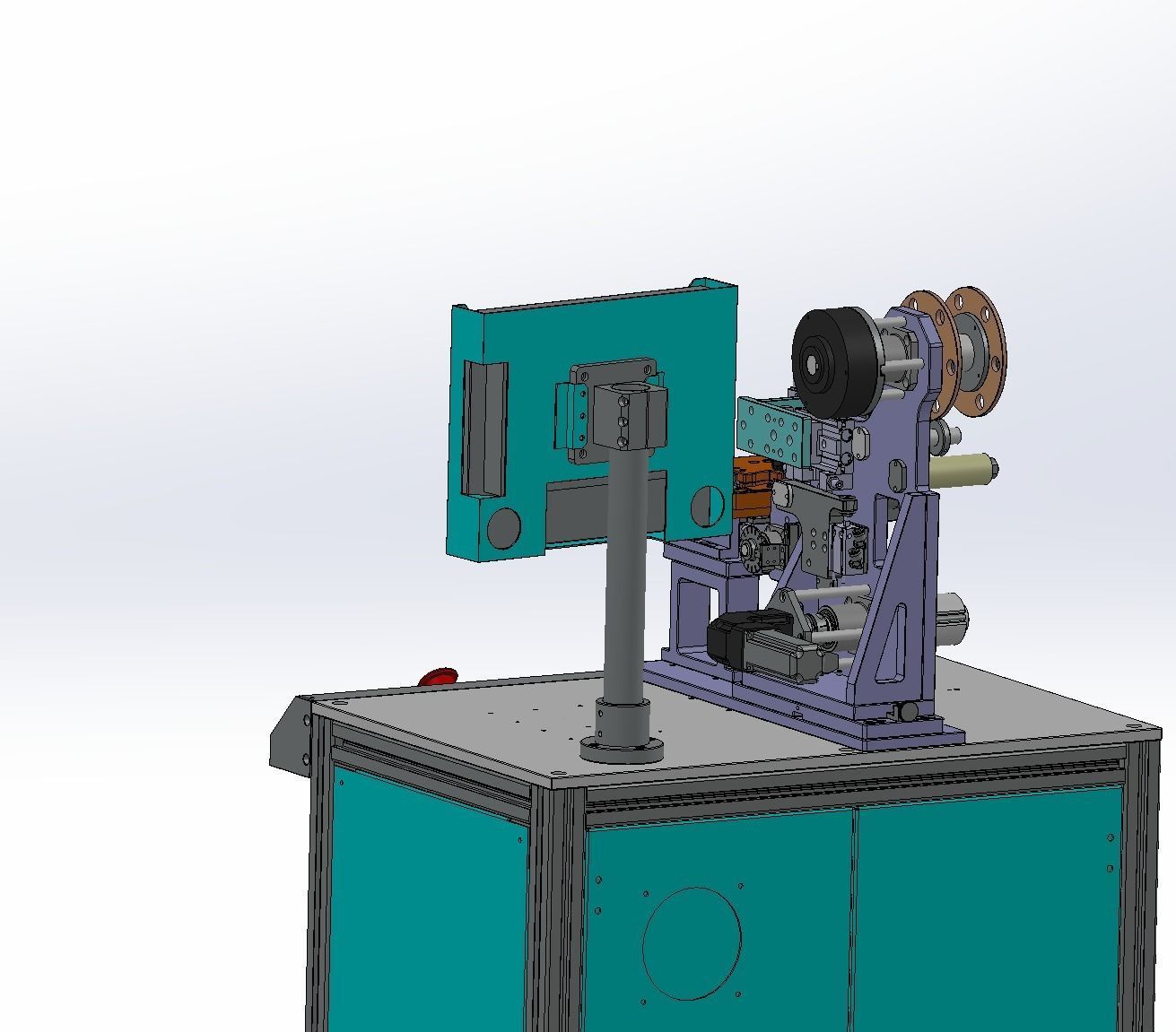

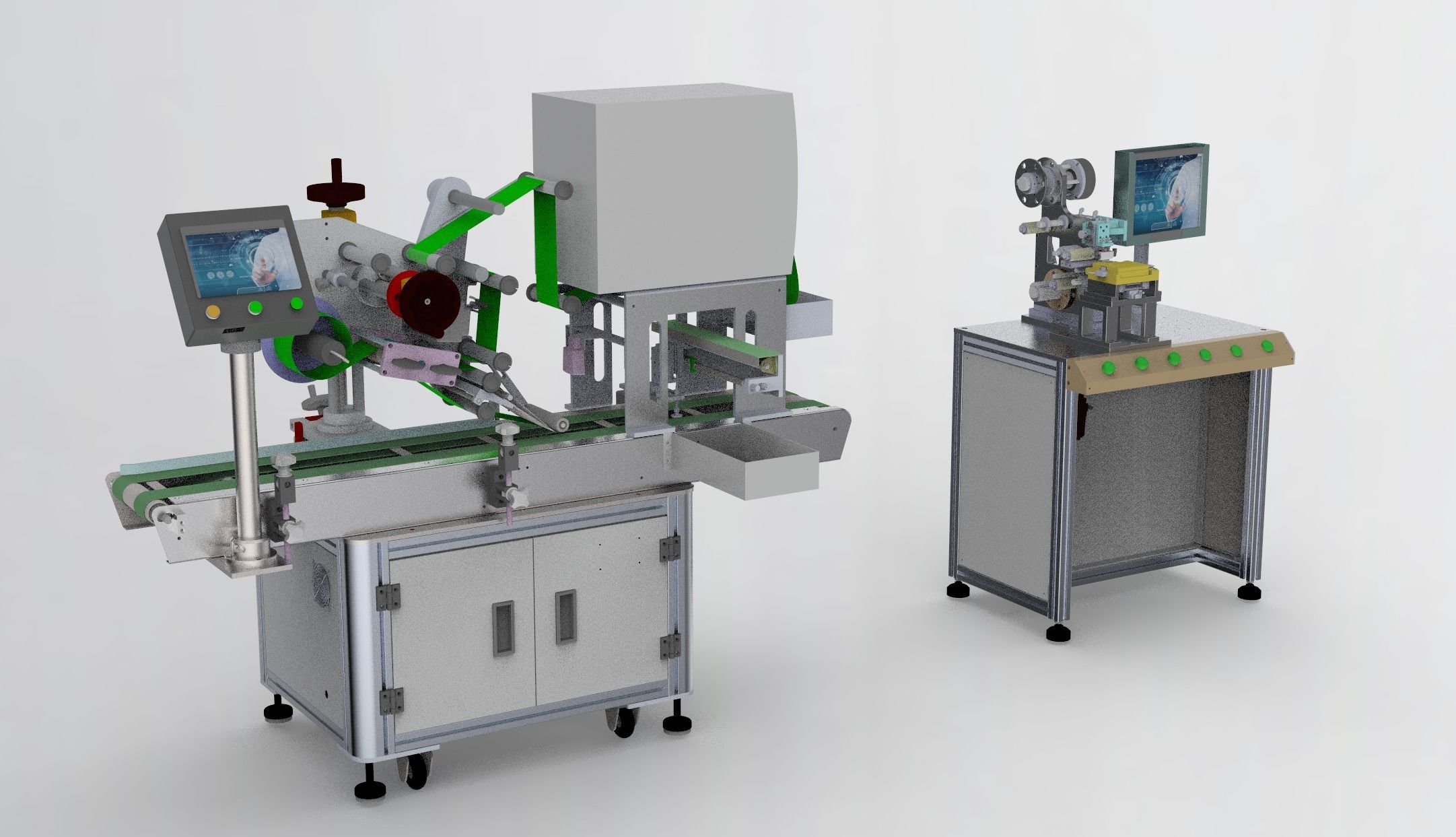

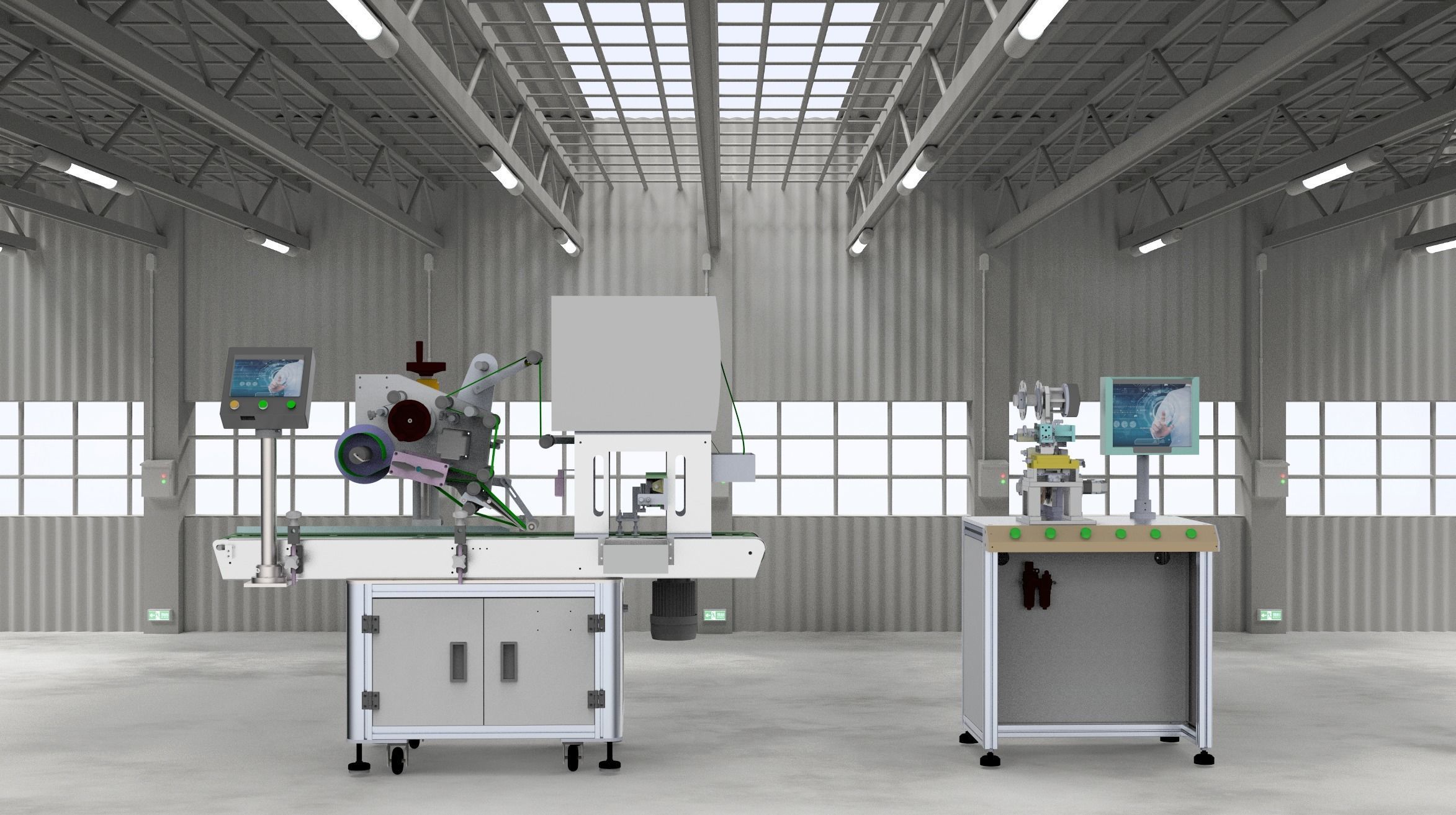

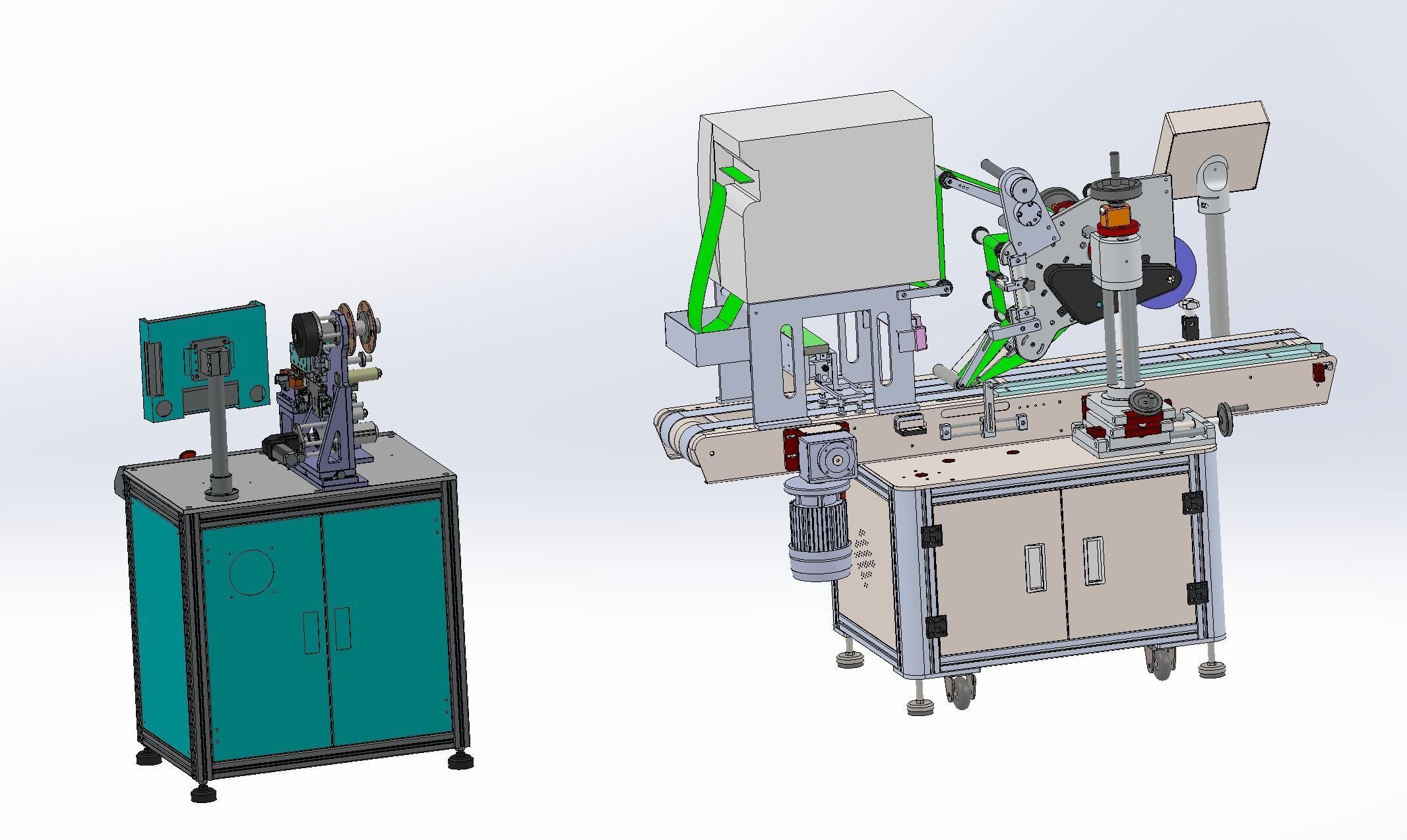

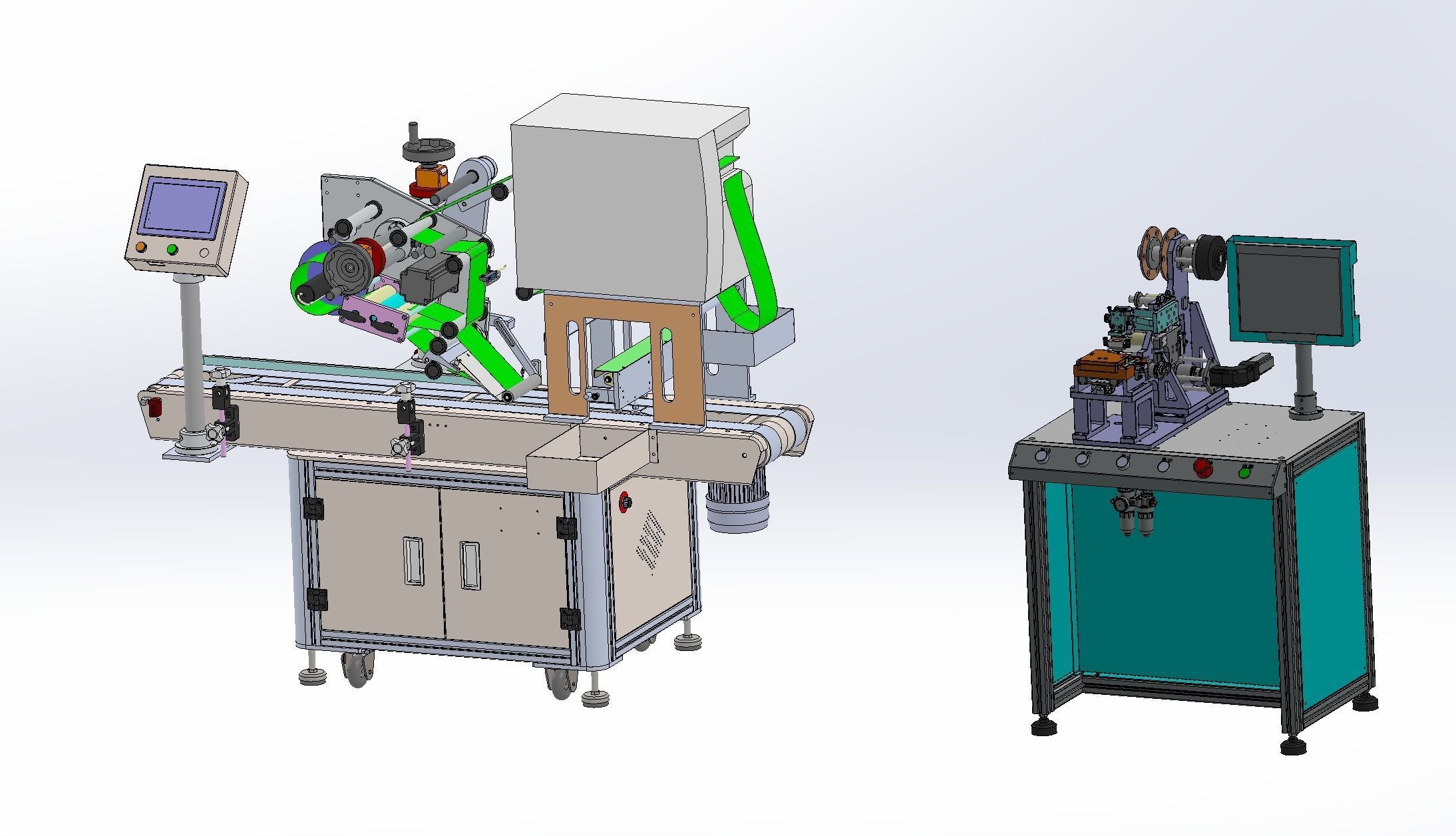

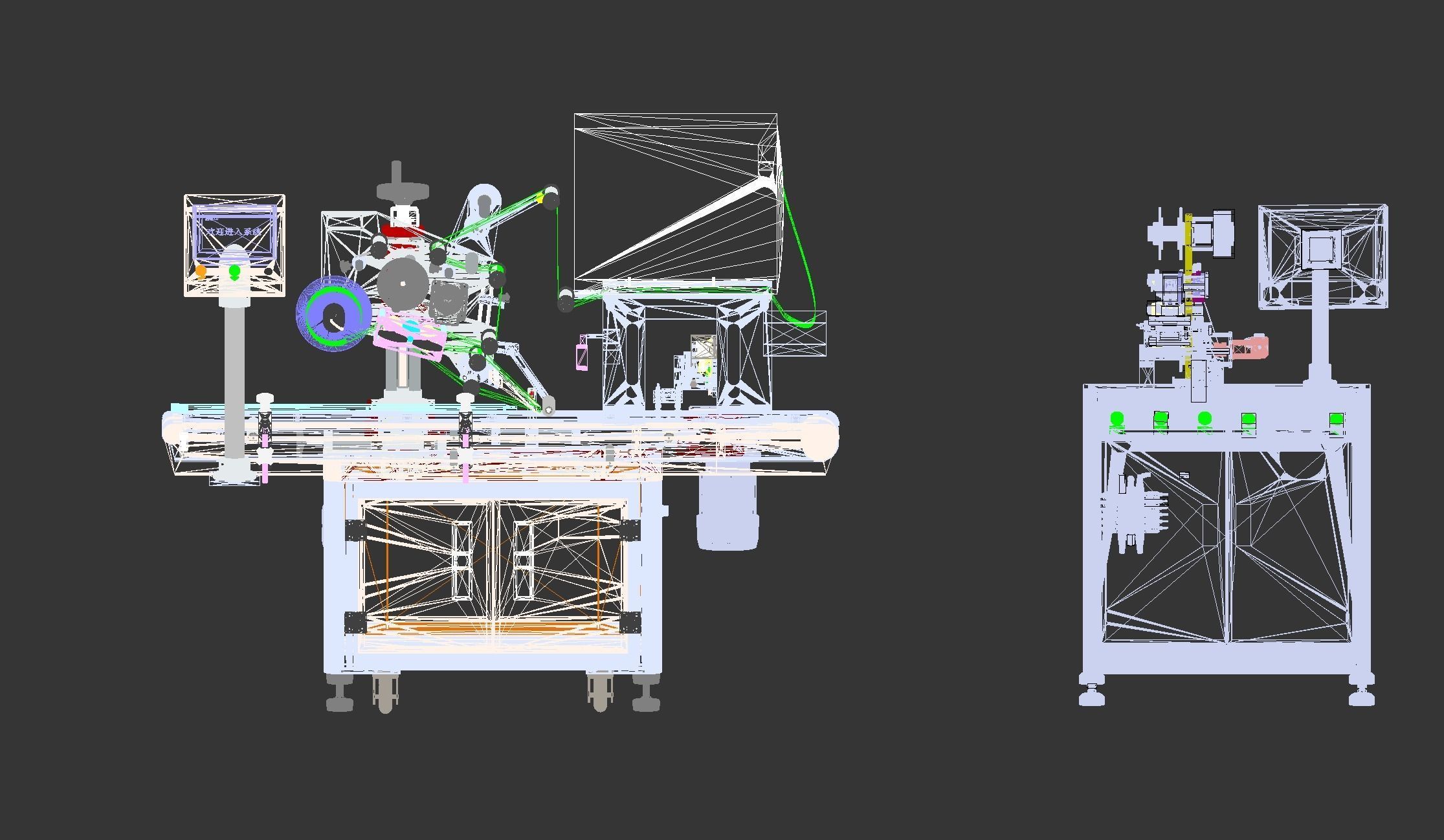

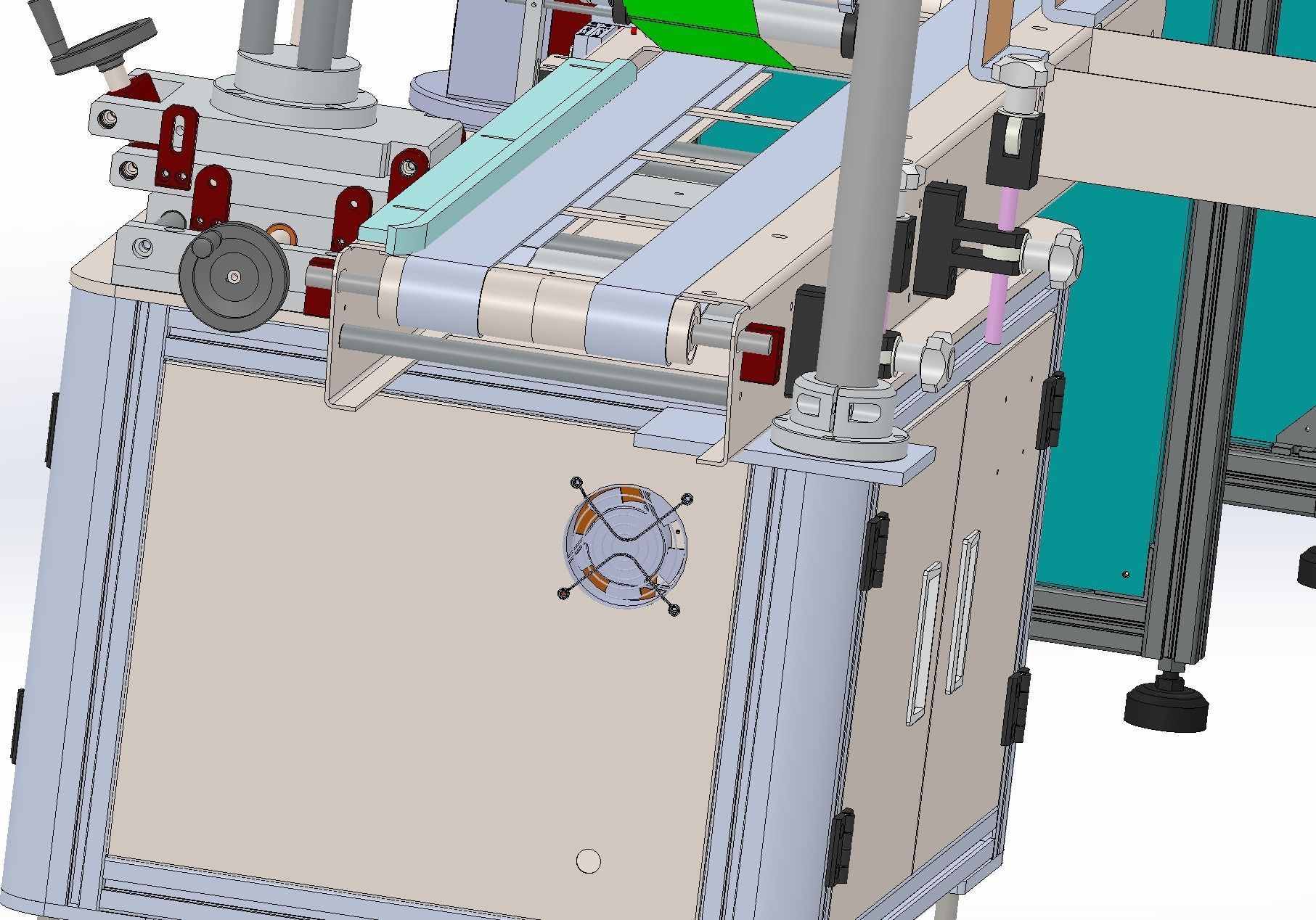

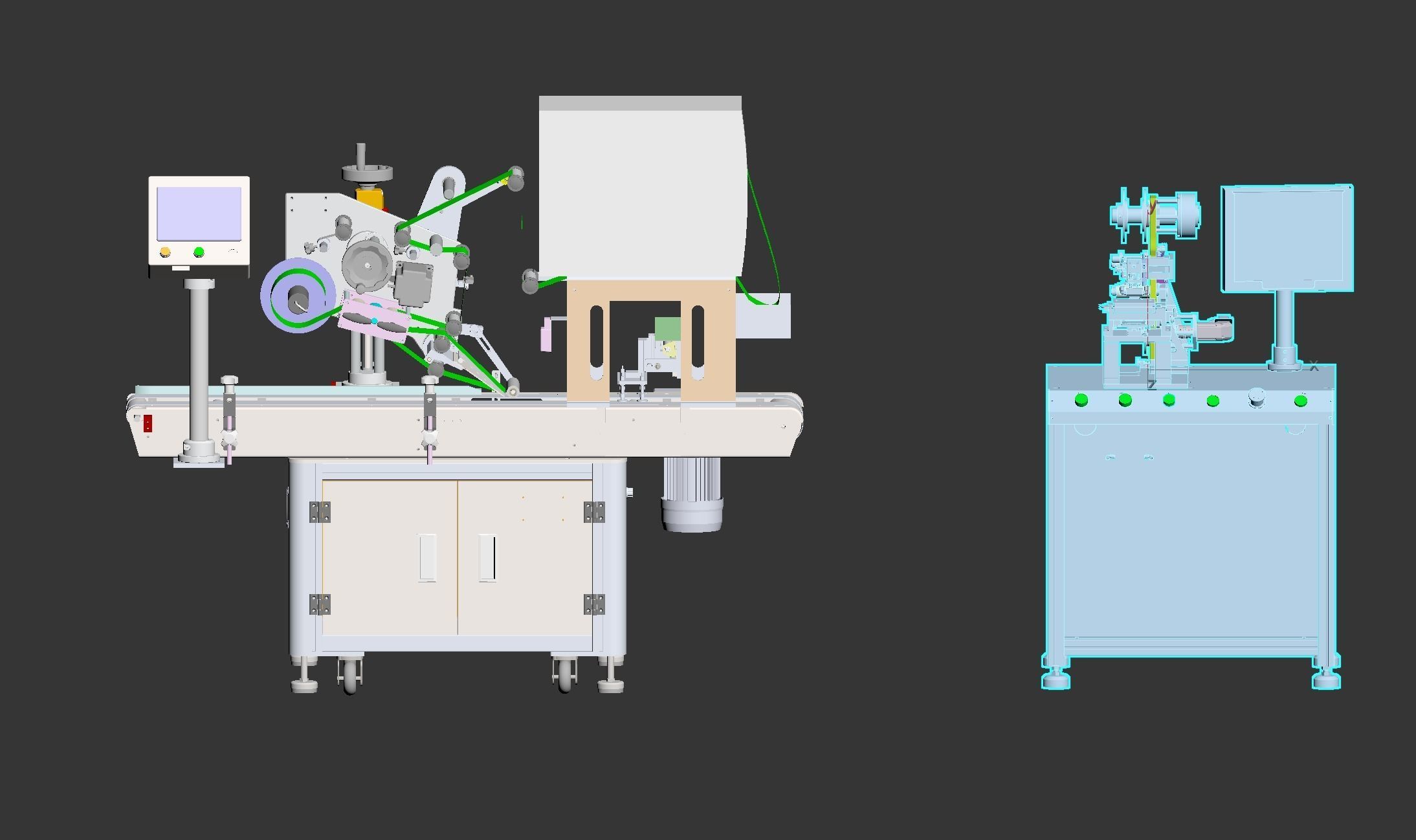

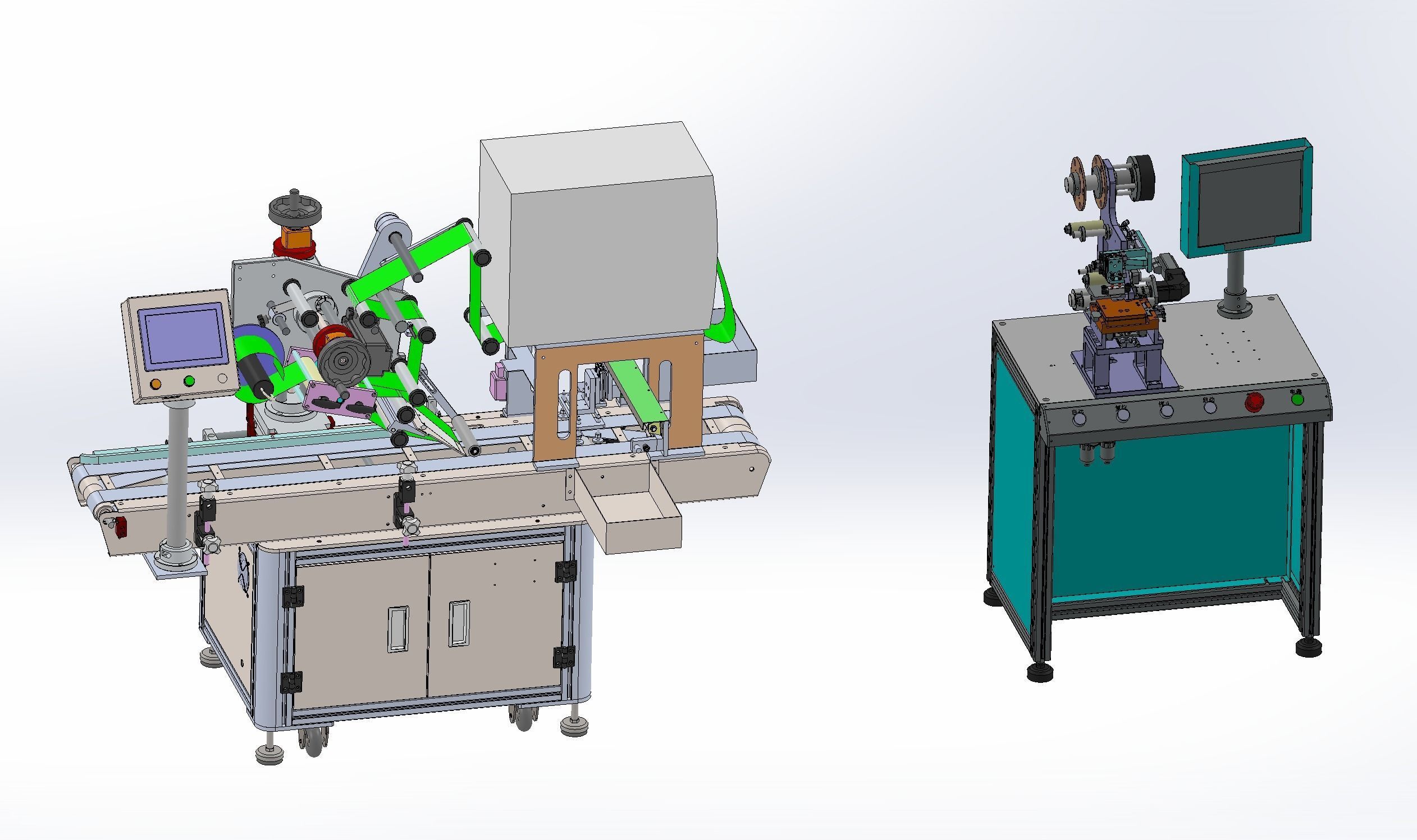

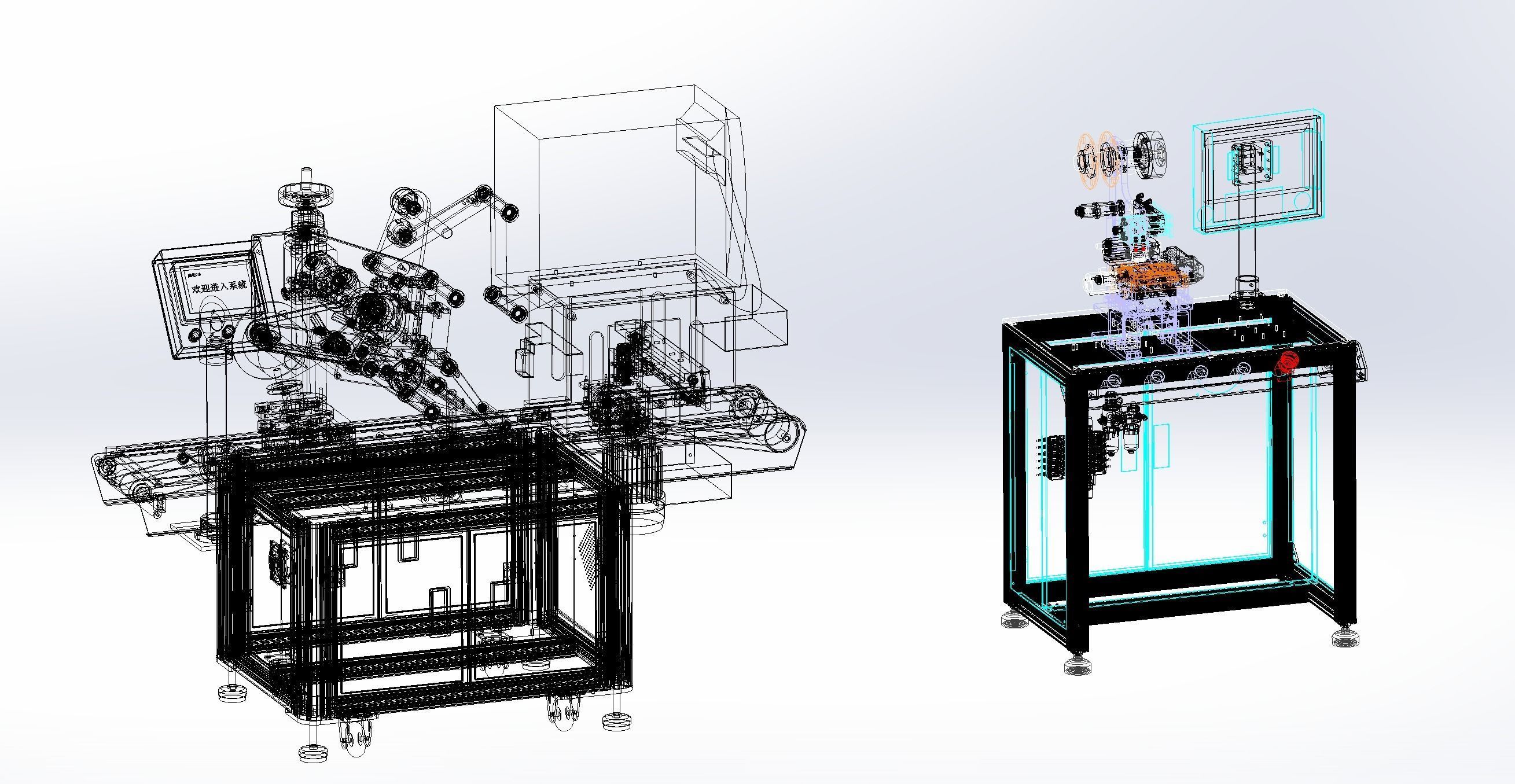

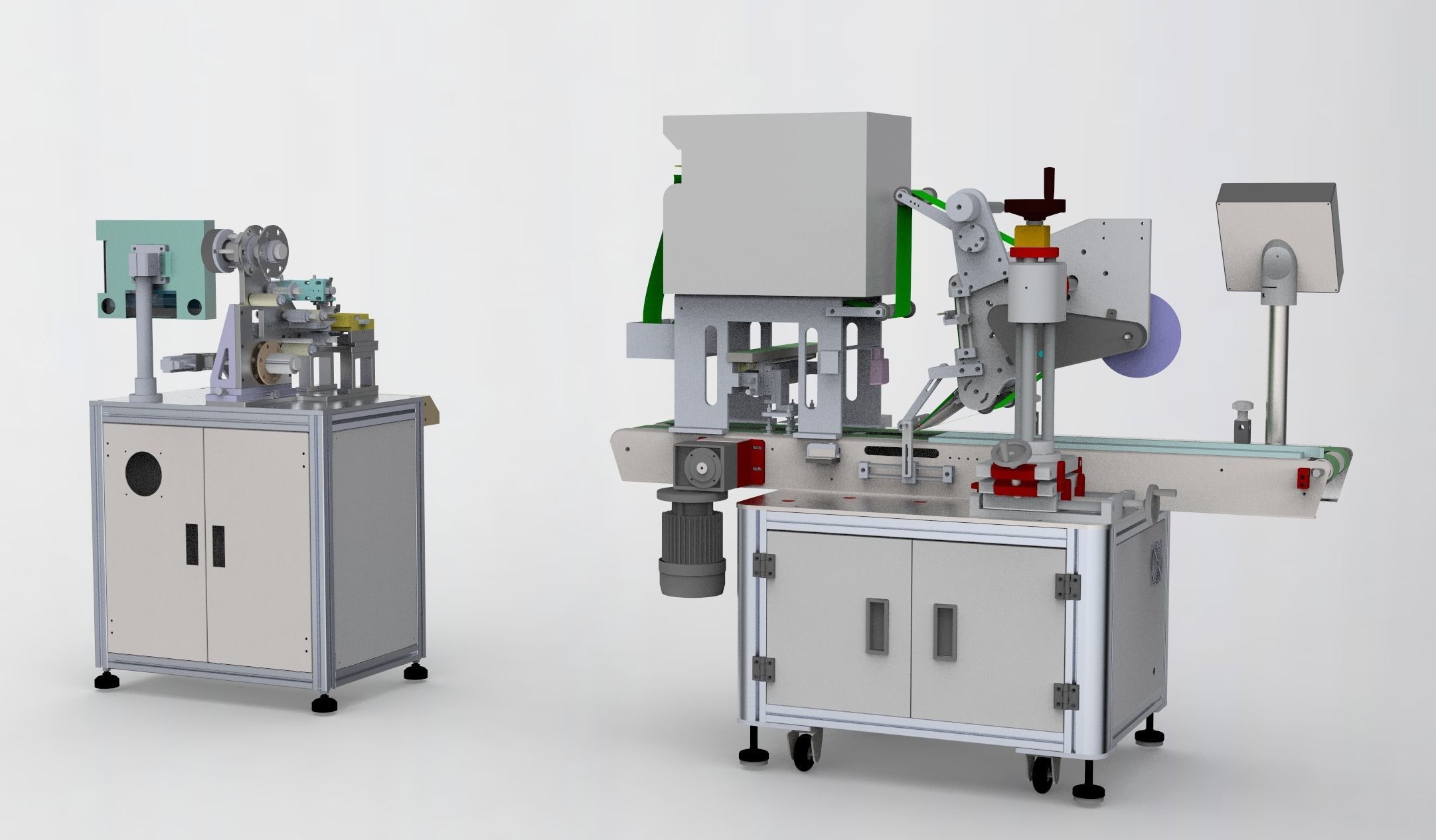

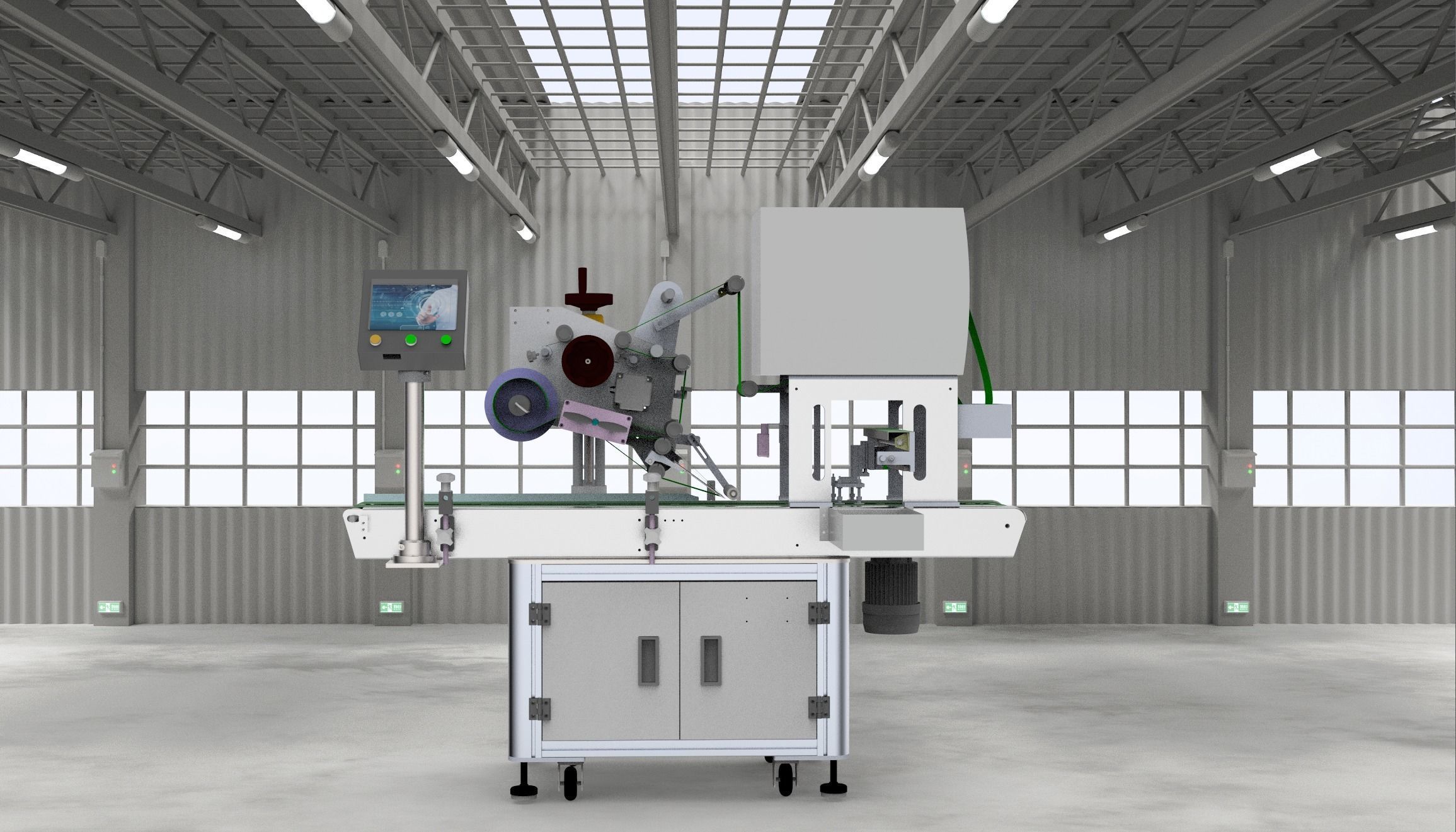

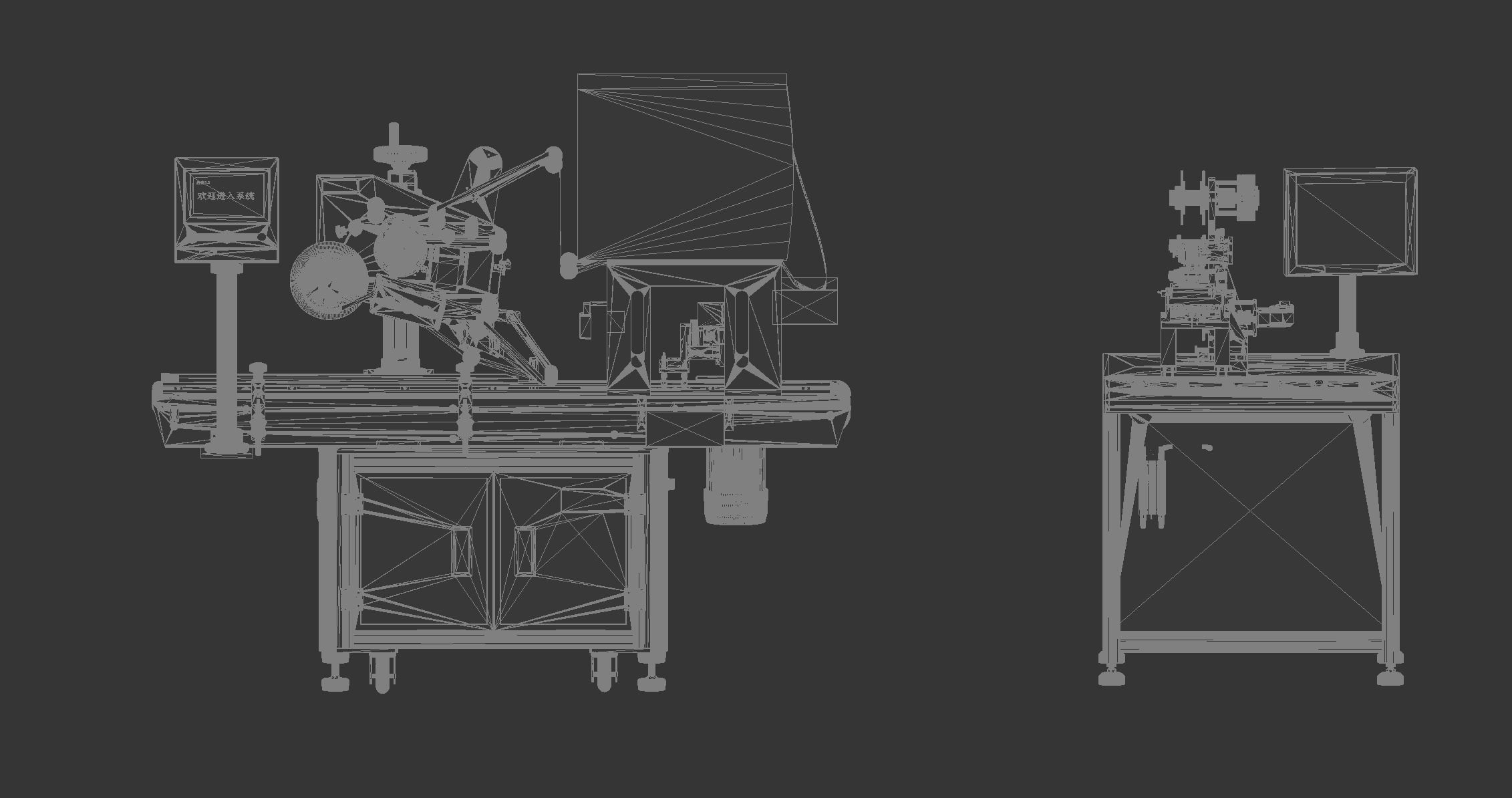

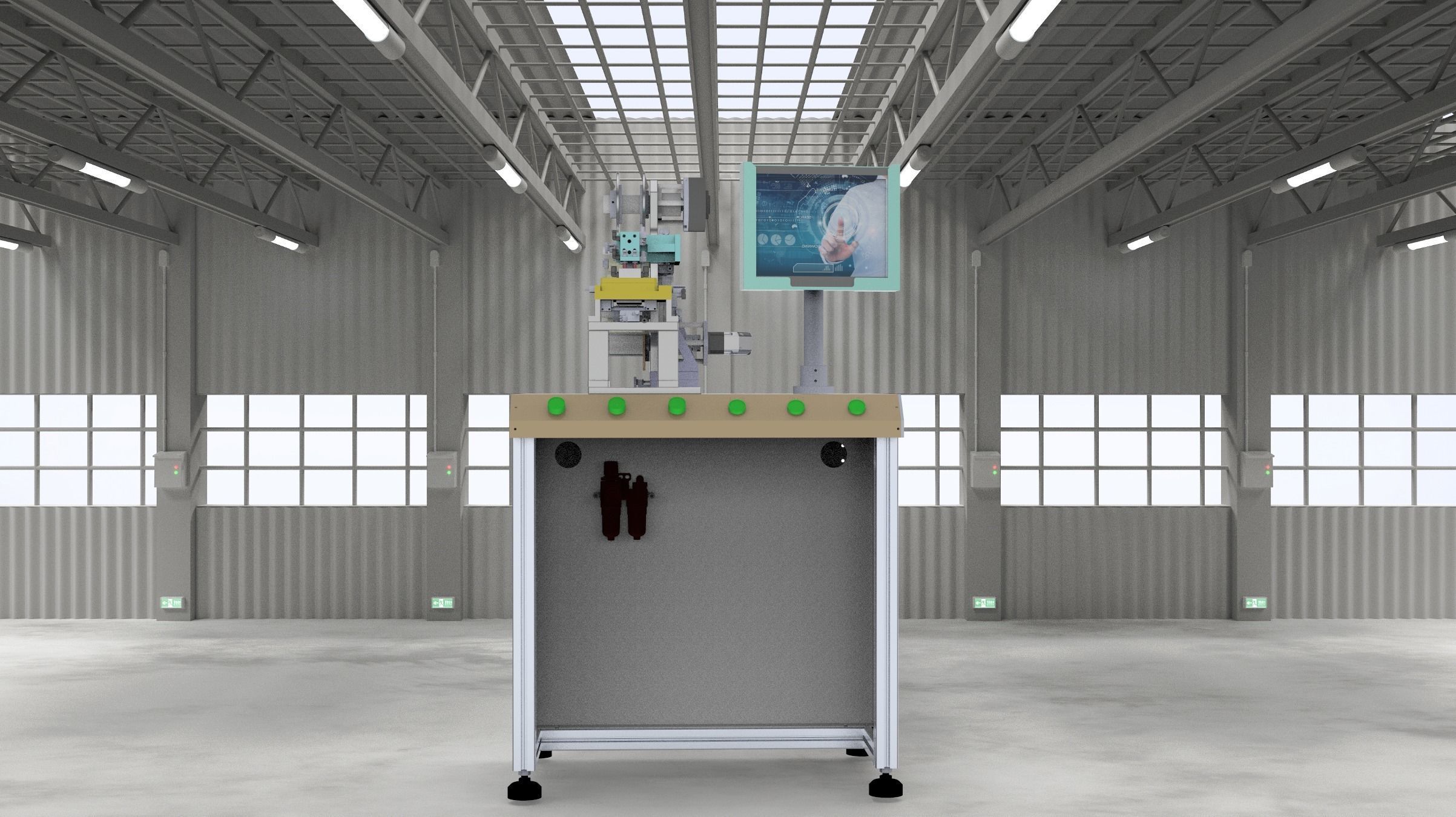

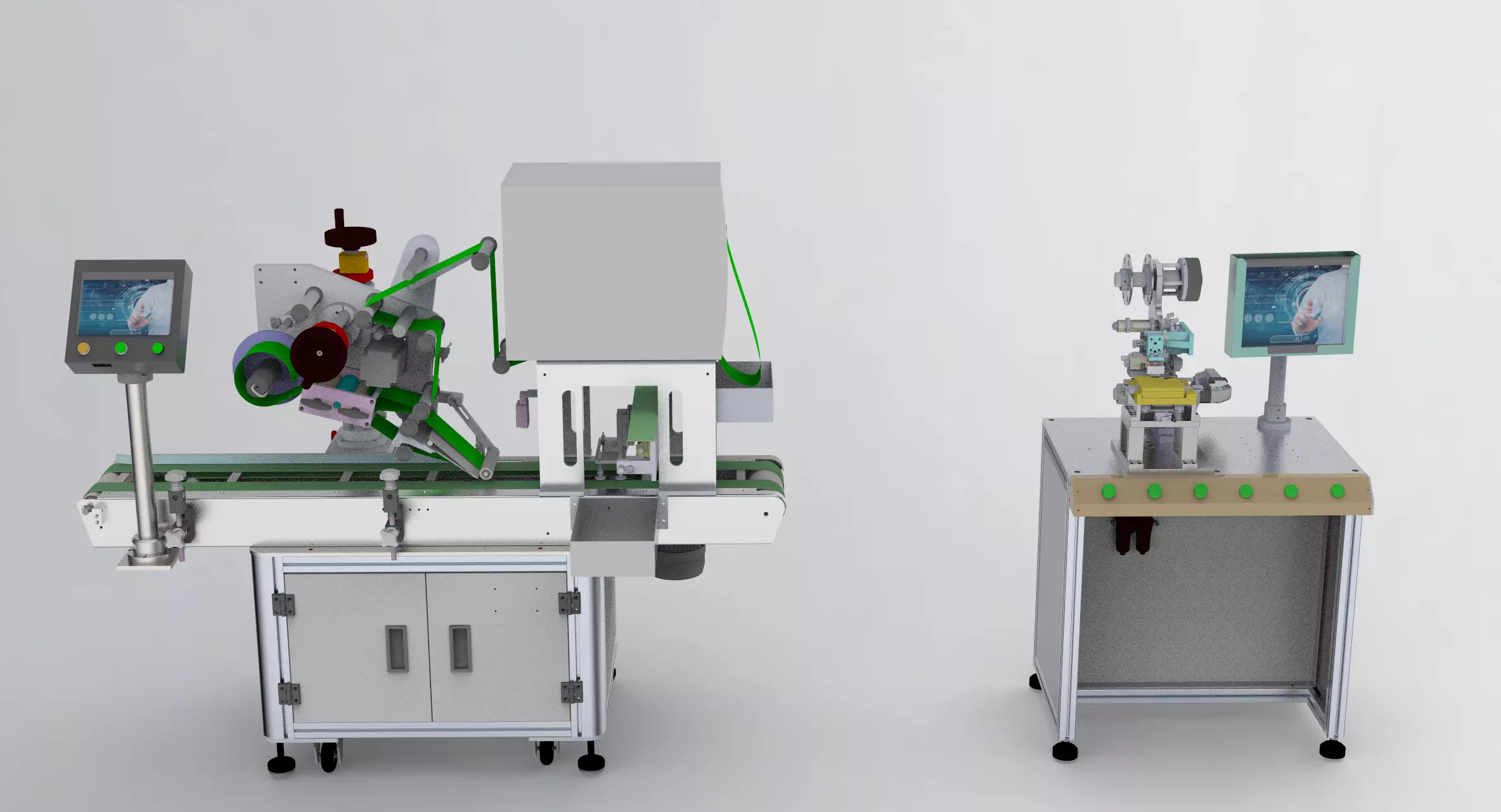

Assembly of laminating machines

Includes: labeling machine, laminating machine

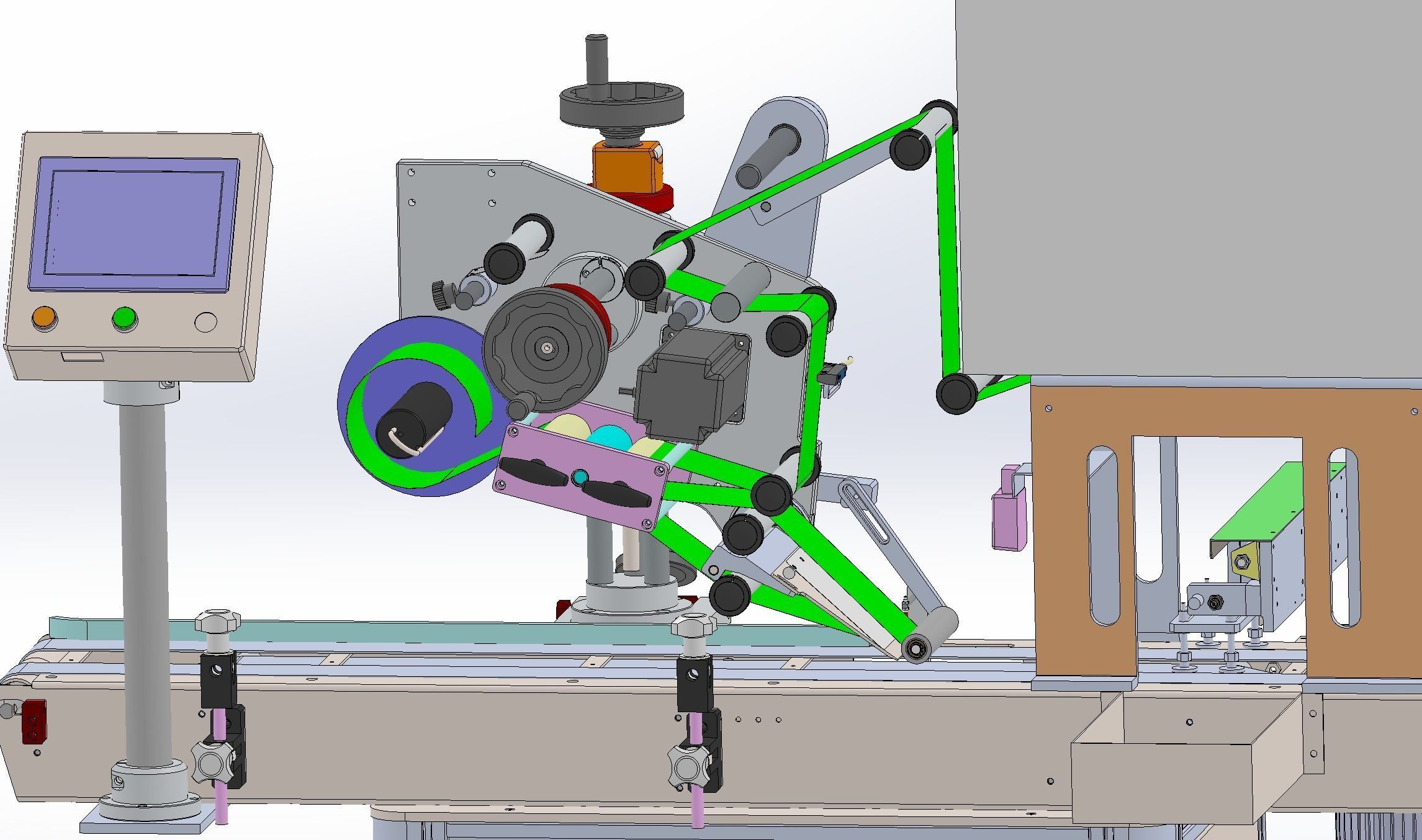

The label or diaphragm can be attached to the product by means of roller pressing

The mechanism includes:

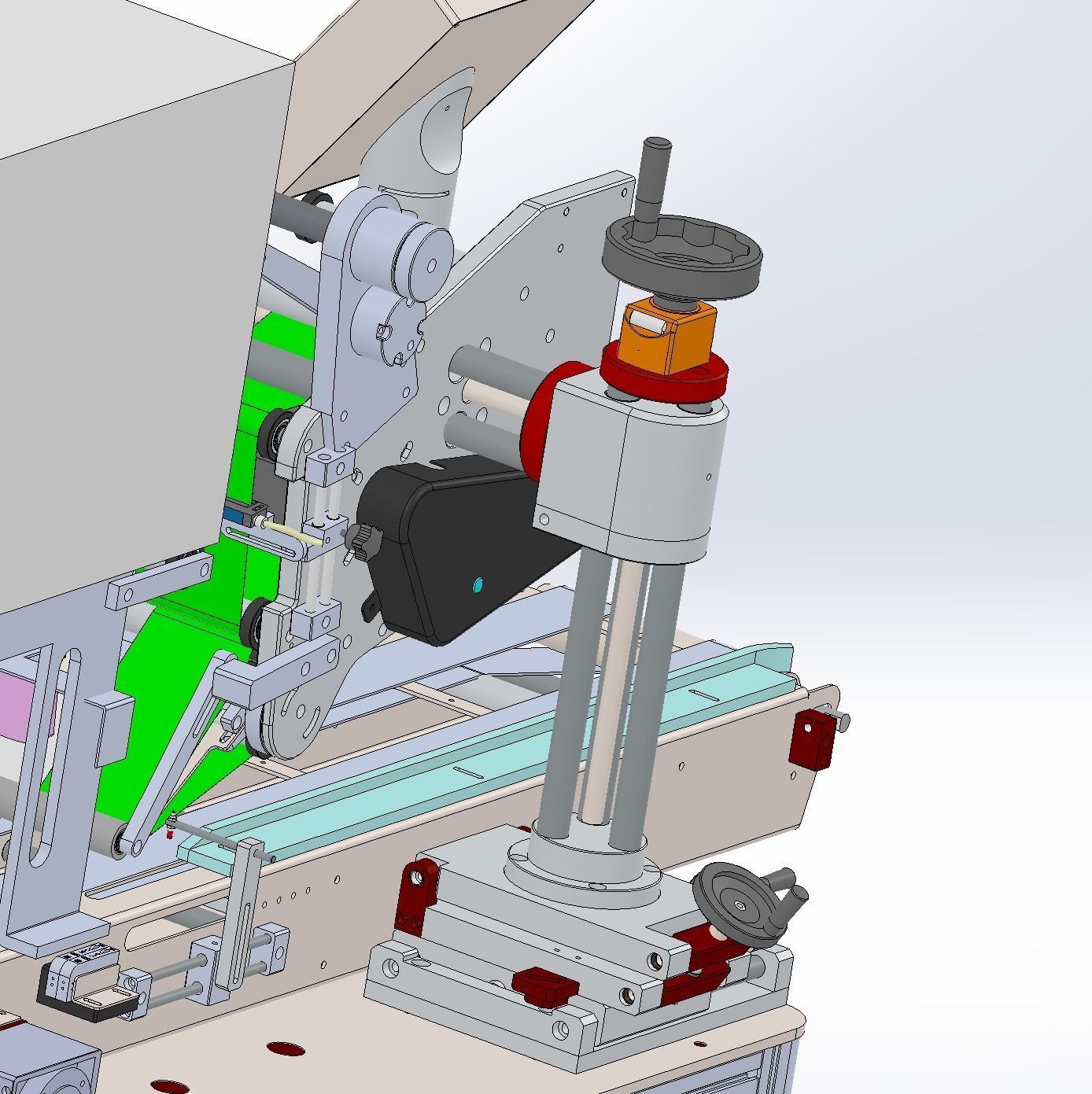

  1. Roller pressing mechanism

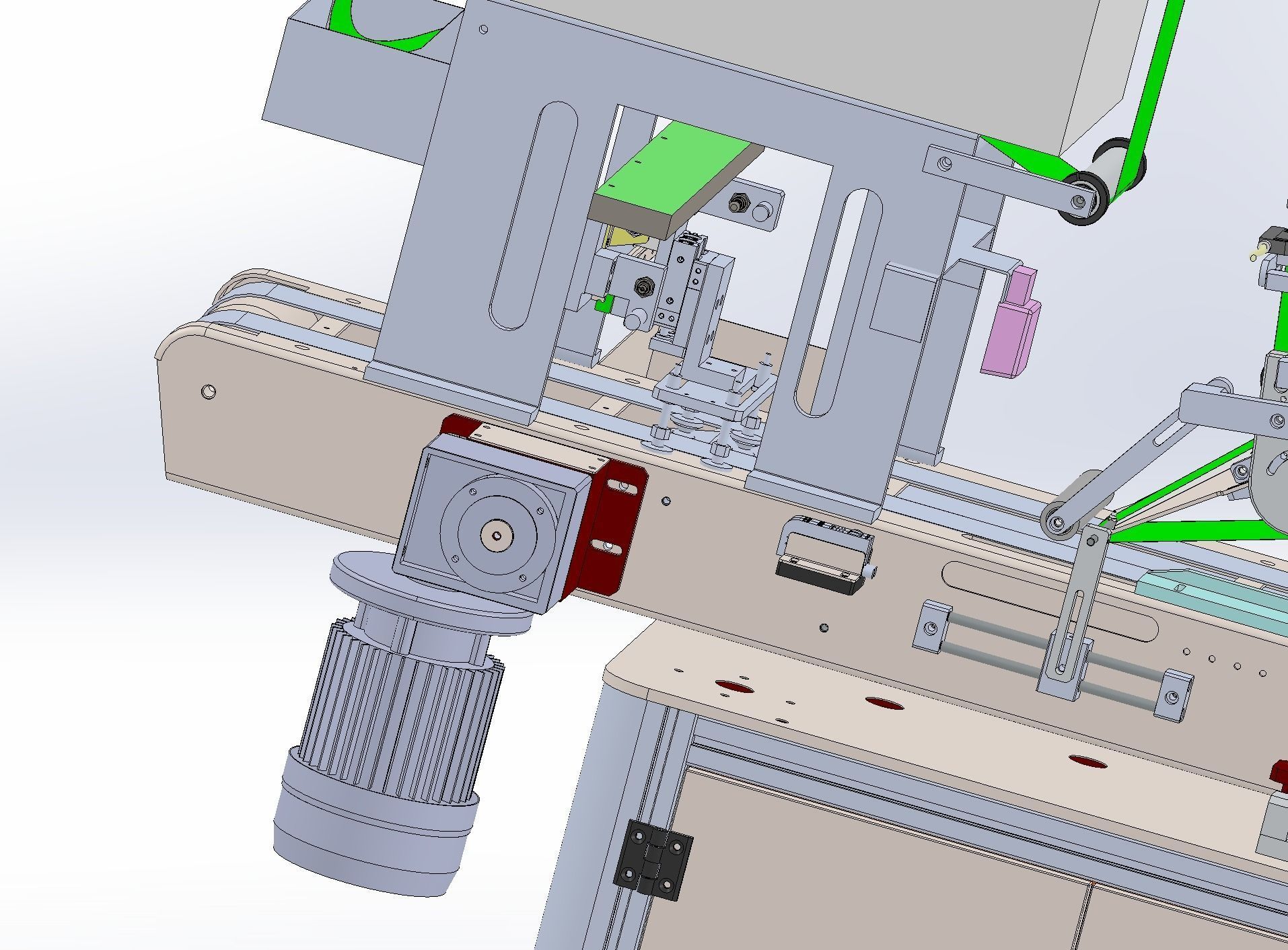

  2. Motor driving mechanism

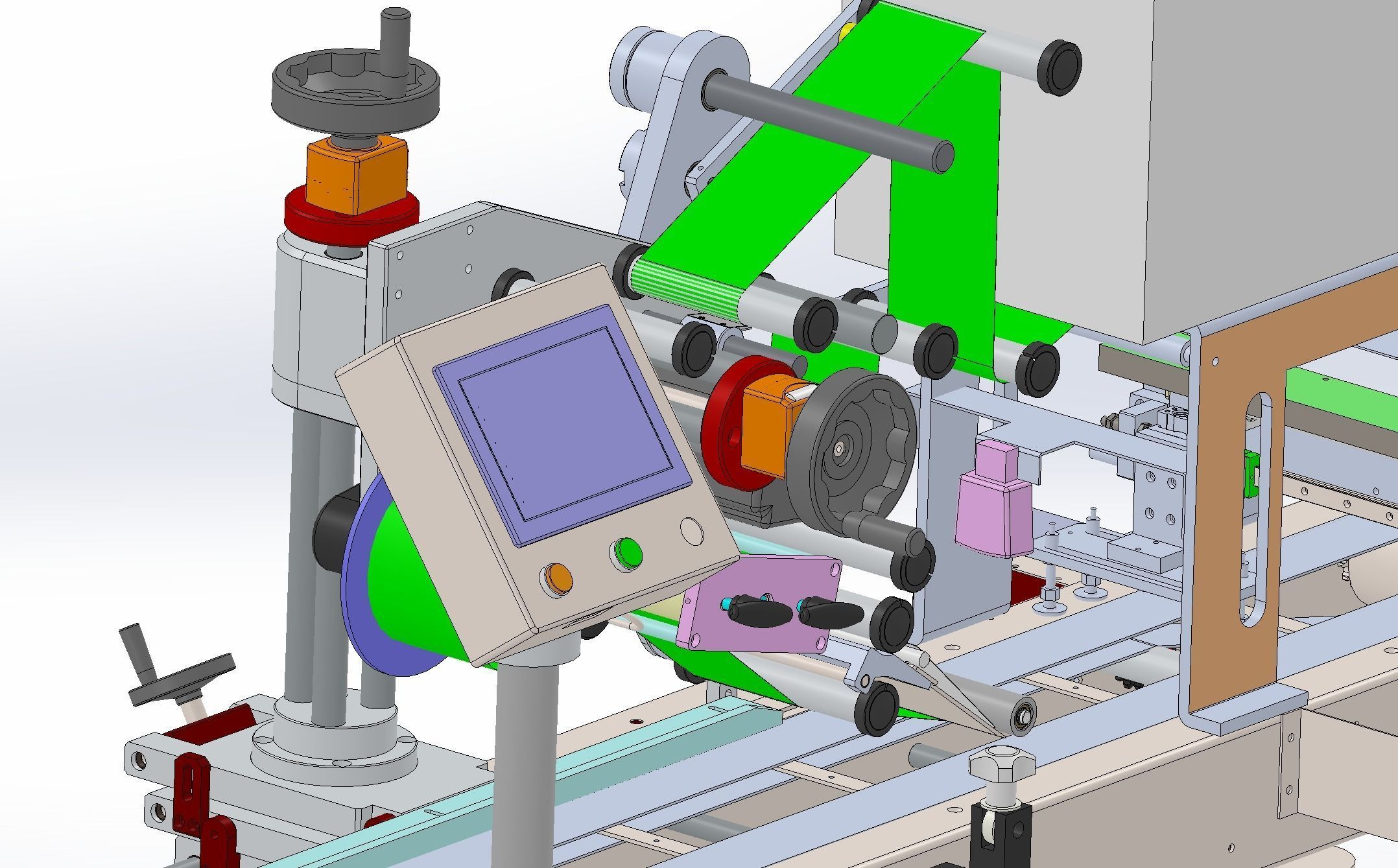

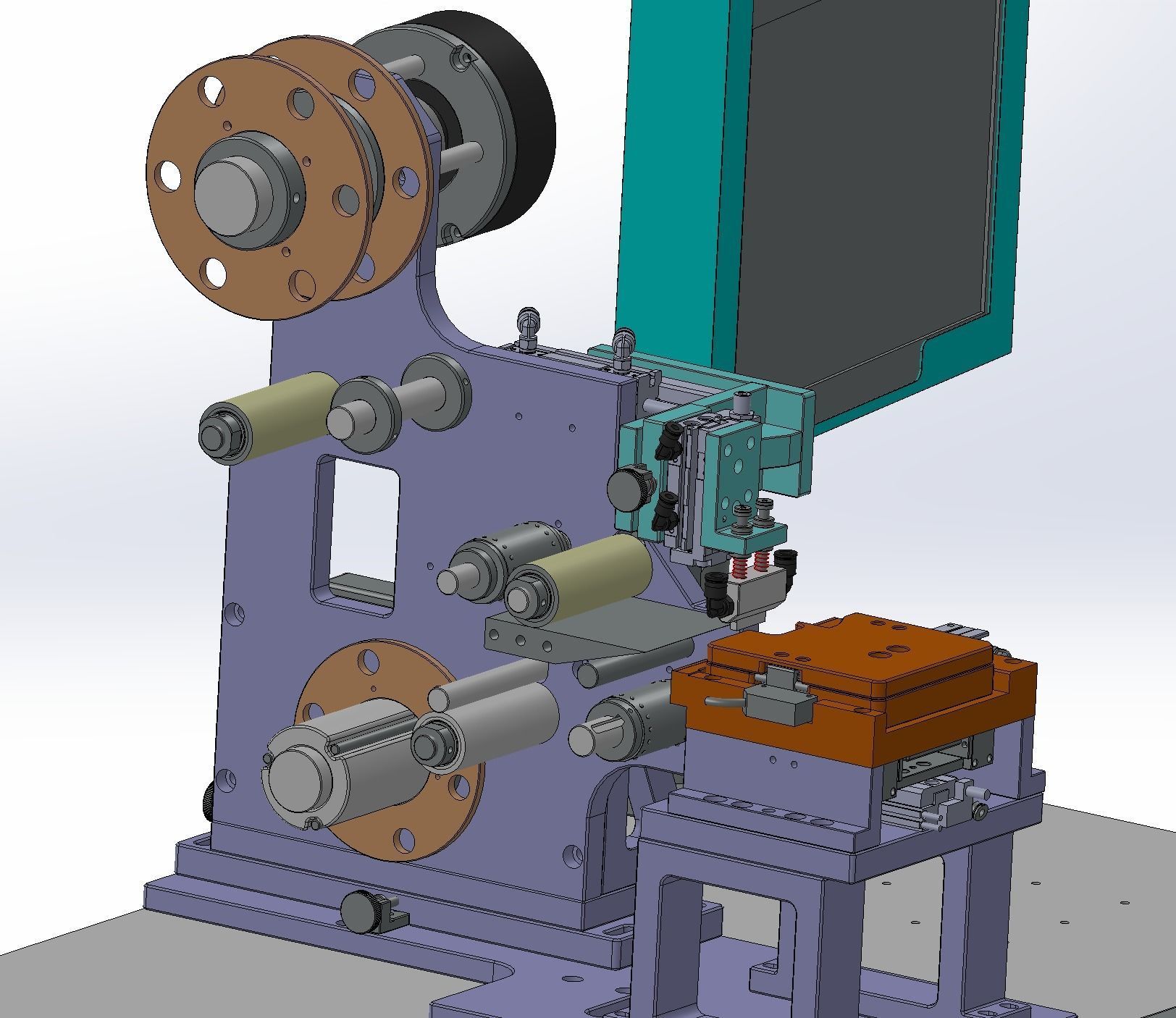

  3. Film winding mechanism

The model of the equipment is complete and can be used as a good reference for similar equipment design.

polygons: 15992952

Vertice: 31956357

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

  • and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot
