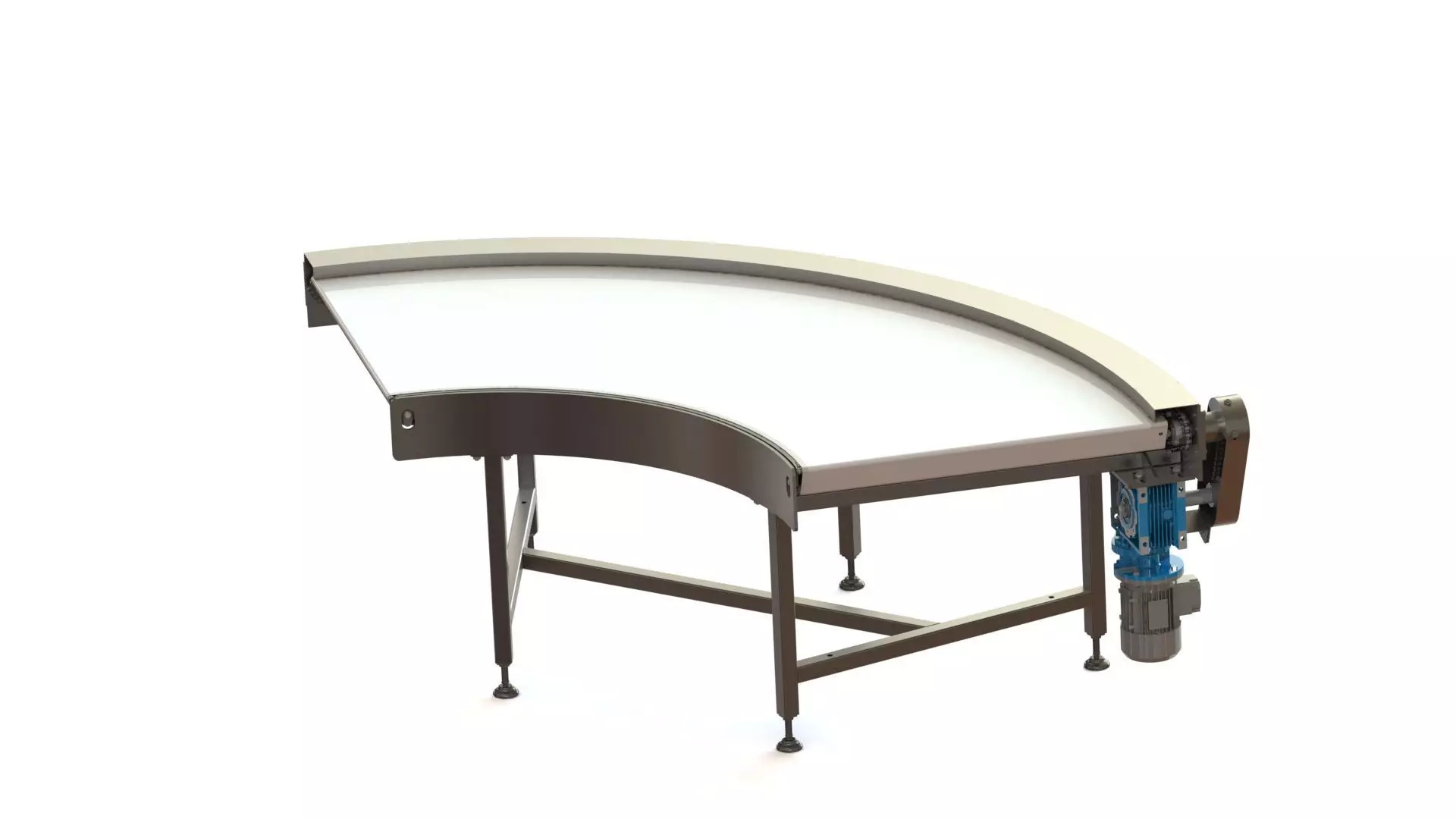

Industrial CAD model of a 90 degree turning belt conveyor, designed for planning real production lines and engineering projects. The assembly is in real scale with clear geometry, suitable for industrial equipment design and food automation.
This is a real industrial product that has been manufactured and used in production.
Application: Designed for transporting biscuits/bakery products on food processing and packaging lines.
Technical specifications:
- Conveyor type: 90° belt conveyor (turning conveyor)
- Belt width: 800 mm
- Belt type: food grade belt
- Material: AISI 304 stainless steel
- Optimal belt speed (without frequency converter): 0.91 m/min
- Scale: 1:1 real dimensions
- Drive unit:
- Gear motor model: PC071-NMRV075 71A4
- Motor speed: 3.8 rpm
- Motor power: 250 W
Included files: - STEP (.step) - IGES (.iges) - STL (.stl) - Parasolid (.x_t)
Suitable for: - Food industry equipment design - Bakery production lines products - Packaging line automation - Industrial conveyor system integration - Engineering and production planning
Key features: - Clean CAD geometry and precise mechanical structure - Fully assembled model - Industrial stainless steel design (food industry) - Ready to integrate into larger conveyor systems
Notes: If you need DXF files for laser cutting and full technical drawings (PDF), please contact me.
