DESCRIPTION

The design based on SolidWorks 2017, please use 2017 or above to open. The design is so detailed contains every single part. The file is about 205 MB.

The conveyor is retracted to a length of 6 m and extended to a length of 18 m, and is used in express delivery and other fields.

Features of telescopic belt conveyor:

  1. Freely expandable and contractible in the length direction. Adjust the buttons according to your own requirements to control the length and height of the conveyor at any time;
  2. PLC automatic collision avoidance. Humanized operation, equipped with LED lighting at the front end, complete safety protection measures;
  3. The bearing capacity is up to 80 kg / m, which can be matched with the fixed conveyor, and will not bend and deform under long-term load operation;
  4. Simple structure, easy to use and exquisite appearance.

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

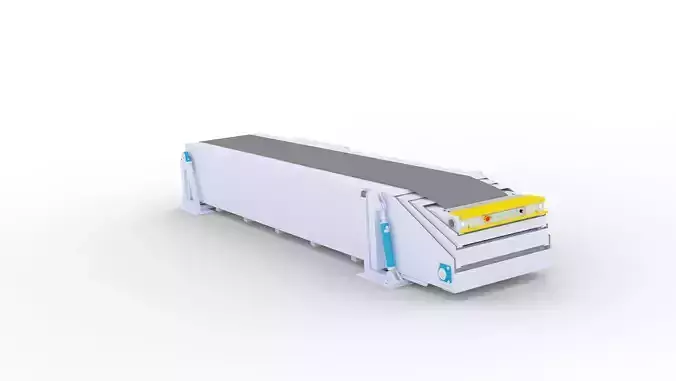

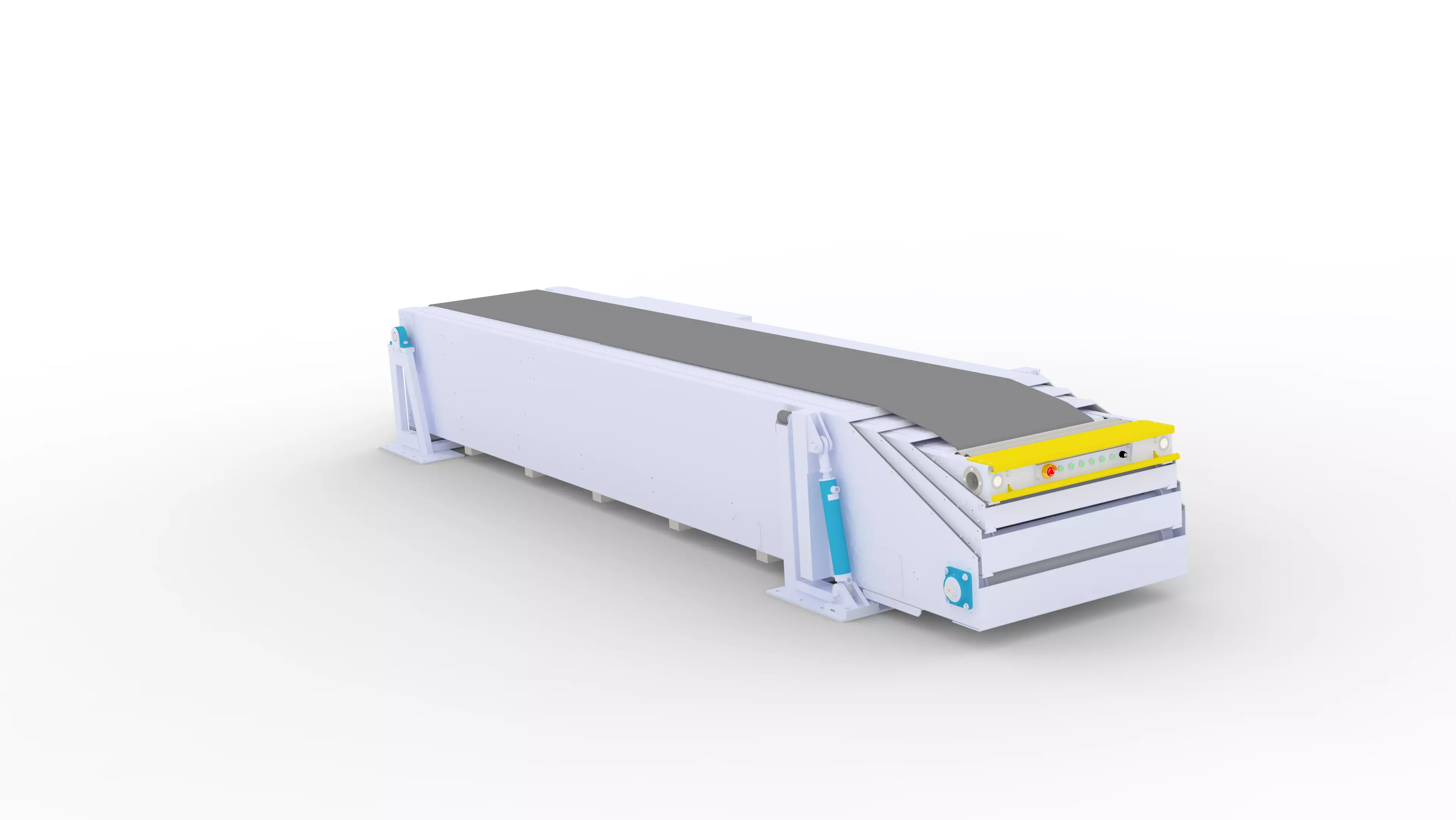

3D design of four-section telescopic belt loading conveyor 3D model

Royalty Free License
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
SLDPRT
SolidWorks<br />Version: 2017<br />File Size: 206 MB
STP
STEP<br />Version: 214<br />File Size: 206 MB
