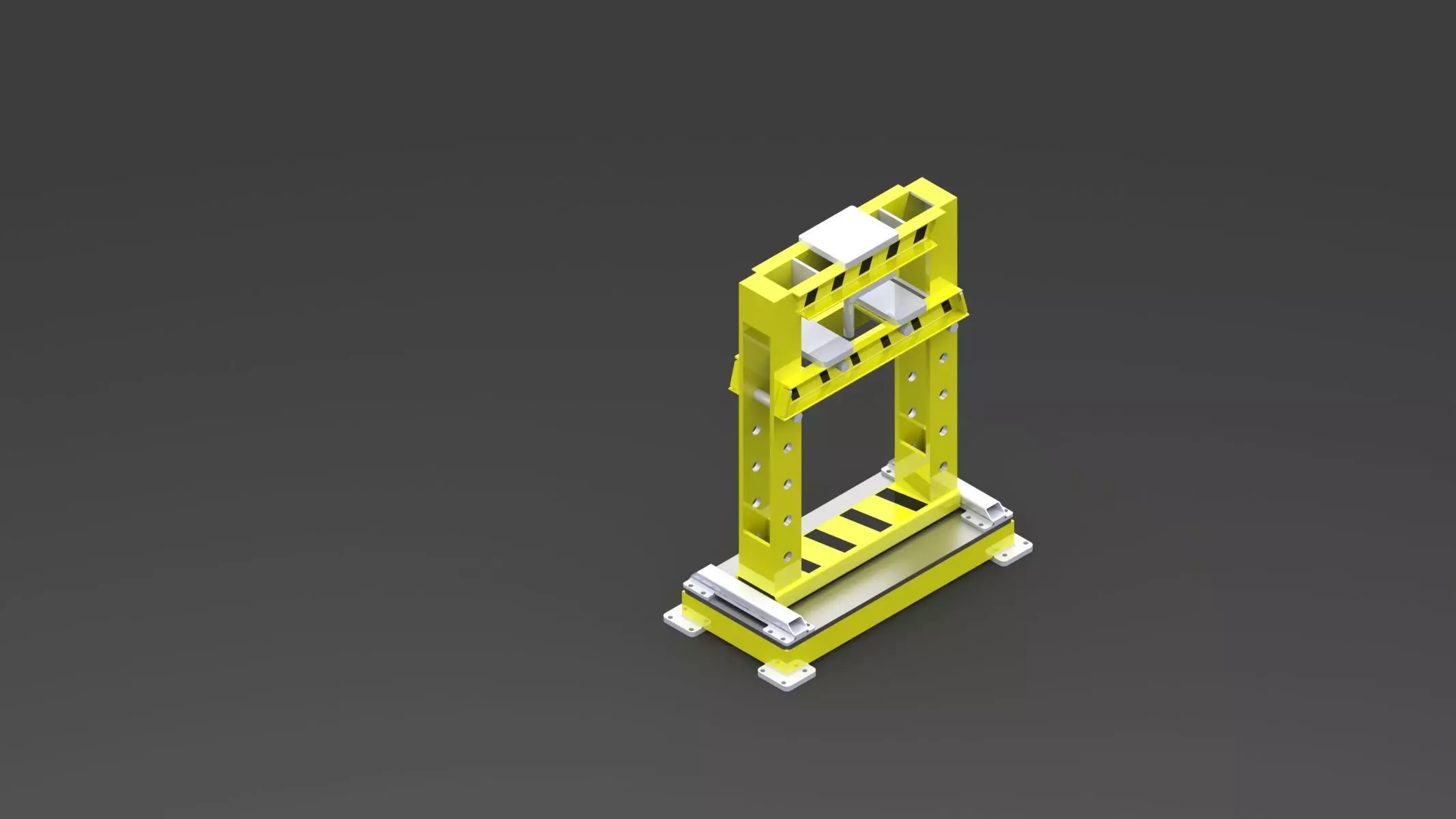

10 ton hydrolic press 3D model

Robust and Modular Hydraulic Press Frame Design

We present a meticulously engineered design for a hydraulic press frame, characterized by its high structural integrity and flexible customization options to suit a wide range of industrial applications. This frame is designed using advanced mechanical engineering principles, ensuring its ability to withstand hydraulic loads efficiently and safely.

Key Features of the Design:

Modular Structure: The design offers significant flexibility in adjusting dimensions and integrating various hydraulic components, making it adaptable to diverse manufacturing needs.Strength and Durability: The frame is engineered for maximum rigidity and stability under pressure, ensuring a long operational lifespan and reliable performance.Ease of Manufacturing and Assembly: The design takes into account the simplicity of manufacturing and assembly processes, reducing production costs and accelerating implementation.Equipped Mounting Points: The design includes precisely defined and engineered mounting points for easy and secure installation of hydraulic cylinders and control units.Detailed 3D Model: The file includes a comprehensive 3D model clearly illustrating all engineering details, facilitating design understanding and implementation.Application Potential:

This design serves as an excellent foundation for developing various hydraulic presses that can be used in:

Factories: For forming, pressing, assembly, and other industrial applications requiring hydraulic force.Engineering Graduation Projects: Students can utilize this design as a starting point for developing practical projects in mechanical engineering, manufacturing engineering, mechatronics engineering, and exploring hydraulic control applications.Why Choose This Design?

Strong Foundation for Your Projects: This design provides a proven engineering structure you can build upon with confidence.Save Time and Effort: Instead of starting from scratch, you can leverage this ready-made design and customize it according to your requirements.Quality and Professionalism: This model has been carefully designed to ensure the highest standards of engineering quality.
