Product Overview

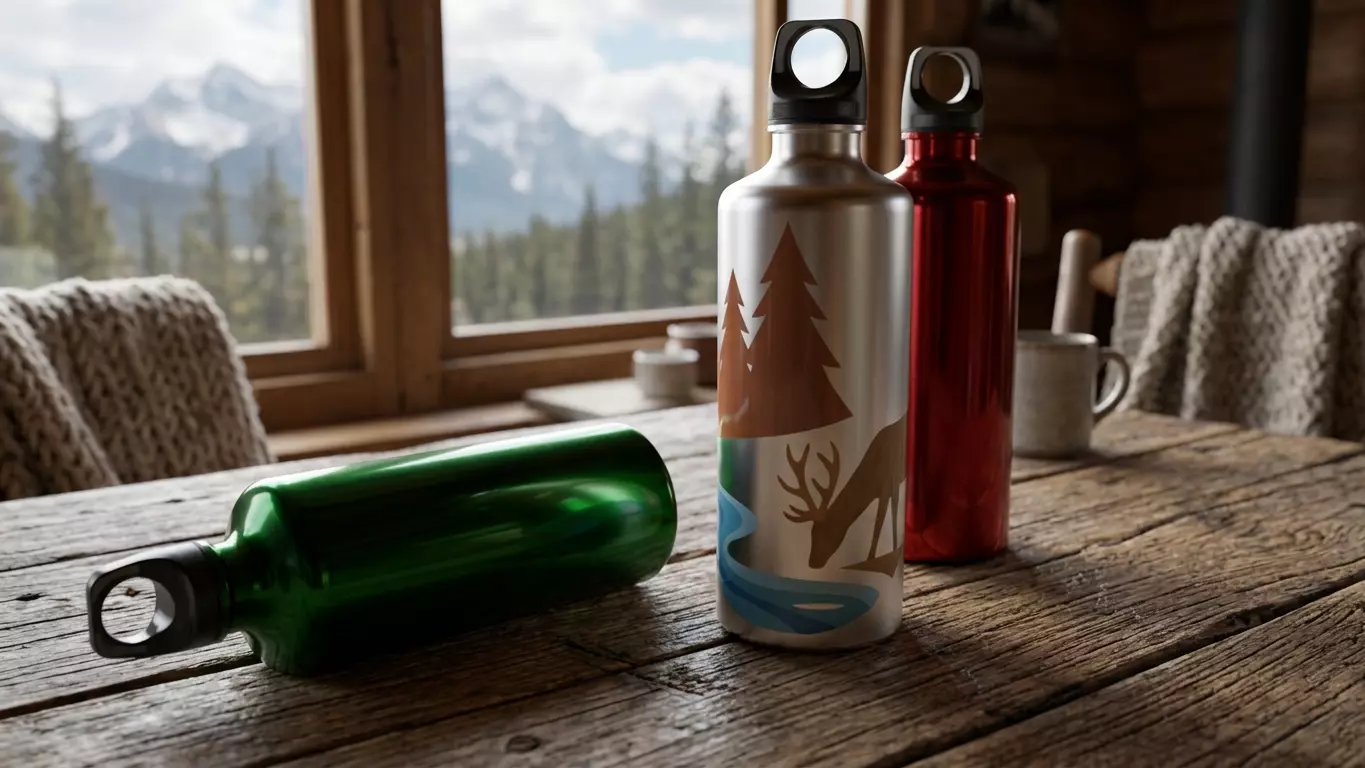

A metal water bottle, Stainless Steel Hiking Flask, perfect for hikes in the mountains or for carrying drinks with you every day. The model is highly detailed. It consists of several parts: the body, the cap, and the O-ring seal.

Key Design & Structural Features

The model was created using SolidWorks; the individual parts are all properly modeled solids, using the correct material thicknesses. Both the individual parts and the model as a whole are shared in the form of an assembly. Within the assembly, the parts are correctly mated, taking into account the proper concentricity and mating surfaces.

Development & Visual Versatility

The package includes KeyShot files with all materials, lights, and cameras set up. You’ll also find a texture-free *.png file that’s useful for applying to the water bottle.You’ll also find the KeyShot “package” file.

Since the model is high-definition, it can also be used in other software—both 3D modeling and visualization programs—such as Cinema 4D and 3ds Max, and rendered with your preferred materials in V-Ray, Corona, or other software. It can also be imported into real-time engines and simulators such as Unreal Engine and Unity.

Please note that you’ll also find *.glb files, which allow you to use the 3D models within Adobe After Effects to animate them and incorporate them into motion graphics projects.

Technical Specifications

• Scale: the file is designed in 1:1 scale (millimeters/metric system)
• Topology: All the 3D files are generated from SolidWorks and KeyShot so the surfaces are clean and optimized geometry
• Textures: You will find the main texture *.png with no background
• The materials are chosen based on the object's design, so the body of the bottle is rendered in metal, the cap is made of hard plastic, and the sealing O-ring is made of silicone rubber. All the materials are included in the KeyShot files and in the export files.
• No other elements are in the scene, you will find just the hiking bottles.

Dimensions

• Outer main diameter: 70 mm
• Overall height: 221.50 mm
• Bottle height without cap: 185 mm
• Outer main diameter of the cap: 35 mm
• You can also find all the images related to the dimensions among the project’s descriptive images.

3D model available in these formats

• FBX (Multi-Format Exchange)
• OBJ (Universal Wavefront)
• GLB / glTF (Optimized for Web, Mobile & AR configurators)
• STL (High-density, error-free mesh optimized for 3D printing)
• STEP / IGES (NURBS format for manufacturing and CAD cross-compatibility)
• PARASOLID (*.x_t interchange format for engineering software)
• KEYSHOT (package with materials, scene, studio lighting, and cameras)

Customization

*If you need specific dimensional adjustments (e.g., change base diameter, thickness, overall height), or a tailored material palette for your design project, feel free to contact me for custom requests!*
