Parametric Table Ridge Low-poly 3D model

UPDATE: 2021-01-21 - FABRICATION PACK ADDED We have decided to publish all the original data for complete fabrication production. Back in the days in 2018, The original model for realization, was made in Grasshopper and Rhino 5. We are bringing to You whole 3D model in Rhino 5 with the complete Script in Grasshoper. You are welcome to change it, modify it, rebuild, bake and of course FABRICATE!!! :) (Send us photos from the realization, by the way, we will be happy to share it ;) )

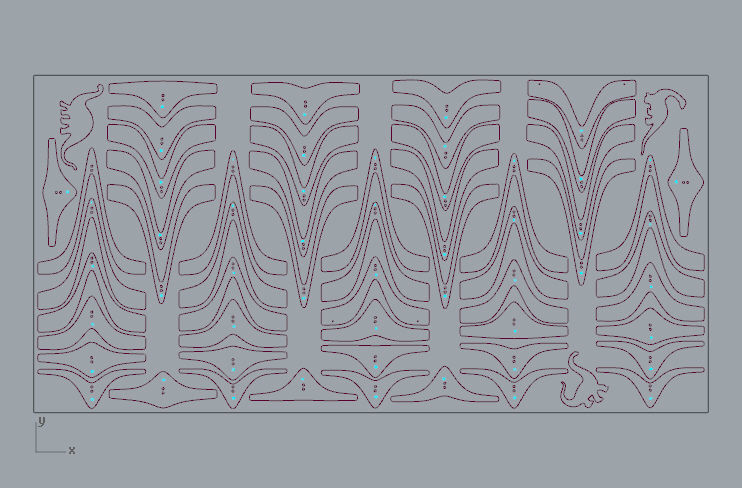

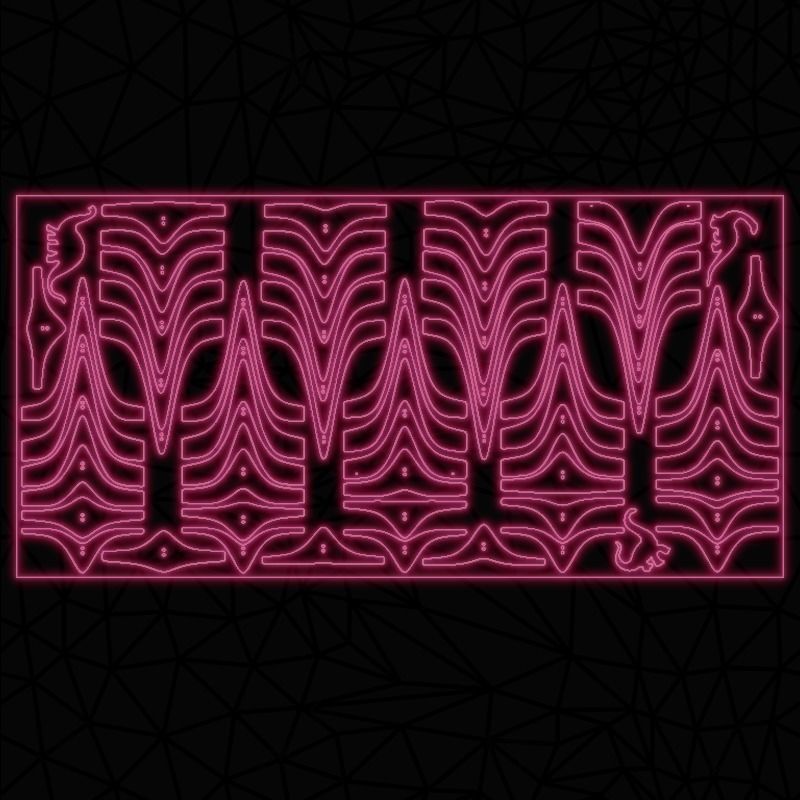

Fabrication Pack includes: DWG/PDF - 2D Vector data for CNC machine / GH - Grasshopper file working perfect in Rhino 5 (can be used as an template for your own design) / 3DM - Baked 3d model in Rhino 5 in Nurbs (exactly this model you can see realized on the photos) / STL - Clean and waterproof model model prepared for your 3d printer in a small scale / 3D DXF/DWG - 3d model exported in curves /

2020-11-16: Model of parametric wooden table Ridge with glass top in high, mid and low poly version. An original design piece made by Parametr Studio. A coffee table can be used in two different forms by turning 180 degrees. This design element will perfectly complement and improve your interior.

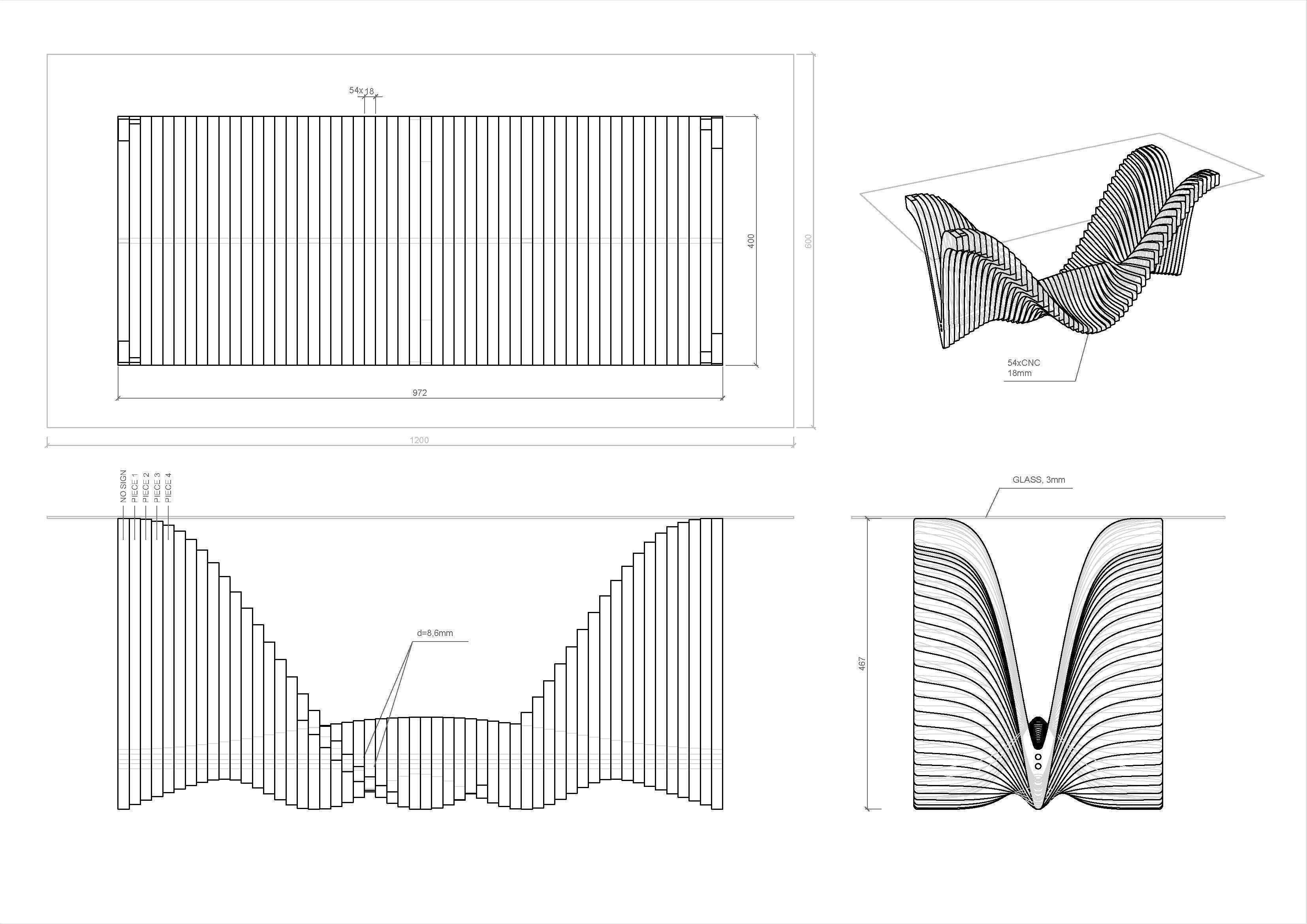

Size (LxWxH): 1200x600x470mm Material: plywood - ebony Surface treatment: stained and varnished

Showreel in UE 4: https://www.youtube.com/watch?v=Ocp1diDZAoE

OVERVIEW

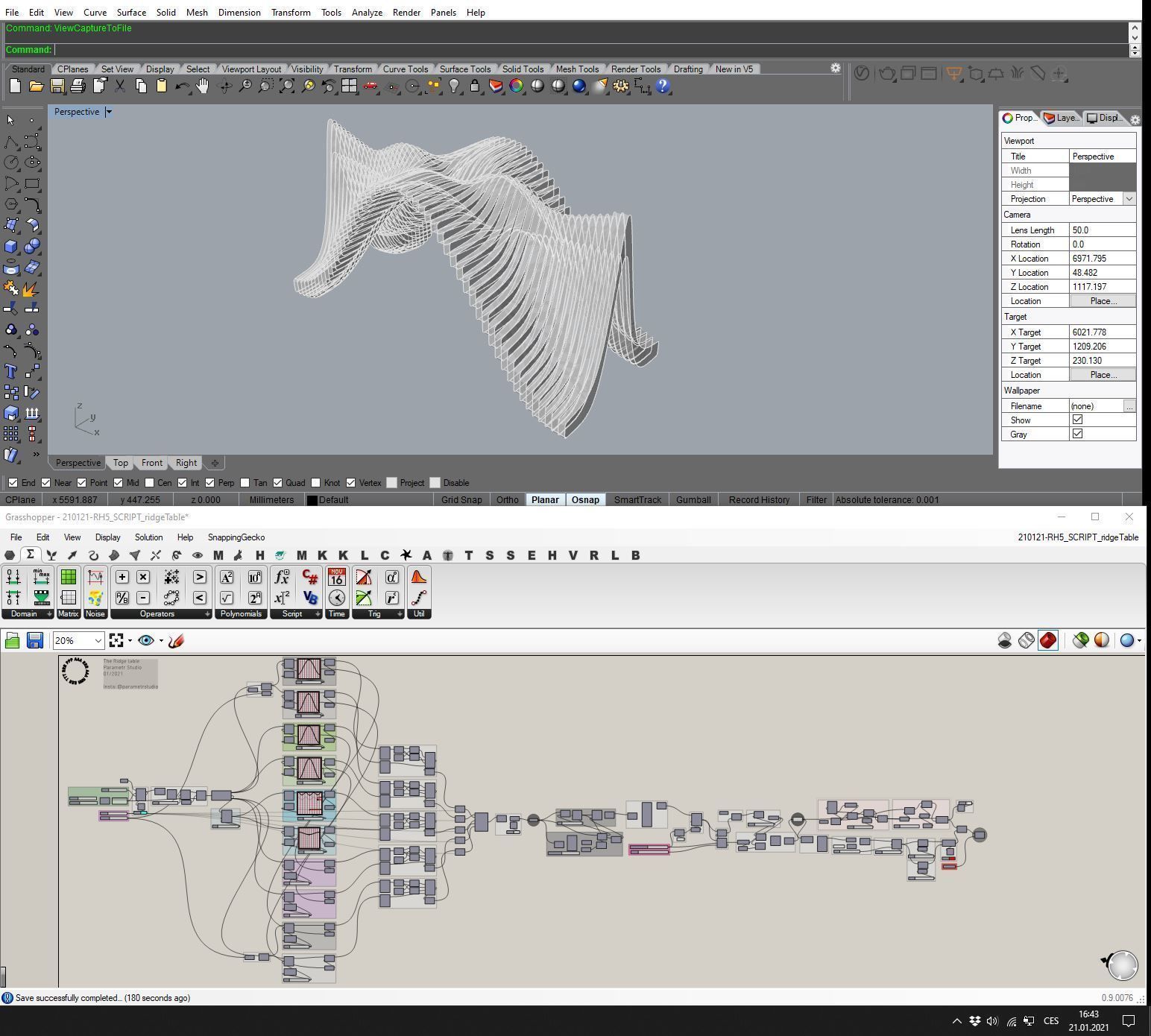

The design concept was made in Rhinoceros and Grasshopper. After realization, we took the Nurbs data and completely remodelled their topology for use in architecture visualizations, digital production design and CGI.

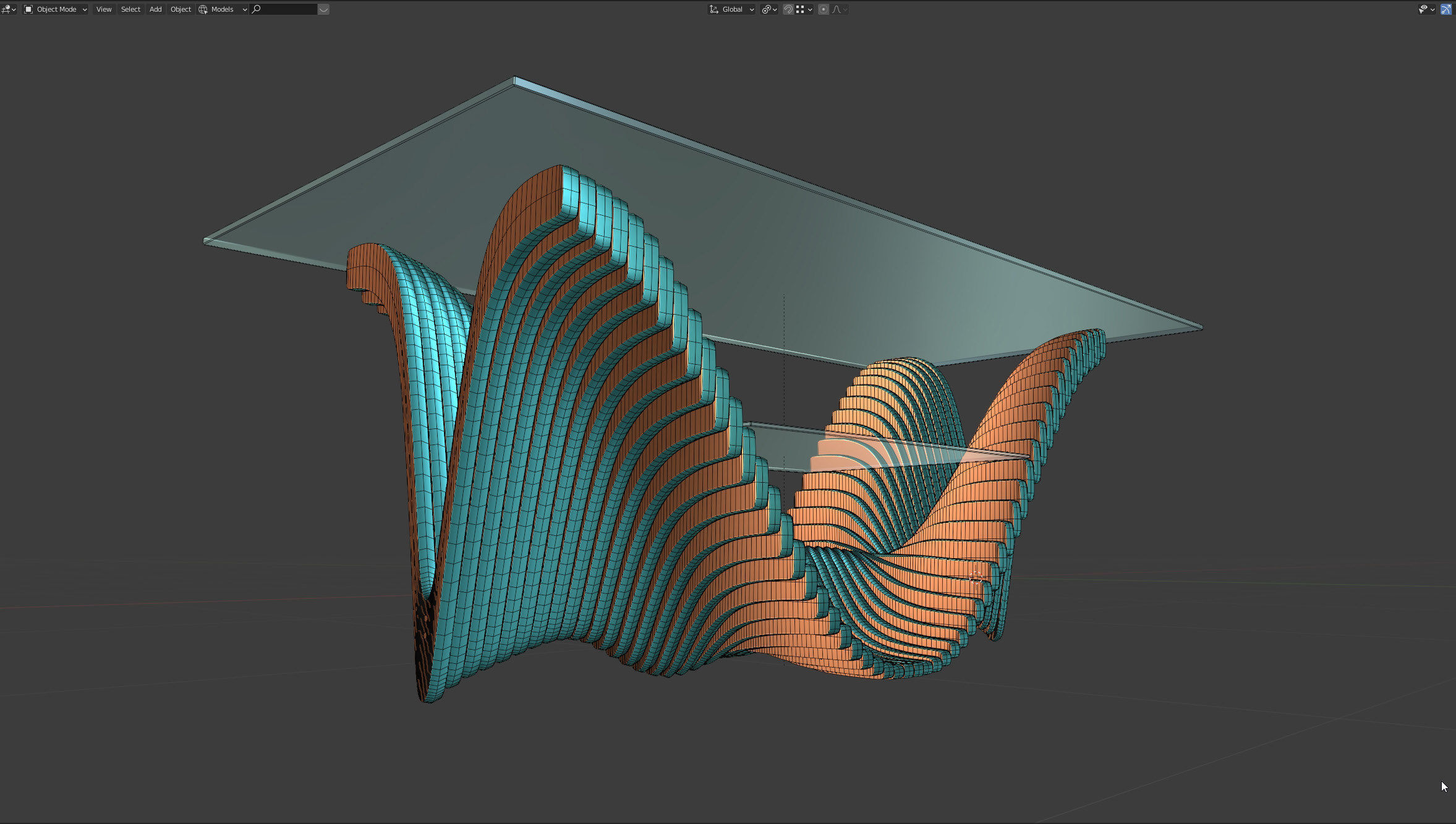

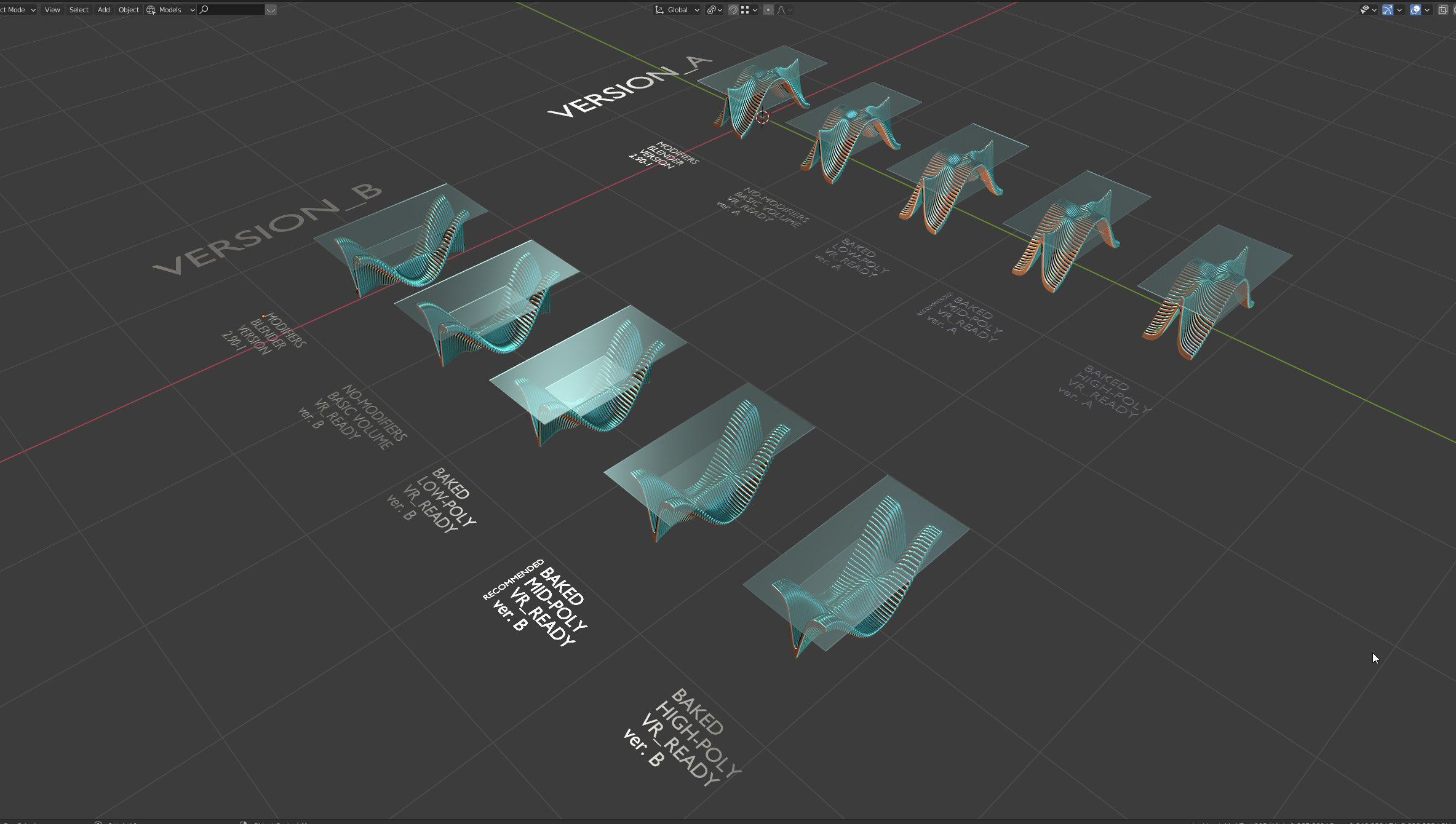

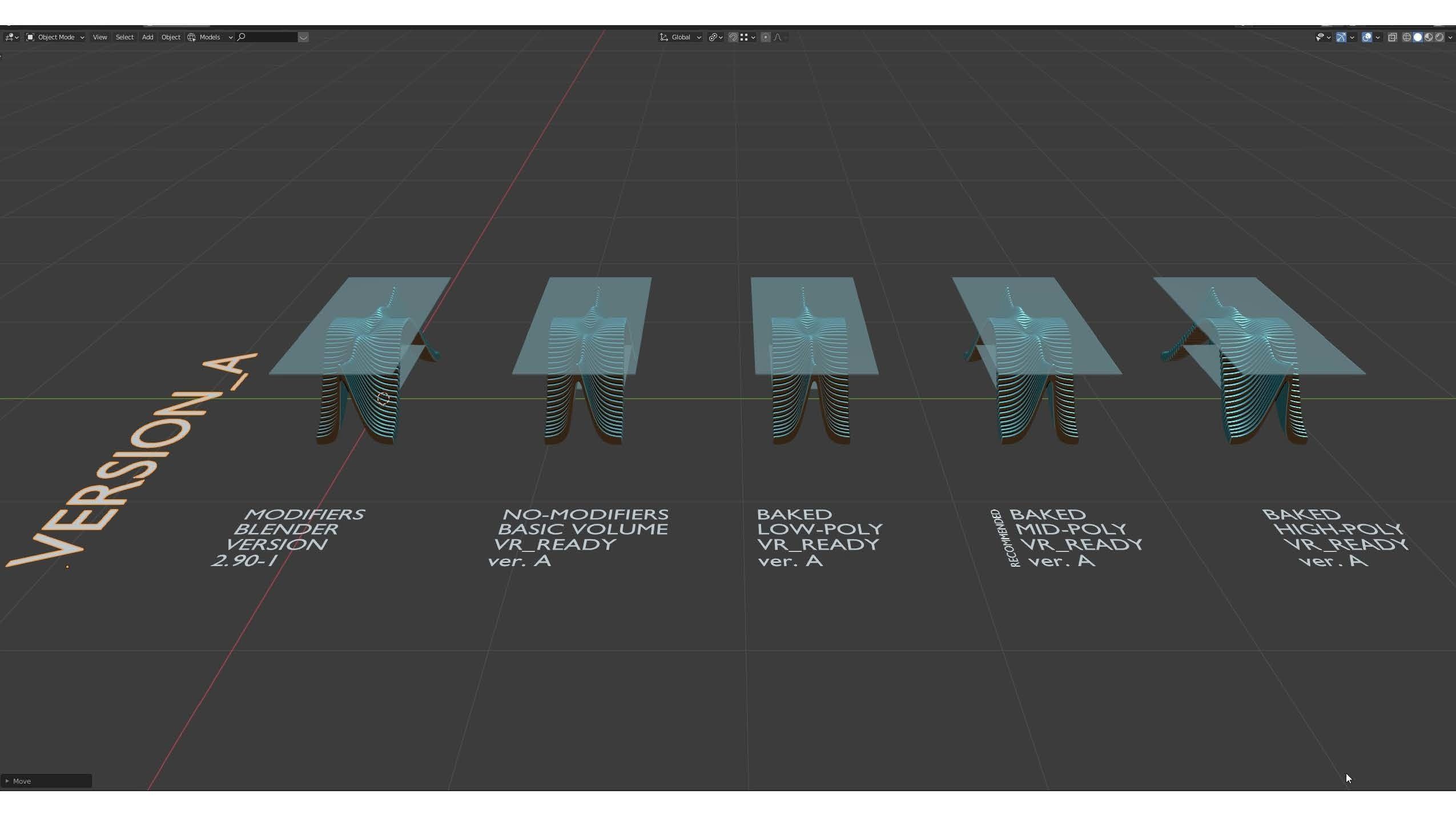

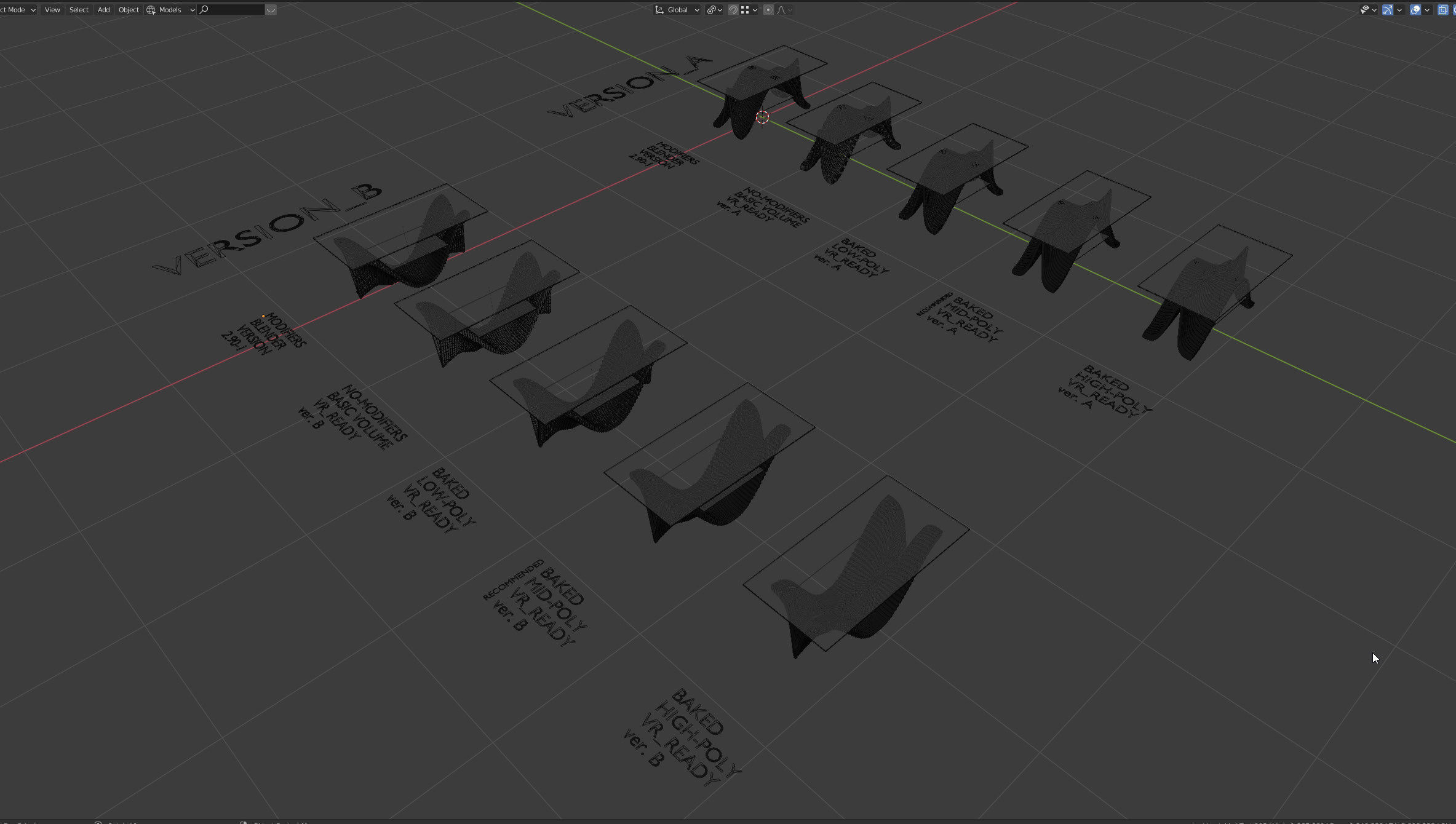

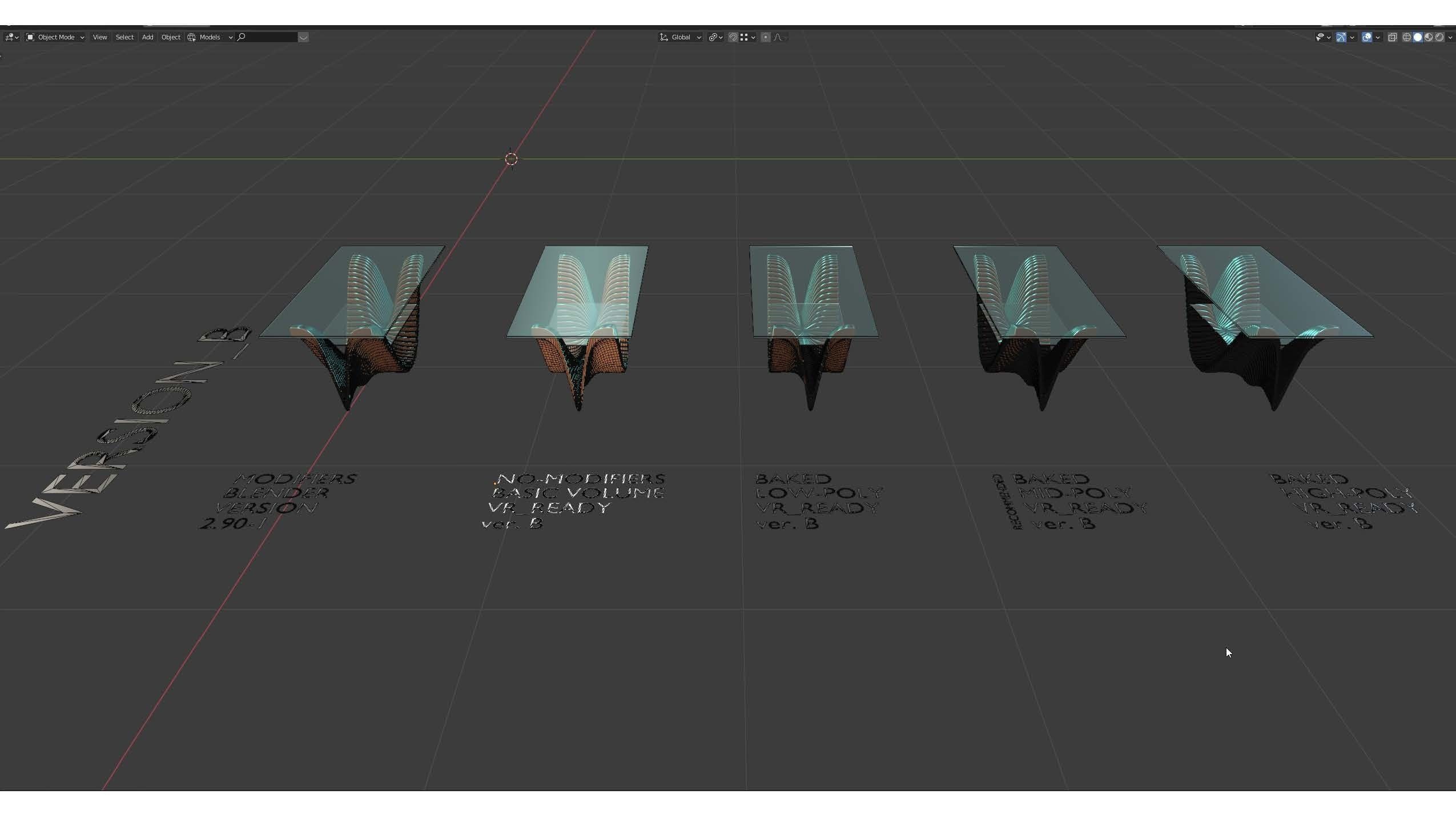

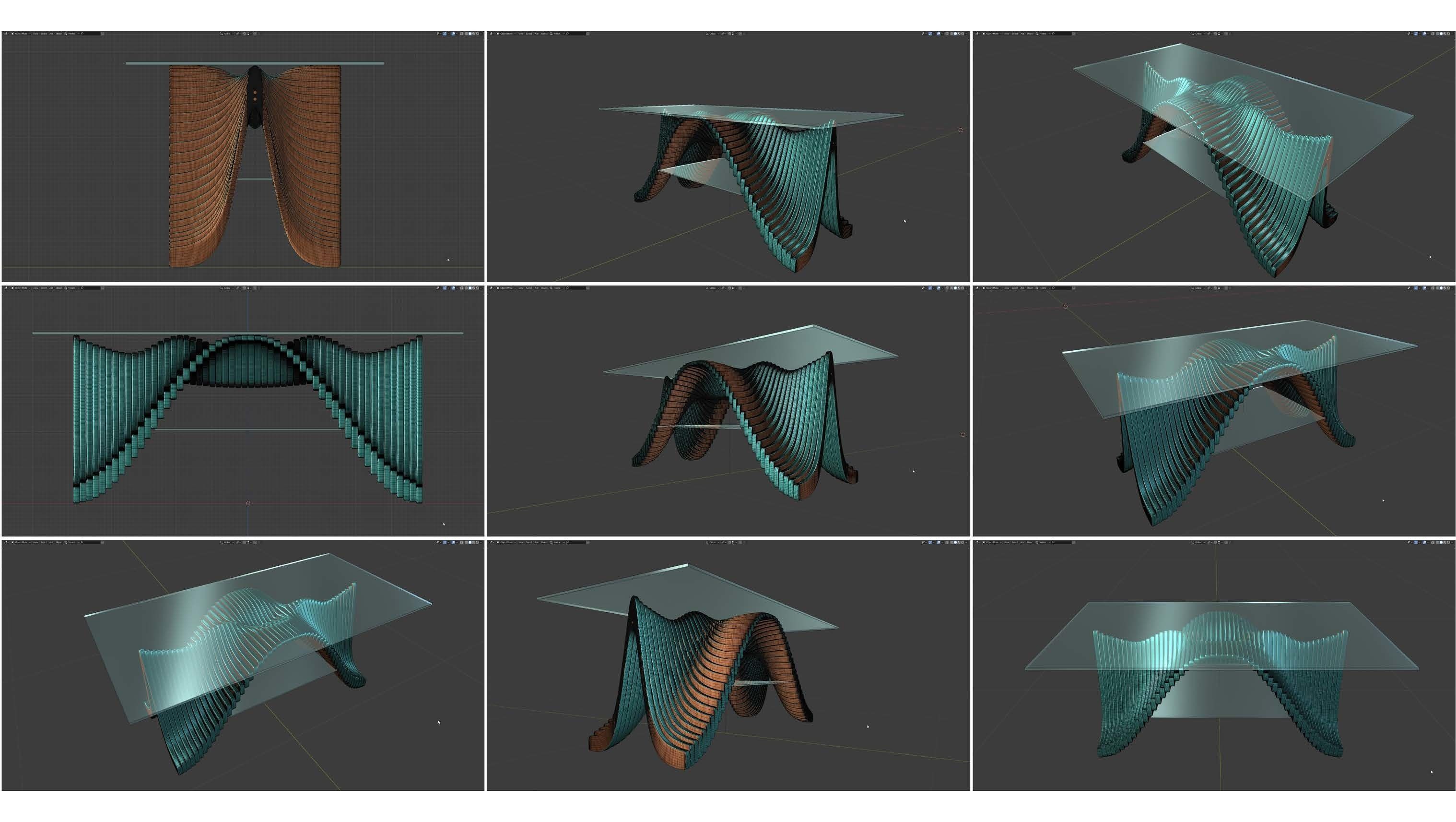

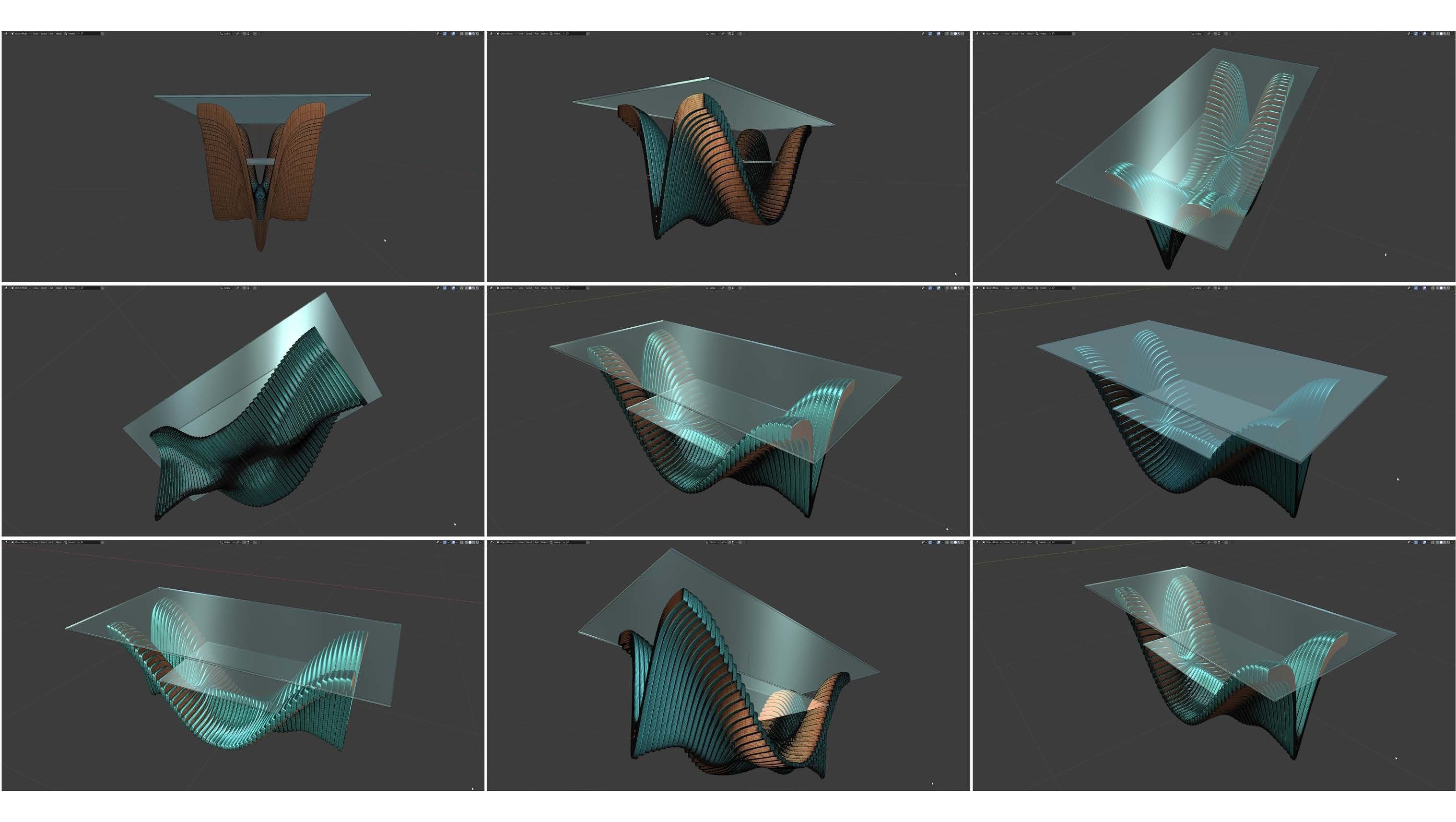

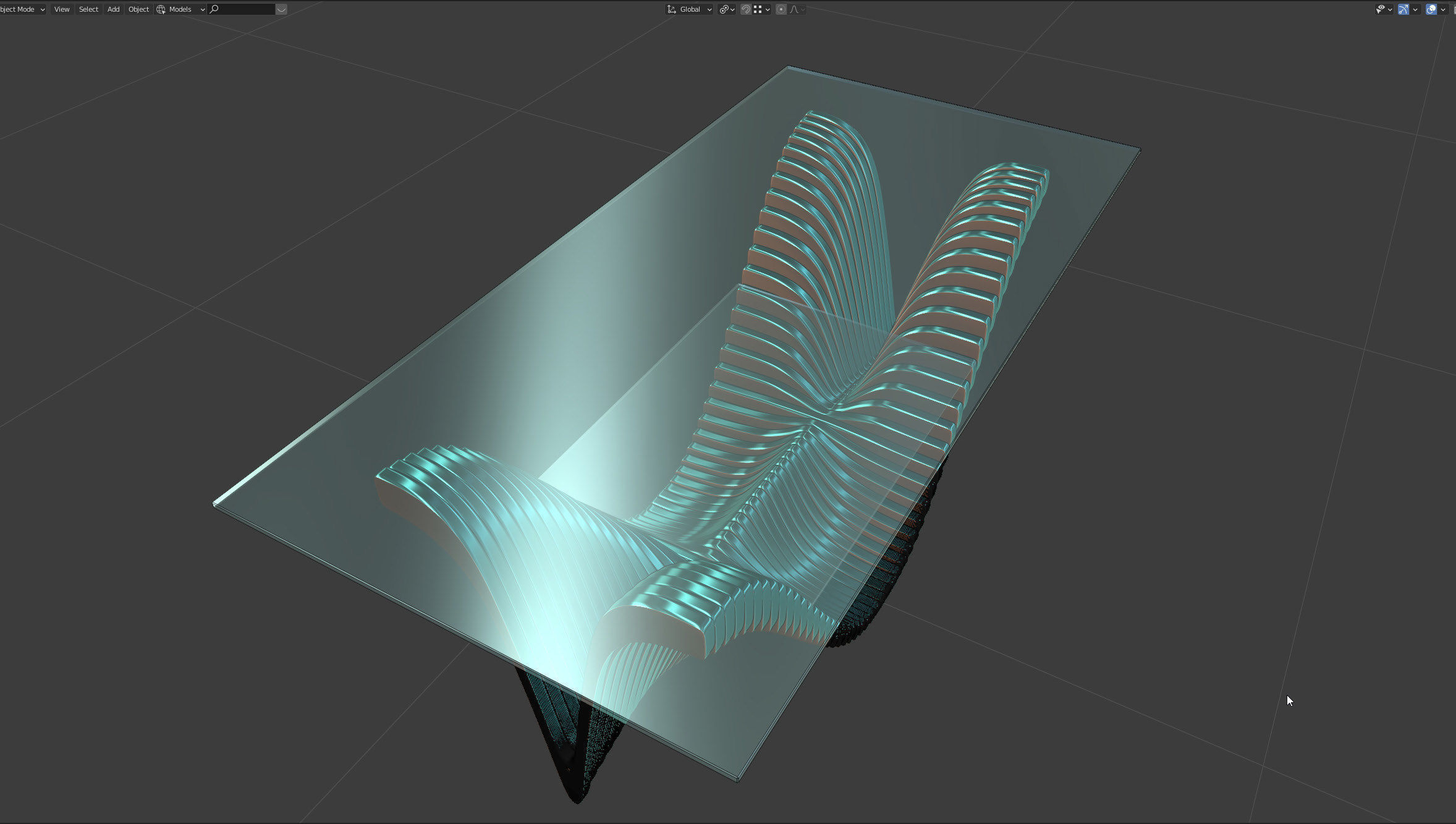

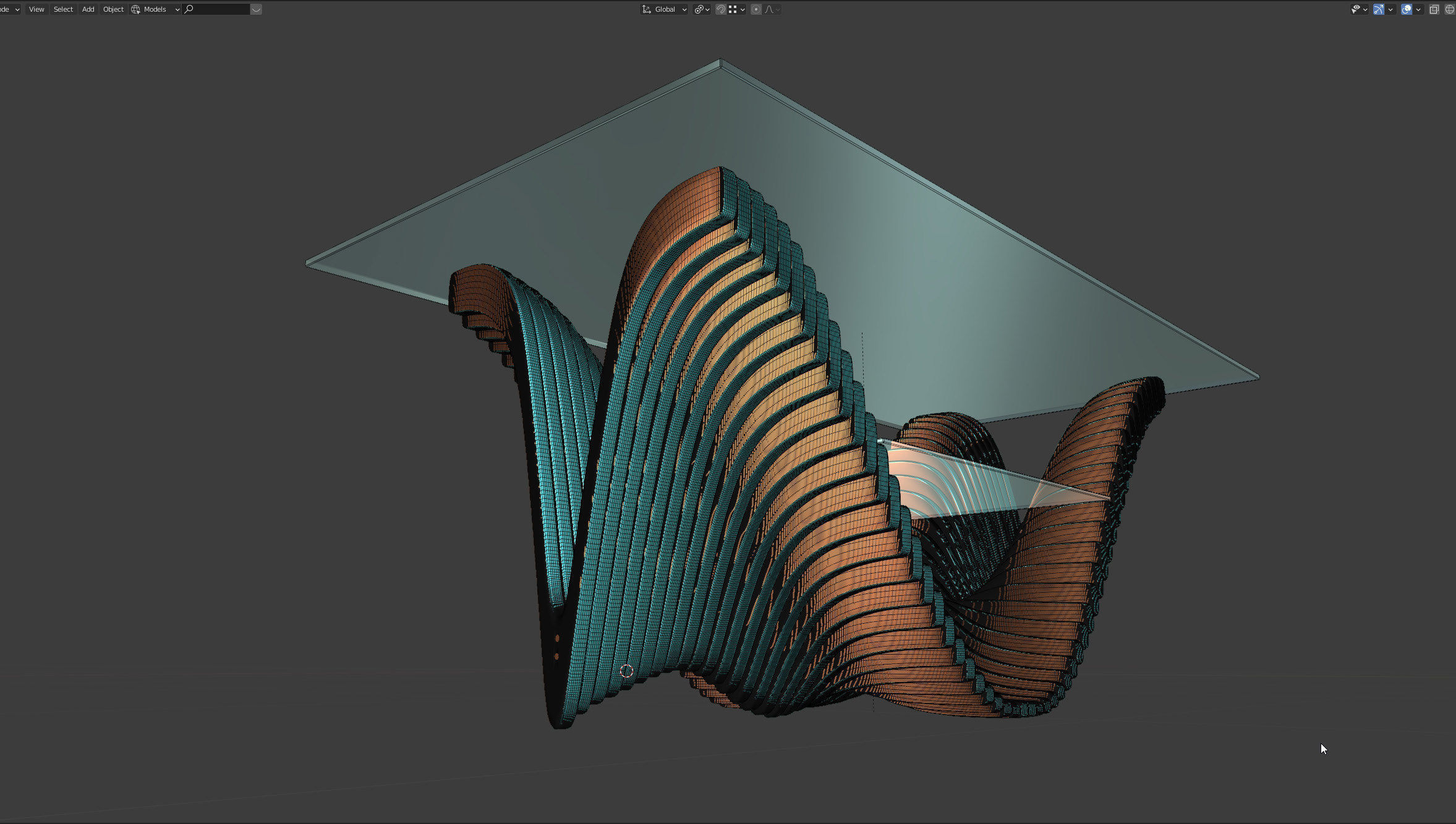

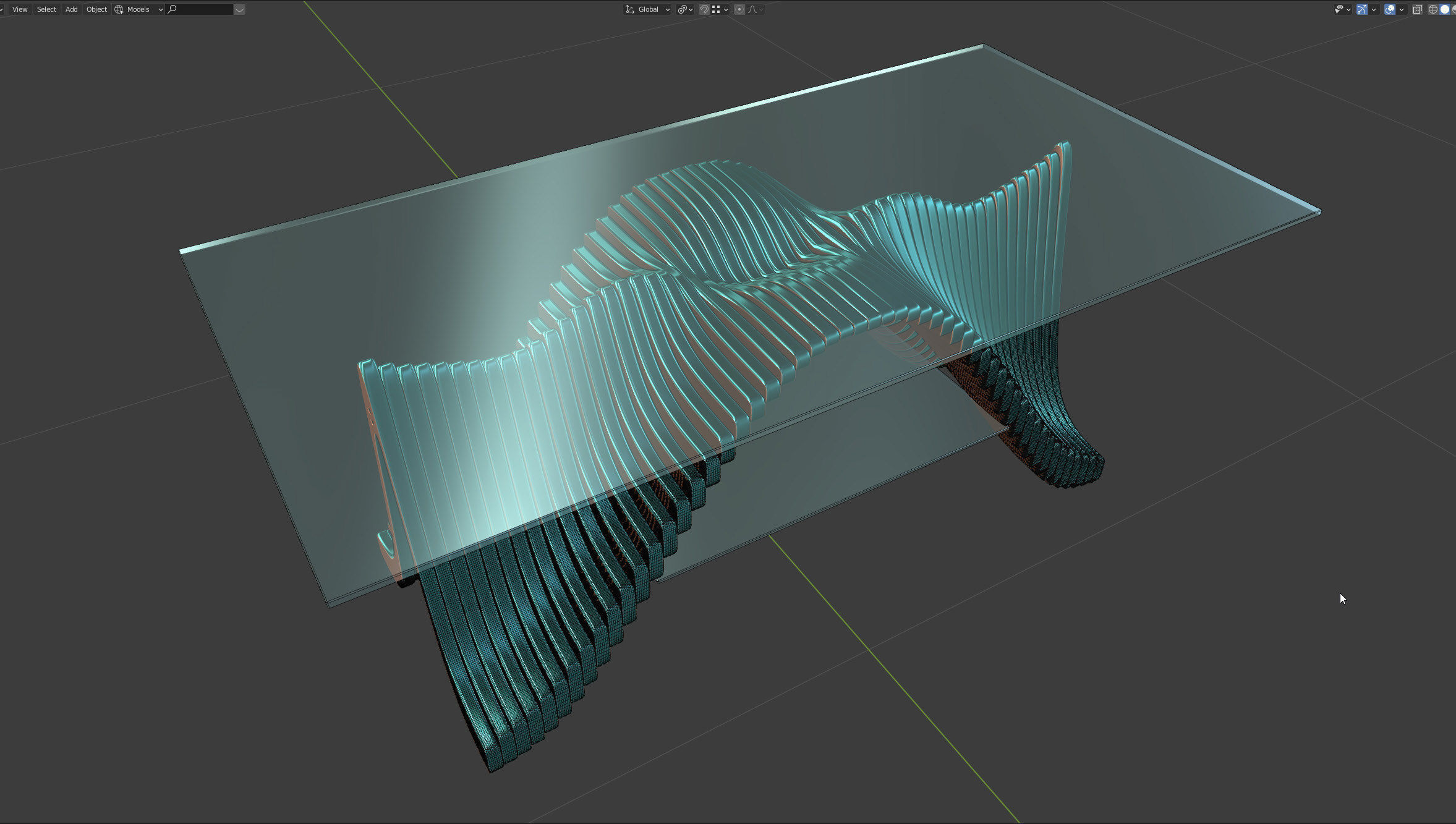

Model was made in Blender 2.90.01. There are 5 variants of quality:

1. Pure base extra low poly volume.
2. Base model with blender modifiers (21 744 tris, 10 984 vertices)
3. Low poly model with baked modifiers (VR ready) (88 040 tris, 44 140 vertices)
4. Medium poly model with baked modifiers (VR ready) (348 752 tris, 174 496 vertices)
5. High resolution model with baked modifiers (VR ready)

BLENDER USERS

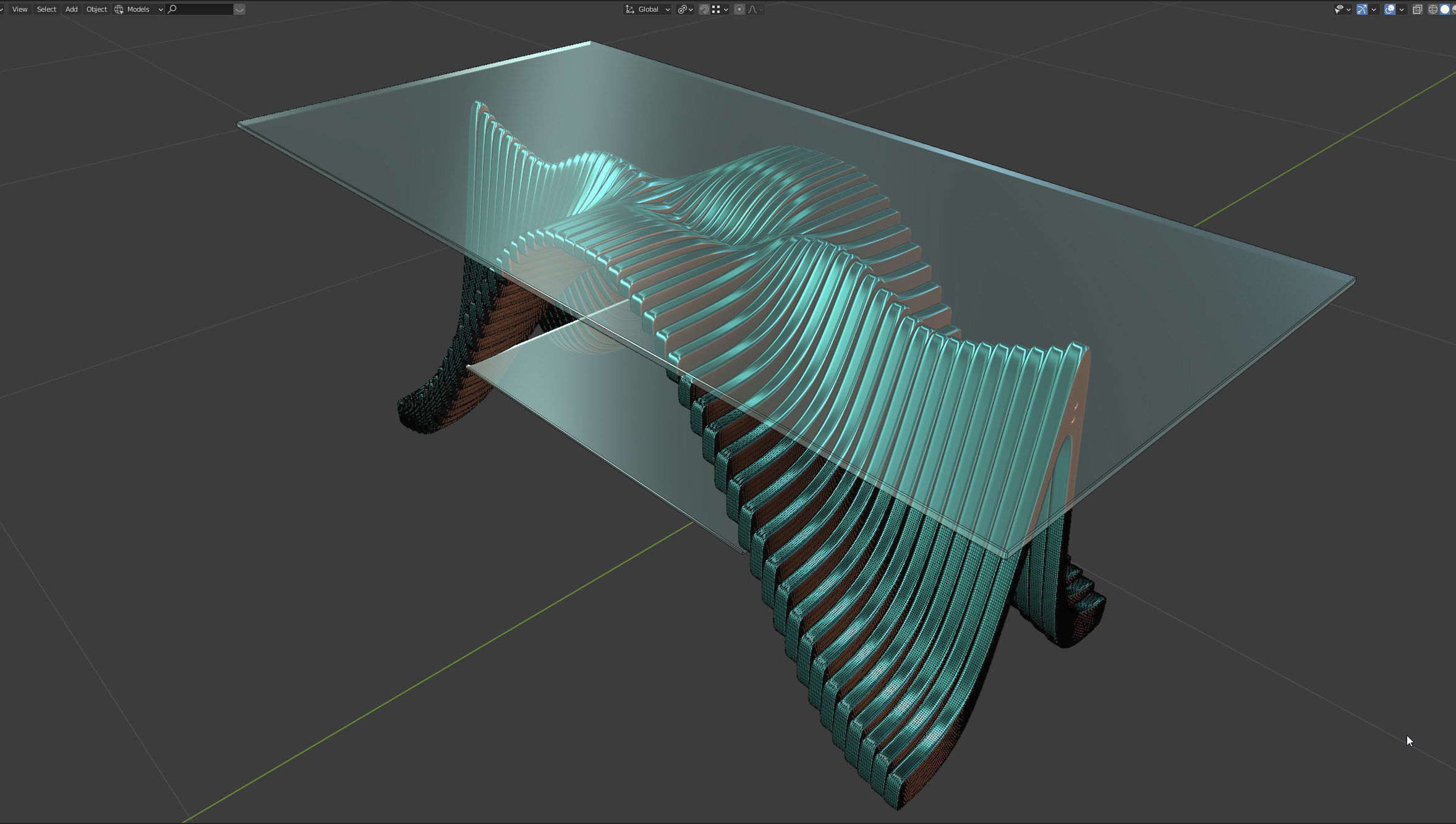

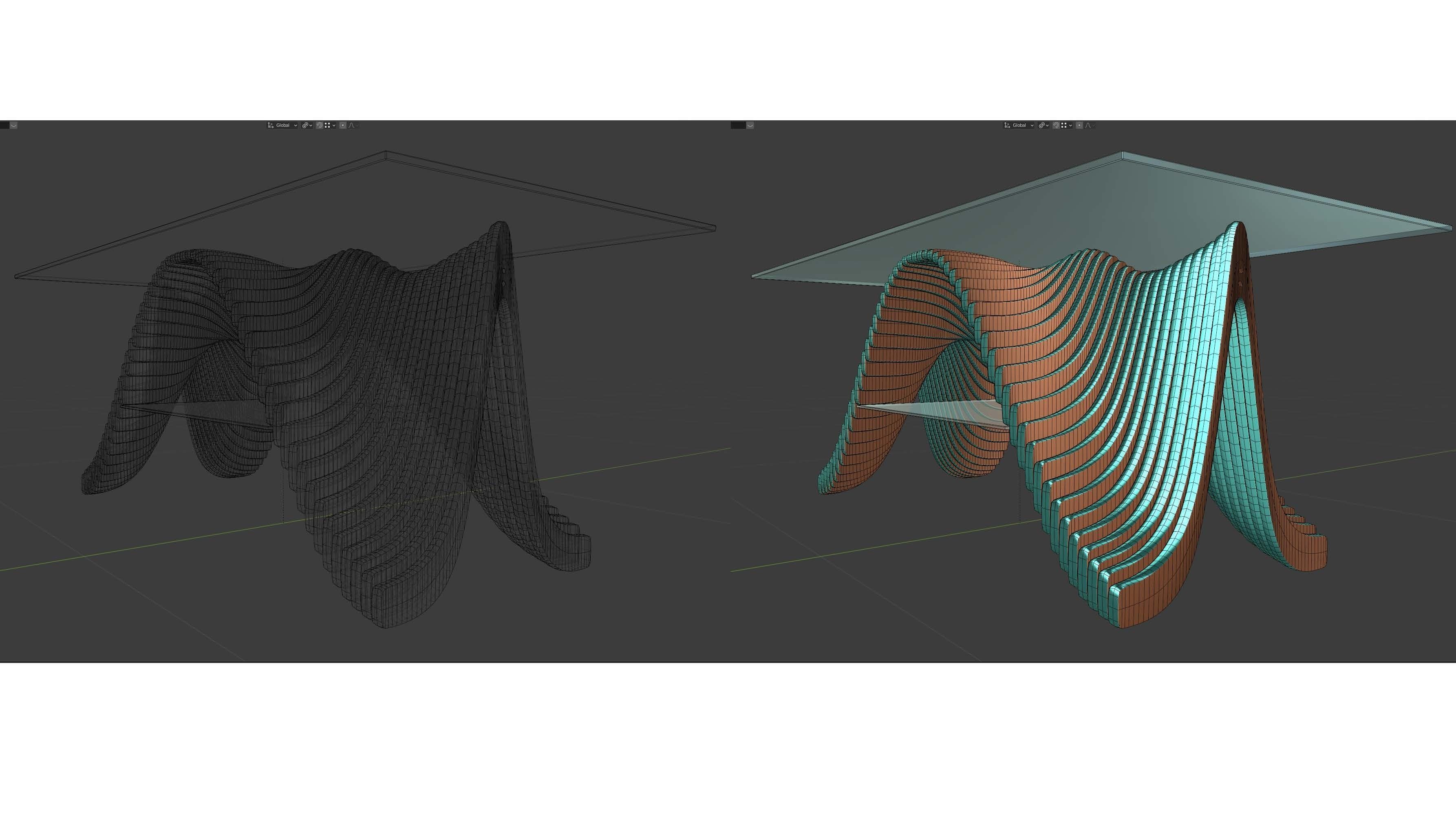

If you are blender user you can tweak modifiers and change model as you wish realtime. You can use these live open data to make more low poly or more higher poly models from it.

MATERIALS

Materials are prepared as PBR classics. Included with all channels in 4K. In particular: Textures of Ebony wood are in 4000x4000 pixels. These texture channels are included with the model:

Diffuse Roughness Height Normal Specular Glossiness

VR

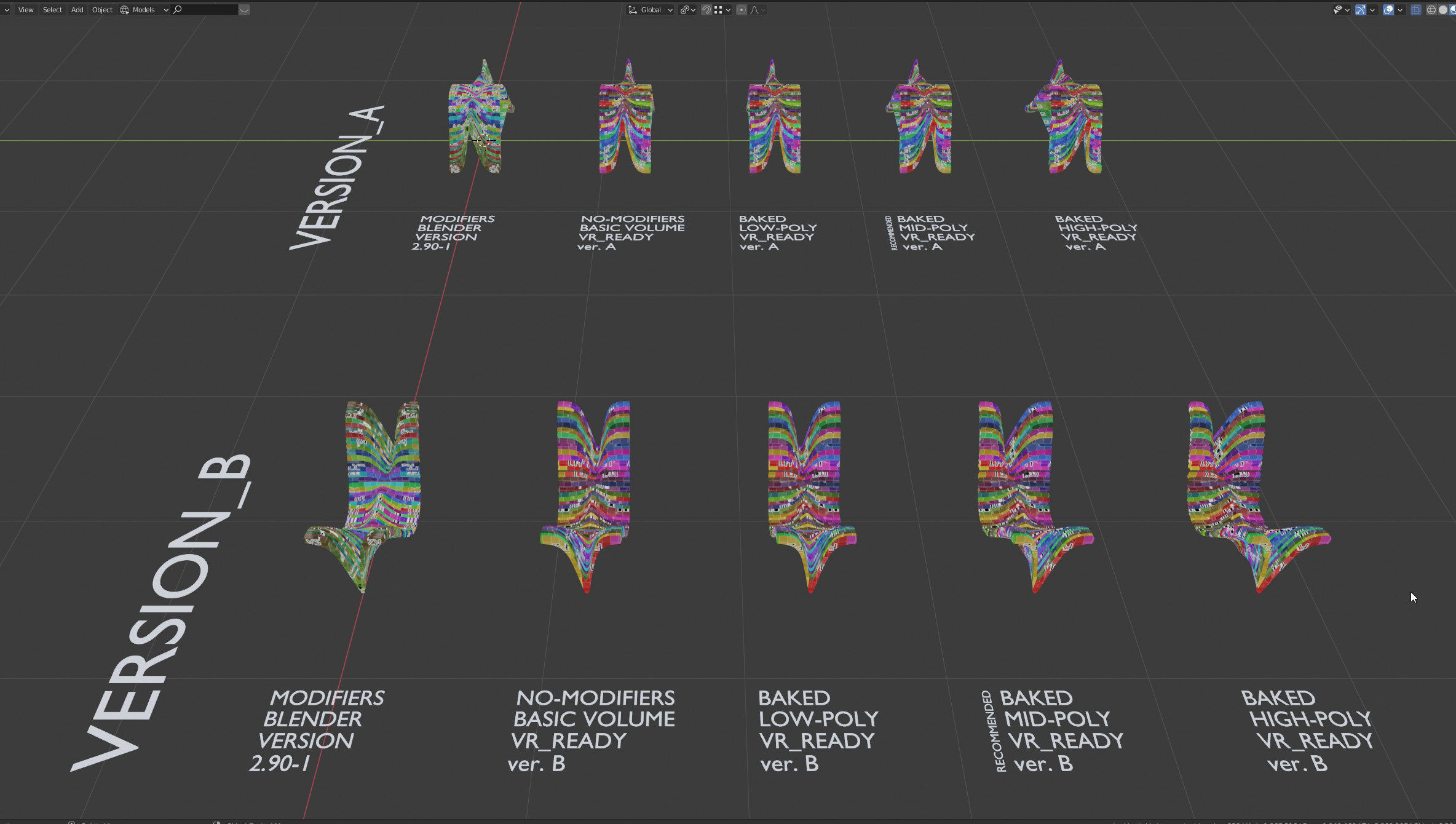

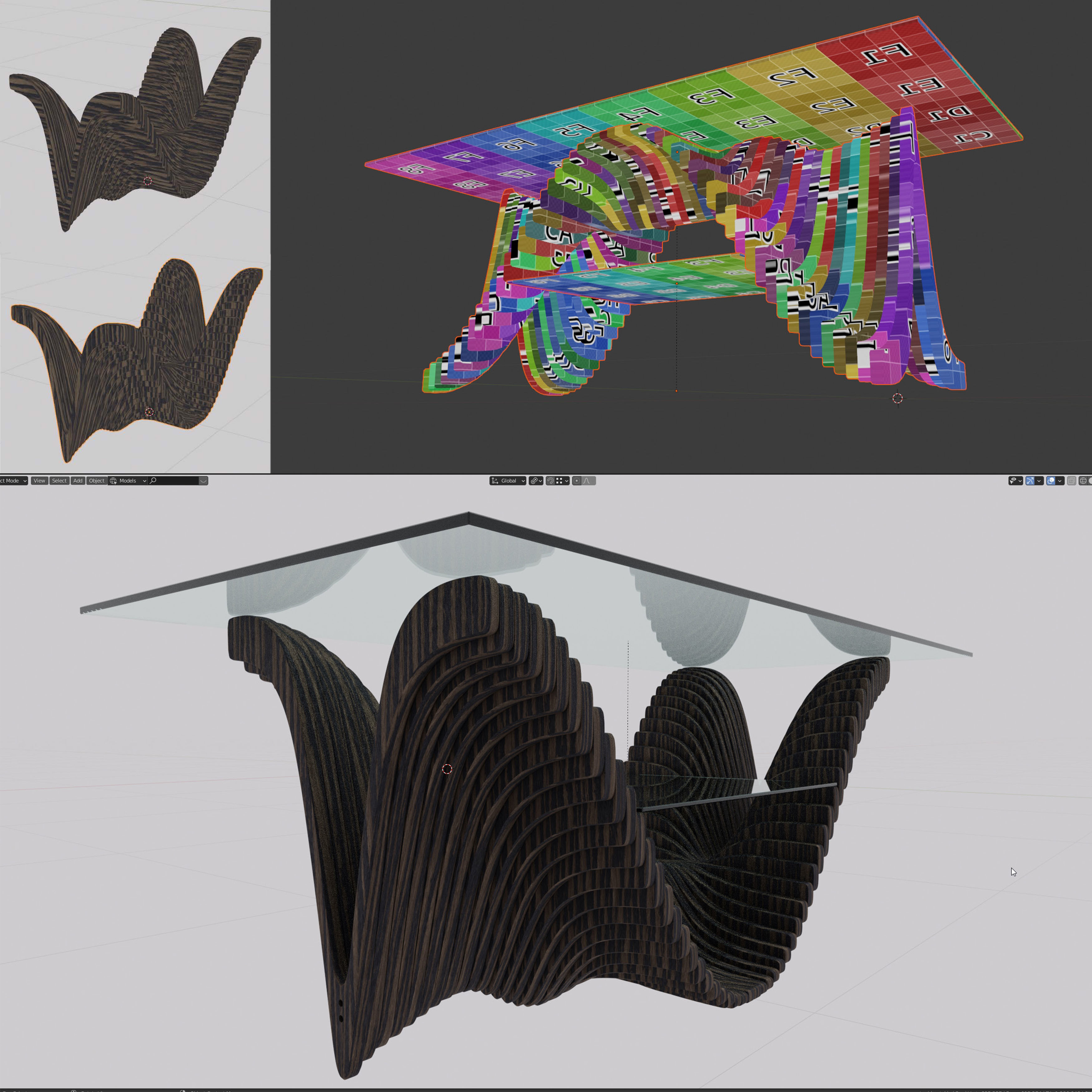

3d model was prepared for use in VR environments. UV maps were prepared for Unreal engine 4 or Unity. Every model has 2 own specific UV Maps. First for diffuse channel and second for lightmap.

ABOUT

Parametr studio is a young creative association focusing on generative methods in the field of architecture and design. Thanks to the knowledge of architectural visualization, we can provide perfectly prepared models according to the realized products. The design can be customized or made to order. For more projects follow our Instagram:

https://www.instagram.com/parametrstudio/

or you can check our website instead:

www.parametrstudio.cz

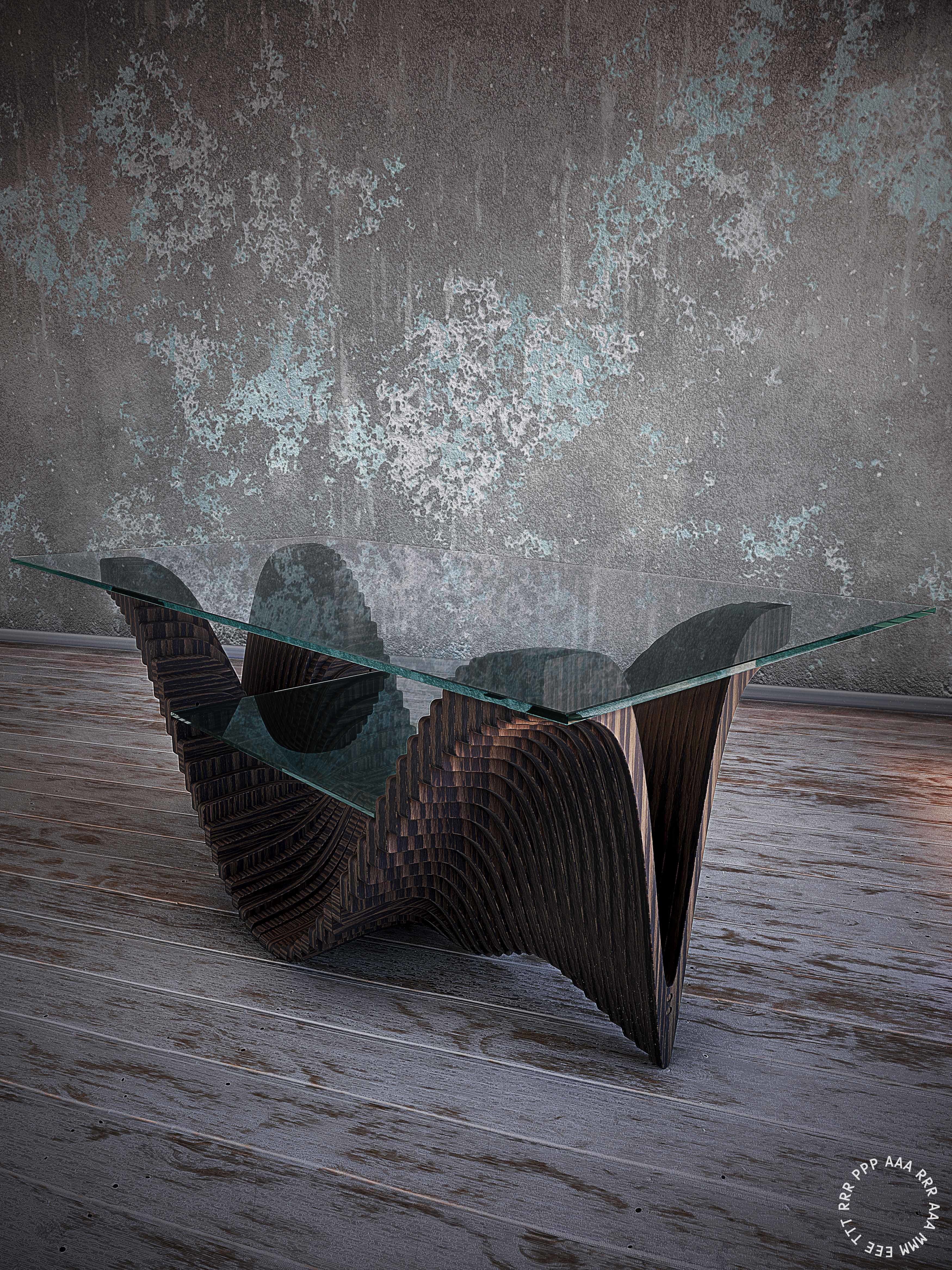

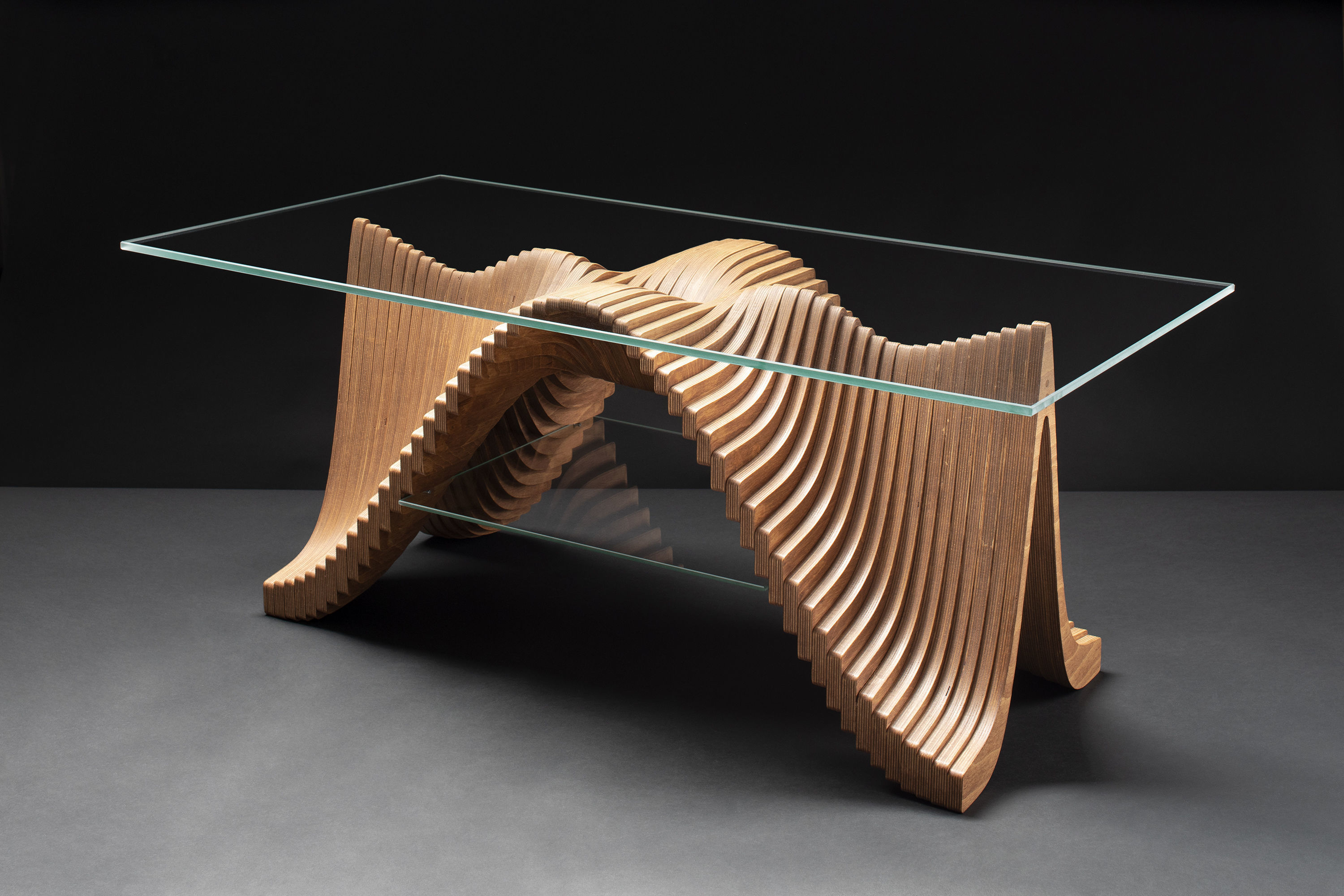

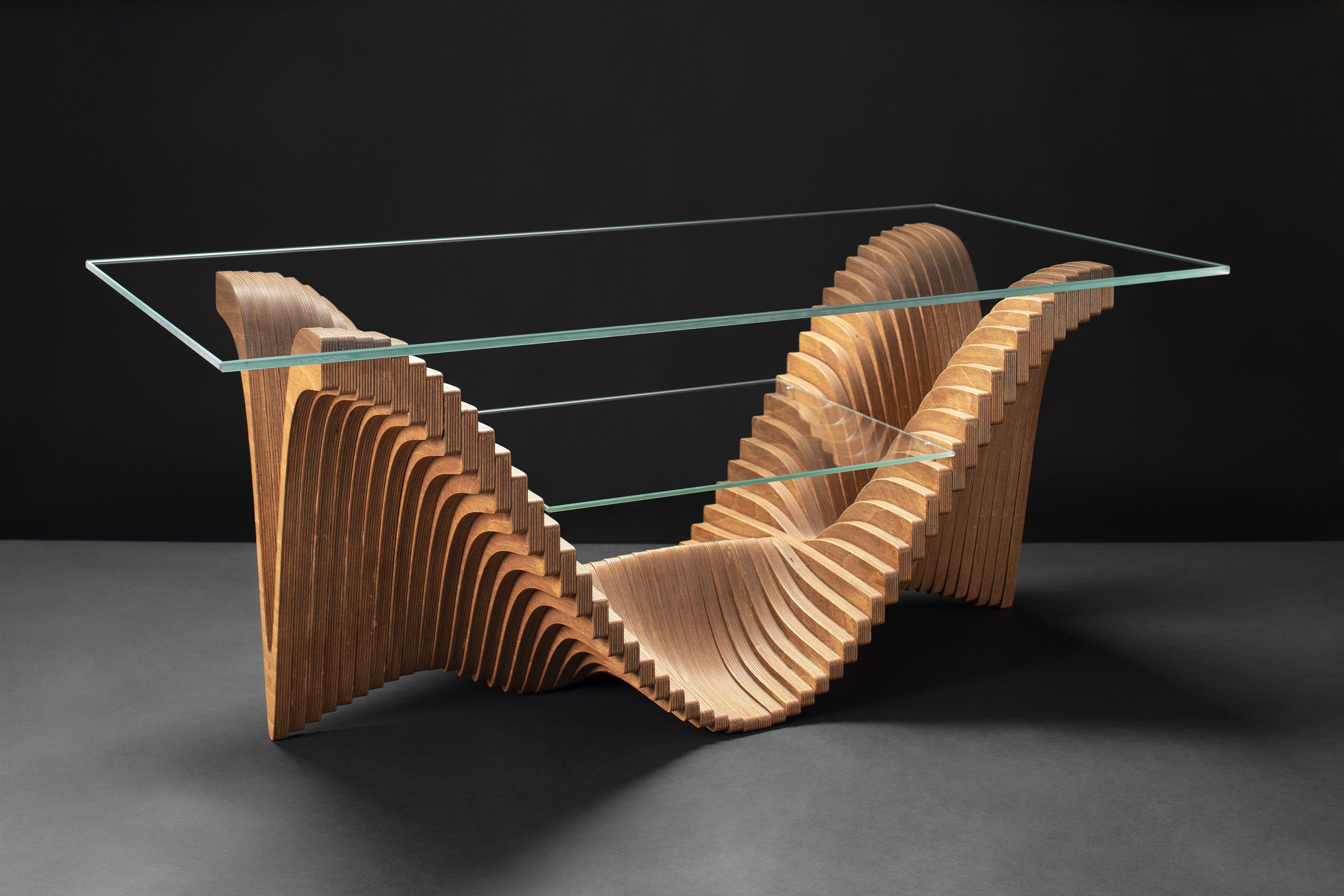

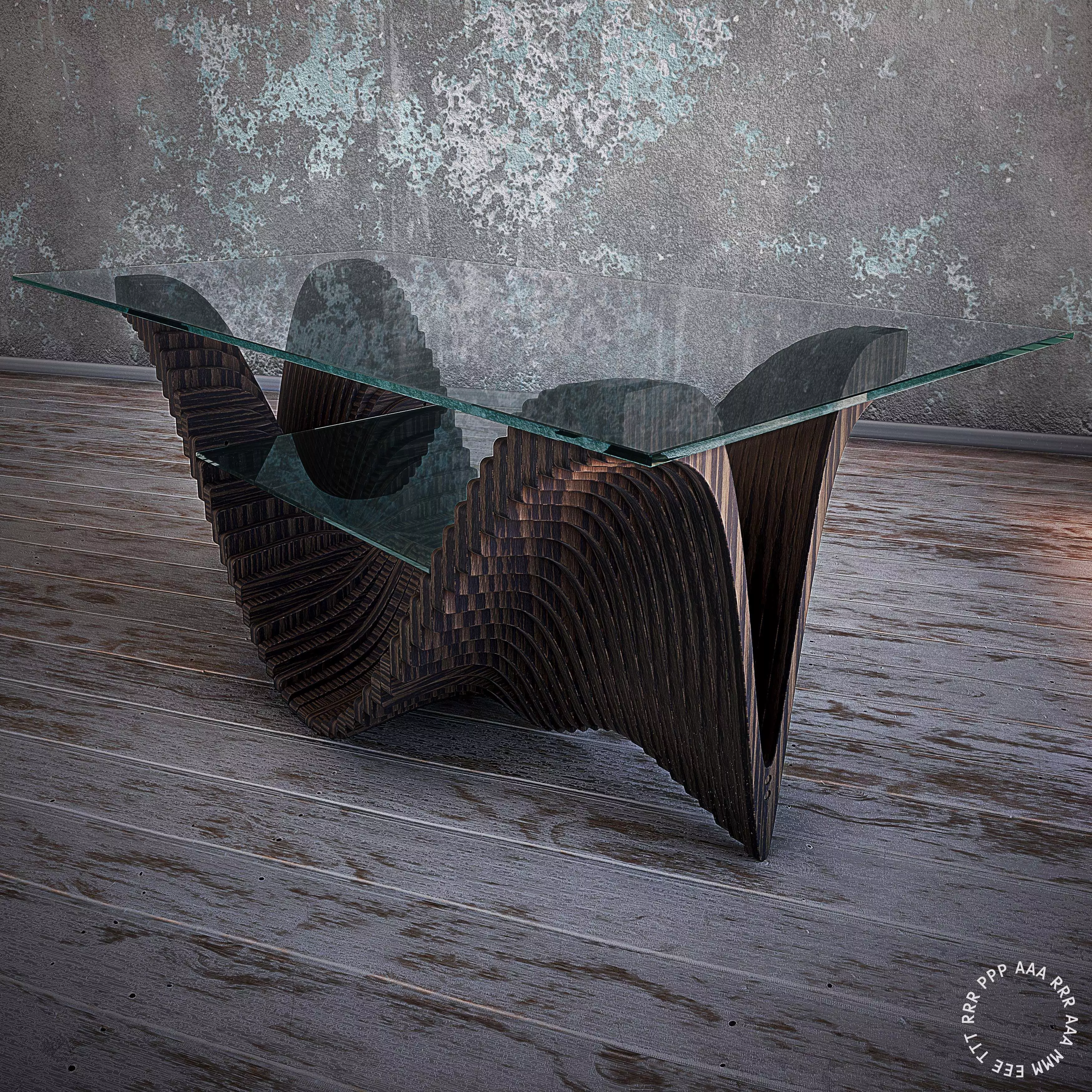

Photography of the realization was made by Tomáš Souček.
